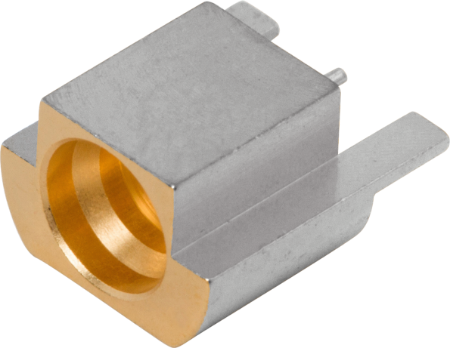

SMPS Male PCB Edge Launch Connector (Tin Dipped), FD
P/N: 3811-40003-TD

There currently isn't any inventory available in distribution. Please contact us to obtain this product.
Products specifications
Attribute name Attribute value
RF Series SMPS
Gender Plug (Male)
Coupling Push-on
Mounting Type PCB Edge Launch
Orientation (Body) Straight
Detent Full Detent
Termination Style Solder (Pre-Tinned)
Number of Ports Single
Finish Gold
Electrical
Frequency 65 GHz
Impedance 50 ohms
Shielding Effectiveness ≥ -80 dB DC - 3 GHz, ≥ -65 dB 3 - 26.5 GHz
Dielectric withstanding Voltage 250 VRMS
Mechanical
Mating Cycles - SB 500
Mating Cycles - FD 100
Insertion Force - SB 1.2 lbs
Axial Misalignment .010” Max
Withdrawal Force - SB 1.0 lbs
Insertion Force - FD 2.5 lbs
Withdrawal Force - FD 4.5 lbs
Radial Misalignment 3° Max
Environmental
Corrosion (salt spray) MIL-STD-202, Method 101, Condition B
Vibration MIL-STD-202, Method 204, Condition D
Temperature Rating -65°C to +165°C
Shock MIL-STD-202, Method 213, Condition I
Thermal Shock MIL-STD-202, Method 107, Condition B
Moisture Resistance MIL-STD-202, Method 106, Less Step 7B
Barometric Pressure (Altitude) MIL-STD-202, Method 105, Condition C, 70k Ft.


EU RoHS Directive 2011/65/EU Yes, w/ Exemption 6C

These products comply with the substance restrictions of the Restriction on Hazardous Substances Directive 2011/65/EU (RoHS2). The RoHS2 Directive requires that certain electrical and electronic equipment products do not contain mercury, cadmium, hexavalent chromium, PBB, PBDE, lead, DEHP, BBP, DBP and DIBP above defined thresholds. Products indicated as compliant with exemption contain one or more of these substances above the prohibition thresholds, but are compliant by claiming one or more valid exemptions.

EU REACH Regulation (EC) No. 1907/2006 SVHC > Threshold

These products contain one or more EU REACH Substances of Very High Concern (SVHC) > 0.1% by weight (1000 ppm). Details related to the SVHC are displayed.

REACH SVHC: LEAD, CAS #: 7439-92-1, PPM: 4000

Use personal protective equipment as required. Do not eat, drink or smoke when using this product. Wash thoroughly after handling. Recycle if possible and dispose of the article by following all applicable governmental regulations relevant to your geographic location.

This information is provided based on reasonable inquiry of our suppliers and represents our current actual knowledge based on the information they provided.

Please contact [email protected] for any Compliance or Environmental related questions.

Last Update: 6/28/2023 1:23:50 AM

Spinning Wheel; Your Submission is Loading

Contact Us

How can we help?

*
*
*
*
*
*
*
*
Products specifications
Attribute name Attribute value
RF Series SMPS
Gender Plug (Male)
Coupling Push-on
Mounting Type PCB Edge Launch
Orientation (Body) Straight
Detent Full Detent
Termination Style Solder (Pre-Tinned)
Number of Ports Single
Finish Gold
Electrical
Frequency 65 GHz
Impedance 50 ohms
Shielding Effectiveness ≥ -80 dB DC - 3 GHz, ≥ -65 dB 3 - 26.5 GHz
Dielectric withstanding Voltage 250 VRMS
Mechanical
Mating Cycles - SB 500
Mating Cycles - FD 100
Insertion Force - SB 1.2 lbs
Axial Misalignment .010” Max
Withdrawal Force - SB 1.0 lbs
Insertion Force - FD 2.5 lbs
Withdrawal Force - FD 4.5 lbs
Radial Misalignment 3° Max
Environmental
Corrosion (salt spray) MIL-STD-202, Method 101, Condition B
Vibration MIL-STD-202, Method 204, Condition D
Temperature Rating -65°C to +165°C
Shock MIL-STD-202, Method 213, Condition I
Thermal Shock MIL-STD-202, Method 107, Condition B
Moisture Resistance MIL-STD-202, Method 106, Less Step 7B
Barometric Pressure (Altitude) MIL-STD-202, Method 105, Condition C, 70k Ft.
Customers Also Viewed
Part #   3811-40003

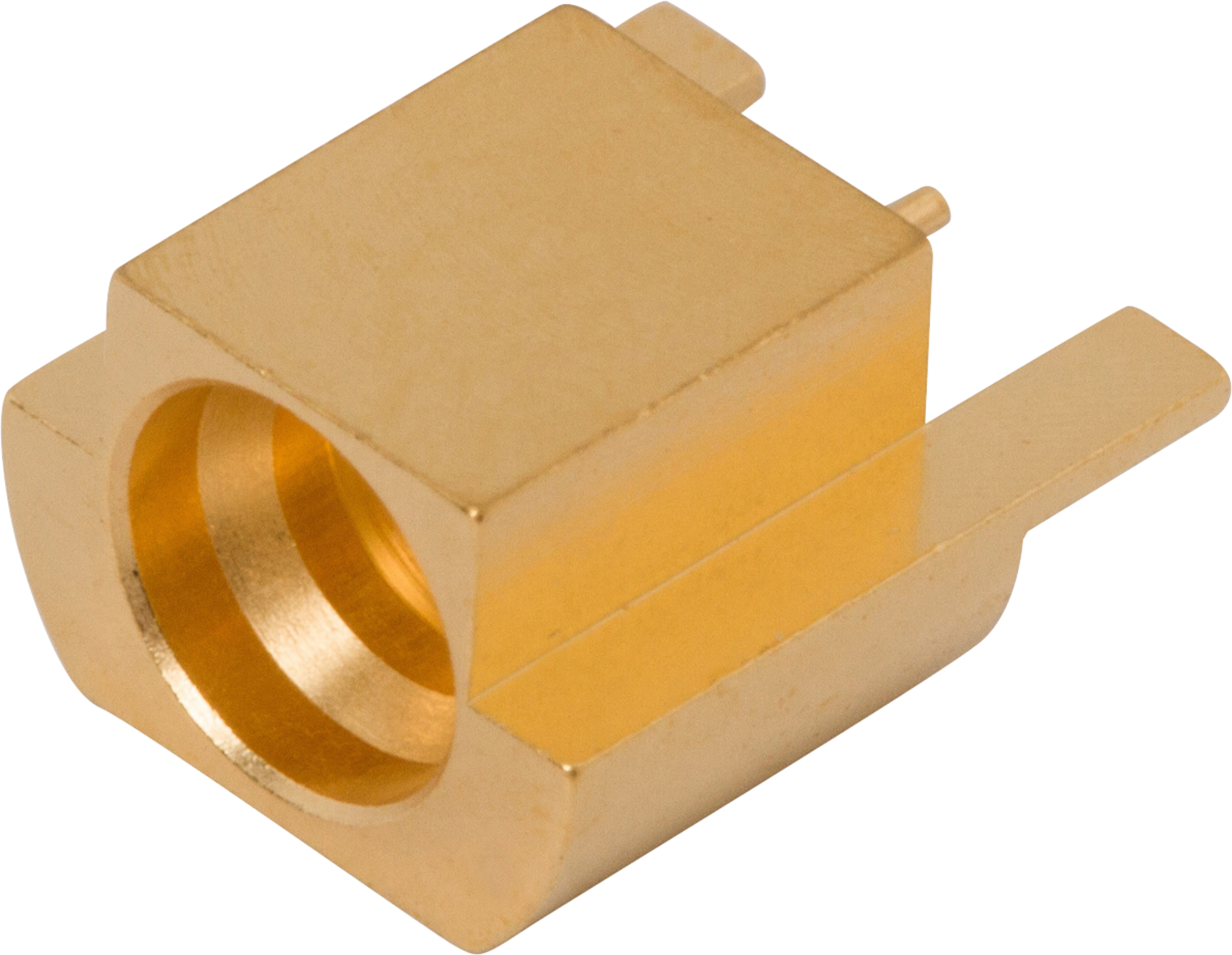

SMPS Male PCB Edge Launch Connector, FD

Available Inventory: 101
3811-40003
SMPS Connectors 3811-40003
Datasheet
Part #   3811-40004

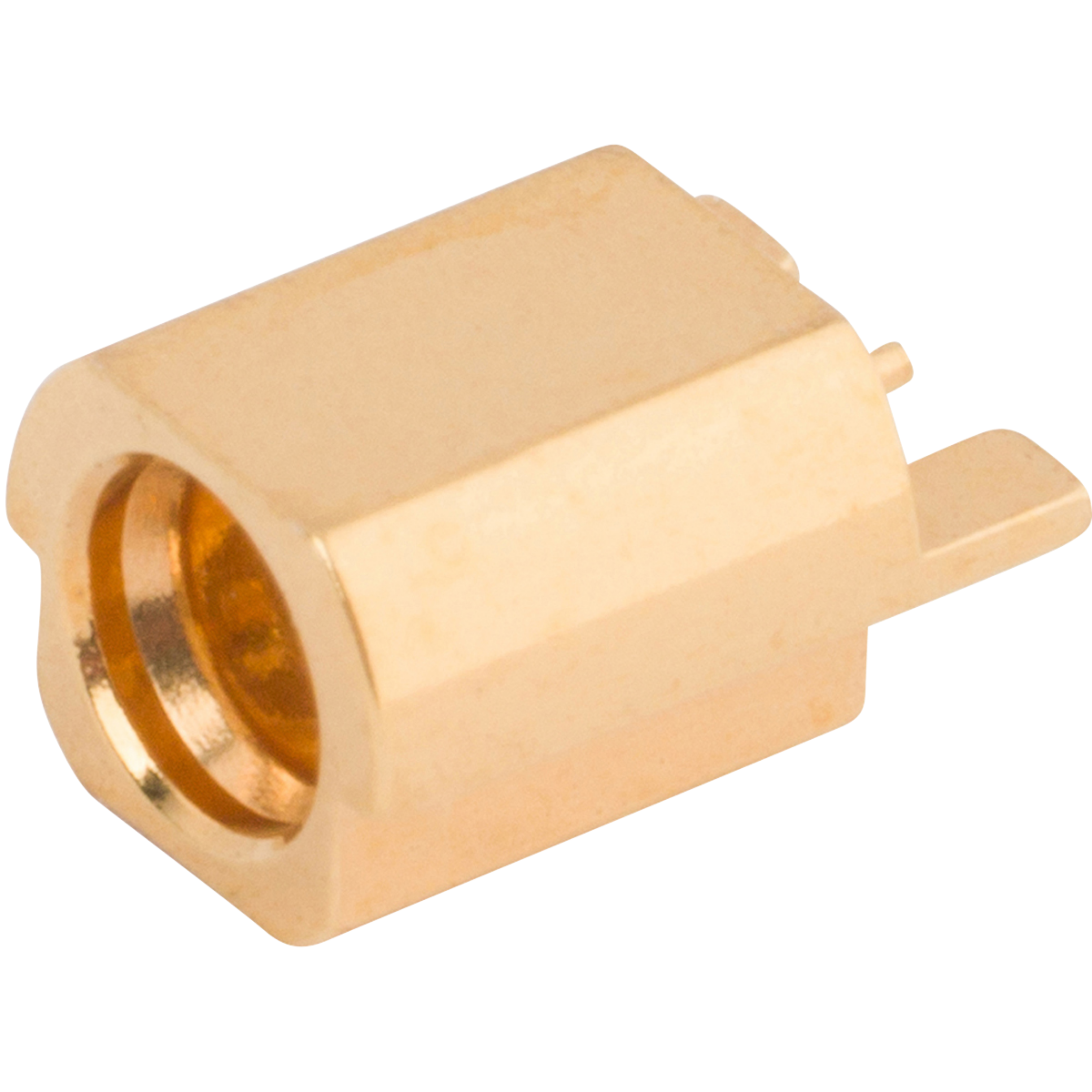

SMPS Male PCB Edge Launch Connector, SB

Available Inventory: 0
3811-40004
SMPS Connectors 3811-40004
Datasheet
Part #   3811-40004-TD

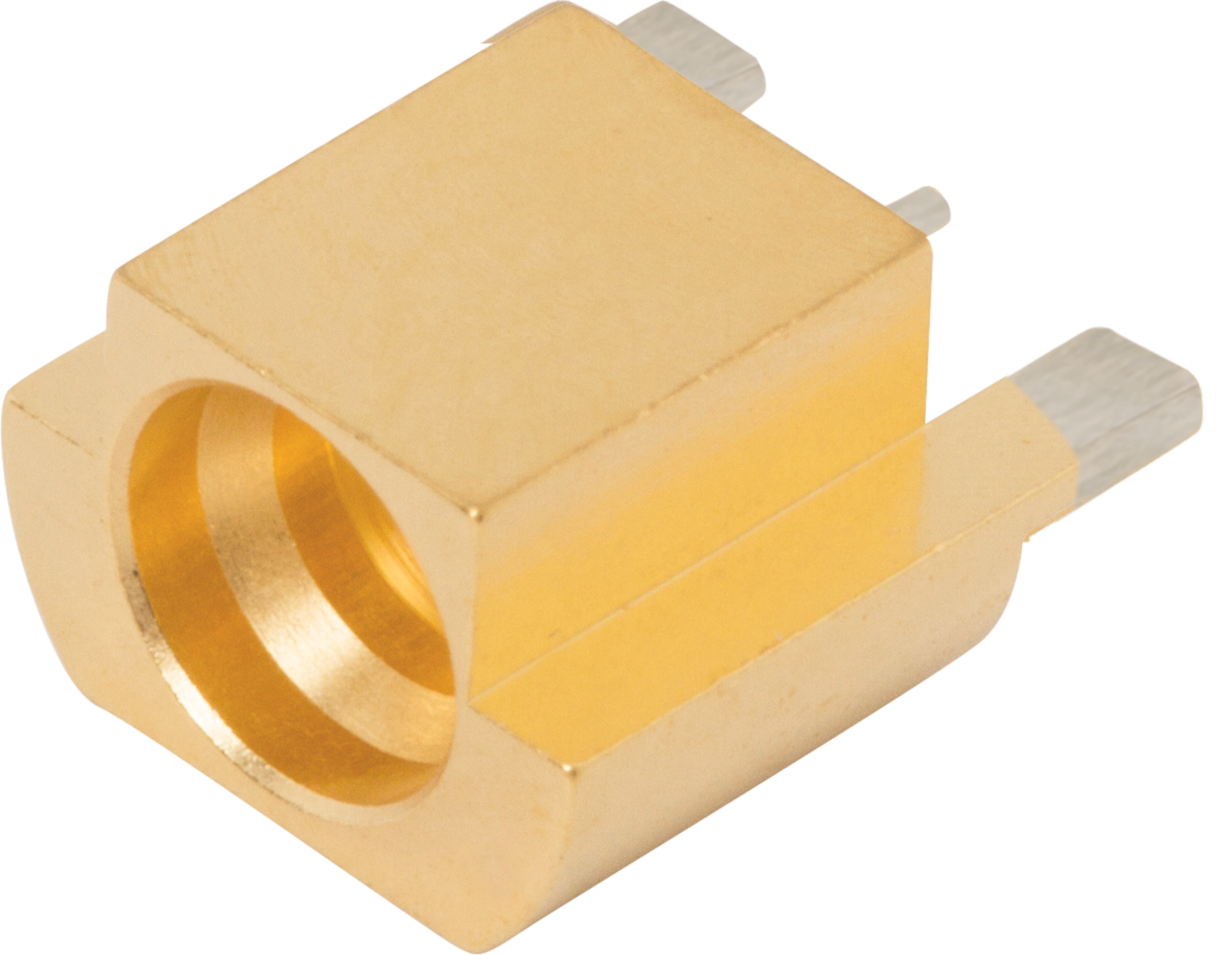

SMPS Male PCB Edge Launch Connector (Tin Dipped), SB
