SMPS Male PCB Edge Launch Connector, SB
P/N: 3811-40004

In stock at Qty Order
Digi-Key Electronics 1060
Mouser Electronics 150
Products specifications
Attribute name Attribute value
RF Series SMPS
Orientation (Body) Straight
Gender Plug (Male)
Coupling Push-on
Detent Smooth Bore
Mounting Type PCB Edge Launch
Termination Style Solder
Number of Ports Single
Finish Gold
Electrical
Impedance 50 ohms
Frequency 65 GHz
Shielding Effectiveness ≥ -80 dB DC - 3 GHz, ≥ -65 dB 3 - 26.5 GHz
Dielectric withstanding Voltage 250 VRMS
Mechanical
Mating Cycles - SB 500
Insertion Force - SB 1.2 lbs
Mating Cycles - FD 100
Withdrawal Force - FD 4.5 lbs
Withdrawal Force - SB 1.0 lbs
Insertion Force - FD 2.5 lbs
Axial Misalignment .010” Max
Radial Misalignment 3° Max
Environmental
Temperature Rating -65°C to +165°C
Corrosion (salt spray) MIL-STD-202, Method 101, Condition B
Vibration MIL-STD-202, Method 204, Condition D
Shock MIL-STD-202, Method 213, Condition I
Thermal Shock MIL-STD-202, Method 107, Condition B
Barometric Pressure (Altitude) MIL-STD-202, Method 105, Condition C, 70k Ft.
Moisture Resistance MIL-STD-202, Method 106, Less Step 7B


EU RoHS Directive 2011/65/EU Yes, w/ Exemption 6C

These products comply with the substance restrictions of the Restriction on Hazardous Substances Directive 2011/65/EU (RoHS2). The RoHS2 Directive requires that certain electrical and electronic equipment products do not contain mercury, cadmium, hexavalent chromium, PBB, PBDE, lead, DEHP, BBP, DBP and DIBP above defined thresholds. Products indicated as compliant with exemption contain one or more of these substances above the prohibition thresholds, but are compliant by claiming one or more valid exemptions.

This information is provided based on reasonable inquiry of our suppliers and represents our current actual knowledge based on the information they provided.

Please contact compliance@svmicro.com for any Compliance or Environmental related questions.

Last Update: 12/4/2022 1:07:40 AM

Contact Us

How can we help?

*
*
*
*
*
*
*
*
Products specifications
Attribute name Attribute value
RF Series SMPS
Orientation (Body) Straight
Gender Plug (Male)
Coupling Push-on
Detent Smooth Bore
Mounting Type PCB Edge Launch
Termination Style Solder
Number of Ports Single
Finish Gold
Electrical
Impedance 50 ohms
Frequency 65 GHz
Shielding Effectiveness ≥ -80 dB DC - 3 GHz, ≥ -65 dB 3 - 26.5 GHz
Dielectric withstanding Voltage 250 VRMS
Mechanical
Mating Cycles - SB 500
Insertion Force - SB 1.2 lbs
Mating Cycles - FD 100
Withdrawal Force - FD 4.5 lbs
Withdrawal Force - SB 1.0 lbs
Insertion Force - FD 2.5 lbs
Axial Misalignment .010” Max
Radial Misalignment 3° Max
Environmental
Temperature Rating -65°C to +165°C
Corrosion (salt spray) MIL-STD-202, Method 101, Condition B
Vibration MIL-STD-202, Method 204, Condition D
Shock MIL-STD-202, Method 213, Condition I
Thermal Shock MIL-STD-202, Method 107, Condition B
Barometric Pressure (Altitude) MIL-STD-202, Method 105, Condition C, 70k Ft.
Moisture Resistance MIL-STD-202, Method 106, Less Step 7B
Customers Also Viewed
Part #   3211-60035

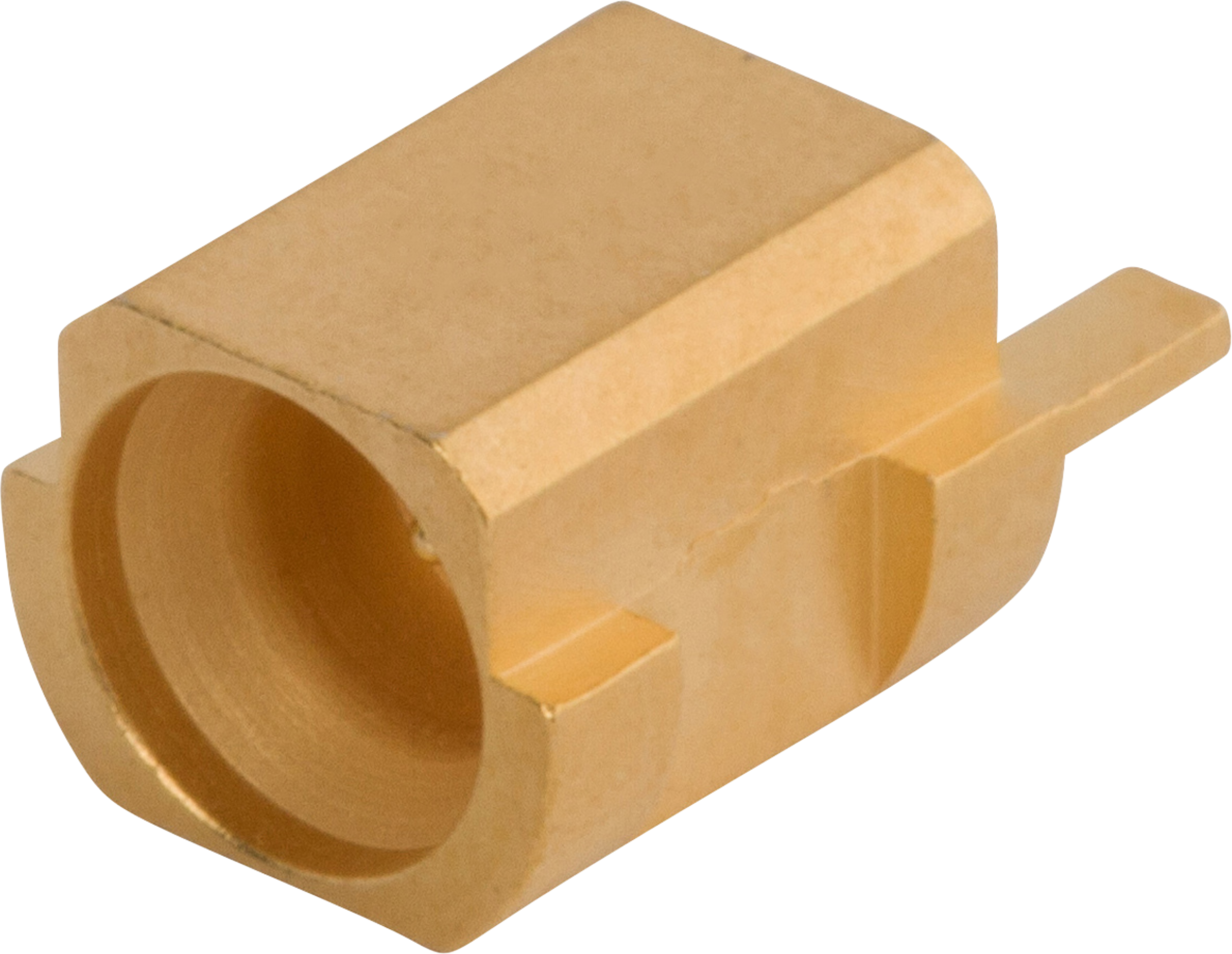

SMPM Male PCB Edge Launch Connector, SB

Available Inventory: 3653
3211-60035
SMPM Connectors 3211-60035
Datasheet
Part #   3811-40003

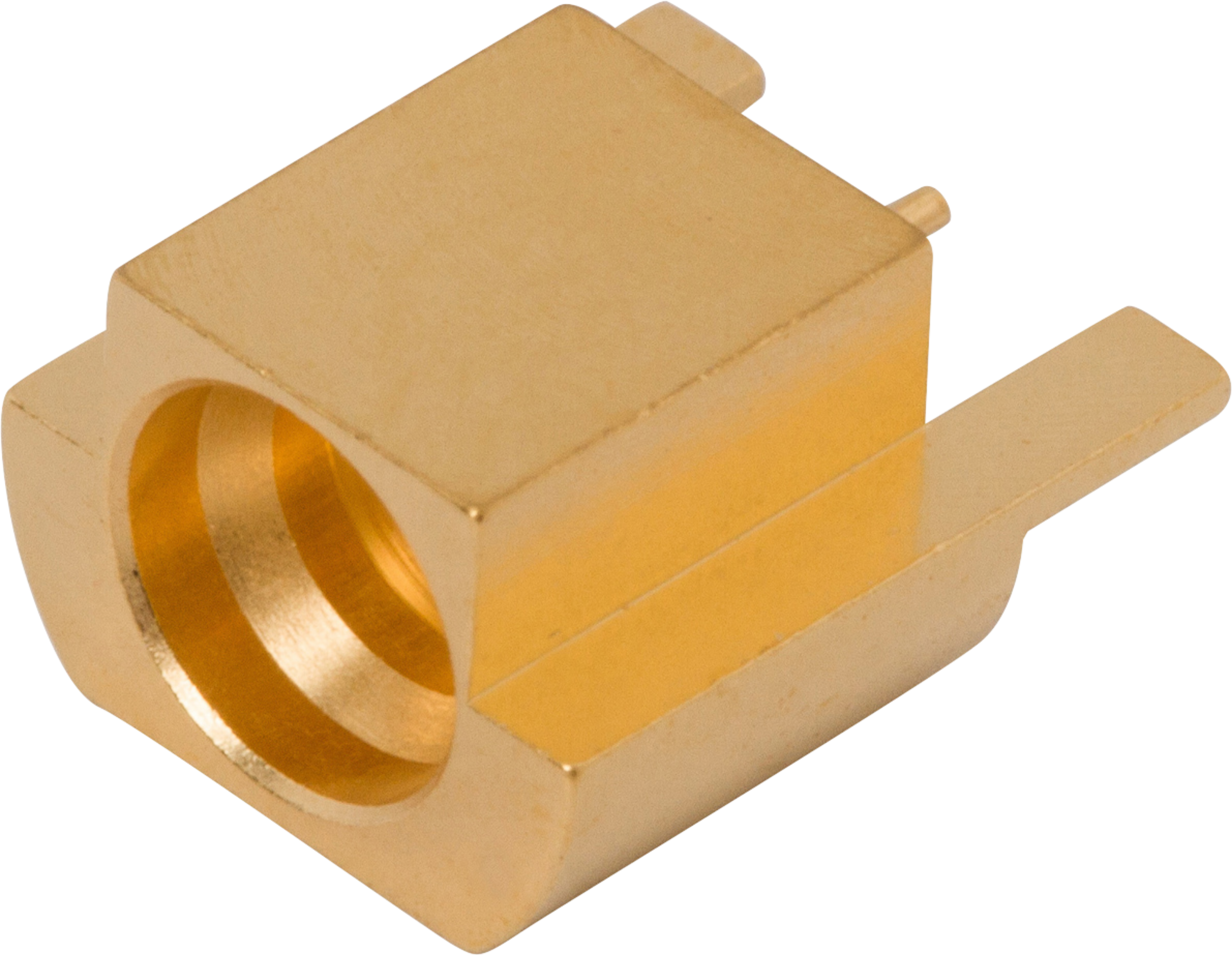

SMPS Male PCB Edge Launch Connector, FD

Available Inventory: 786
3811-40003
SMPS Connectors 3811-40003
Datasheet
Part #   3811-40004-TD

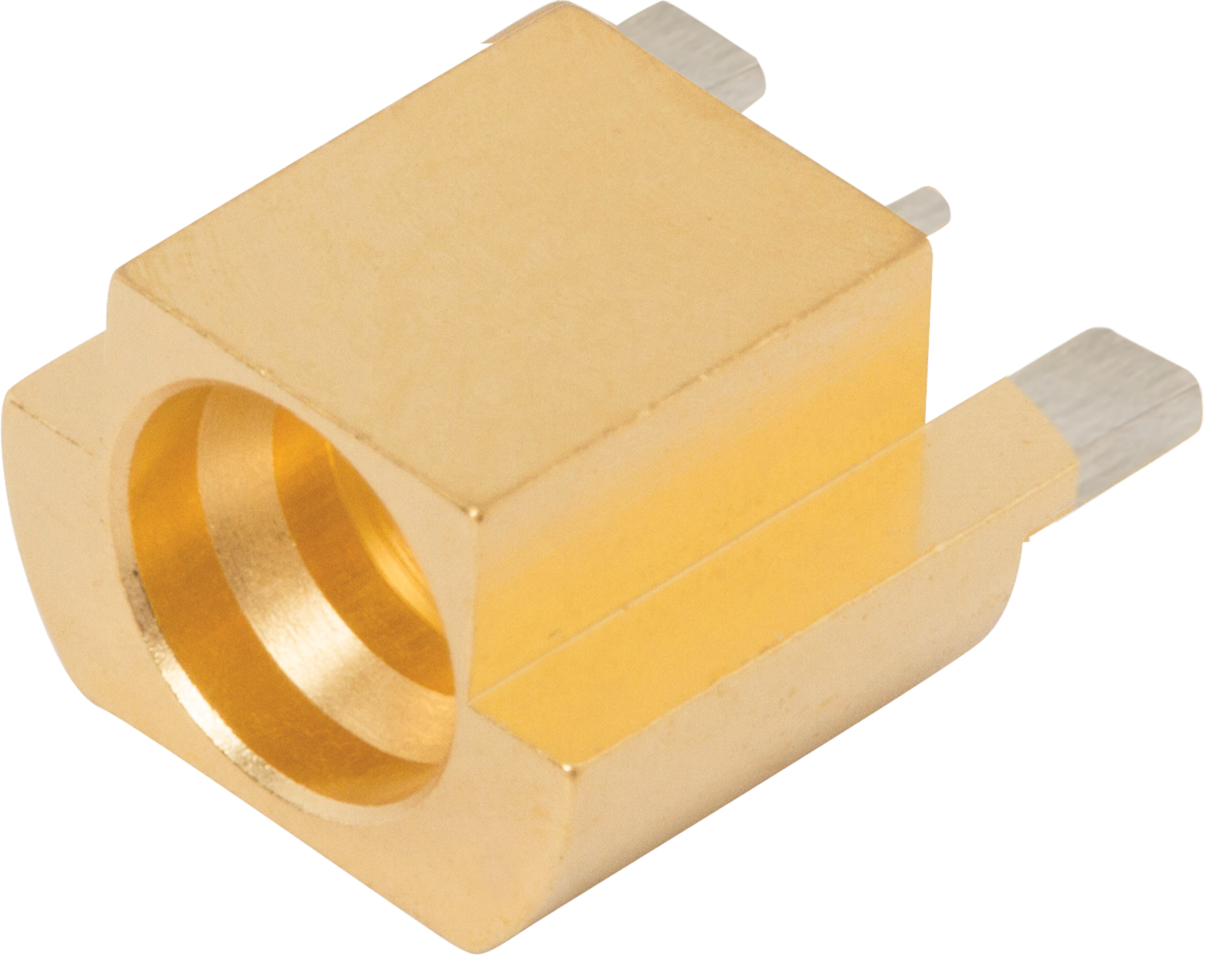

SMPS Male PCB Edge Launch Connector (Tin Dipped), SB
