P/N: 7038-0253

SMPS Female to SMPS Female 6" Cable Assembly for .047 Cable

In stock at Qty Order
Mouser Electronics 5
Products specifications
Attribute name Attribute value
RF Series SMPS
Gender Jack (Female)
Coupling Push-on
Orientation (Body) Straight
Number of Ports Single
RF Series 2 SMPS
Termination Style Solder
Gender 2 Jack (Female)
Orientation 2 (Body) Straight
Cable Type 0.047 Flexible Coax
Cable Length 6"
Electrical
Frequency 65 GHz
Impedance 50 ohms
Shielding Effectiveness ≥ -80 dB DC - 3 GHz, ≥ -65 dB 3 - 26.5 GHz
Dielectric withstanding Voltage 250 VRMS
Mechanical
Mating Cycles - SB 500
Mating Cycles - FD 100
Insertion Force - SB 1.2 lbs
Insertion Force - FD 2.5 lbs
Withdrawal Force - SB 1.0 lbs
Withdrawal Force - FD 4.5 lbs
Axial Misalignment .010” Max
Radial Misalignment 3° Max
Environmental
Corrosion (salt spray) MIL-STD-202, Method 101, Condition B
Vibration MIL-STD-202, Method 204, Condition D
Temperature Rating -65°C to +165°C
Shock MIL-STD-202, Method 213, Condition I
Thermal Shock MIL-STD-202, Method 107, Condition B
Moisture Resistance MIL-STD-202, Method 106, Less Step 7B
Barometric Pressure (Altitude) MIL-STD-202, Method 105, Condition C, 70k Ft.

Contact Us

How can we help?

*
*
*
*
*
*
*
Products specifications
Attribute name Attribute value
RF Series SMPS
Gender Jack (Female)
Coupling Push-on
Orientation (Body) Straight
Number of Ports Single
RF Series 2 SMPS
Termination Style Solder
Gender 2 Jack (Female)
Orientation 2 (Body) Straight
Cable Type 0.047 Flexible Coax
Cable Length 6"
Electrical
Frequency 65 GHz
Impedance 50 ohms
Shielding Effectiveness ≥ -80 dB DC - 3 GHz, ≥ -65 dB 3 - 26.5 GHz
Dielectric withstanding Voltage 250 VRMS
Mechanical
Mating Cycles - SB 500
Mating Cycles - FD 100
Insertion Force - SB 1.2 lbs
Insertion Force - FD 2.5 lbs
Withdrawal Force - SB 1.0 lbs
Withdrawal Force - FD 4.5 lbs
Axial Misalignment .010” Max
Radial Misalignment 3° Max
Environmental
Corrosion (salt spray) MIL-STD-202, Method 101, Condition B
Vibration MIL-STD-202, Method 204, Condition D
Temperature Rating -65°C to +165°C
Shock MIL-STD-202, Method 213, Condition I
Thermal Shock MIL-STD-202, Method 107, Condition B
Moisture Resistance MIL-STD-202, Method 106, Less Step 7B
Barometric Pressure (Altitude) MIL-STD-202, Method 105, Condition C, 70k Ft.
Customers Also Viewed
Part #   7038-0251

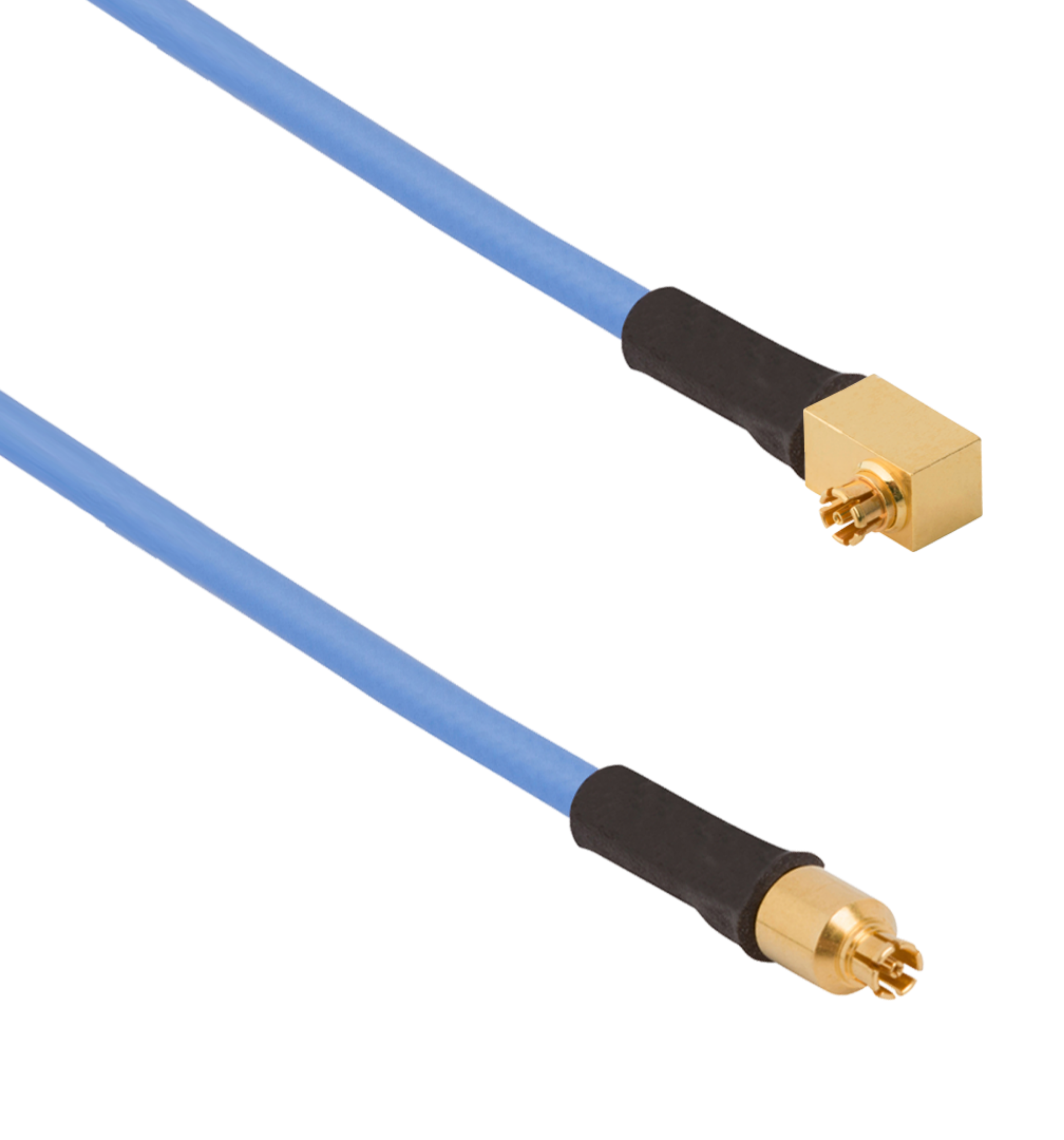

SMPS Female to SMPS Female R/A 6" Cable Assembly for .047 Cable

Available Inventory: 22
7038-0251
SMPS Cable Assemblies 7038-0251
Datasheet
Part #   7038-0252

SMPS Female to SMPS Female R/A 12" Cable Assembly for .047 Cable

Available Inventory: 20
7038-0252
SMPS Cable Assemblies 7038-0252
Datasheet
Part #   7038-0254

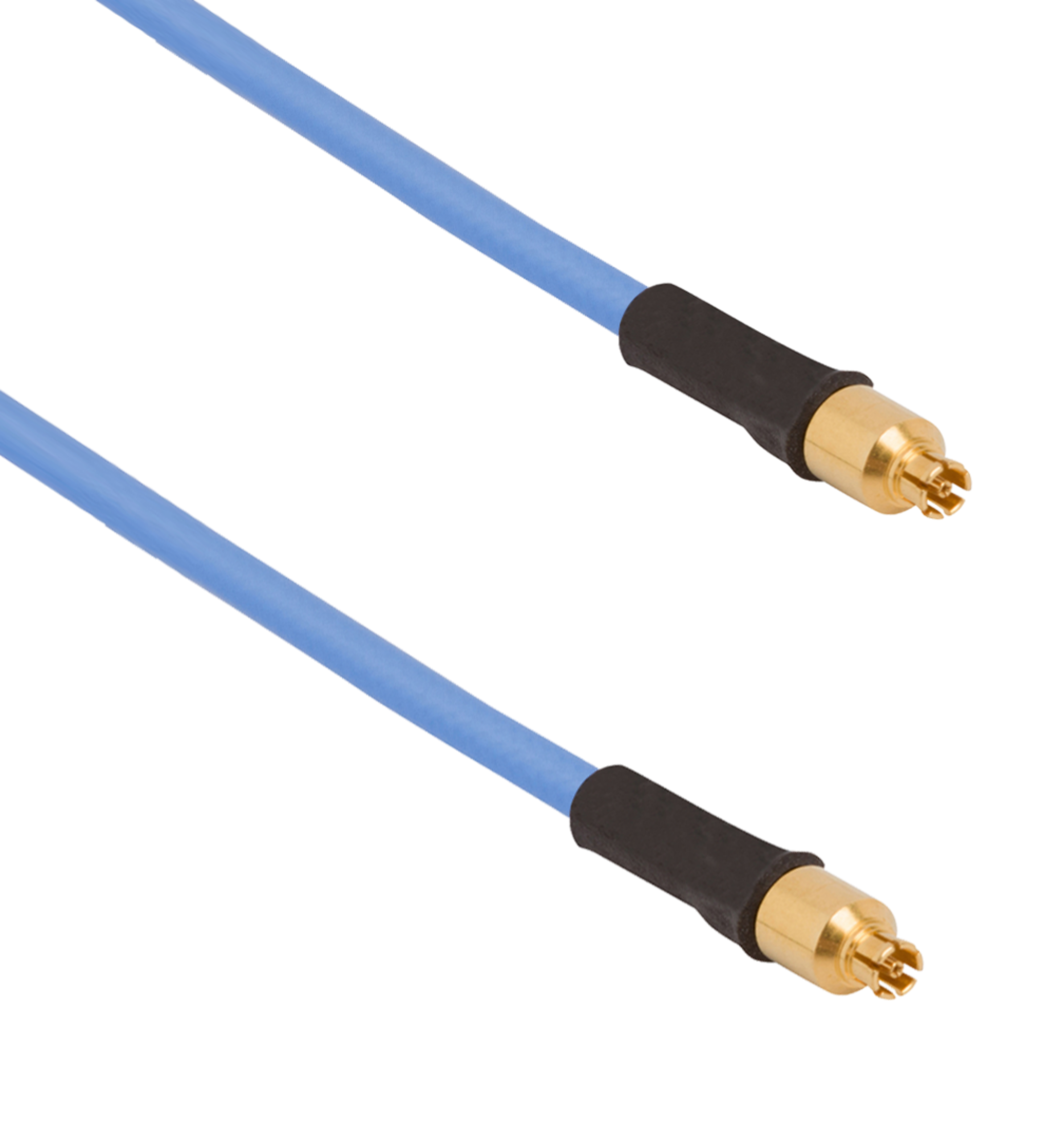

SMPS Female to SMPS Female 12" Cable Assembly for .047 Cable
