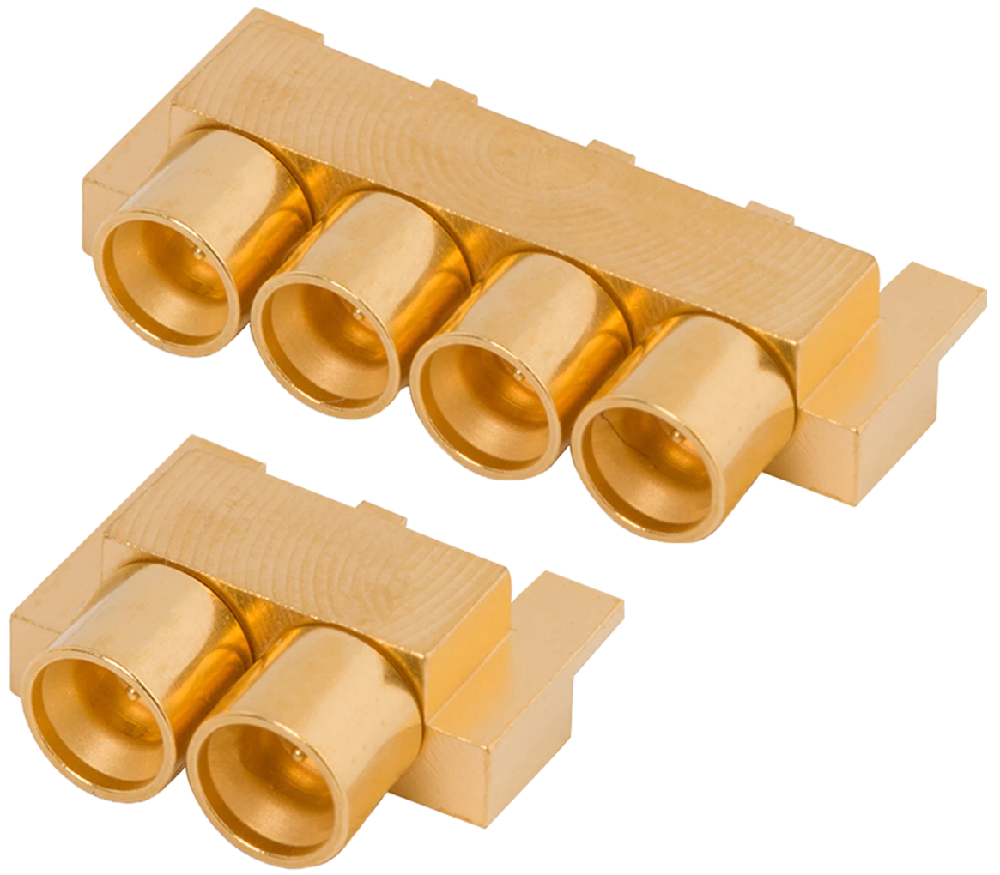

SMPM-XT RF Interconnects Now In Stock
SV Microwave's new line of SMPM-XT RF interconnects is now in stock! This line offers a complete board-to-board solution engineered for today's most compact and demanding RF designs, featuring fixed-length bullets and single, two-, and four-port mating halves. These interconnects are designed to maintain reliable electrical performance even when mechanical tolerances vary. With an extended interface, they can accommodate a greater degree of axial tolerance. This ensures secure and repeatable board-to-board connections up to 12 GHz.
Features & Benefits
-
Cost-effective alternative to spring bullets
-
Variety of bullet lengths available
-
Increases axial misalignment to 0.040" tolerance
-
DC - 12 GHz
Applications
-
Large-scale blind-mate arrays
-
Mil/Aero
-
Board-to-Board Applications
Product's Part Numbers and Description
| Part No. | Description |
|
|

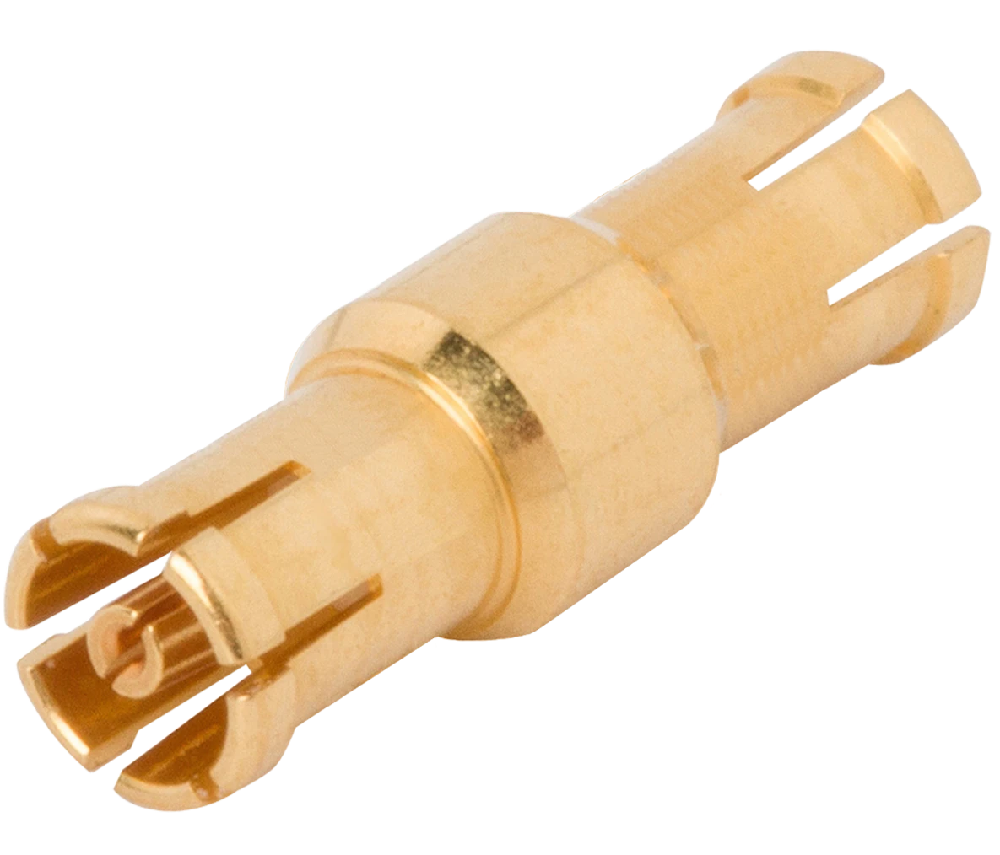

SMPM-XT Female to Female Bullet (OAL 0.330) |
|
|

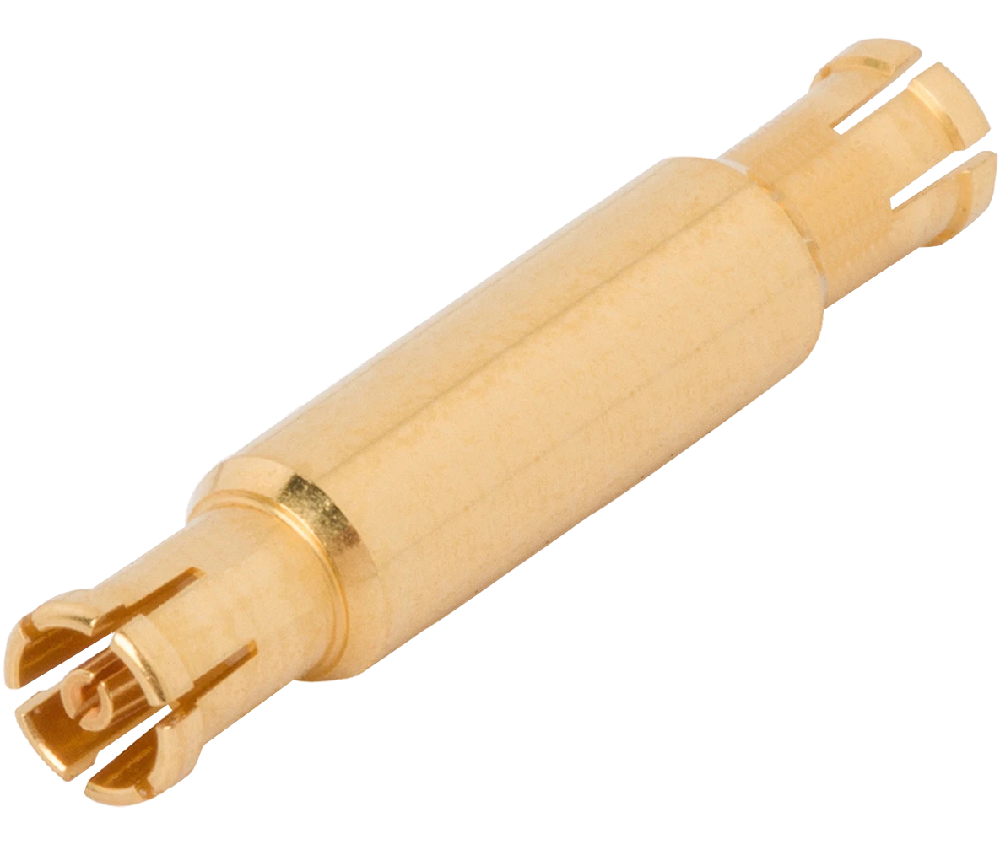

SMPM-XT Female to Female Bullet (OAL 0.600) |
|
|

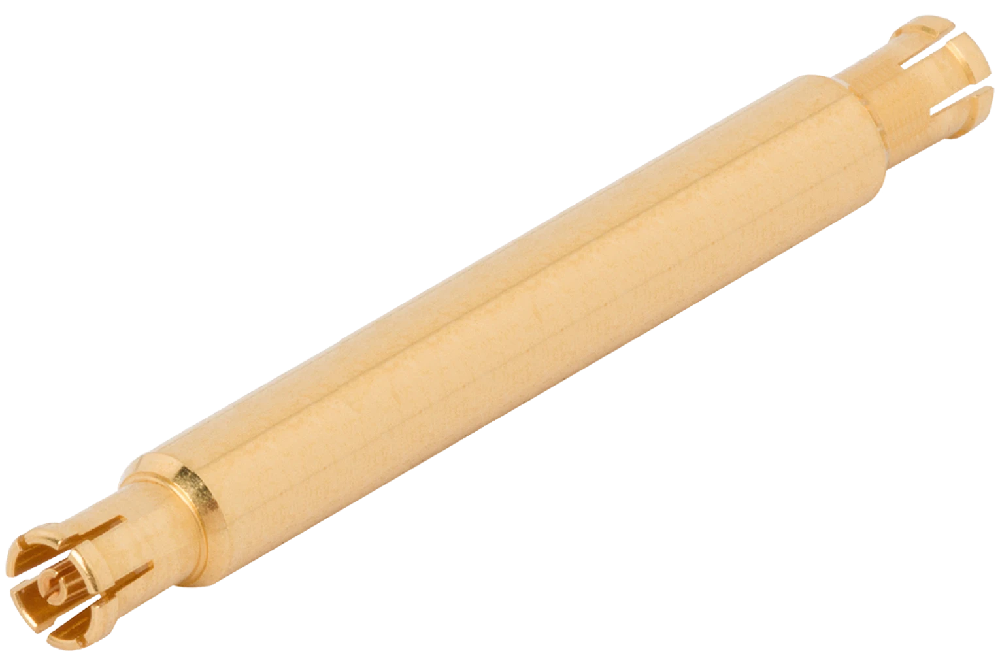

SMPM-XT Female to Female Bullet (OAL 0.960) |
|
|

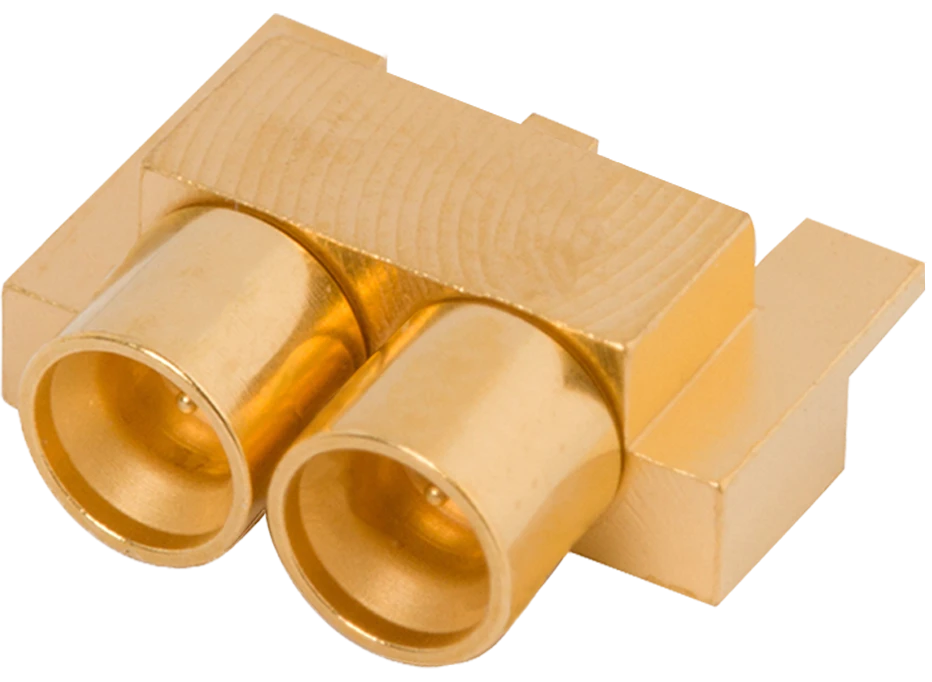

SMPM-XT Male PCB Edge Launch Connector, 2 Port, SB |
|
|

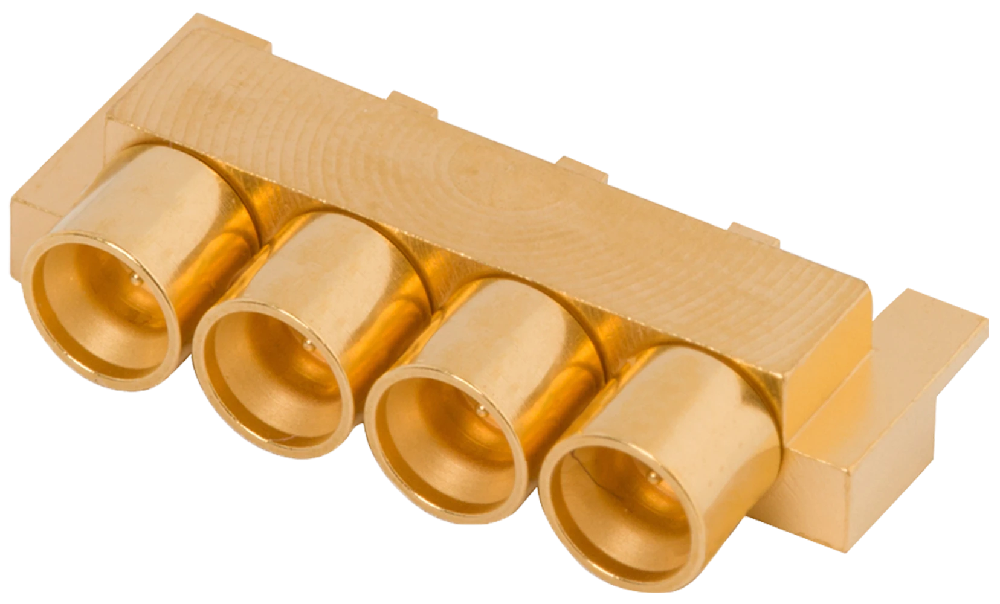

SMPM-XT Male PCB Edge Launch Connector, 4 Port, SB |
|
|

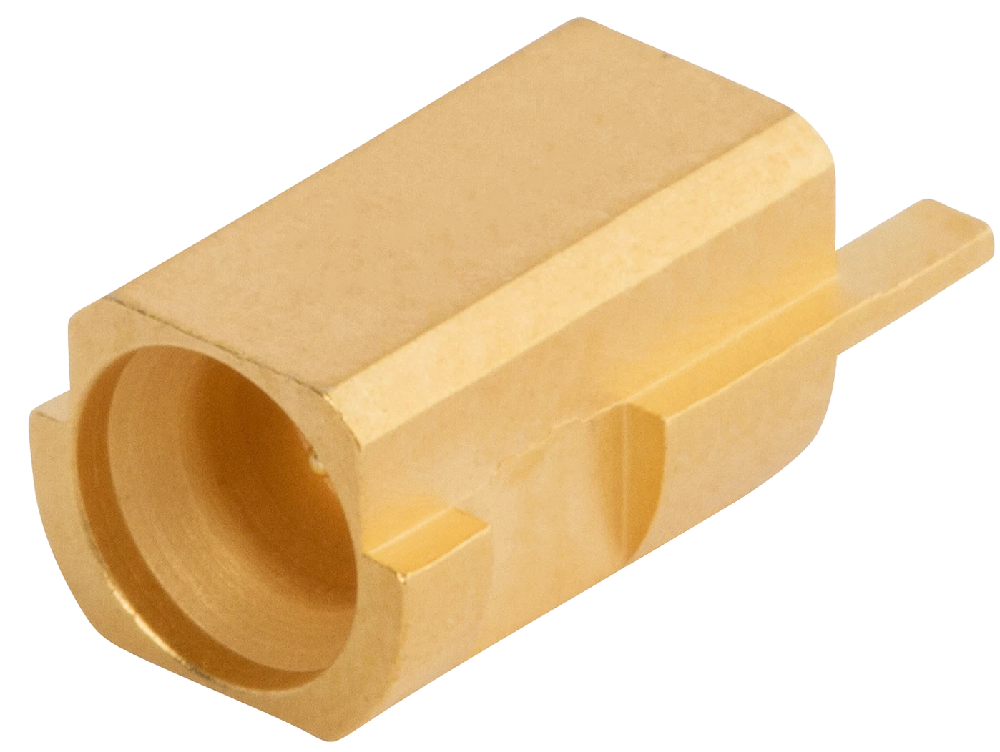

SMPM-XT Male PCB Edge Launch Connector, SB |
|
|

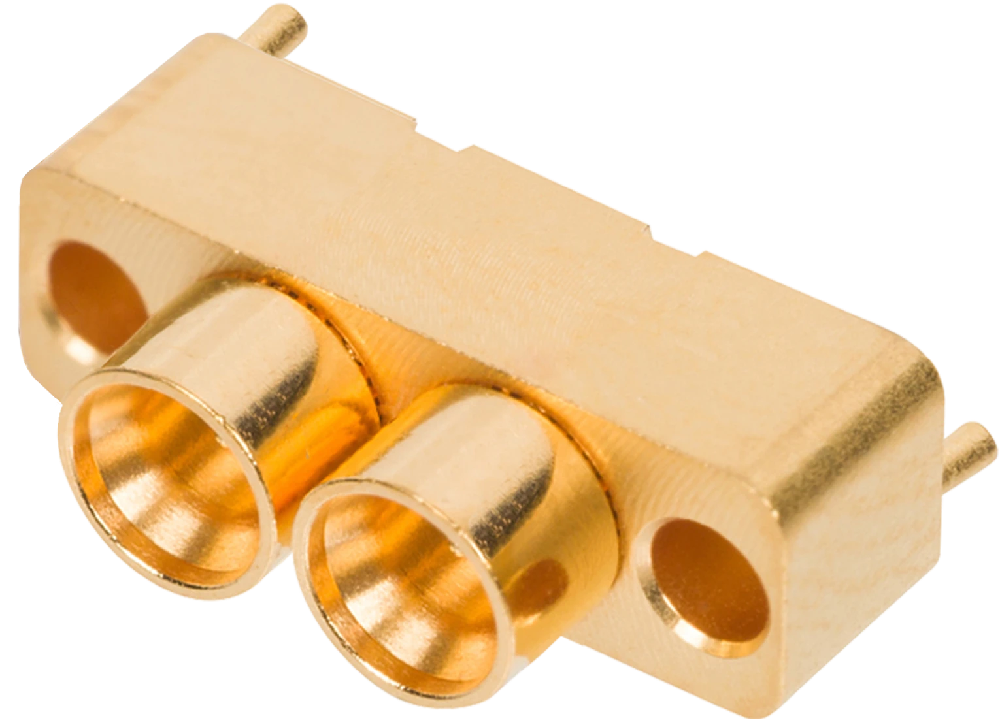

SMPM-XT Male PCB Surface Mount Connector, 2 Port, SB |
|
|

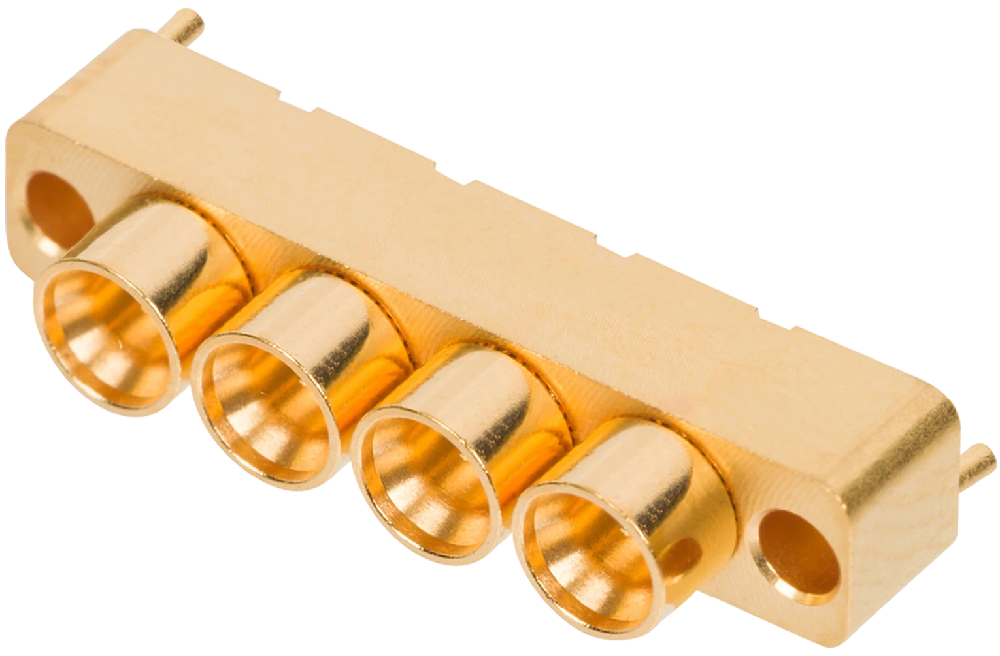

SMPM-XT Male PCB Surface Mount Connector, 4 Port, SB |
|
|

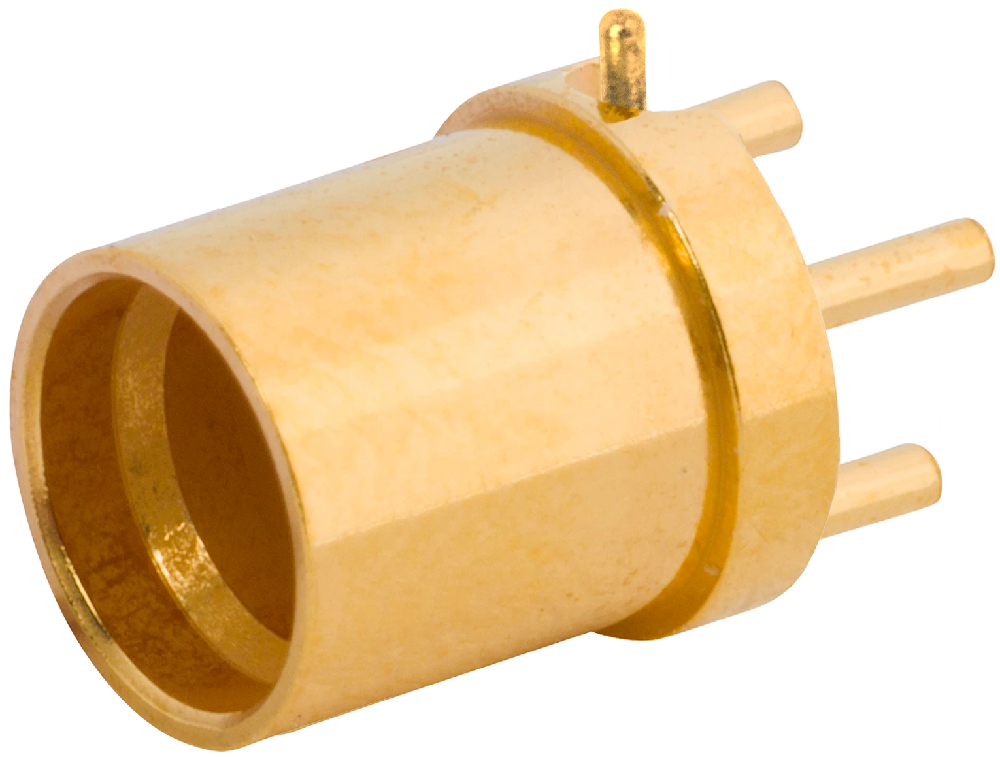

SMPM-XT Male PCB Surface Mount Connector, SB |
