SMPM Female QB Connector, R/A for .085 Cable
P/N: 3222-60004

This part number is currently unavailable. Please contact us for more information.
Products specifications
Attribute name Attribute value
Family QuarterBack
RF Series SMPM
Gender Jack (Female)
Coupling Keyed
Orientation (Body) Right Angle
Keyed Subtype 180-180
Termination Style Solder
Number of Ports Single
Finish Passivated
Cable Type 0.085 Flexible Coax
Electrical
Frequency 40 GHz
Impedance 50 ohms
Dielectric withstanding Voltage 325 VRMS
Shielding Effectiveness ≥ -80 dB DC - 3 GHz, ≥ -65 dB 3 - 26.5 GHz
Mechanical
Insertion Force - FD 4.5 lbs
Withdrawal Force - SB 1.5 lbs
Mating Cycles - SB 500
Axial Misalignment .010” Max
Withdrawal Force - FD 6.5 lbs
Radial Misalignment 3° Max
Mating Cycles - FD 100
Insertion Force - SB 2.5 lbs
Environmental
Vibration MIL-STD-202, Method 204, Condition D
Shock MIL-STD-202, Method 213, Condition I
Corrosion (salt spray) MIL-STD-202, Method 101, Condition B
Barometric Pressure (Altitude) MIL-STD-202, Method 105, Condition C, 70k Ft.
Moisture Resistance MIL-STD-202, Method 106, Less Step 7B
Temperature Rating -65°C to +165°C
Thermal Shock MIL-STD-202, Method 107, Condition B
Spinning Wheel; Your Submission is Loading

Contact Us

How can we help?

*
*
*
*
*
*
*
*
Products specifications
Attribute name Attribute value
Family QuarterBack
RF Series SMPM
Gender Jack (Female)
Coupling Keyed
Orientation (Body) Right Angle
Keyed Subtype 180-180
Termination Style Solder
Number of Ports Single
Finish Passivated
Cable Type 0.085 Flexible Coax
Electrical
Frequency 40 GHz
Impedance 50 ohms
Dielectric withstanding Voltage 325 VRMS
Shielding Effectiveness ≥ -80 dB DC - 3 GHz, ≥ -65 dB 3 - 26.5 GHz
Mechanical
Insertion Force - FD 4.5 lbs
Withdrawal Force - SB 1.5 lbs
Mating Cycles - SB 500
Axial Misalignment .010” Max
Withdrawal Force - FD 6.5 lbs
Radial Misalignment 3° Max
Mating Cycles - FD 100
Insertion Force - SB 2.5 lbs
Environmental
Vibration MIL-STD-202, Method 204, Condition D
Shock MIL-STD-202, Method 213, Condition I
Corrosion (salt spray) MIL-STD-202, Method 101, Condition B
Barometric Pressure (Altitude) MIL-STD-202, Method 105, Condition C, 70k Ft.
Moisture Resistance MIL-STD-202, Method 106, Less Step 7B
Temperature Rating -65°C to +165°C
Thermal Shock MIL-STD-202, Method 107, Condition B
Product tags
Customers Also Viewed

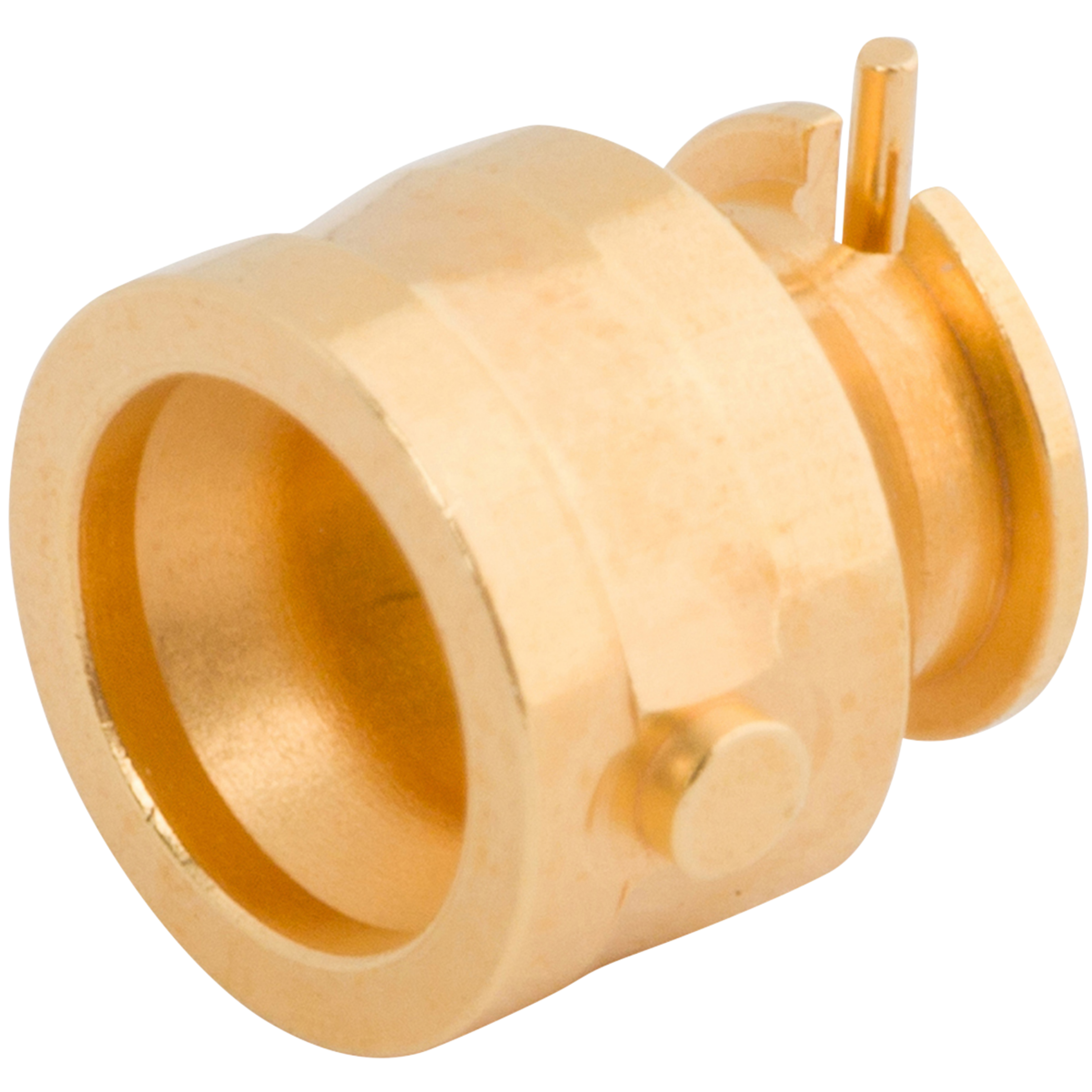

Part #   3211-60112

SMPM Male PCB QB Surface Mount Connector, R/A

Available Inventory: 220
3211-60112
SMPM Connectors 3211-60112
Datasheet

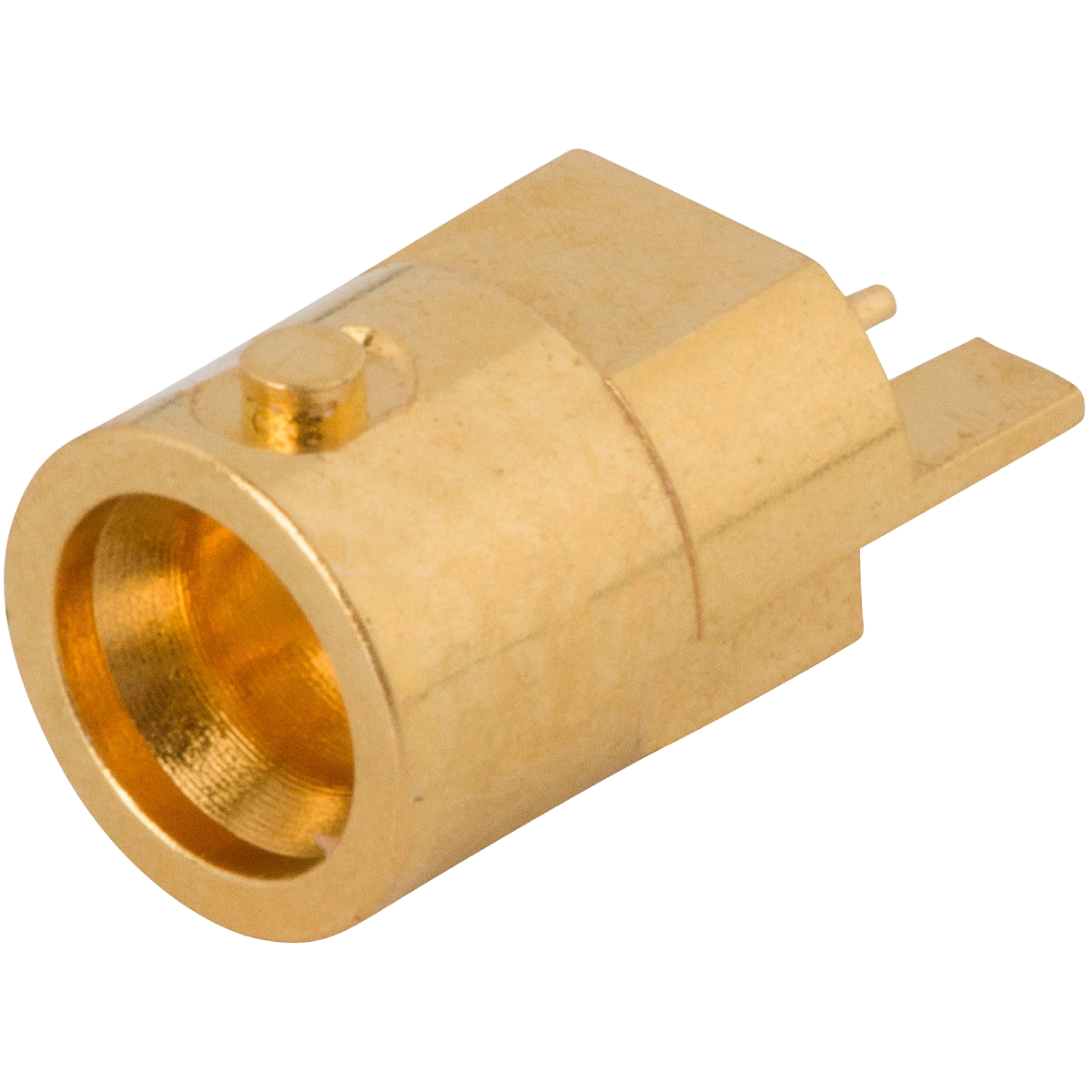

Part #   3211-60118

SMPM Male PCB QB Edge Launch Connector, SB

Available Inventory: 1909
3211-60118
SMPM Connectors 3211-60118
Datasheet

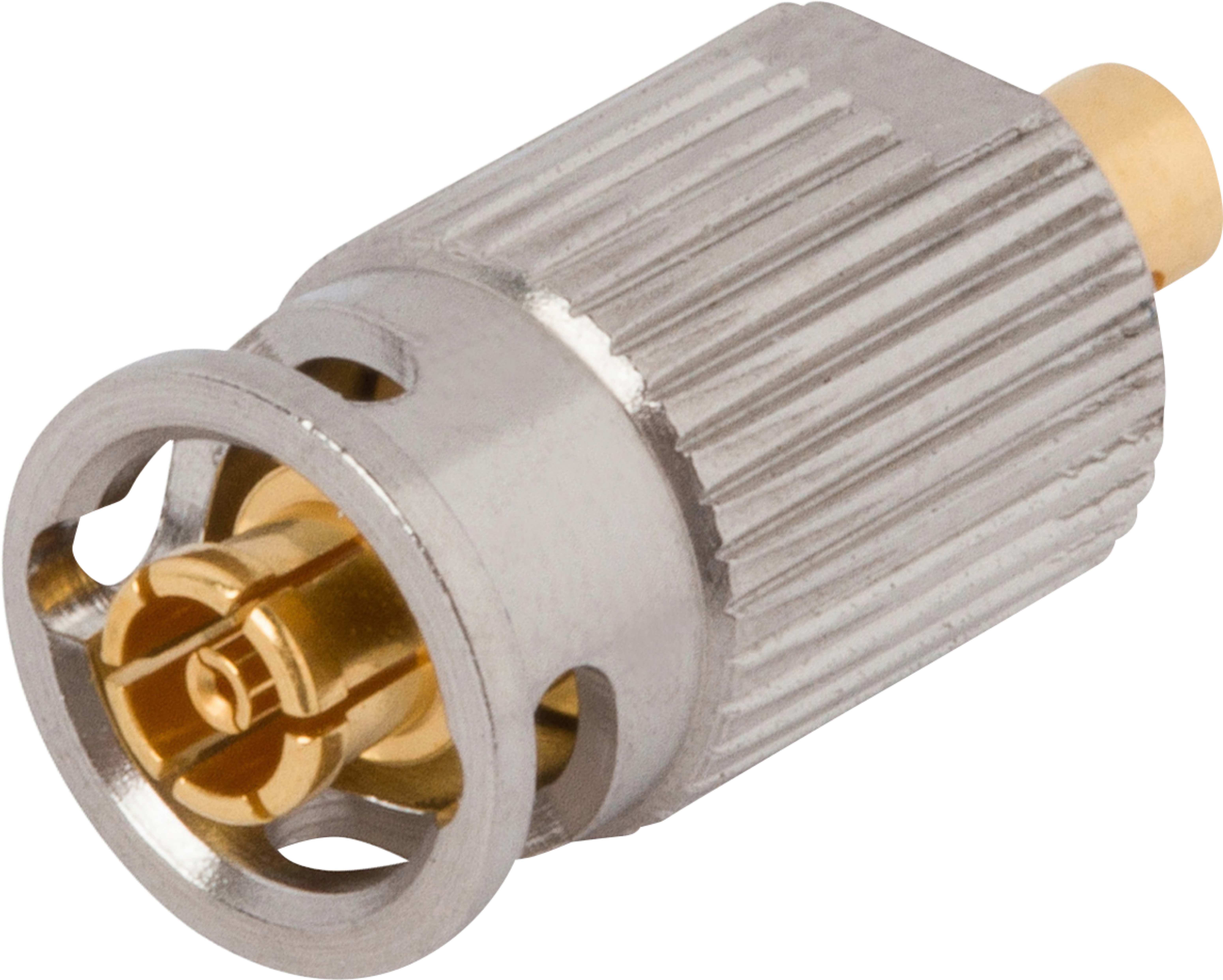

Part #   3221-60004
