SMPM Male PCB QB Edge Launch Connector, SB
P/N: 3211-60118

In stock at Qty Order
Digi-Key Electronics 1068
Master Electronics 272
Onlinecomponents.com 272
Mouser Electronics 99
Newark 99
Farnell 99
Products specifications
Attribute name Attribute value
Family QuarterBack
RF Series SMPM
Gender Plug (Male)
Orientation (Body) Straight
Coupling Keyed
Keyed Subtype 180-180
Detent Smooth Bore
Mounting Type PCB Edge Launch
Termination Style Solder
Finish Gold
Number of Ports Single
Electrical
Frequency 65 GHz
Impedance 50 ohms
Shielding Effectiveness ≥ -80 dB DC - 3 GHz, ≥ -65 dB 3 - 26.5 GHz
Dielectric withstanding Voltage 325 VRMS
Mechanical
Mating Cycles - SB 500
Mating Cycles - FD 100
Insertion Force - SB 2.5 lbs
Insertion Force - FD 4.5 lbs
Withdrawal Force - SB 1.5 lbs
Axial Misalignment .010” Max
Withdrawal Force - FD 6.5 lbs
Radial Misalignment 3° Max
Environmental
Corrosion (salt spray) MIL-STD-202, Method 101, Condition B
Temperature Rating -65°C to +165°C
Vibration MIL-STD-202, Method 204, Condition D
Shock MIL-STD-202, Method 213, Condition I
Thermal Shock MIL-STD-202, Method 107, Condition B
Moisture Resistance MIL-STD-202, Method 106, Less Step 7B
Barometric Pressure (Altitude) MIL-STD-202, Method 105, Condition C, 70k Ft.


EU RoHS Directive 2011/65/EU Yes, w/ Exemption 6C

These products comply with the substance restrictions of the Restriction on Hazardous Substances Directive 2011/65/EU (RoHS2). The RoHS2 Directive requires that certain electrical and electronic equipment products do not contain mercury, cadmium, hexavalent chromium, PBB, PBDE, lead, DEHP, BBP, DBP and DIBP above defined thresholds. Products indicated as compliant with exemption contain one or more of these substances above the prohibition thresholds, but are compliant by claiming one or more valid exemptions.

EU REACH Regulation (EC) No. 1907/2006 SVHC > Threshold

These products contain one or more EU REACH Substances of Very High Concern (SVHC) > 0.1% by weight (1000 ppm). Details related to the SVHC are displayed.

REACH SVHC: LEAD, CAS #: 7439-92-1, PPM: 4000

Use personal protective equipment as required. Do not eat, drink or smoke when using this product. Wash thoroughly after handling. Recycle if possible and dispose of the article by following all applicable governmental regulations relevant to your geographic location.

This information is provided based on reasonable inquiry of our suppliers and represents our current actual knowledge based on the information they provided.

Please contact [email protected] for any Compliance or Environmental related questions.

Last Update: 6/28/2023 1:23:28 AM

Spinning Wheel; Your Submission is Loading

Contact Us

How can we help?

*
*
*
*
*
*
*
*
Products specifications
Attribute name Attribute value
Family QuarterBack
RF Series SMPM
Gender Plug (Male)
Orientation (Body) Straight
Coupling Keyed
Keyed Subtype 180-180
Detent Smooth Bore
Mounting Type PCB Edge Launch
Termination Style Solder
Finish Gold
Number of Ports Single
Electrical
Frequency 65 GHz
Impedance 50 ohms
Shielding Effectiveness ≥ -80 dB DC - 3 GHz, ≥ -65 dB 3 - 26.5 GHz
Dielectric withstanding Voltage 325 VRMS
Mechanical
Mating Cycles - SB 500
Mating Cycles - FD 100
Insertion Force - SB 2.5 lbs
Insertion Force - FD 4.5 lbs
Withdrawal Force - SB 1.5 lbs
Axial Misalignment .010” Max
Withdrawal Force - FD 6.5 lbs
Radial Misalignment 3° Max
Environmental
Corrosion (salt spray) MIL-STD-202, Method 101, Condition B
Temperature Rating -65°C to +165°C
Vibration MIL-STD-202, Method 204, Condition D
Shock MIL-STD-202, Method 213, Condition I
Thermal Shock MIL-STD-202, Method 107, Condition B
Moisture Resistance MIL-STD-202, Method 106, Less Step 7B
Barometric Pressure (Altitude) MIL-STD-202, Method 105, Condition C, 70k Ft.
Product tags
Customers Also Viewed
Part #   3211-60035

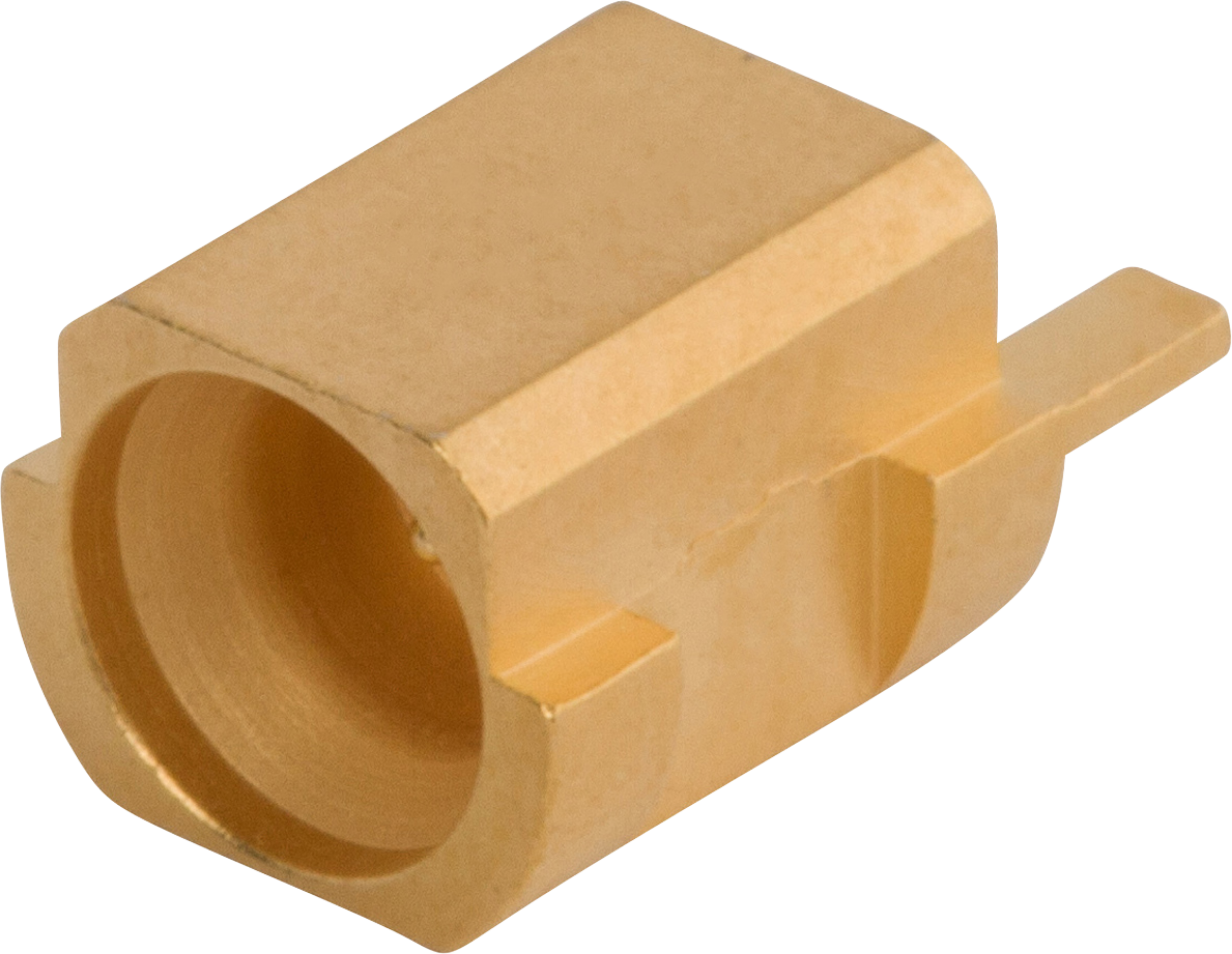

SMPM Male PCB Edge Launch Connector, SB

Available Inventory: 2580
3211-60035
SMPM Connectors 3211-60035
Datasheet
Part #   3285-6001

SMPM Male PCB Edge Launch Connector, FD

Available Inventory: 3646
3285-6001
SMPM Connectors 3285-6001
Datasheet
Part #   3287-4101

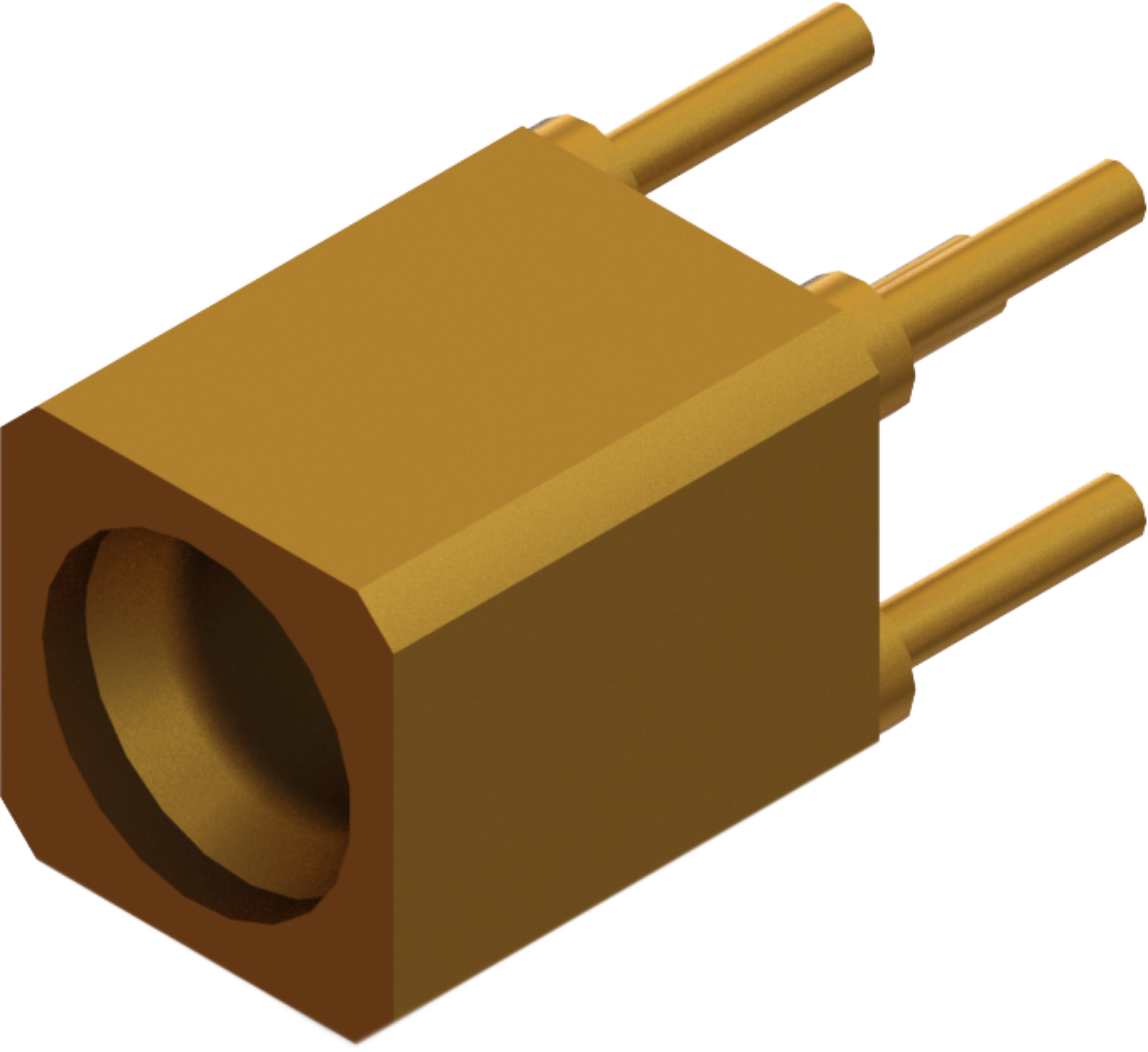

SMPM Male PCB Thru-Hole Connector, SB
