SMP/SMPM Fixed Bullets

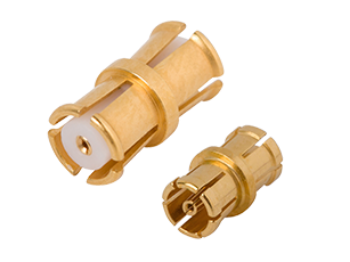

Picture for category SMP/SMPM Fixed Bullets

SV Microwave offers a complete line of SMP and SMPM fixed bullets in a variety of lengths. Our newest fixed bullets start at a nominal length of .265" for SMP and .188" for SMPM.  These additional lengths round out SV's fixed bullet offering and allow a system designer flexibility when integrating a board-to-board RF solution.

Features / Benefits:

  • Ability to withstand .010" axial and ± .010" radial float
  • Small footprint
  • A variety of lengths are available
  • Lower Insertion Loss than spring-bullets
  • DC - 40 GHz (SMP)
  • DC - 65 GHz (SMPM)

Applications:

  • Board-to-Board solutions
  • Mil-Aerospace
  • Large scale blind mate arrays

SMP

Impedance (Ω)50
Frequency GHz40 GHz
Shielding Effectiveness≥ -80 dB DC - 3 GHz
 ≥ -65 dB 3 - 26.5 GHz
Dielectric withstanding Voltage500 VRMS
Mating Cycles - SB1000
Mating Cycles - LD500
Mating Cycles - FD100
Insertion Force - SB3.0 lbs
Insertion Force - LD5.0 lbs
Insertion Force - FD7.0 lbs
Withdrawal Force - SB0.5 lbs
Withdrawal Force - LD7.0 lbs
Withdrawal Force - FD9.0 lbs
Axial Misalignment.010” Max
Radial Misalignment3° Max
Temperature Rating-65°C to +165°C
Corrosion (salt spray)MIL-STD-202, Method 101, Condition B
VibrationMIL-STD-202, Method 204, Condition D
ShockMIL-STD-202, Method 213, Condition I
Thermal ShockMIL-STD-202, Method 107, Condition B
Moisture ResistanceMIL-STD-202, Method 106, Less Step 7B
Barometric Pressure (Altitude)MIL-STD-202, Method 105, Condition C, 70k Ft.

SMPM

Impedance (Ω)50
Frequency GHz65 GHz
Shielding Effectiveness≥ -80 dB DC - 3 GHz
 ≥ -65 dB 3 - 26.5 GHz
Dielectric withstanding Voltage325 VRMS
Mating Cycles - SB500
Mating Cycles - FD100
Insertion Force - SB2.5 lbs
Insertion Force - FD4.5 lbs
Withdrawal Force - SB1.5 lbs
Withdrawal Force - FD6.5 lbs
Axial Misalignment.010” Max
Radial Misalignment3° Max
Temperature Rating-65°C to +165°C
Corrosion (salt spray)MIL-STD-202, Method 101, Condition B
VibrationMIL-STD-202, Method 204, Condition D
ShockMIL-STD-202, Method 213, Condition I
Thermal ShockMIL-STD-202, Method 107, Condition B
Moisture ResistanceMIL-STD-202, Method 106, Less Step 7B
Barometric Pressure (Altitude)MIL-STD-202, Method 105, Condition C, 70k Ft.

Application Note

Board-to-Board Solutions

Filters
Part #   1112-4186

SMP Female to Female Bullet (OAL .265”)

Available Inventory: 350
1112-4186
SMP Adapters 1112-4186
Datasheet
Part #   1112-4187

SMP Female to Female Bullet (OAL .275”)

Available Inventory: 267
1112-4187
SMP Adapters 1112-4187
Datasheet
Part #   1112-4188

SMP Female to Female Bullet (OAL .285”)

Available Inventory: 256
1112-4188
SMP Adapters 1112-4188
Datasheet
Part #   1112-4189

SMP Female to Female Bullet (OAL .295”)

Available Inventory: 347
1112-4189
SMP Adapters 1112-4189
Datasheet
Part #   1132-4169

SMPM Female to Female Bullet (OAL 0.188")

Available Inventory: 162
1132-4169
SMPM Adapters 1132-4169
Datasheet
Part #   1132-4170

SMPM Female to Female Bullet (OAL 0.197")

Available Inventory: 386
1132-4170
SMPM Adapters 1132-4170
Datasheet
