Products specifications

Attribute name	Attribute value

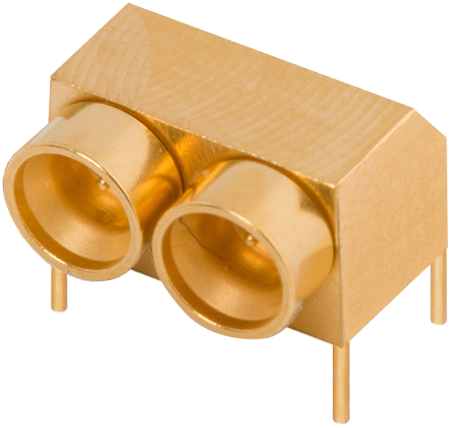

RF Series	SMP
Gender	Plug (Male)
Orientation (Body)	Right Angle
Coupling	Push-on
Detent	Full Detent
Termination Style	Solder
Number of Ports	Multiple
Finish	Gold
Electrical
Frequency	40 GHz
Impedance	50 ohms
Shielding Effectiveness	≥ -80 dB DC - 3 GHz, ≥ -65 dB 3 - 26.5 GHz
Dielectric withstanding Voltage	500 VRMS
Mechanical
Mating Cycles - FD	100
Insertion Force - FD	7.0 lbs
Axial Misalignment	.010” Max
Withdrawal Force - FD	9.0 lbs
Radial Misalignment	3° Max
Environmental
Corrosion (salt spray)	MIL-STD-202, Method 101, Condition B
Temperature Rating	-65°C to +165°C
Shock	MIL-STD-202, Method 213, Condition I
Vibration	MIL-STD-202, Method 204, Condition D
Moisture Resistance	MIL-STD-202, Method 106, Less Step 7B
Thermal Shock	MIL-STD-202, Method 107, Condition B
Barometric Pressure (Altitude)	MIL-STD-202, Method 105, Condition C, 70k Ft.
