P/N: SF1211-66214-2S

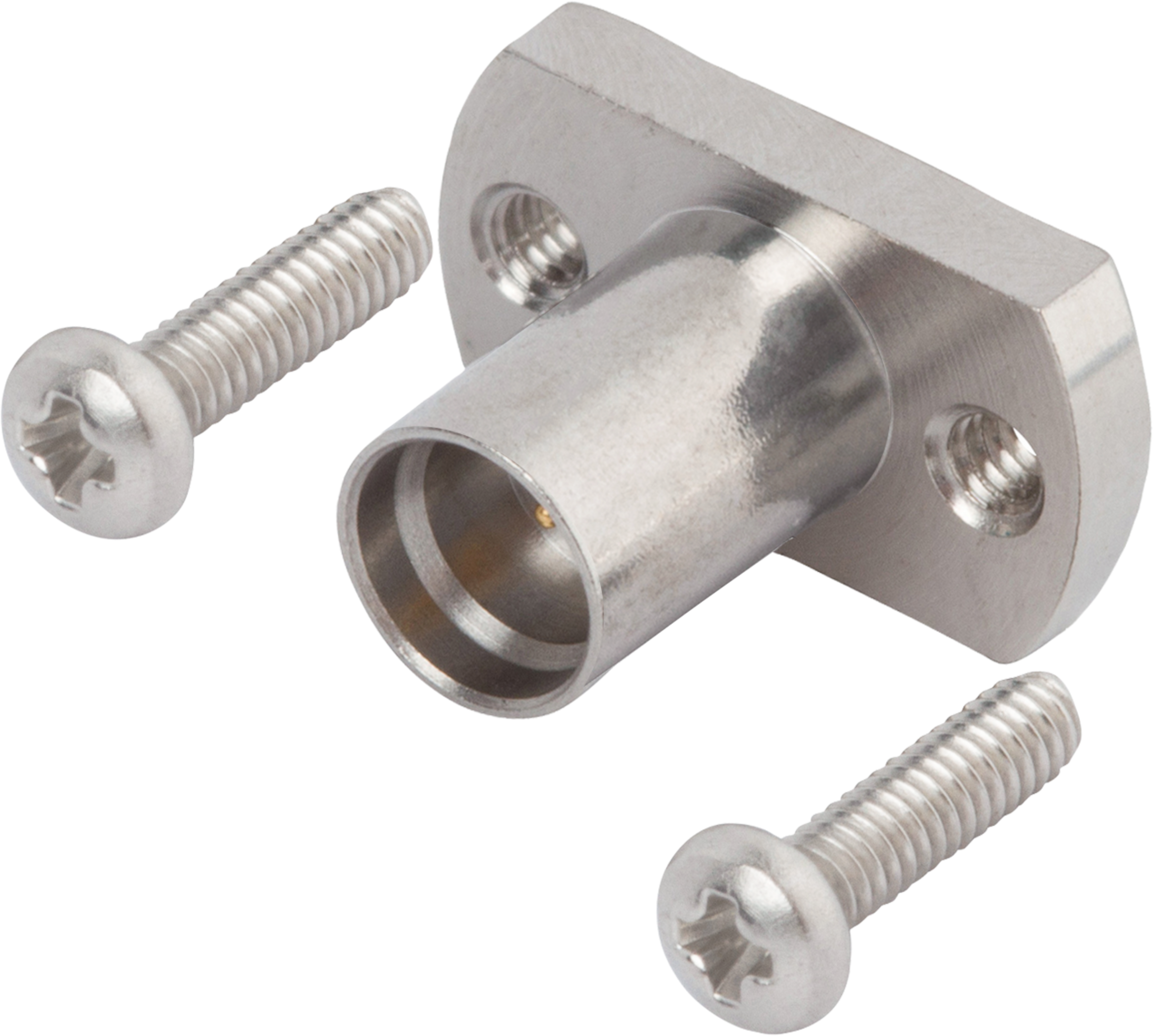

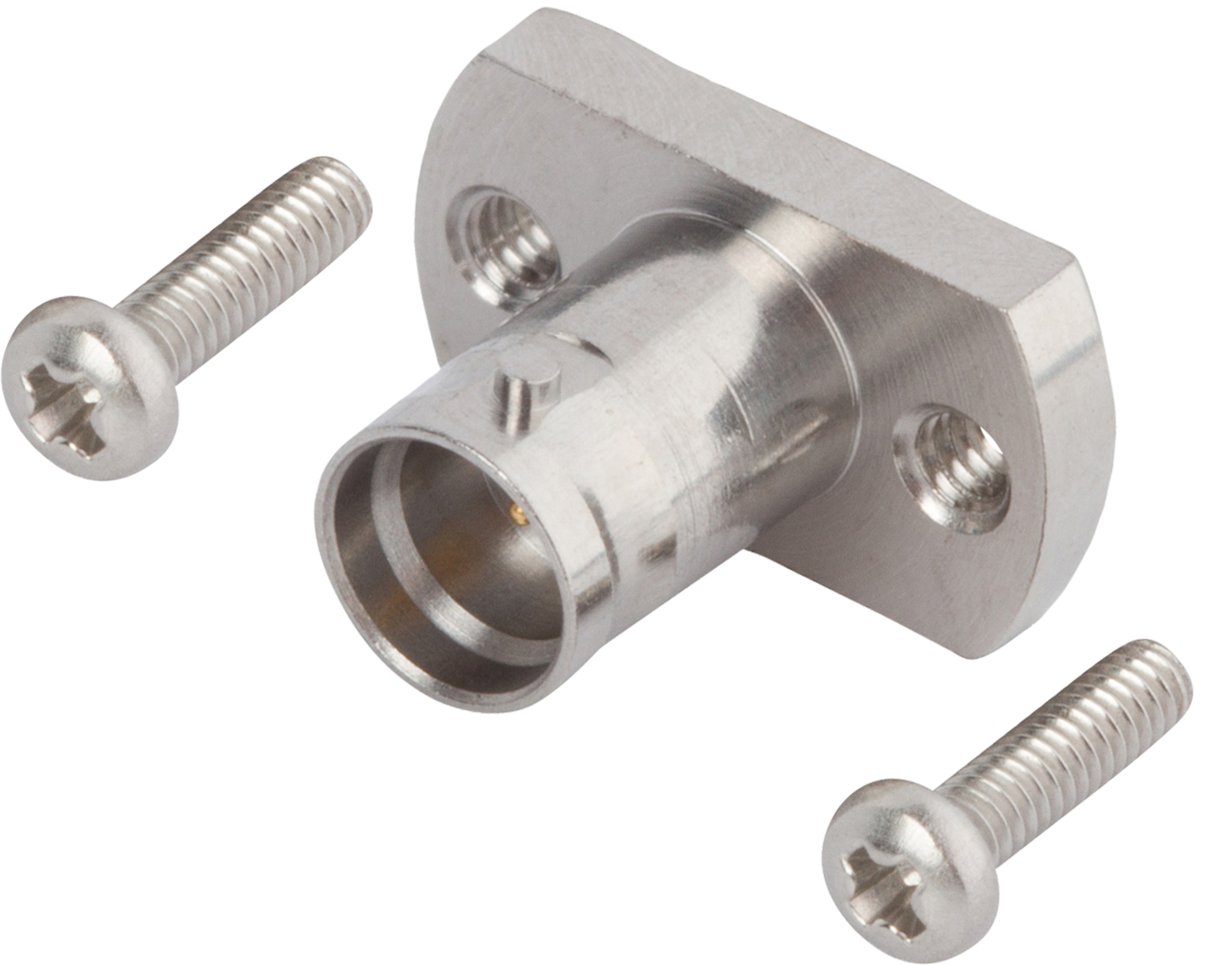

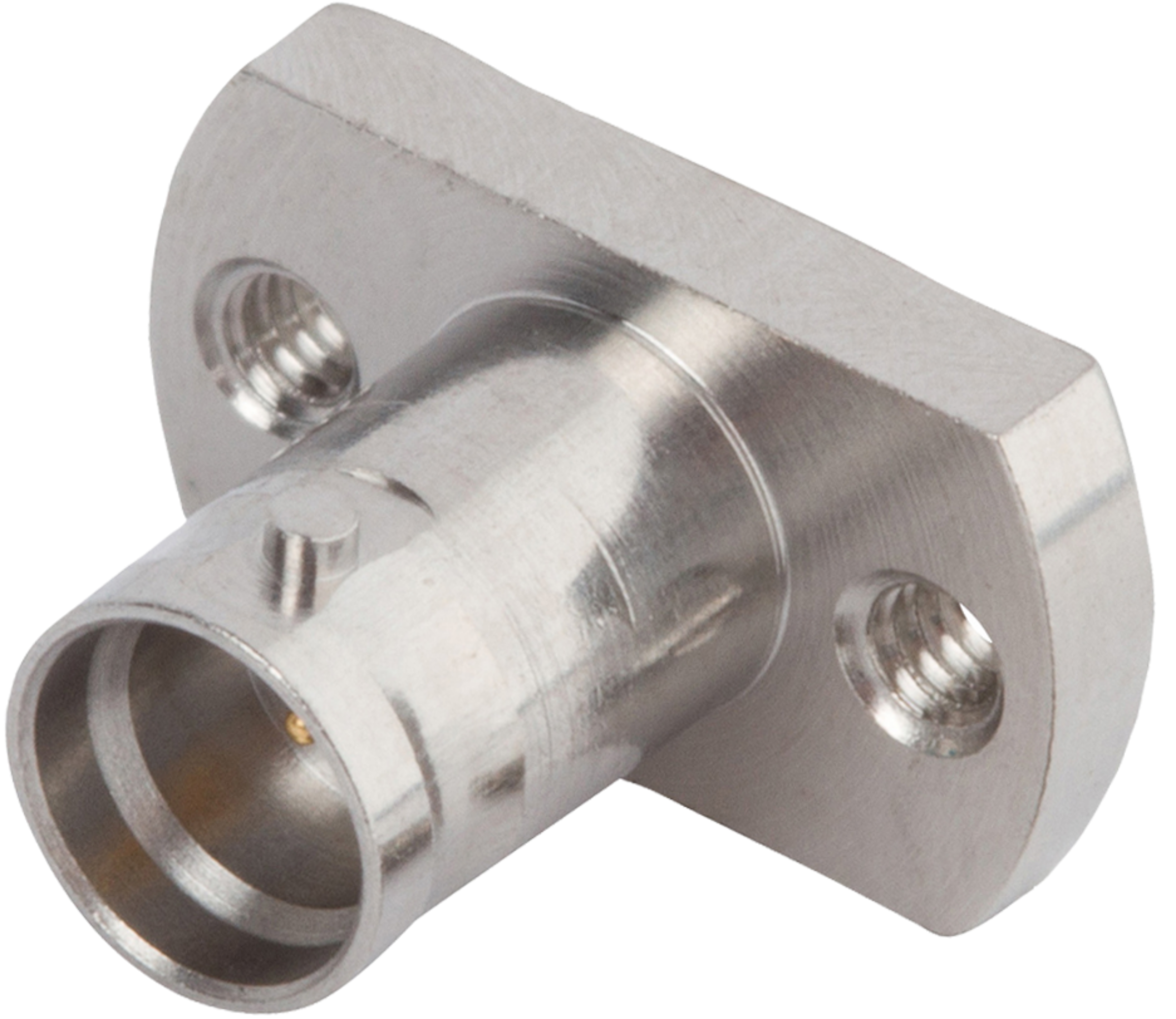

SMP Male QB Solderless PCB Compression Mount Connector, 2 Hole, with 6.35mm Screws (Stripline)

In stock at Qty Order
Arrow Electronics Inc 50
Digi-Key Electronics 40
Mouser Electronics 33
Products specifications
Attribute name Attribute value
Family QuarterBack
RF Series SMP
Gender Plug (Male)
Orientation (Body) Straight
Mounting Type PCB Vertical Launch
Coupling Keyed
Detent Smooth Bore
Keyed Subtype 180-180
Body Style 2 Hole
Number of Ports Single
Termination Style Solder-free
Finish Passivated
Electrical
Frequency 40 GHz
Impedance 50 ohms
Shielding Effectiveness ≥ -80 dB DC - 3 GHz, ≥ -65 dB 3 - 26.5 GHz
Dielectric withstanding Voltage 500 VRMS
Mechanical
Mating Cycles - SB 1000
Mating Cycles - LD 500
Mating Cycles - FD 100
Insertion Force - SB 3.0 lbs
Insertion Force - LD 5.0 lbs
Insertion Force - FD 7.0 lbs
Withdrawal Force - SB 0.5 lbs
Axial Misalignment .010” Max
Withdrawal Force - FD 9.0 lbs
Withdrawal Force - LD 7.0 lbs
Radial Misalignment 3° Max
Environmental
Corrosion (salt spray) MIL-STD-202, Method 101, Condition B
Temperature Rating -65°C to +165°C
Vibration MIL-STD-202, Method 204, Condition D
Shock MIL-STD-202, Method 213, Condition I
Thermal Shock MIL-STD-202, Method 107, Condition B
Moisture Resistance MIL-STD-202, Method 106, Less Step 7B
Barometric Pressure (Altitude) MIL-STD-202, Method 105, Condition C, 70k Ft.
