SMP Female to SMPM Female 24" Cable Assembly for .047 Cable"
P/N: 7012-1296

This part number is currently unavailable. Please contact us for more information.
Products specifications
Attribute name Attribute value
Orientation (Body) Straight
RF Series SMP
Coupling Push-on
Orientation 2 (Body) Straight
Gender 2 Jack (Female)
Cable Type 0.047 Flexible Coax
Gender Jack (Female)
RF Series 2 SMPM
Cable Length 24"
Electrical
Impedance 50 ohms
Frequency 40 GHz
Dielectric withstanding Voltage 500 VRMS
Shielding Effectiveness ≥ -80 dB DC - 3 GHz, ≥ -65 dB 3 - 26.5 GHz
Mechanical
Mating Cycles - SB 1000
Mating Cycles - LD 500
Mating Cycles - FD 100
Insertion Force - SB 3.0 lbs
Insertion Force - LD 5.0 lbs
Insertion Force - FD 7.0 lbs
Withdrawal Force - SB 0.5 lbs
Withdrawal Force - FD 9.0 lbs
Withdrawal Force - LD 7.0 lbs
Radial Misalignment 3° Max
Axial Misalignment .010” Max
Environmental
Vibration MIL-STD-202, Method 204, Condition D
Shock MIL-STD-202, Method 213, Condition I
Thermal Shock MIL-STD-202, Method 107, Condition B
Temperature Rating -65°C to +165°C
Corrosion (salt spray) MIL-STD-202, Method 101, Condition B
Moisture Resistance MIL-STD-202, Method 106, Less Step 7B
Barometric Pressure (Altitude) MIL-STD-202, Method 105, Condition C, 70k Ft.


EU RoHS Directive 2011/65/EU Yes, w/ Exemption 6C

These products comply with the substance restrictions of the Restriction on Hazardous Substances Directive 2011/65/EU (RoHS2). The RoHS2 Directive requires that certain electrical and electronic equipment products do not contain mercury, cadmium, hexavalent chromium, PBB, PBDE, lead, DEHP, BBP, DBP and DIBP above defined thresholds. Products indicated as compliant with exemption contain one or more of these substances above the prohibition thresholds, but are compliant by claiming one or more valid exemptions.

EU REACH Regulation (EC) No. 1907/2006 SVHC > Threshold

These products contain one or more EU REACH Substances of Very High Concern (SVHC) > 0.1% by weight (1000 ppm). Details related to the SVHC are displayed.

REACH SVHC: LEAD, CAS #: 7439-92-1, PPM: 30000

Use personal protective equipment as required. Do not eat, drink or smoke when using this product. Wash thoroughly after handling. Recycle if possible and dispose of the article by following all applicable governmental regulations relevant to your geographic location.

CE / UKCA Compliant

This products meets the requirements for CE and UKCA.

This information is provided based on reasonable inquiry of our suppliers and represents our current actual knowledge based on the information they provided.

Please contact [email protected] for any Compliance or Environmental related questions.

Last Update: 6/28/2023 1:07:26 AM

Spinning Wheel; Your Submission is Loading

Contact Us

How can we help?

*
*
*
*
*
*
*
*
Products specifications
Attribute name Attribute value
Orientation (Body) Straight
RF Series SMP
Coupling Push-on
Orientation 2 (Body) Straight
Gender 2 Jack (Female)
Cable Type 0.047 Flexible Coax
Gender Jack (Female)
RF Series 2 SMPM
Cable Length 24"
Electrical
Impedance 50 ohms
Frequency 40 GHz
Dielectric withstanding Voltage 500 VRMS
Shielding Effectiveness ≥ -80 dB DC - 3 GHz, ≥ -65 dB 3 - 26.5 GHz
Mechanical
Mating Cycles - SB 1000
Mating Cycles - LD 500
Mating Cycles - FD 100
Insertion Force - SB 3.0 lbs
Insertion Force - LD 5.0 lbs
Insertion Force - FD 7.0 lbs
Withdrawal Force - SB 0.5 lbs
Withdrawal Force - FD 9.0 lbs
Withdrawal Force - LD 7.0 lbs
Radial Misalignment 3° Max
Axial Misalignment .010” Max
Environmental
Vibration MIL-STD-202, Method 204, Condition D
Shock MIL-STD-202, Method 213, Condition I
Thermal Shock MIL-STD-202, Method 107, Condition B
Temperature Rating -65°C to +165°C
Corrosion (salt spray) MIL-STD-202, Method 101, Condition B
Moisture Resistance MIL-STD-202, Method 106, Less Step 7B
Barometric Pressure (Altitude) MIL-STD-202, Method 105, Condition C, 70k Ft.
Customers Also Viewed
Part #   7012-1294

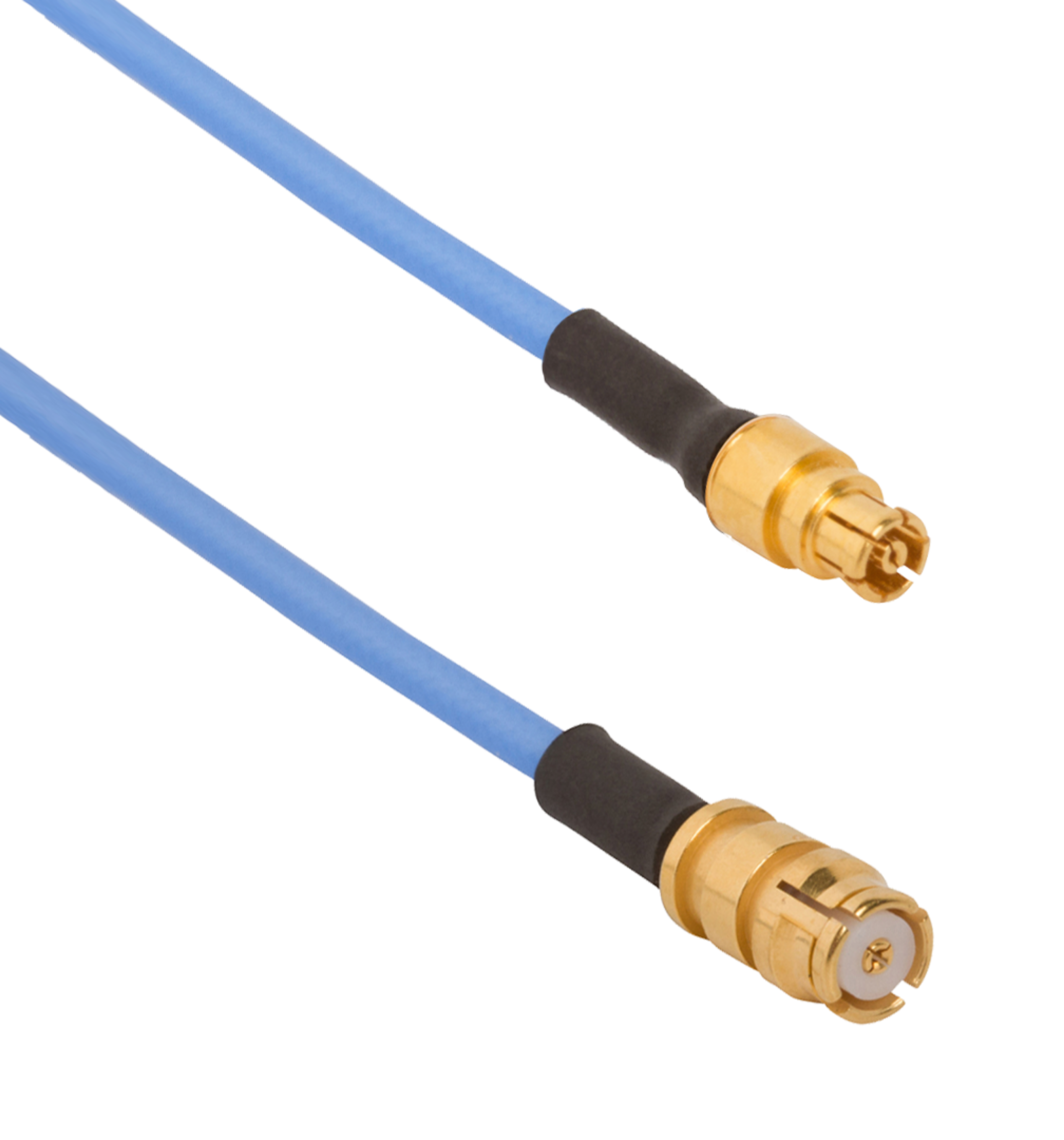

SMP Female to SMPM Female 6" Cable Assembly for .047 Cable"

Available Inventory: 0
7012-1294
SMP Cable Assemblies 7012-1294
Datasheet
Part #   7012-1295

SMP Female to SMPM Female 12" Cable Assembly for .047 Cable"

Available Inventory: 11
7012-1295
SMP Cable Assemblies 7012-1295
Datasheet
Part #   7012-1299

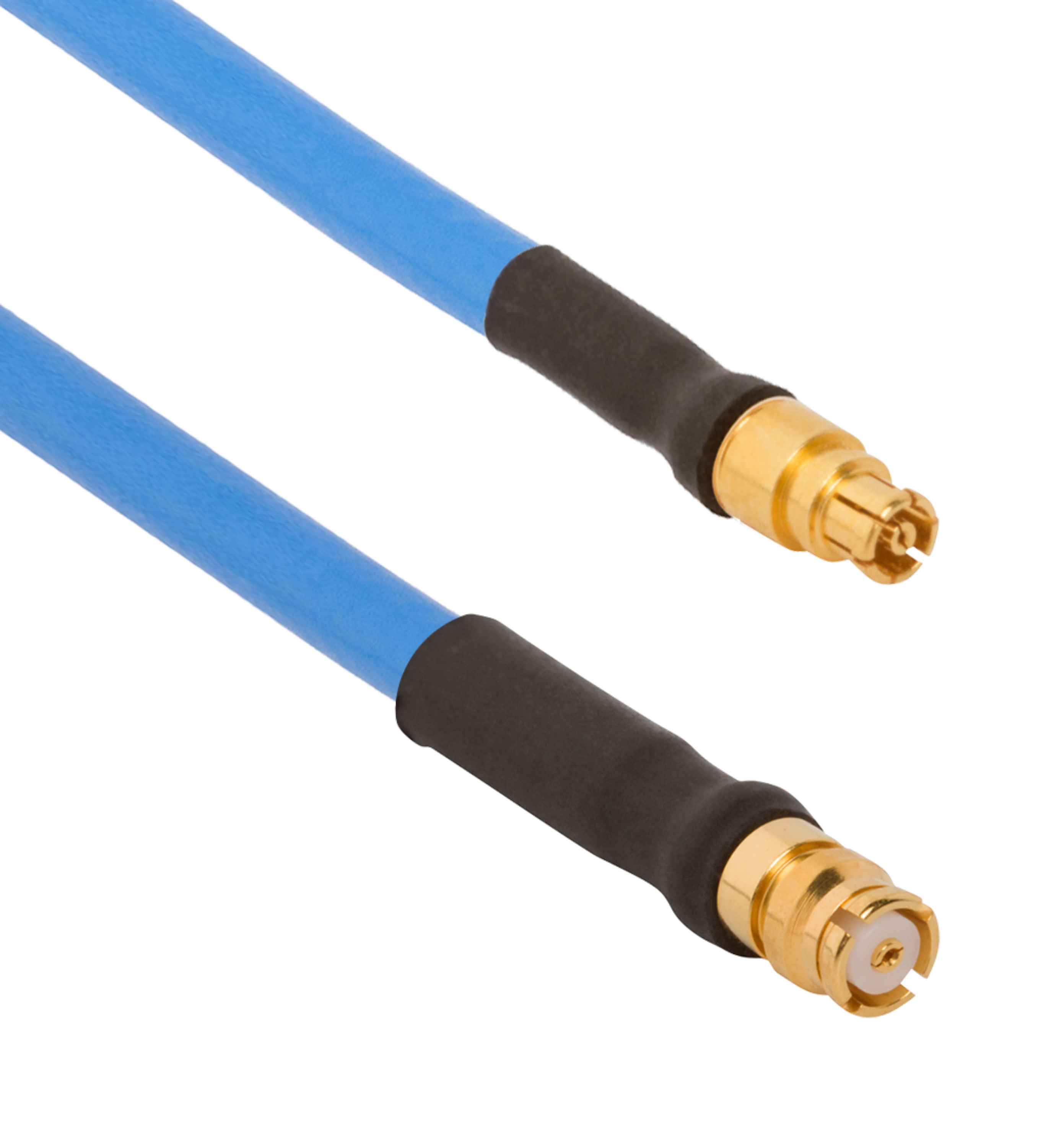

SMP Female to SMPM Female 24" Cable Assembly for .085 Cable"
