P/N: M39012/56-3107

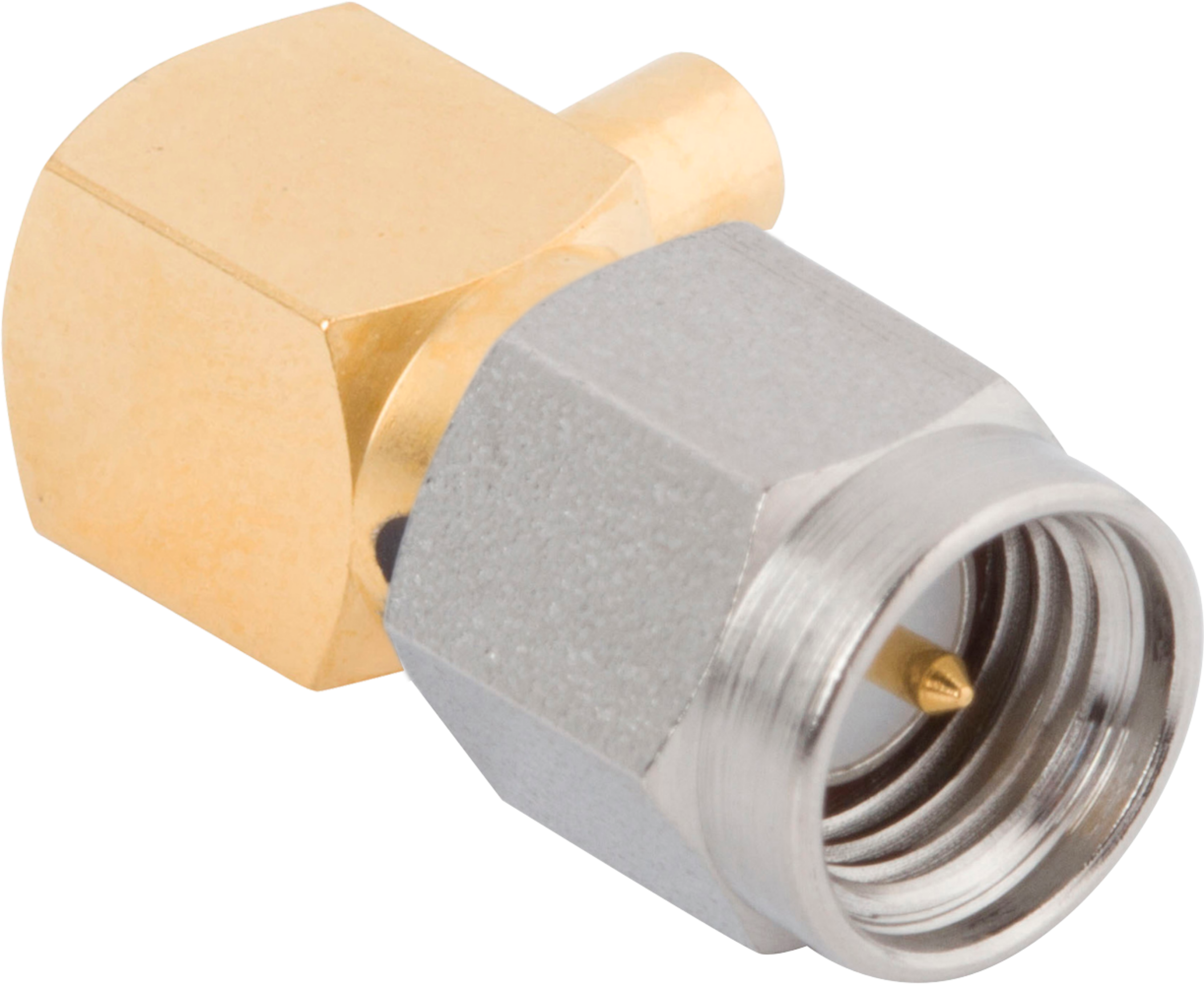

SMA Male Connector, R/A for RG-174 Cable

In stock at Qty Order
Microwave Components LLC 32
Products specifications
Attribute name Attribute value
Orientation (Body) Right Angle
Gender Plug (Male)
RF Series SMA
Coupling Threaded
Termination Style Crimp
Number of Ports Single
Finish Passivated
Cable Type RG-174
MIL-SPEC M39012
Electrical
Frequency 11 GHz
Impedance 50 ohms
Shielding Effectiveness ≥ -90 dB
Dielectric withstanding Voltage 1000 VRMS
Mechanical
Mating Cycles 500
Mating Torque 7 - 10 in - lbs
Inter-mate ability 2.92mm
Environmental
Temperature Rating -65°C to +165°C
Corrosion (salt spray) MIL-STD-202, Method 101, Condition B
Vibration MIL-STD-202, Method 204, Condition D
Shock MIL-STD-202, Method 213, Condition I
Thermal Shock MIL-STD-202, Method 107, Condition B
Moisture Resistance MIL-STD-202, Method 106, Less Step 7B
Barometric Pressure (Altitude) MIL-STD-202, Method 105, Condition C, 70k Ft.

Contact Us

How can we help?

*
*
*
*
*
*
*
Products specifications
Attribute name Attribute value
Orientation (Body) Right Angle
Gender Plug (Male)
RF Series SMA
Coupling Threaded
Termination Style Crimp
Number of Ports Single
Finish Passivated
Cable Type RG-174
MIL-SPEC M39012
Electrical
Frequency 11 GHz
Impedance 50 ohms
Shielding Effectiveness ≥ -90 dB
Dielectric withstanding Voltage 1000 VRMS
Mechanical
Mating Cycles 500
Mating Torque 7 - 10 in - lbs
Inter-mate ability 2.92mm
Environmental
Temperature Rating -65°C to +165°C
Corrosion (salt spray) MIL-STD-202, Method 101, Condition B
Vibration MIL-STD-202, Method 204, Condition D
Shock MIL-STD-202, Method 213, Condition I
Thermal Shock MIL-STD-202, Method 107, Condition B
Moisture Resistance MIL-STD-202, Method 106, Less Step 7B
Barometric Pressure (Altitude) MIL-STD-202, Method 105, Condition C, 70k Ft.
Customers Also Viewed
Part #   M39012/56-3030

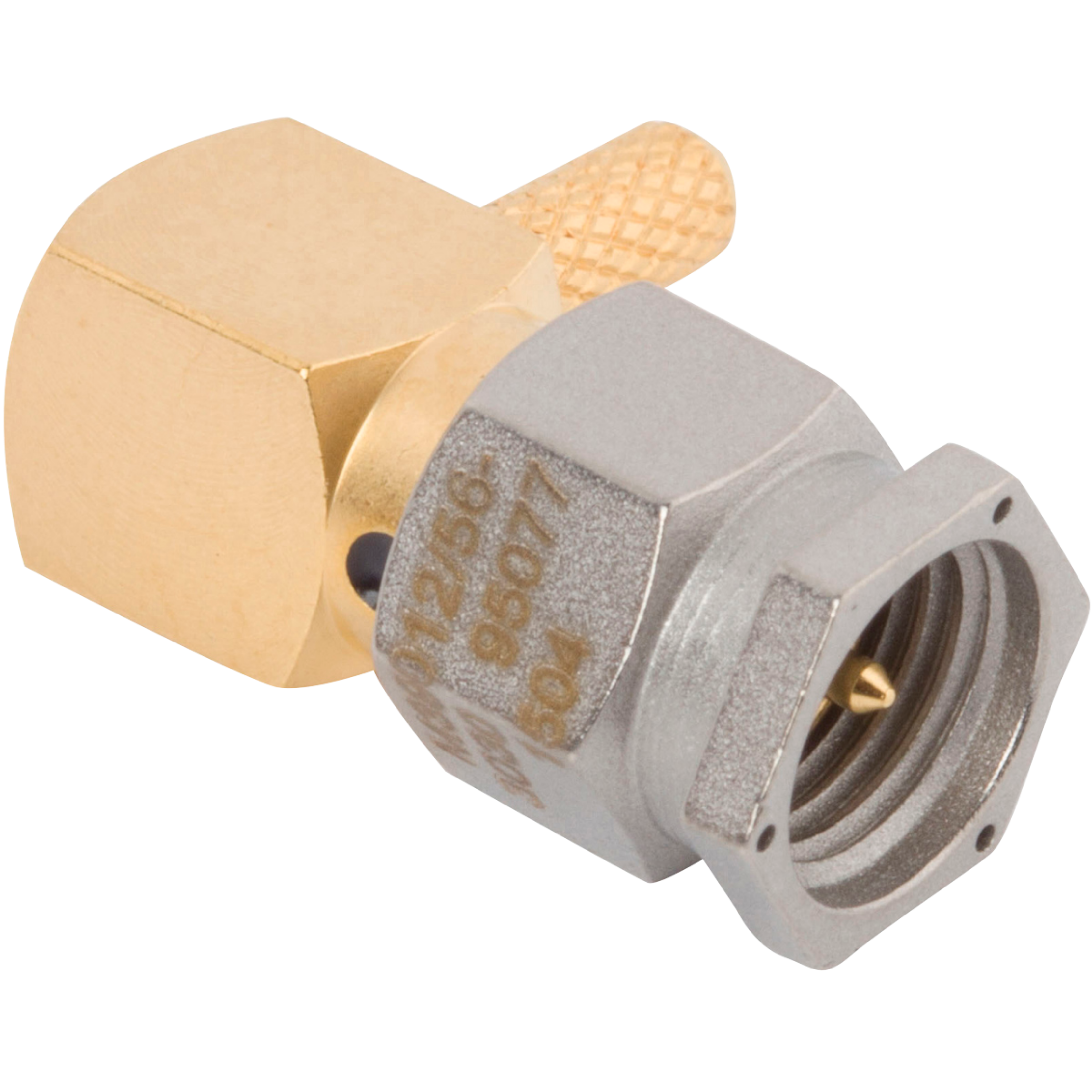

SMA Male Connector, Lockwire Holes, R/A for M17/152-00001 Cable
