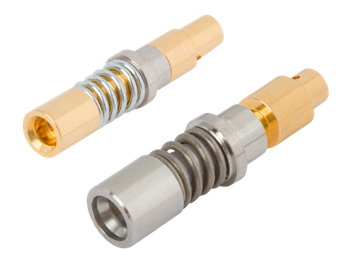

Series II D38999 Socket Contacts
SV Microwave’s Series II D38999/2M SMPM and SMPS socket contacts are engineered for use in connector shells requiring Series II socket configurations. Available in Size 12 (SMPM) and 16 (SMPS) for .047" and .085" cable, these contacts feature a shorter body length than Series I, III, and IV socket contacts, due to the lower profile connector shells. Designed for high-frequency performance in rugged environments, they provide a compact, reliable solution for Mil-Aero, radar, and electronic warfare systems.
Features/Benefits:
- Series II 38999/2M compliance
- SMPM & SMPS
- High density, small-form factor
- DC-40 GHz
Applications:
- Mil-Aero
- Radar
- EW Suites
The specifications below are typical for the connector series, but may not apply to this particular part. Please see the datasheet for full specifications.
SMPM
| Impedance (Ω) | 50 |
| Frequency GHz | 65 GHz |
| Shielding Effectiveness | ≥ -80 dB DC - 3 GHz ≥ -65 dB 3 - 26.5 GHz |
| Dielectric withstanding Voltage | 325 VRMS |
| Mating Cycles - SB | 500 |
| Mating Cycles - FD | 100 |
| Insertion Force - SB | 2.5 lbs |
| Insertion Force - FD | 4.5 lbs |
| Withdrawal Force - SB | 1.5 lbs |
| Withdrawal Force - FD | 6.5 lbs |
| Axial Misalignment | .010” Max |
| Radial Misalignment | 3° Max |
| Temperature Rating | -65°C to +165°C |
| Corrosion (salt spray) | MIL-STD-202, Method 101, Condition B |
| Vibration | MIL-STD-202, Method 204, Condition D |
| Shock | MIL-STD-202, Method 213, Condition I |
| Thermal Shock | MIL-STD-202, Method 107, Condition B |
| Moisture Resistance | MIL-STD-202, Method 106, Less Step 7B |
| Barometric Pressure (Altitude) | MIL-STD-202, Method 105, Condition C, 70k Ft. |
SMPS
| Impedance (Ω) | 50 |
| Frequency GHz | 65 GHz |
| Shielding Effectiveness | ≥ -80 dB DC - 3 GHz ≥ -65 dB 3 - 26.5 GHz |
| Dielectric withstanding Voltage | 250 VRMS |
| Mating Cycles - SB | 500 |
| Mating Cycles - FD | 100 |
| Insertion Force - SB | 1.2 lbs |
| Insertion Force - FD | 2.5 lbs |
| Withdrawal Force - SB | 1.0 lbs |
| Withdrawal Force - FD | 4.5 lbs |
| Axial Misalignment | .010” Max |
| Radial Misalignment | 3° Max |
| Temperature Rating | -65°C to +165°C |
| Corrosion (salt spray) | MIL-STD-202, Method 101, Condition B |
| Vibration | MIL-STD-202, Method 204, Condition D |
| Shock | MIL-STD-202, Method 213, Condition I |
| Thermal Shock | MIL-STD-202, Method 107, Condition B |
| Moisture Resistance | MIL-STD-202, Method 106, Less Step 7B |
| Barometric Pressure (Altitude) | MIL-STD-202, Method 105, Condition C, 70k Ft. |
Part # 9351-60072
SMPM Socket D38999 Contact (Size 12, Series II) for .047 Cable
Available Inventory: 0
9351-60072
SMPM Socket D38999 Contact (Size 12, Series II) for .047 Cable, 9351-60072
Part # 9351-60073
SMPM Socket D38999 Contact (Size 12, Series II) for .085 Cable
Available Inventory: 0
9351-60073
SMPM Socket D38999 Contact (Size 12, Series II) for .085 Cable, 9351-60073
Part # 9351-60081
SMPS Socket D38999 Contact (Size 16, Series II) for .047 Cable
Available Inventory: 0
9351-60081
SMPS Socket D38999 Contact (Size 16, Series II) for .047 Cable, 9351-60081
