Secure Locking R/A Cable Connectors Are In Stock

September 10, 2024

SV Microwave's Secure Locking R/A Cable Connectors feature a secure quarter turn bayonet style coupling nut with a locking mechanism designed for standard SMP and SMPM female interfaces. These connectors are perfect for high-vibration and test applications requiring frequent mating cycles. With this expansion, our QuarterBack® product line now includes right-angle options, providing an excellent solution for tight routing needs.



Features/Benefits

  • Quarter turn bayonet locking feature on standard SMP/SMPM interface
  • Low insertion/withdrawal force
  • DC - 40 GHz



Applications

  • Bench-top testing
  • High vibration environments
  • Applications requiring a high number of mating cycles
  • Mil/Aero



Products's Part Number and Description



Part No.Description



SMP Female QB Connector, R/A for .047 Cable

1222-60007



SMP Female QB Connector, R/A for .047 Cable

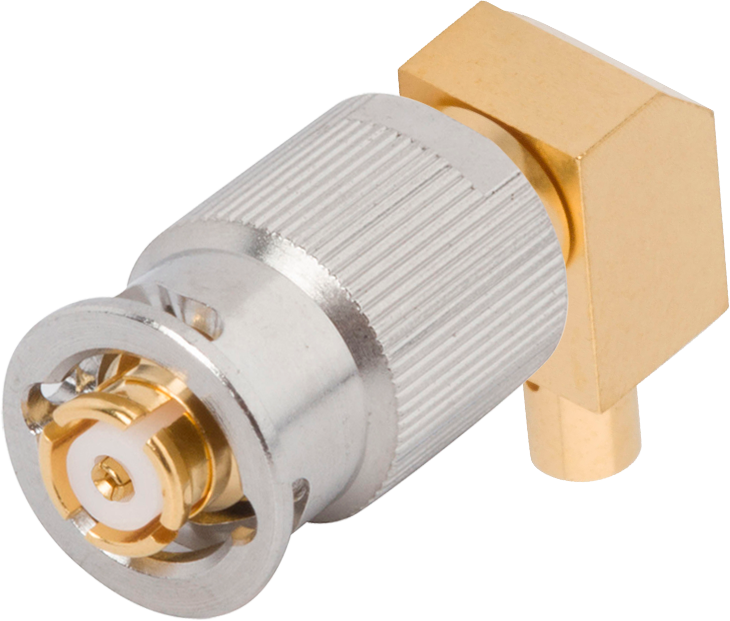

SMP Female QB Connector, R/A for .085 Cable

1222-60008



SMP Female QB Connector, R/A for .085 Cable



SMPM Female QB Connector, R/A for .047 Cable

3222-60003



SMPM Female QB Connector, R/A for .047 Cable

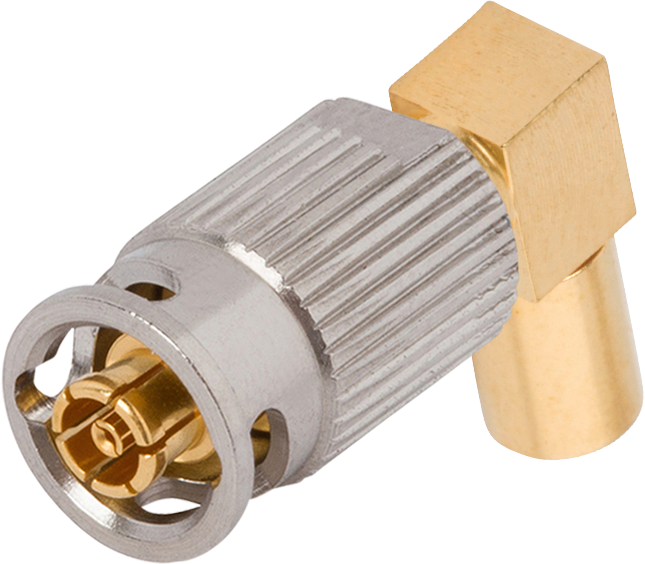

SMPM Female QB Connector, R/A for .085 Cable

3222-60004



SMPM Female QB Connector, R/A for .085 Cable
