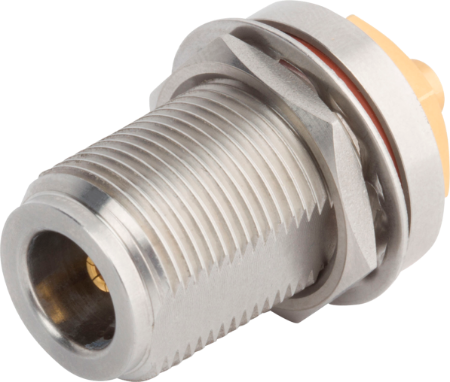

PN Female Bulkhead Connector for .141 Cable
P/N: SF6545-6003

Products specifications
Attribute name Attribute value
RF Series PN
Gender Jack (Female)
Orientation (Body) Straight
Coupling Threaded
Mounting Type Panel
Termination Style Solder
Body Style Jamnut/Bulkhead
Number of Ports Single
Finish Passivated
Cable Type 0.140 Flexible Coax
Electrical
Frequency 18 GHz
Impedance 50 ohms
Dielectric withstanding Voltage 3000 VRMS
Shielding Effectiveness ≥ -90 dB
Mechanical
Mating Cycles 500
Mating Torque 12 - 15 in - lbs
Environmental
Temperature Rating -65°C to +165°C
Shock MIL-STD-202, Method 213, Condition I
Thermal Shock MIL-STD-202, Method 107, Condition B
Corrosion (salt spray) MIL-STD-202, Method 101, Condition B
Vibration MIL-STD-202, Method 204, Condition D
Barometric Pressure (Altitude) MIL-STD-202, Method 105, Condition C, 70k Ft.
Moisture Resistance MIL-STD-202, Method 106, Less Step 7B


This information is provided based on reasonable inquiry of our suppliers and represents our current actual knowledge based on the information they provided.

Please contact compliance@svmicro.com for any Compliance or Environmental related questions.

Last Update: 12/4/2022 1:06:46 AM

Contact Us

How can we help?

*
*
*
*
*
*
*
*
Products specifications
Attribute name Attribute value
RF Series PN
Gender Jack (Female)
Orientation (Body) Straight
Coupling Threaded
Mounting Type Panel
Termination Style Solder
Body Style Jamnut/Bulkhead
Number of Ports Single
Finish Passivated
Cable Type 0.140 Flexible Coax
Electrical
Frequency 18 GHz
Impedance 50 ohms
Dielectric withstanding Voltage 3000 VRMS
Shielding Effectiveness ≥ -90 dB
Mechanical
Mating Cycles 500
Mating Torque 12 - 15 in - lbs
Environmental
Temperature Rating -65°C to +165°C
Shock MIL-STD-202, Method 213, Condition I
Thermal Shock MIL-STD-202, Method 107, Condition B
Corrosion (salt spray) MIL-STD-202, Method 101, Condition B
Vibration MIL-STD-202, Method 204, Condition D
Barometric Pressure (Altitude) MIL-STD-202, Method 105, Condition C, 70k Ft.
Moisture Resistance MIL-STD-202, Method 106, Less Step 7B
Customers Also Viewed
Part #   SF6545-6017

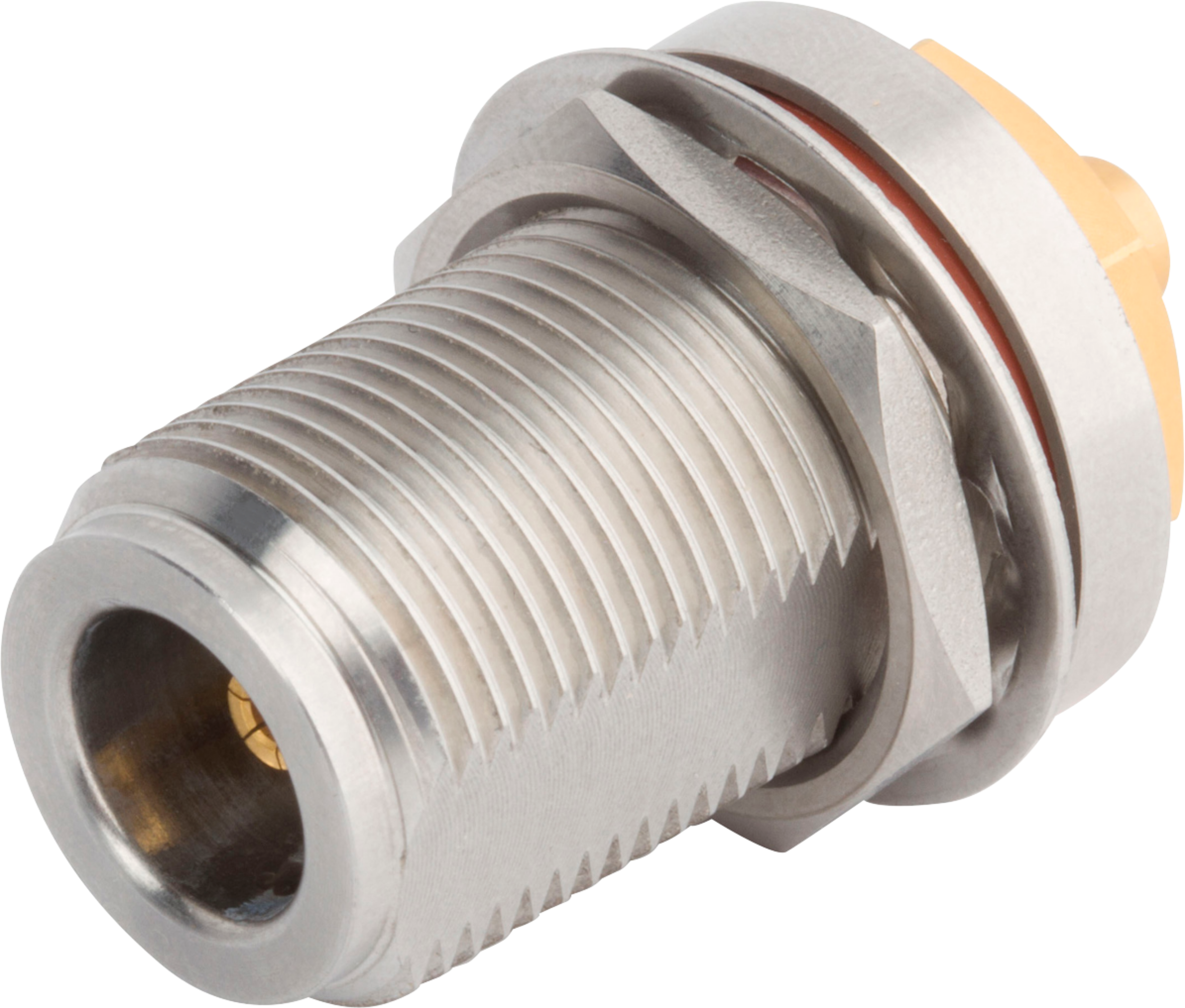

PN Female Bulkhead Connector for .085 Cable

Available Inventory: 85
SF6545-6017
PN Connectors SF6545-6017
Datasheet
Part #   5021-00026

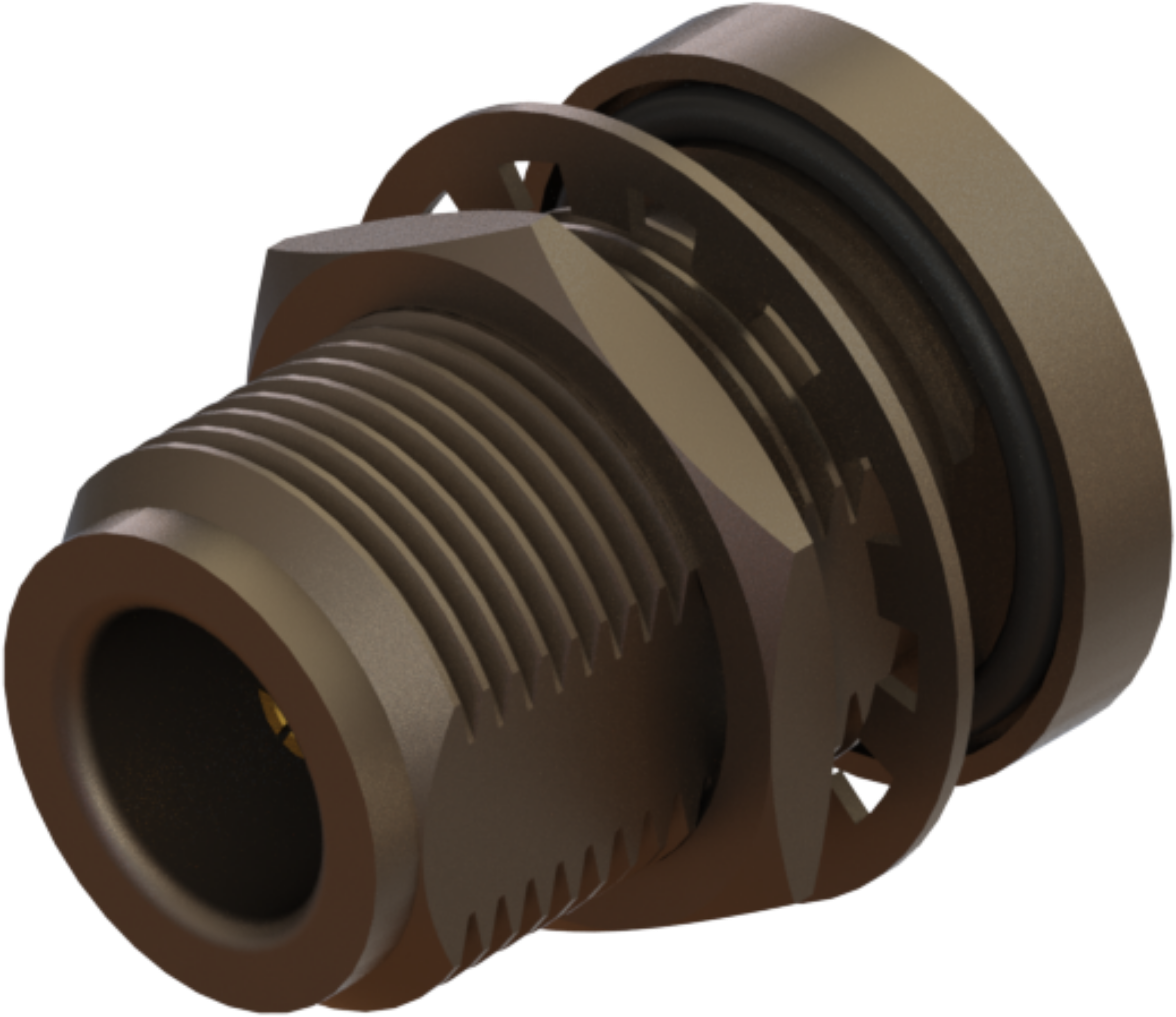

Type N Female Bulkhead Connector for .085 Cable

Available Inventory: 0
5021-00026
Type N Connectors 5021-00026
Datasheet
Part #   SF1104-6007

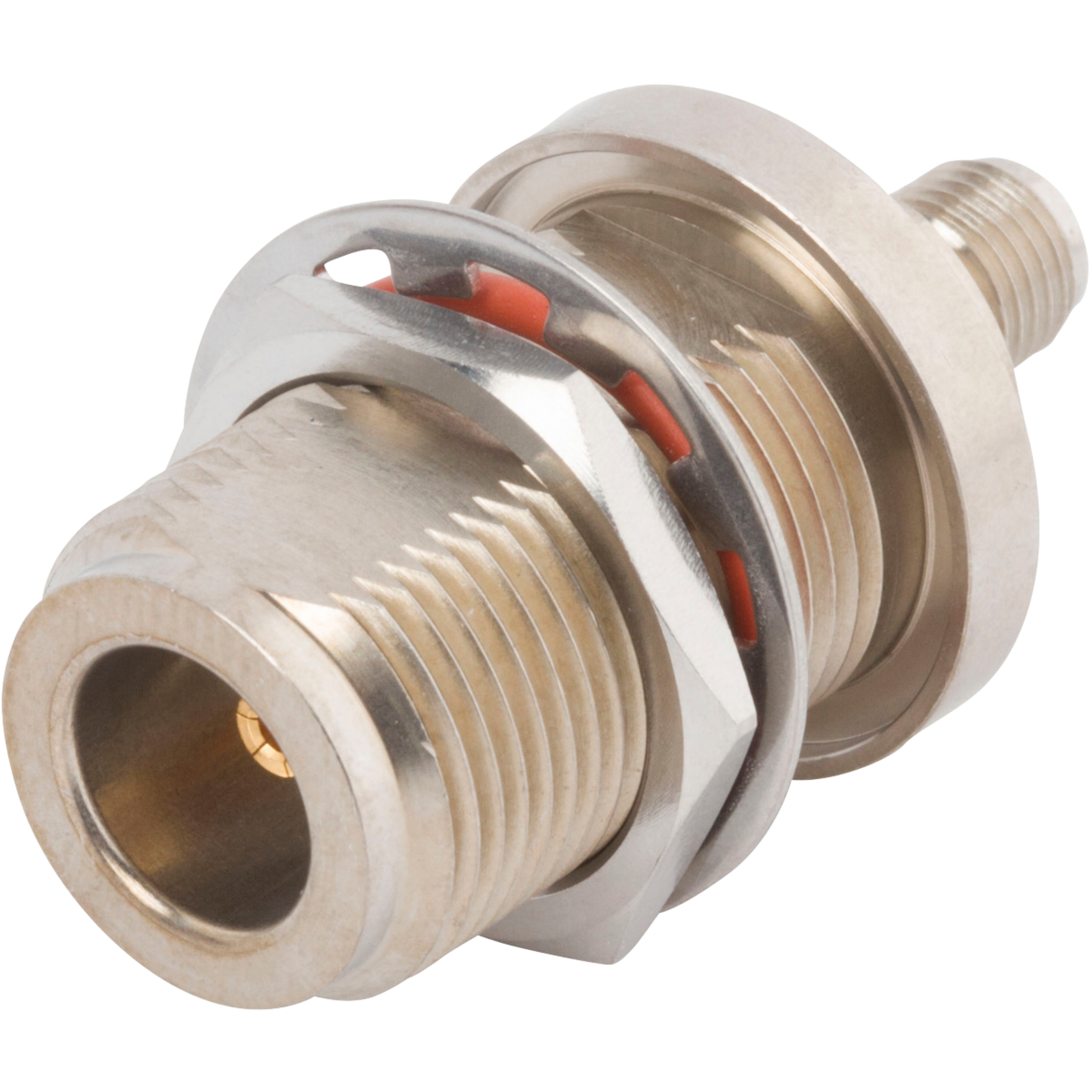

SMA Female to PN Female Bulkhead Hermetic Adapter
