SMA Female to PN Female Bulkhead Hermetic Adapter
P/N: SF1104-6007

In stock at Qty Order
Interstate Connecting Components 145
FDH Electronics 83
Heilind Electronics 48
Newark 25
Digi-Key Electronics 17
Mouser Electronics 3
Microwave Components LLC 1
Products specifications
Attribute name Attribute value
RF Series SMA
Gender Jack (Female)
Orientation (Body) Straight
Coupling Threaded
Body Style Jamnut/Bulkhead
Mounting Type Panel
Style Hermetic
Finish Passivated
IP Rating IP 68
RF Series 2 PN
Gender 2 Jack (Female)
Orientation 2 (Body) Straight
Electrical
Frequency 18 GHz
Impedance 50 ohms
Shielding Effectiveness ≥ -90 dB
Dielectric withstanding Voltage 1000 VRMS
Mechanical
Mating Cycles 500
Mating Torque 7 - 10 in - lbs
Intermateability 2.92mm
Environmental
Corrosion (salt spray) MIL-STD-202, Method 101, Condition B
Temperature Rating -65°C to +165°C
Shock MIL-STD-202, Method 213, Condition I
Moisture Resistance MIL-STD-202, Method 106, Less Step 7B
Thermal Shock MIL-STD-202, Method 107, Condition B
Barometric Pressure (Altitude) MIL-STD-202, Method 105, Condition C, 70k Ft.
Vibration MIL-STD-202, Method 204, Condition D


EU RoHS Directive 2011/65/EU Yes, w/ Exemption 6C

These products comply with the substance restrictions of the Restriction on Hazardous Substances Directive 2011/65/EU (RoHS2). The RoHS2 Directive requires that certain electrical and electronic equipment products do not contain mercury, cadmium, hexavalent chromium, PBB, PBDE, lead, DEHP, BBP, DBP and DIBP above defined thresholds. Products indicated as compliant with exemption contain one or more of these substances above the prohibition thresholds, but are compliant by claiming one or more valid exemptions.

EU REACH Regulation (EC) No. 1907/2006 SVHC > Threshold

These products contain one or more EU REACH Substances of Very High Concern (SVHC) > 0.1% by weight (1000 ppm). Details related to the SVHC are displayed.

REACH SVHC: LEAD, CAS #: 7439-92-1, PPM: 4000

Use personal protective equipment as required. Do not eat, drink or smoke when using this product. Wash thoroughly after handling. Recycle if possible and dispose of the article by following all applicable governmental regulations relevant to your geographic location.

This information is provided based on reasonable inquiry of our suppliers and represents our current actual knowledge based on the information they provided.

Please contact [email protected] for any Compliance or Environmental related questions.

Last Update: 6/28/2023 1:01:36 AM

Spinning Wheel; Your Submission is Loading

Contact Us

How can we help?

*
*
*
*
*
*
*
*
Products specifications
Attribute name Attribute value
RF Series SMA
Gender Jack (Female)
Orientation (Body) Straight
Coupling Threaded
Body Style Jamnut/Bulkhead
Mounting Type Panel
Style Hermetic
Finish Passivated
IP Rating IP 68
RF Series 2 PN
Gender 2 Jack (Female)
Orientation 2 (Body) Straight
Electrical
Frequency 18 GHz
Impedance 50 ohms
Shielding Effectiveness ≥ -90 dB
Dielectric withstanding Voltage 1000 VRMS
Mechanical
Mating Cycles 500
Mating Torque 7 - 10 in - lbs
Intermateability 2.92mm
Environmental
Corrosion (salt spray) MIL-STD-202, Method 101, Condition B
Temperature Rating -65°C to +165°C
Shock MIL-STD-202, Method 213, Condition I
Moisture Resistance MIL-STD-202, Method 106, Less Step 7B
Thermal Shock MIL-STD-202, Method 107, Condition B
Barometric Pressure (Altitude) MIL-STD-202, Method 105, Condition C, 70k Ft.
Vibration MIL-STD-202, Method 204, Condition D
Customers Also Viewed
Part #   SF2991-6002

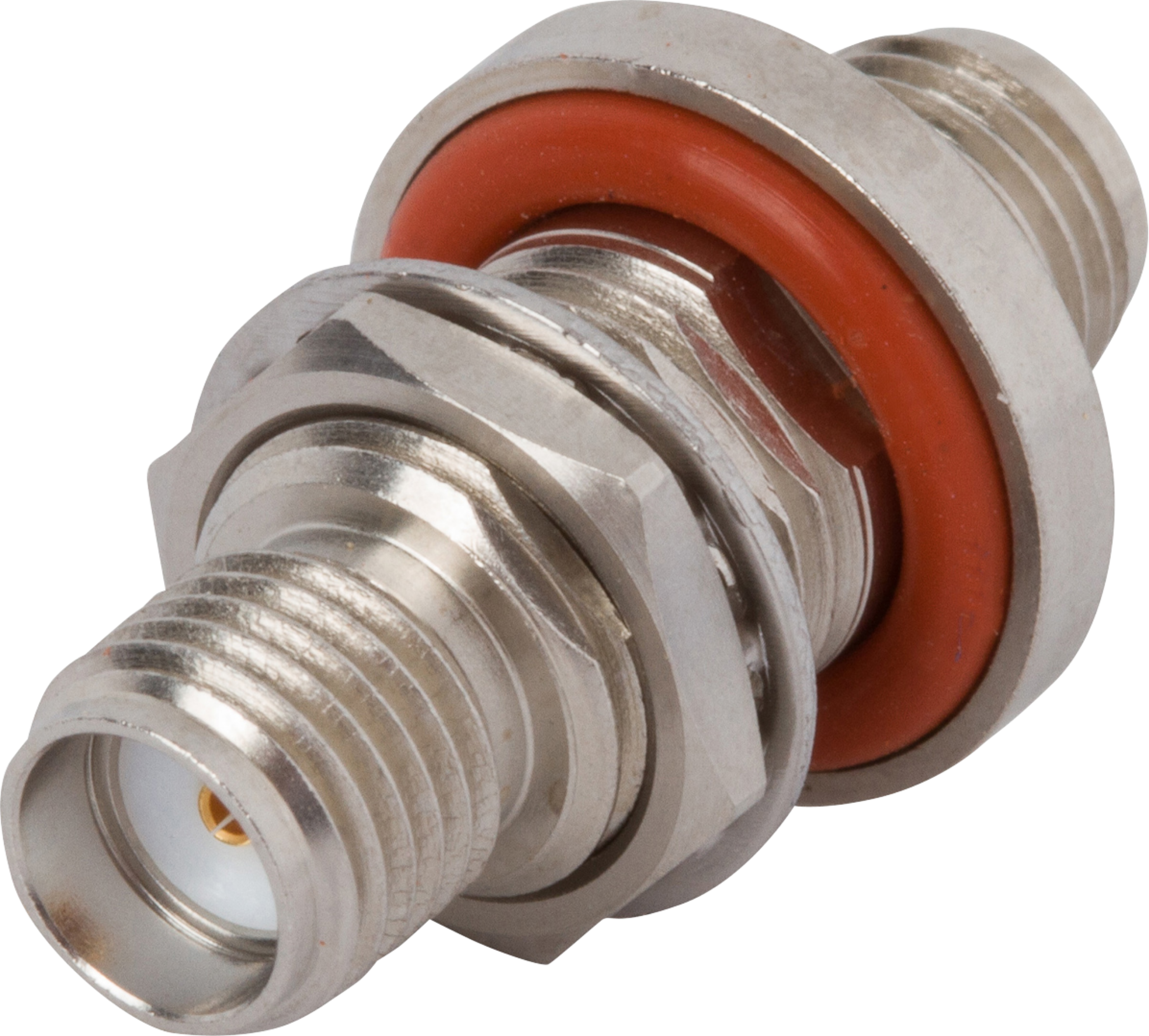

SMA Female to Female Bulkhead Hermetic Adapter

Available Inventory: 2194
SF2991-6002
SMA Adapters SF2991-6002
Datasheet
Part #   SF4587-6003

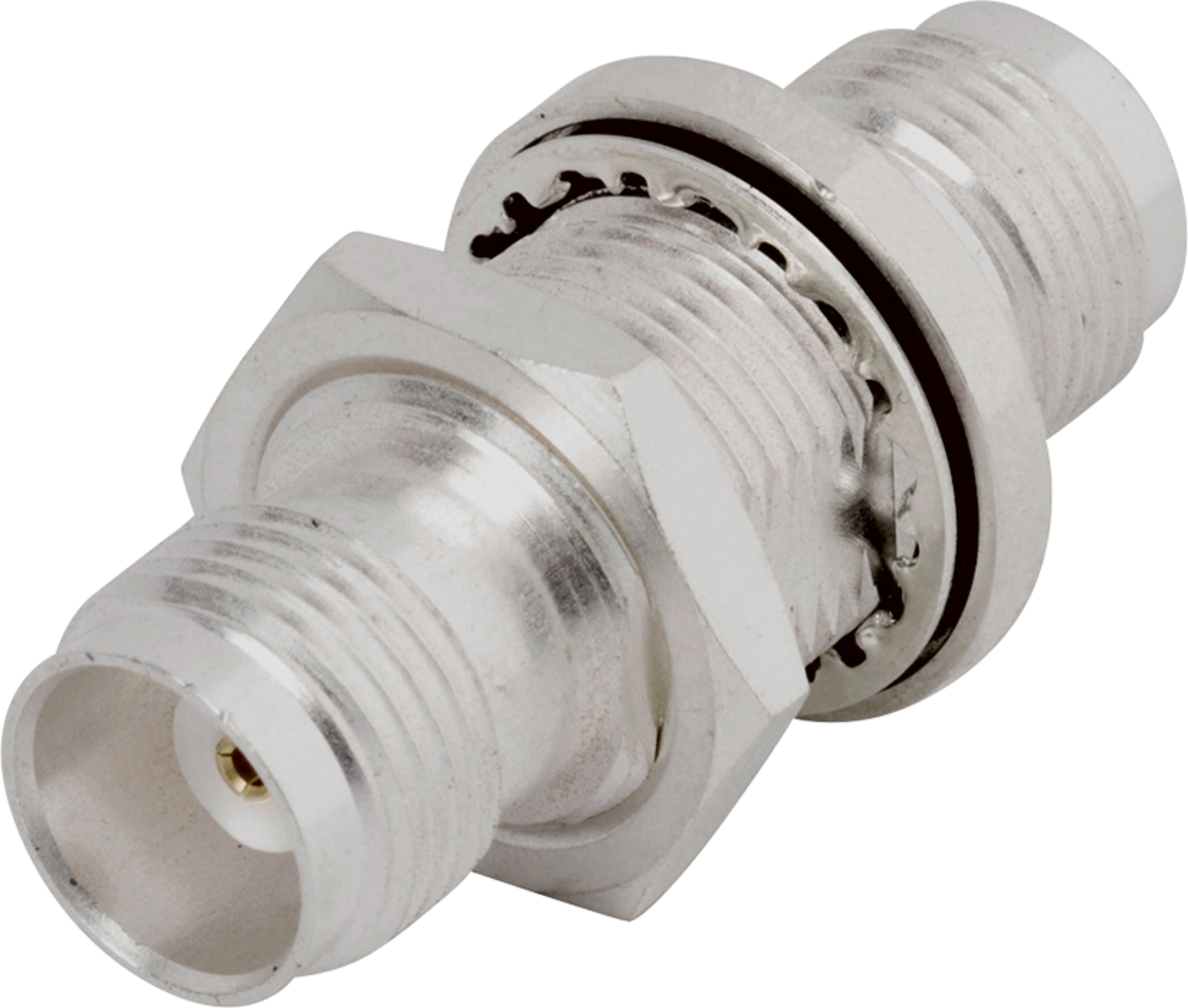

PTNC Female to Female Bulkhead Hermetic Adapter

Available Inventory: 0
SF4587-6003
PTNC Adapters SF4587-6003
Datasheet
Part #   M55339/34-00001

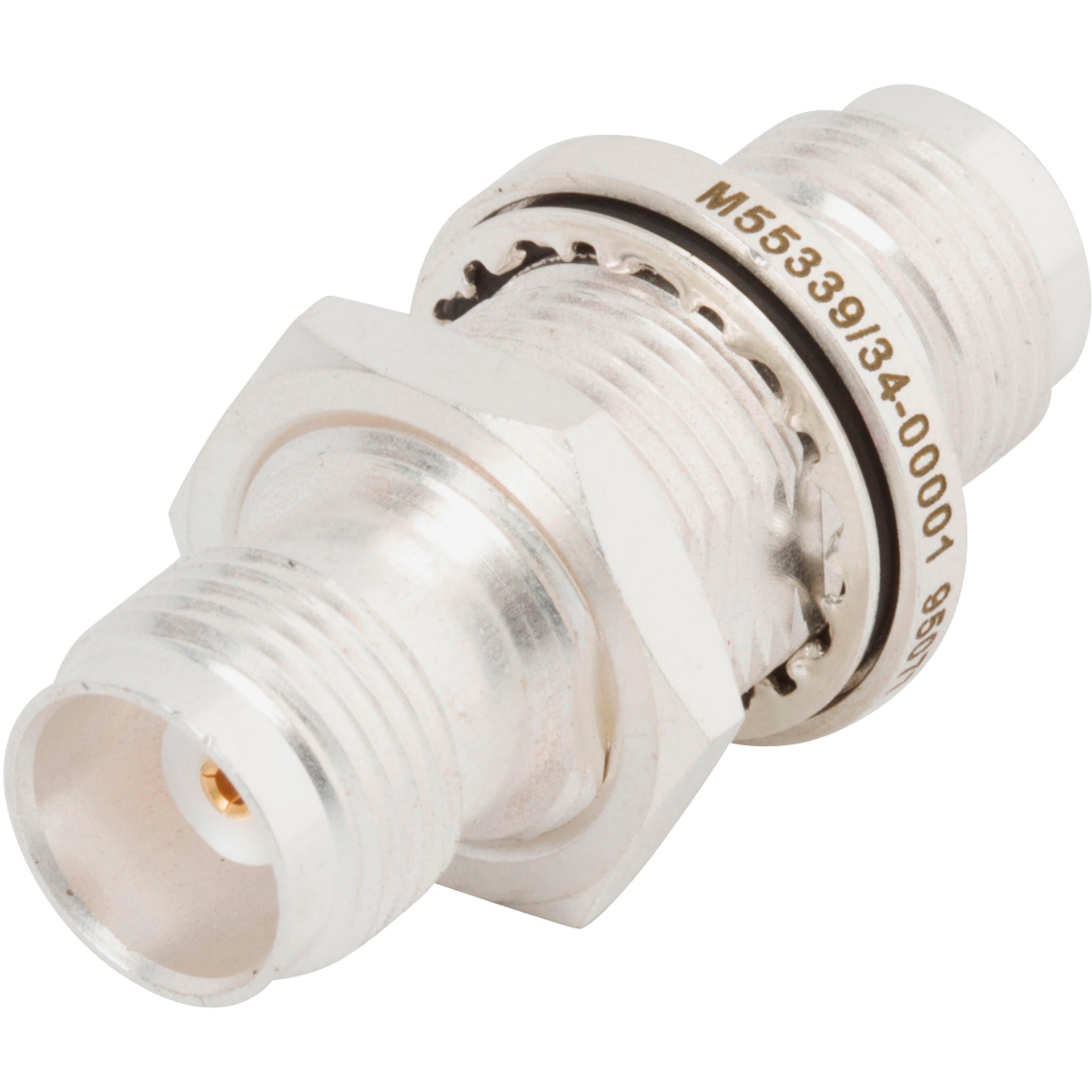

TNC Female to Female Bulkhead Hermetic Adapter
