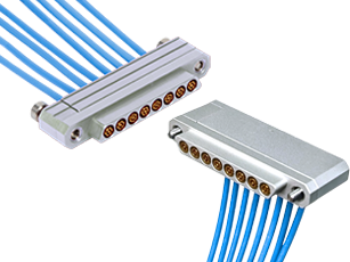

Mini-D RF Cable Assemblies

The Mini-D product line offers multiport harnessed cable assemblies that have a rugged, lightweight aluminum housing. Designed for high-density applications, it features .110" port-to-port spacing to optimize space in compact system designs. Available in both straight and right-angle configurations, the product line also includes a panel mount assembly, enhancing its versatility and usability in the field.

Features / Benefits & Applications
Technical Specs
Additional Resources

Features / Benefits:

High-density design
SMPS interface recessed from D-Sub housing to protect from damage
D-sub keying design to avoid mismating
DC-40 GHz

Applications:

Test and Instrumentation
Bench-Top Testing
Automated Test Equipment (ATE)
Airborne RADAR
Mil-Aero

Mini-D RF

Impedance (Ω)	50
Frequency GHz	40 GHz
Shielding Effectiveness	≥ -80 dB DC - 3 GHz ≥ -65 dB 3 - 26.5 GHz
Dielectric withstanding Voltage	250 VRMS
Mating Cycles	500
Insertion Force	9 lbs (nominal) to mate 8 position cable connector to PCB mount
Withdrawal Force	7 lbs (nominal) to de-mate 8 position cable connector to PCB mount
Mating Torque	12 in - oz
Temperature Rating	-65°C to +165°C
Corrosion (salt spray)	MIL-STD-202, Method 101, Condition B
Vibration	MIL-STD-202, Method 204, Condition D
Shock	MIL-STD-202, Method 213, Condition I
Thermal Shock	MIL-STD-202, Method 107, Condition B
Moisture Resistance	MIL-STD-202, Method 106, Less Step 7B
Barometric Pressure (Altitude)	MIL-STD-202, Method 105, Condition C, 70k Ft.
