Keyed SMA RF Cable Assemblies

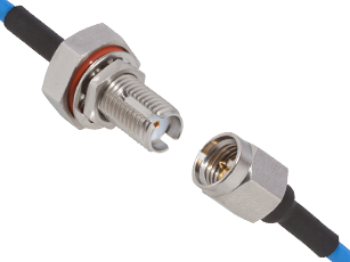

Picture for category Keyed SMA RF Cable Assemblies

SV Microwave just released fixed length Keyed SMA cable assemblies that offer an ideal solution when polarization is required. These new Keyed SMA connectors are available in 4 unique keying configurations and are cabled to standard SMAs using Ø.085 cable. This new self-aligning design offers more space savings than other bayonet style connectors.

Features / Benefits:

  • RF performance to 26.5 GHz
  • Multiple keyings available
  • Same self-aligning, easy-to-use form factor as our standard SMA
  • Options include adapters, cable assemblies, panel mount connectors & more
  • Standard SMA male connector without keying will mate to any keyed SMA female
  • Standard and custom configurations available

Applications:

  • Aerospace
  • Airborne Radar
  • Automated Test Equipment (ATE)
  • Transceiver Box
  • Military
  • Test and Instrumentation

SMA

 Impedance (Ω)  50
 Frequency GHz  18 GHz (select models to 26.5 GHz)
 Shielding Effectiveness  ≥ -90 dB
 Dielectric withstanding Voltage  1000 VRMS
 Mating Cycles  500
 Mating Torque  7 - 10 in - lbs
 Inter-mate ability  2.92mm
 Temperature Rating  -65°C to +165°C
 Corrosion (salt spray)  MIL-STD-202, Method 101, Condition B
 Vibration  MIL-STD-202, Method 204, Condition D
 Shock  MIL-STD-202, Method 213, Condition I
 Thermal Shock  MIL-STD-202, Method 107, Condition B
 Moisture Resistance  MIL-STD-202, Method 106, Less Step 7B
 Barometric Pressure (Altitude)  MIL-STD-202, Method 105, Condition C, 70k Ft.



Application Note

Keyed SMA RF Cable Assemblies Application Note

Product Video

Filters
7029-3410
SMA Cable Assemblies 7029-3410
Datasheet
7029-3409
SMA Cable Assemblies 7029-3409
Datasheet
7029-3408
SMA Cable Assemblies 7029-3408
Datasheet
7029-3411
SMA Cable Assemblies 7029-3411
Datasheet
Part #   7029-3414

SMA Male Keyed (120°) to SMA Male 6" Cable Assembly for .085 Cable

Available Inventory: 100
7029-3414
SMA Cable Assemblies 7029-3414
Datasheet
Part #   7029-3413

SMA Male Keyed (150°) to SMA Male 6" Cable Assembly for .085 Cable

Available Inventory: 201
7029-3413
SMA Cable Assemblies 7029-3413
Datasheet
Part #   7029-3412

SMA Male Keyed (180°) to SMA Male 6" Cable Assembly for .085 Cable

Available Inventory: 165
7029-3412
SMA Cable Assemblies 7029-3412
Datasheet
Part #   7029-3415

SMA Male Keyed (90°) to SMA Male 6" Cable Assembly for .085 Cable

Available Inventory: 128
7029-3415
SMA Cable Assemblies 7029-3415
Datasheet
