BMA Male PCB Edge Launch Connector, .068" PCB Thickness"
P/N: 1711-60044

In stock at Qty Order
Mouser Electronics 50
Products specifications
Attribute name Attribute value
Coupling Push-on
RF Series BMA
Orientation (Body) Straight
Gender Plug (Male)
Mounting Type PCB Edge Launch
Termination Style Solder
Electrical
Frequency 18 GHz
Impedance 50 ohms
Shielding Effectiveness ≥ -90 dB
Dielectric withstanding Voltage 1000 VRMS
Mechanical
Mating Cycles 5000
Insertion Force 3.0 lbs
Withdrawal Force 1.5 lbs
Environmental
Corrosion (salt spray) MIL-STD-202, Method 101, Condition B
Temperature Rating -65°C to +165°C
Shock MIL-STD-202, Method 213, Condition I
Vibration MIL-STD-202, Method 204, Condition D
Thermal Shock MIL-STD-202, Method 107, Condition B
Barometric Pressure (Altitude) MIL-STD-202, Method 105, Condition C, 70k Ft.
Moisture Resistance MIL-STD-202, Method 106, Less Step 7B


EU RoHS Directive 2011/65/EU Yes, w/ Exemption 6C

These products comply with the substance restrictions of the Restriction on Hazardous Substances Directive 2011/65/EU (RoHS2). The RoHS2 Directive requires that certain electrical and electronic equipment products do not contain mercury, cadmium, hexavalent chromium, PBB, PBDE, lead, DEHP, BBP, DBP and DIBP above defined thresholds. Products indicated as compliant with exemption contain one or more of these substances above the prohibition thresholds, but are compliant by claiming one or more valid exemptions.

This information is provided based on reasonable inquiry of our suppliers and represents our current actual knowledge based on the information they provided.

Please contact [email protected] for any Compliance or Environmental related questions.

Last Update: 2/5/2023 1:06:52 AM

Contact Us

How can we help?

*
*
*
*
*
*
*
*
Products specifications
Attribute name Attribute value
Coupling Push-on
RF Series BMA
Orientation (Body) Straight
Gender Plug (Male)
Mounting Type PCB Edge Launch
Termination Style Solder
Electrical
Frequency 18 GHz
Impedance 50 ohms
Shielding Effectiveness ≥ -90 dB
Dielectric withstanding Voltage 1000 VRMS
Mechanical
Mating Cycles 5000
Insertion Force 3.0 lbs
Withdrawal Force 1.5 lbs
Environmental
Corrosion (salt spray) MIL-STD-202, Method 101, Condition B
Temperature Rating -65°C to +165°C
Shock MIL-STD-202, Method 213, Condition I
Vibration MIL-STD-202, Method 204, Condition D
Thermal Shock MIL-STD-202, Method 107, Condition B
Barometric Pressure (Altitude) MIL-STD-202, Method 105, Condition C, 70k Ft.
Moisture Resistance MIL-STD-202, Method 106, Less Step 7B
Customers Also Viewed
Part #   1740-6001

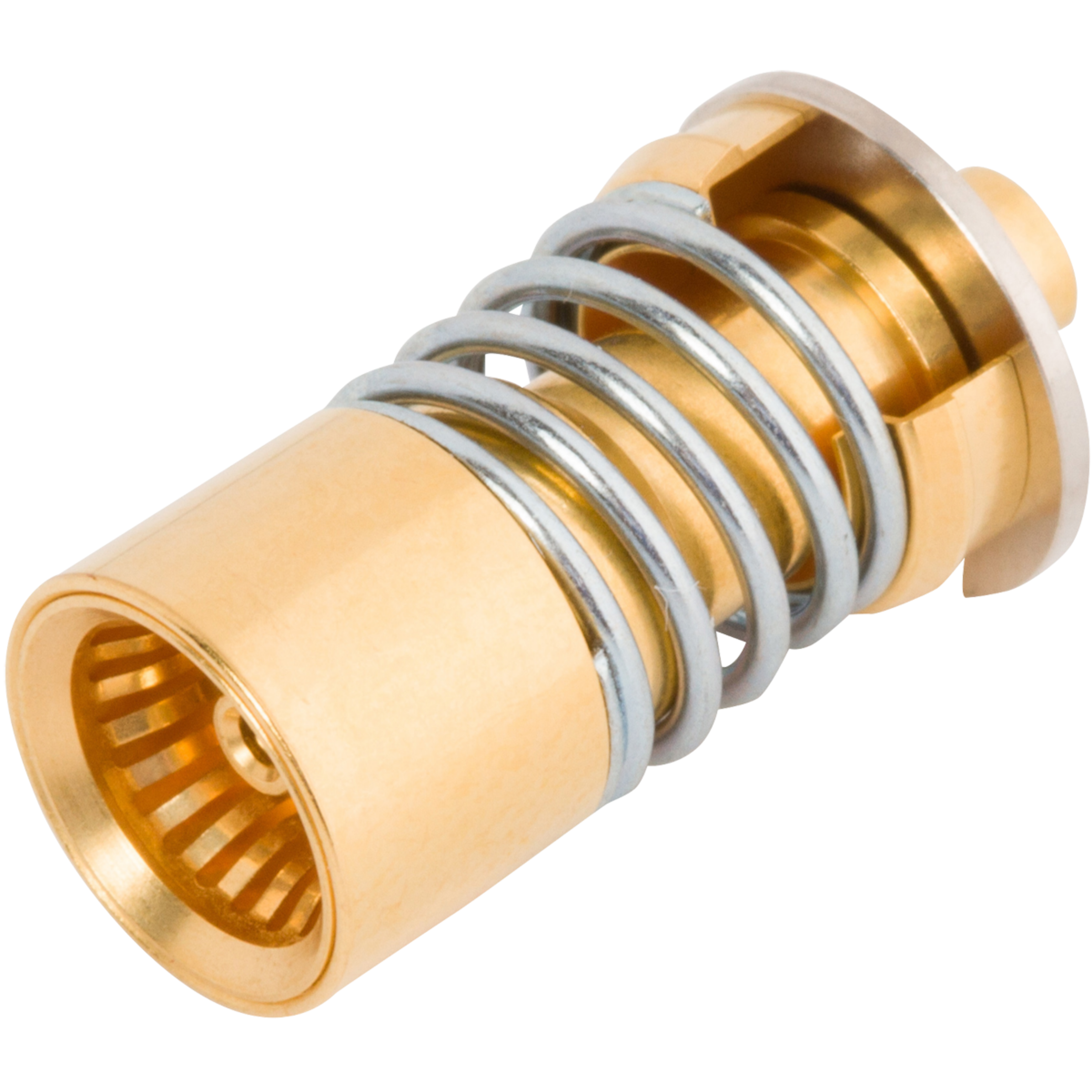

BMA Female Snap-In Float Mount Connector for .085 Cable

Available Inventory: 603
1740-6001
BMA Connectors 1740-6001
Datasheet
Part #   1785-0003

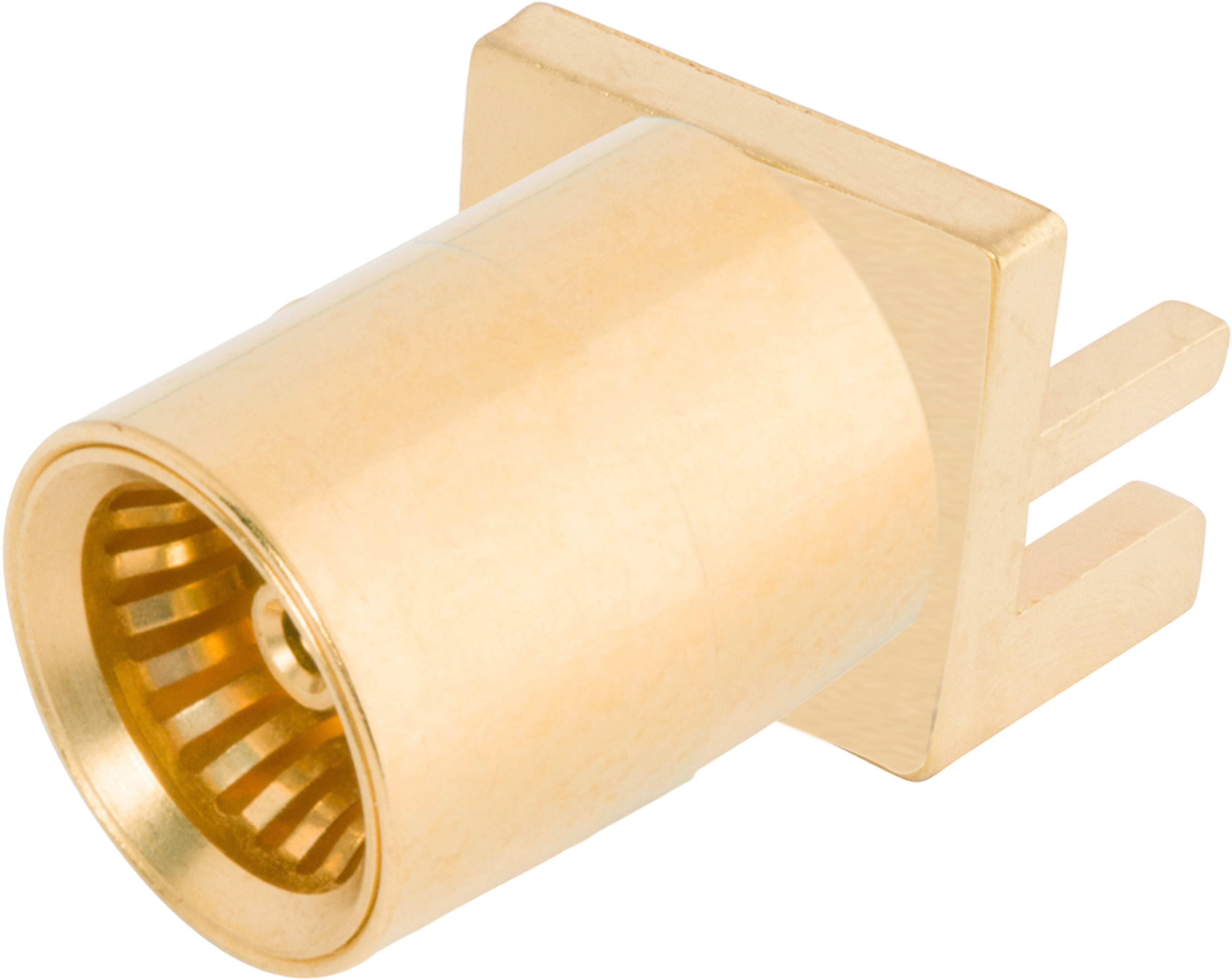

BMA Female PCB Edge Launch Connector

Available Inventory: 99
1785-0003
BMA Connectors 1785-0003
Datasheet
Part #   8017-6002

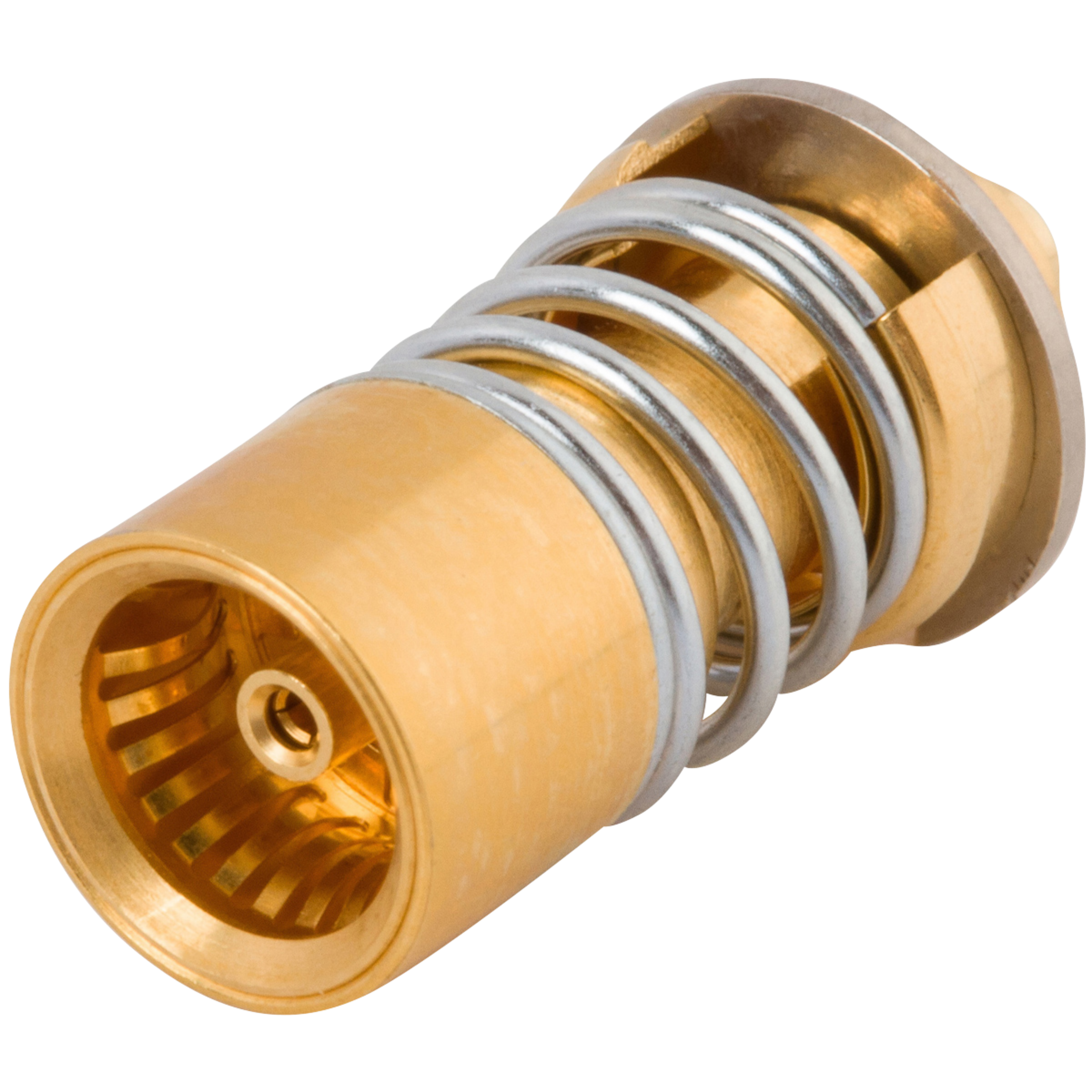

BMA Female Termination
