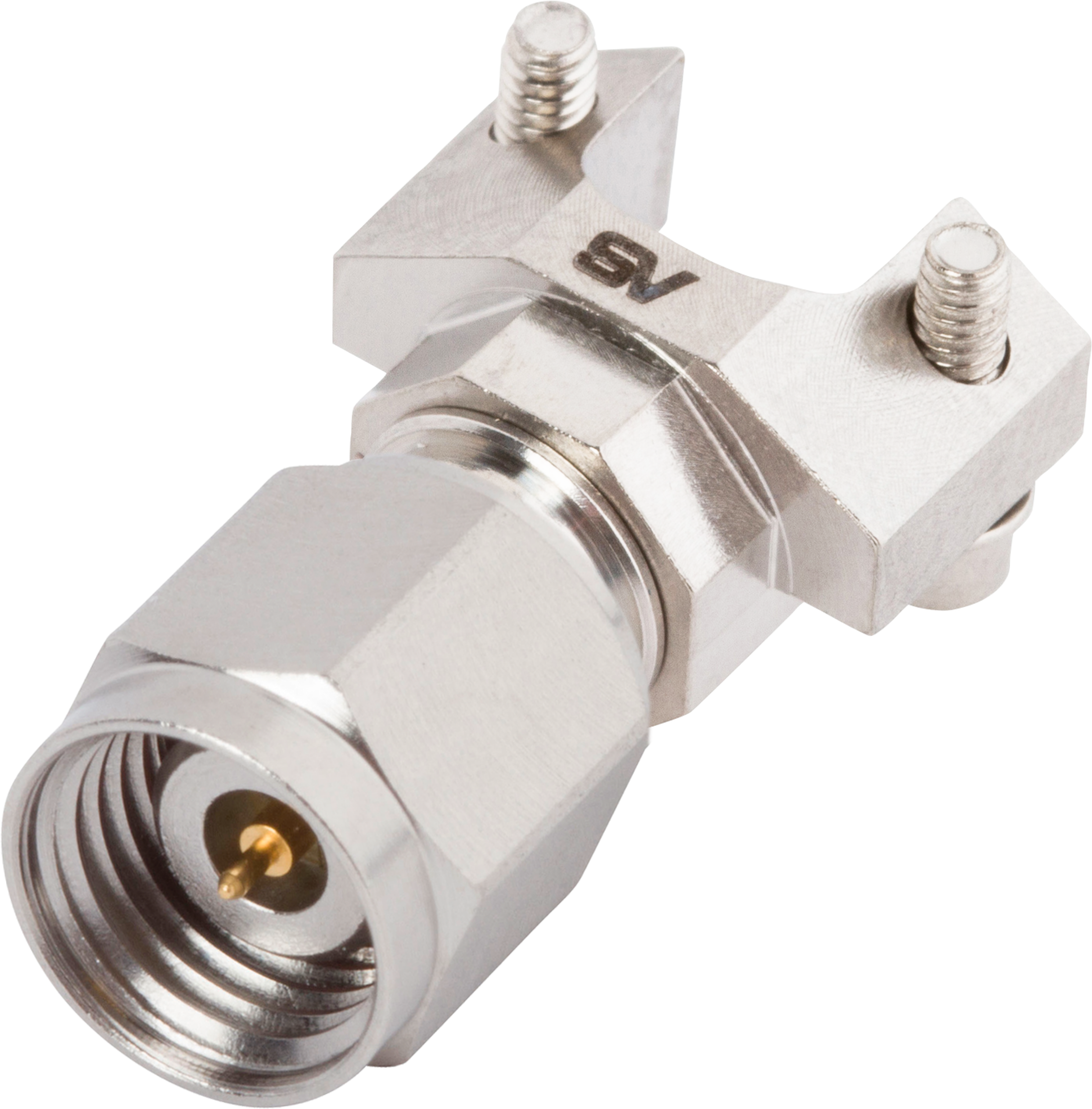

2.92mm Male Solderless PCB Edge Launch Connector, 2 Hole
P/N: SF1511-60111

In stock at Qty Order
Mouser Electronics 39
Digi-Key Electronics 19
TTI Inc Global Headquarters 15
Products specifications
Attribute name Attribute value
RF Series 2.92 mm
Family Solderless
Orientation (Body) Straight
Coupling Threaded
Mounting Type PCB Edge Launch
Body Style 2 Hole
Termination Style Solder-free
Number of Ports Single
Finish Passivated
Gender Plug (Male)
Electrical
Frequency 26.5 GHz
Impedance 50 ohms
Shielding Effectiveness ≥ -100 dB
Dielectric withstanding Voltage 750 VRMS
Mechanical
Mating Cycles 500
Mating Torque 7 - 10 in - lbs
Inter-mate ability SMA
Environmental
Temperature Rating -65°C to +165°C
Corrosion (salt spray) MIL-STD-202, Method 101, Condition B
Vibration MIL-STD-202, Method 204, Condition D
Shock MIL-STD-202, Method 213, Condition I
Thermal Shock MIL-STD-202, Method 107, Condition B
Moisture Resistance MIL-STD-202, Method 106, Less Step 7B
Barometric Pressure (Altitude) MIL-STD-202, Method 105, Condition C, 70k Ft.


EU REACH Regulation (EC) No. 1907/2006 SVHC > Threshold

These products contain one or more EU REACH Substances of Very High Concern (SVHC) > 0.1% by weight (1000 ppm). Details related to the SVHC are displayed.

REACH SVHC: LEAD, CAS #: 7439-92-1, PPM: 4000

Use personal protective equipment as required. Do not eat, drink or smoke when using this product. Wash thoroughly after handling. Recycle if possible and dispose of the article by following all applicable governmental regulations relevant to your geographic location.

This information is provided based on reasonable inquiry of our suppliers and represents our current actual knowledge based on the information they provided.

Please contact compliance@svmicro.com for any Compliance or Environmental related questions.

Last Update: 12/1/2022 1:08:02 AM

Contact Us

How can we help?

*
*
*
*
*
*
*
*
Products specifications
Attribute name Attribute value
RF Series 2.92 mm
Family Solderless
Orientation (Body) Straight
Coupling Threaded
Mounting Type PCB Edge Launch
Body Style 2 Hole
Termination Style Solder-free
Number of Ports Single
Finish Passivated
Gender Plug (Male)
Electrical
Frequency 26.5 GHz
Impedance 50 ohms
Shielding Effectiveness ≥ -100 dB
Dielectric withstanding Voltage 750 VRMS
Mechanical
Mating Cycles 500
Mating Torque 7 - 10 in - lbs
Inter-mate ability SMA
Environmental
Temperature Rating -65°C to +165°C
Corrosion (salt spray) MIL-STD-202, Method 101, Condition B
Vibration MIL-STD-202, Method 204, Condition D
Shock MIL-STD-202, Method 213, Condition I
Thermal Shock MIL-STD-202, Method 107, Condition B
Moisture Resistance MIL-STD-202, Method 106, Less Step 7B
Barometric Pressure (Altitude) MIL-STD-202, Method 105, Condition C, 70k Ft.
Customers Also Viewed
Part #   SF1611-60018

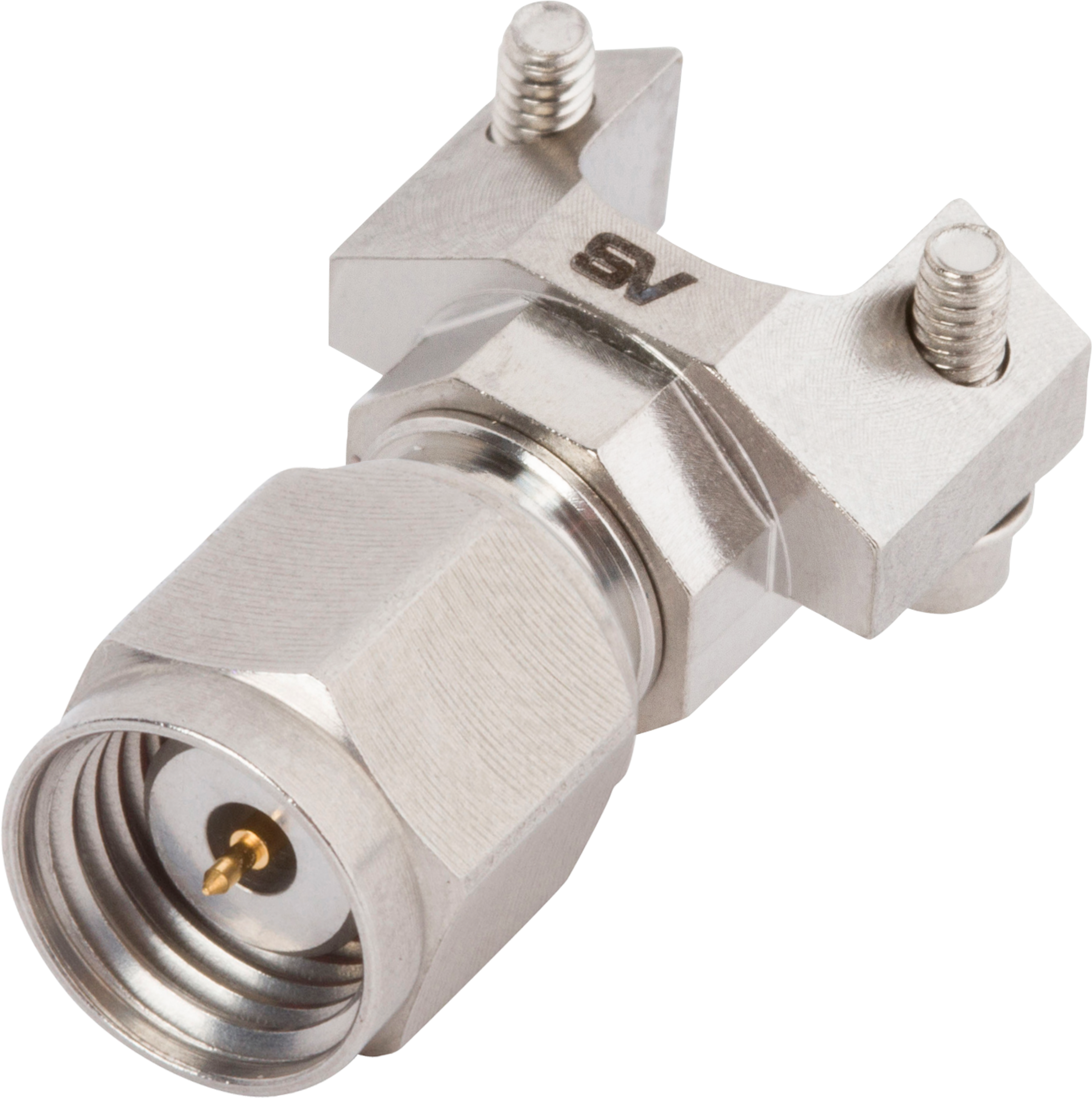

2.4mm Male Solderless PCB Edge Launch Connector, 2 Hole

Available Inventory: 51
SF1611-60018
2.4mm Connectors SF1611-60018
Datasheet
Part #   SF3311-60012

1.85mm Male Solderless PCB Edge Launch Connector, 2 Hole

Available Inventory: 99
SF3311-60012
1.85mm Connectors SF3311-60012
Datasheet
Part #   SF1521-60150

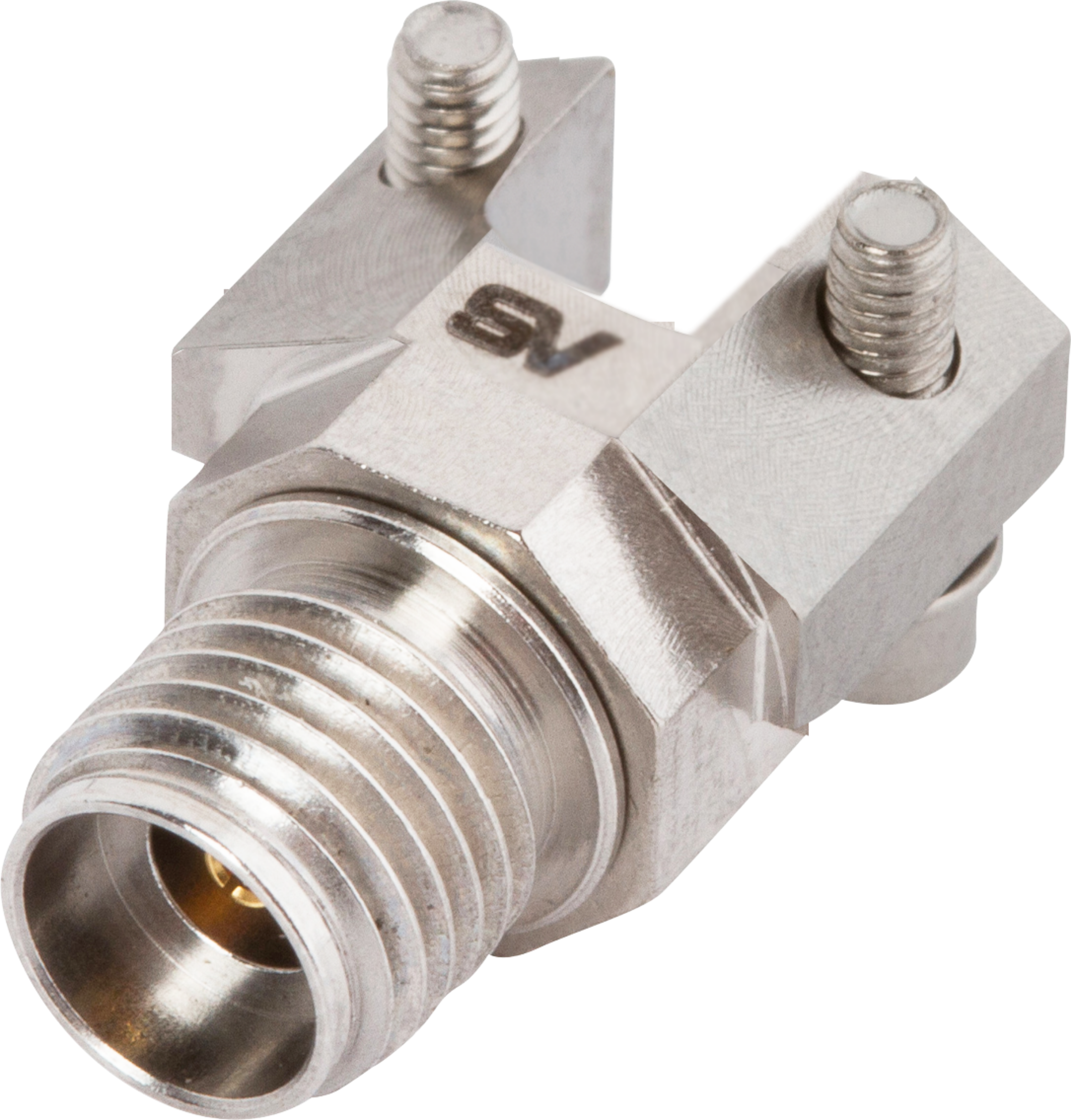

2.92mm Female Solderless PCB Reduced Flange Edge Launch Connector, 2 Hole
