P/N: SF1521-60150

2.92mm Female Solderless PCB Reduced Flange Edge Launch Connector, 2 Hole

In stock at Qty Order
Digi-Key Electronics 196
Mouser Electronics 49
Master Electronics 40
Farnell 12
TTI Inc Global Headquarters 6
Products specifications
Attribute name Attribute value
Family Solderless
Gender Jack (Female)
RF Series 2.92 mm
Orientation (Body) Straight
Coupling Threaded
Termination Style Solder-free
Mounting Type PCB Edge Launch
Number of Ports Single
Finish Passivated
Body Style 2 Hole
Electrical
Frequency 40 GHz
Impedance 50 ohms
Shielding Effectiveness ≥ -100 dB
Dielectric withstanding Voltage 750 VRMS
Mechanical
Mating Cycles 500
Mating Torque 7 - 10 in - lbs
Inter-mate ability SMA
Environmental
Temperature Rating -65°C to +165°C
Corrosion (salt spray) MIL-STD-202, Method 101, Condition B
Vibration MIL-STD-202, Method 204, Condition D
Thermal Shock MIL-STD-202, Method 107, Condition B
Shock MIL-STD-202, Method 213, Condition I
Barometric Pressure (Altitude) MIL-STD-202, Method 105, Condition C, 70k Ft.
Moisture Resistance MIL-STD-202, Method 106, Less Step 7B

Contact Us

How can we help?

*
*
*
*
*
*
*
*
Products specifications
Attribute name Attribute value
Family Solderless
Gender Jack (Female)
RF Series 2.92 mm
Orientation (Body) Straight
Coupling Threaded
Termination Style Solder-free
Mounting Type PCB Edge Launch
Number of Ports Single
Finish Passivated
Body Style 2 Hole
Electrical
Frequency 40 GHz
Impedance 50 ohms
Shielding Effectiveness ≥ -100 dB
Dielectric withstanding Voltage 750 VRMS
Mechanical
Mating Cycles 500
Mating Torque 7 - 10 in - lbs
Inter-mate ability SMA
Environmental
Temperature Rating -65°C to +165°C
Corrosion (salt spray) MIL-STD-202, Method 101, Condition B
Vibration MIL-STD-202, Method 204, Condition D
Thermal Shock MIL-STD-202, Method 107, Condition B
Shock MIL-STD-202, Method 213, Condition I
Barometric Pressure (Altitude) MIL-STD-202, Method 105, Condition C, 70k Ft.
Moisture Resistance MIL-STD-202, Method 106, Less Step 7B
Customers Also Viewed
Part #   SF1621-60059

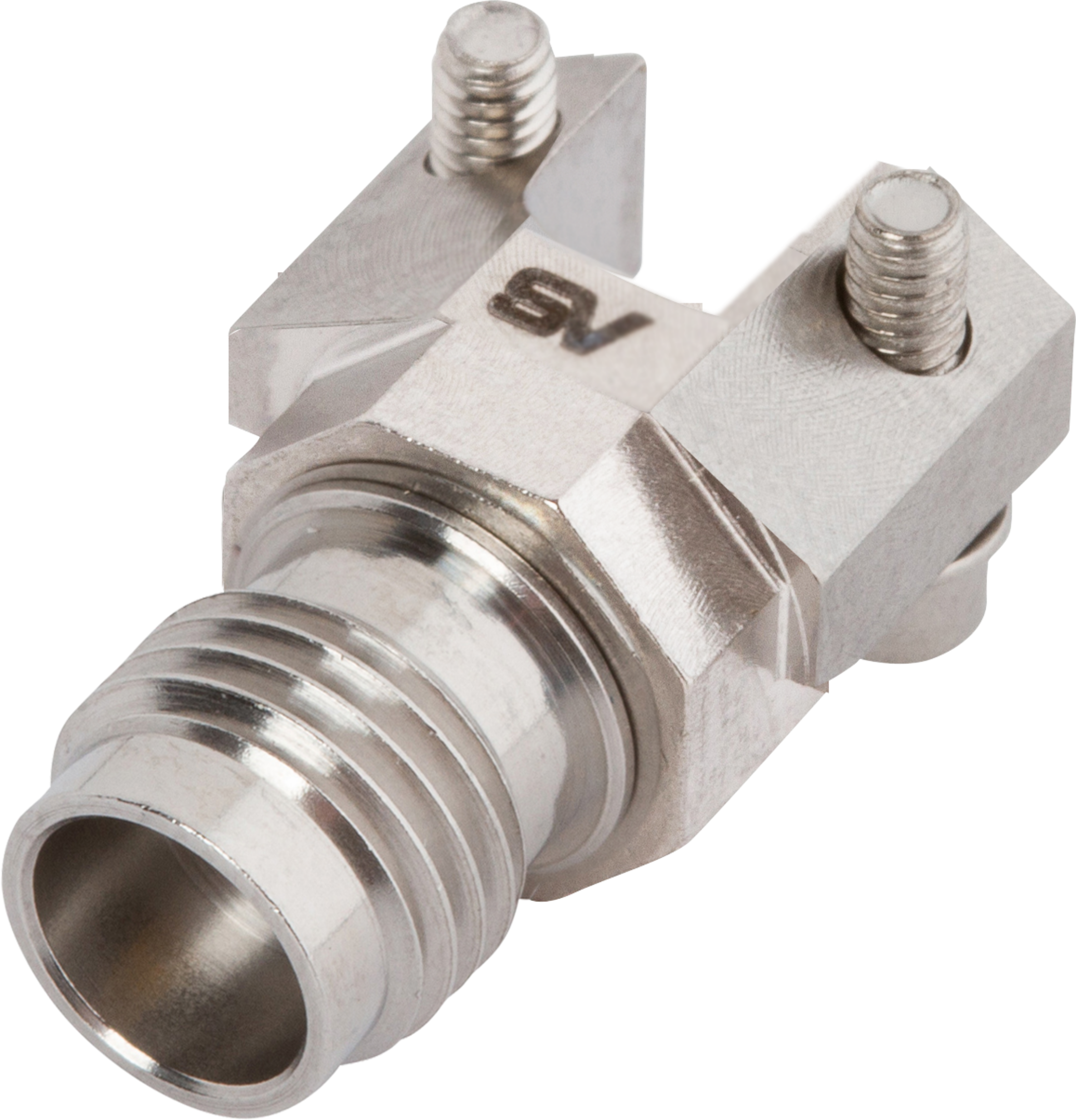

2.4mm Female Solderless PCB Reduced Flange Edge Launch Connector, 2 Hole

Available Inventory: 30
SF1621-60059
2.4mm Connectors SF1621-60059
Datasheet
Part #   SF2921-61560

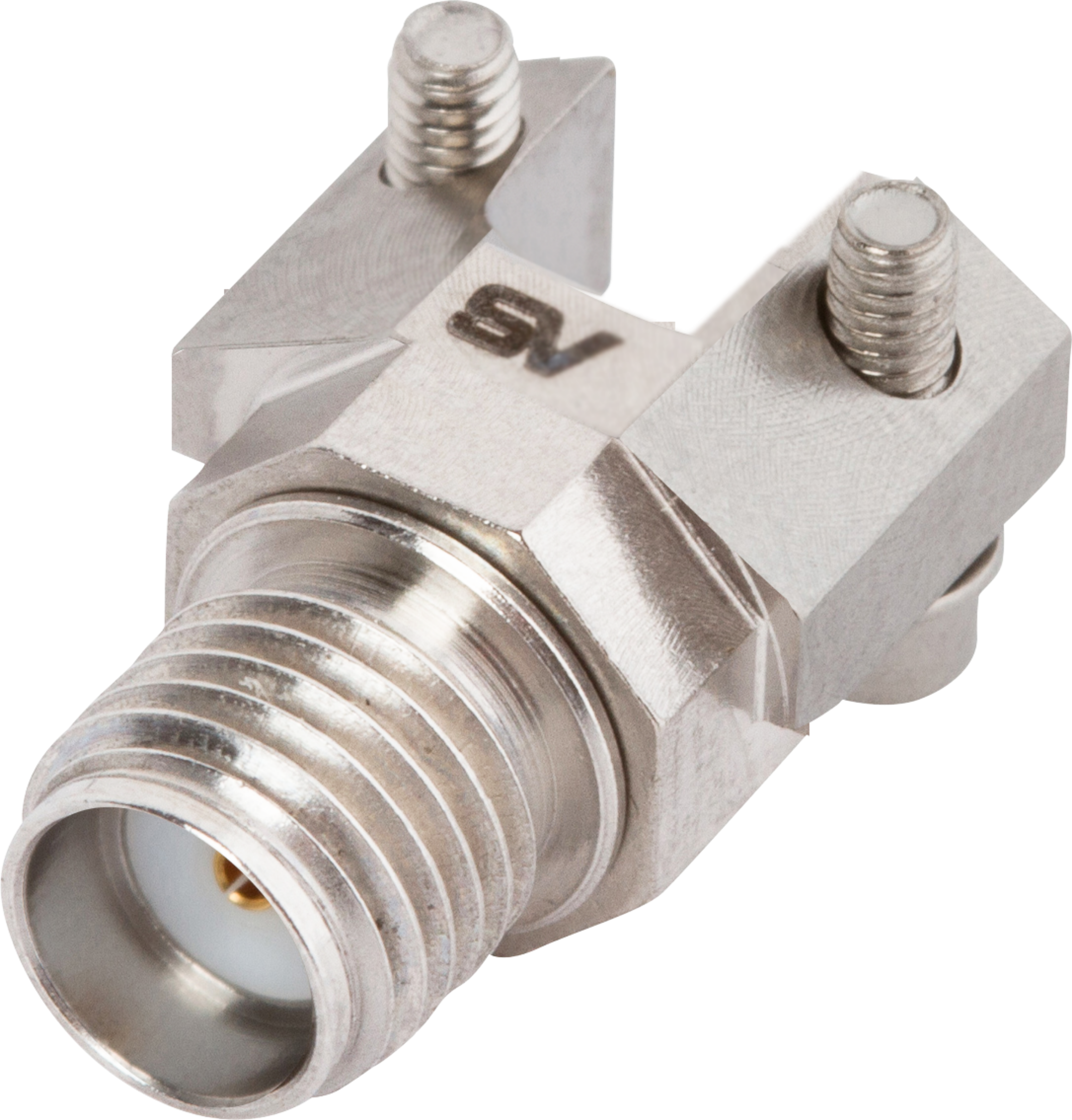

SMA Female Solderless PCB Reduced Flange Edge Launch Connector, 2 Hole

Available Inventory: 96
SF2921-61560
SMA Connectors SF2921-61560
Datasheet
Part #   SF1521-60107

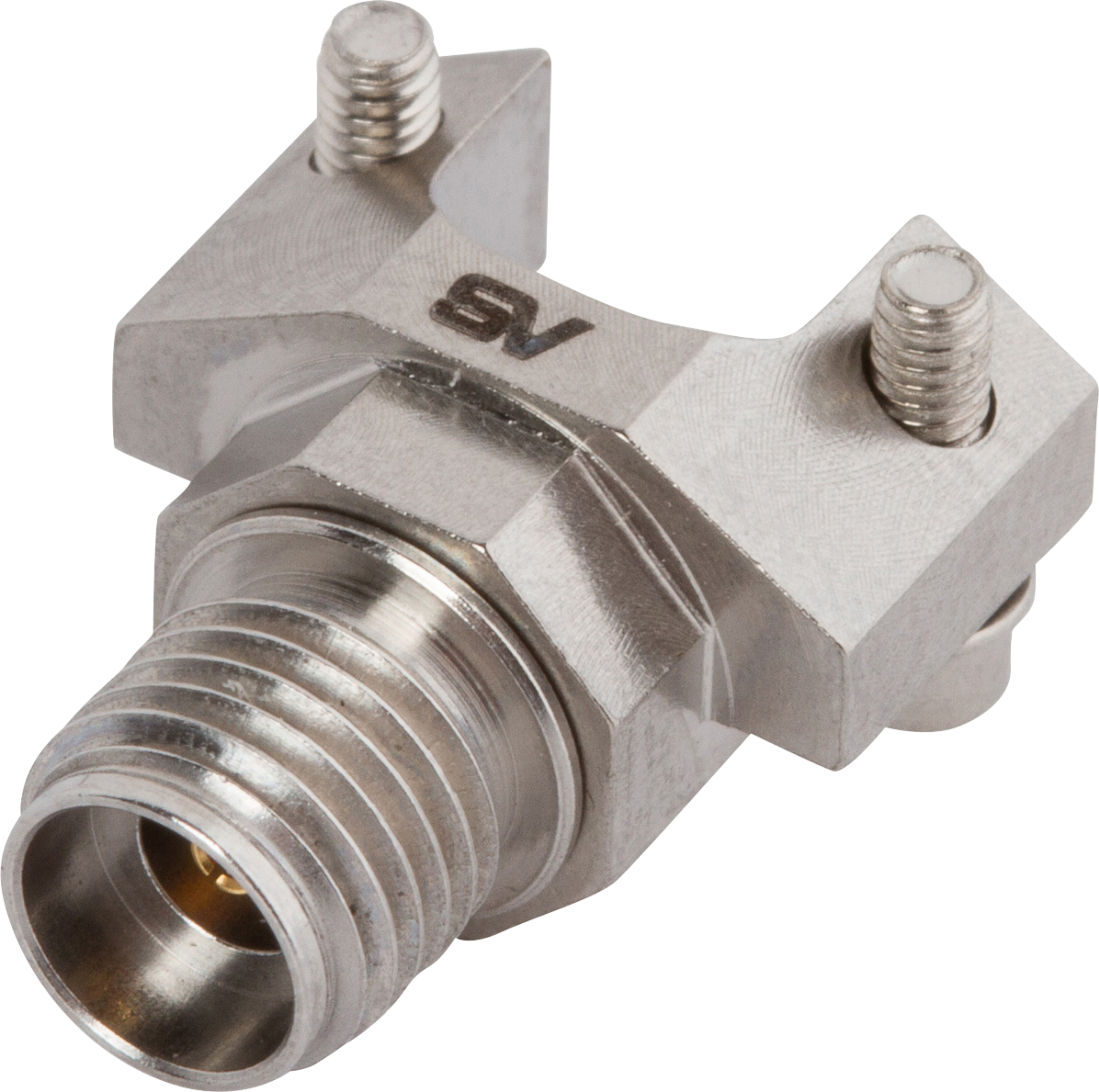

2.92mm Female Solderless PCB Edge Launch Connector, 2 Hole
