P/N: SF1521-60070-1S

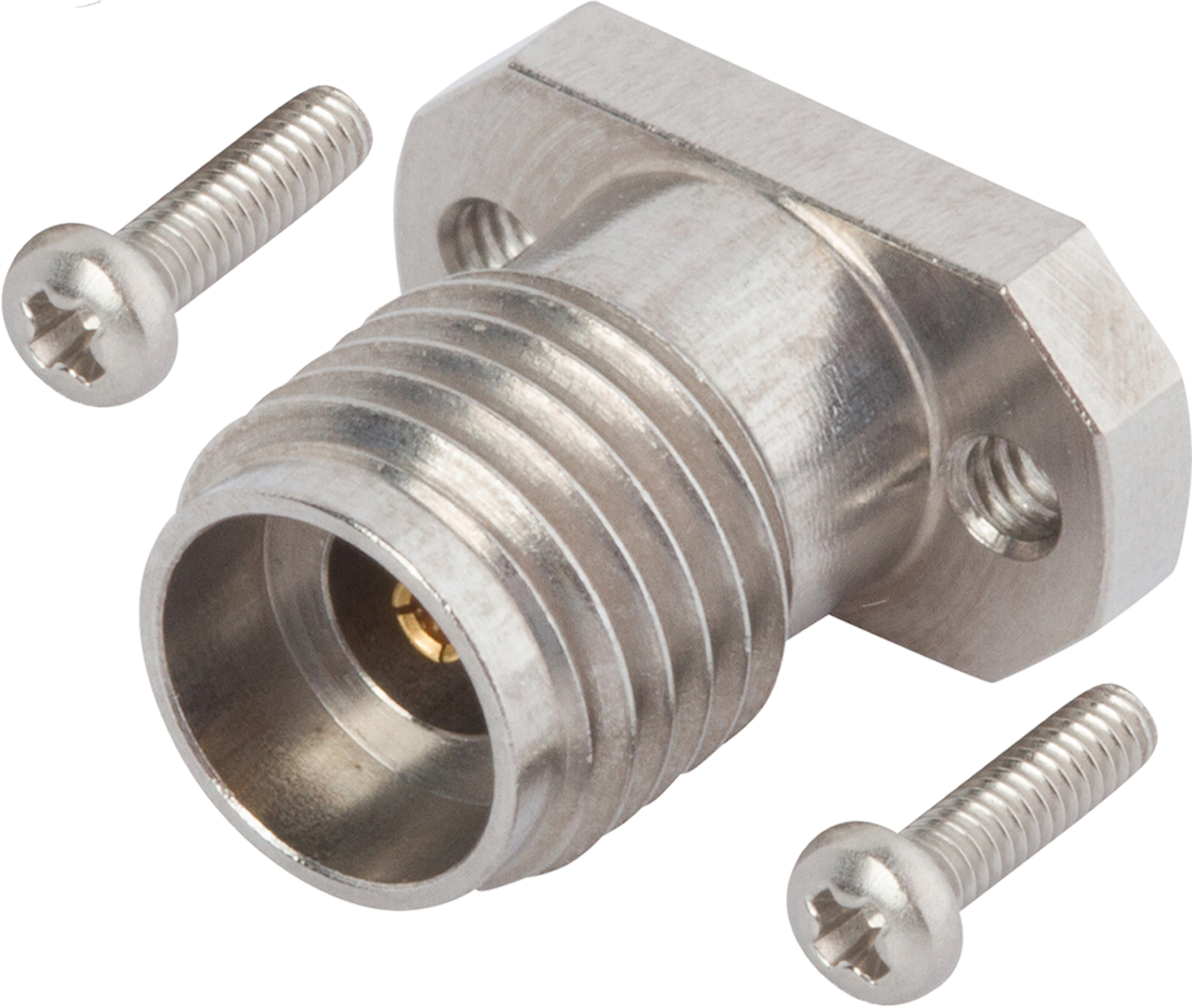

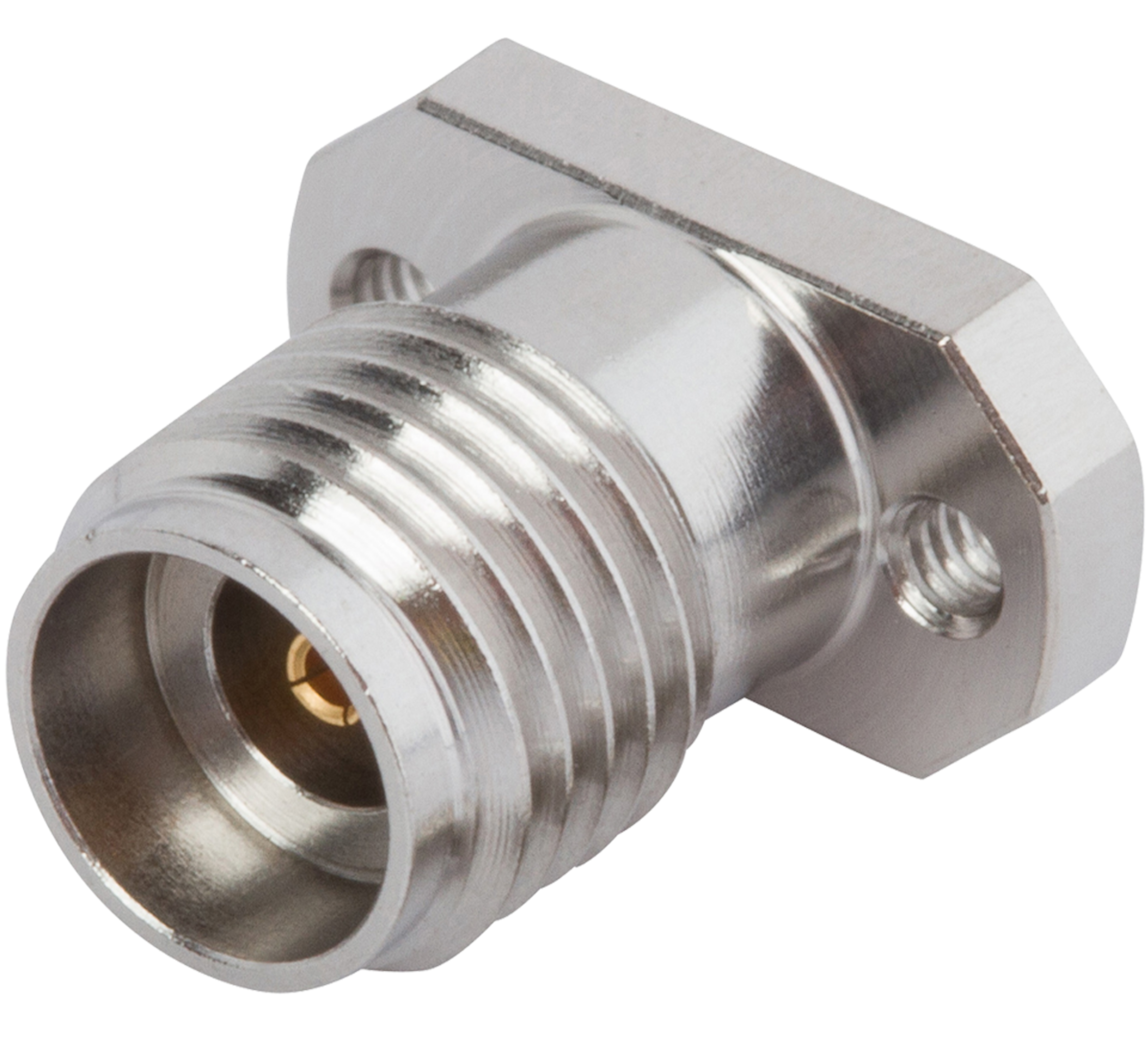

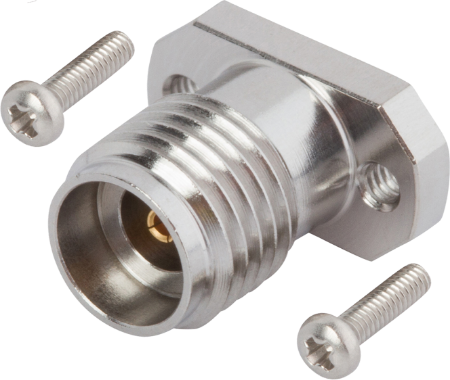

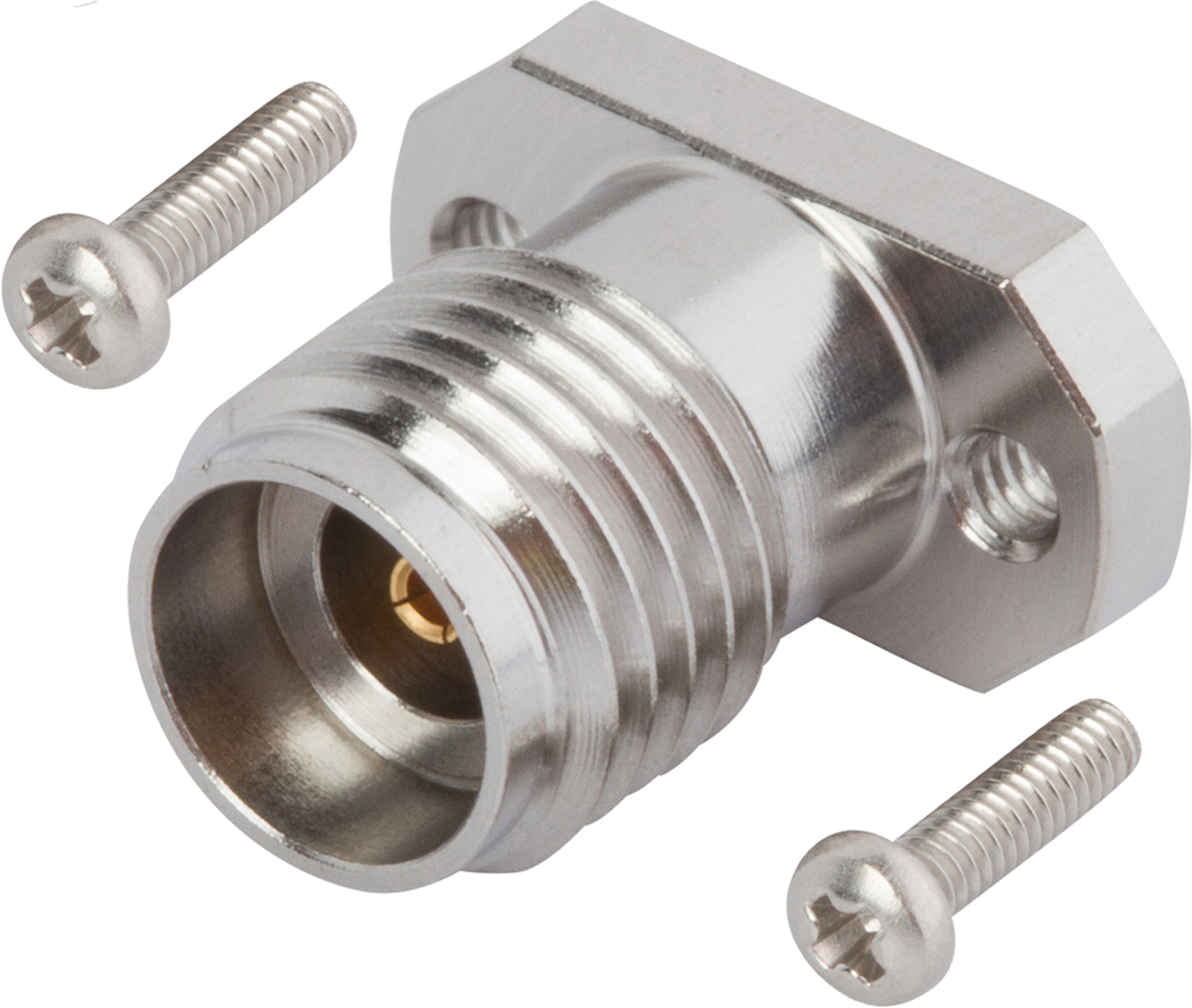

2.92mm Female Solderless PCB Compression Mount Connector, 2 Hole, with 4.76mm Screws (CPW / Microstrip)

In stock at Qty Order
Digi-Key Electronics 3541
Mouser Electronics 1864
TTI Inc Global Headquarters 190
Master Electronics 84
Electro Enterprises Inc 7
Heilind Electronics 5
Products specifications
Attribute name Attribute value
Family Solderless
RF Series 2.92 mm
Gender Jack (Female)
Orientation (Body) Straight
Mounting Type PCB Vertical Launch
Coupling Threaded
Termination Style Solder-free
Number of Ports Single
Body Style 2 Hole
Finish Passivated
Electrical
Frequency 40 GHz
Impedance 50 ohms
Shielding Effectiveness ≥ -100 dB
Dielectric withstanding Voltage 750 VRMS
Mechanical
Mating Torque 7 - 10 in - lbs
Mating Cycles 500
Inter-mate ability SMA
Environmental
Temperature Rating -65°C to +165°C
Corrosion (salt spray) MIL-STD-202, Method 101, Condition B
Vibration MIL-STD-202, Method 204, Condition D
Shock MIL-STD-202, Method 213, Condition I
Moisture Resistance MIL-STD-202, Method 106, Less Step 7B
Barometric Pressure (Altitude) MIL-STD-202, Method 105, Condition C, 70k Ft.
Thermal Shock MIL-STD-202, Method 107, Condition B
