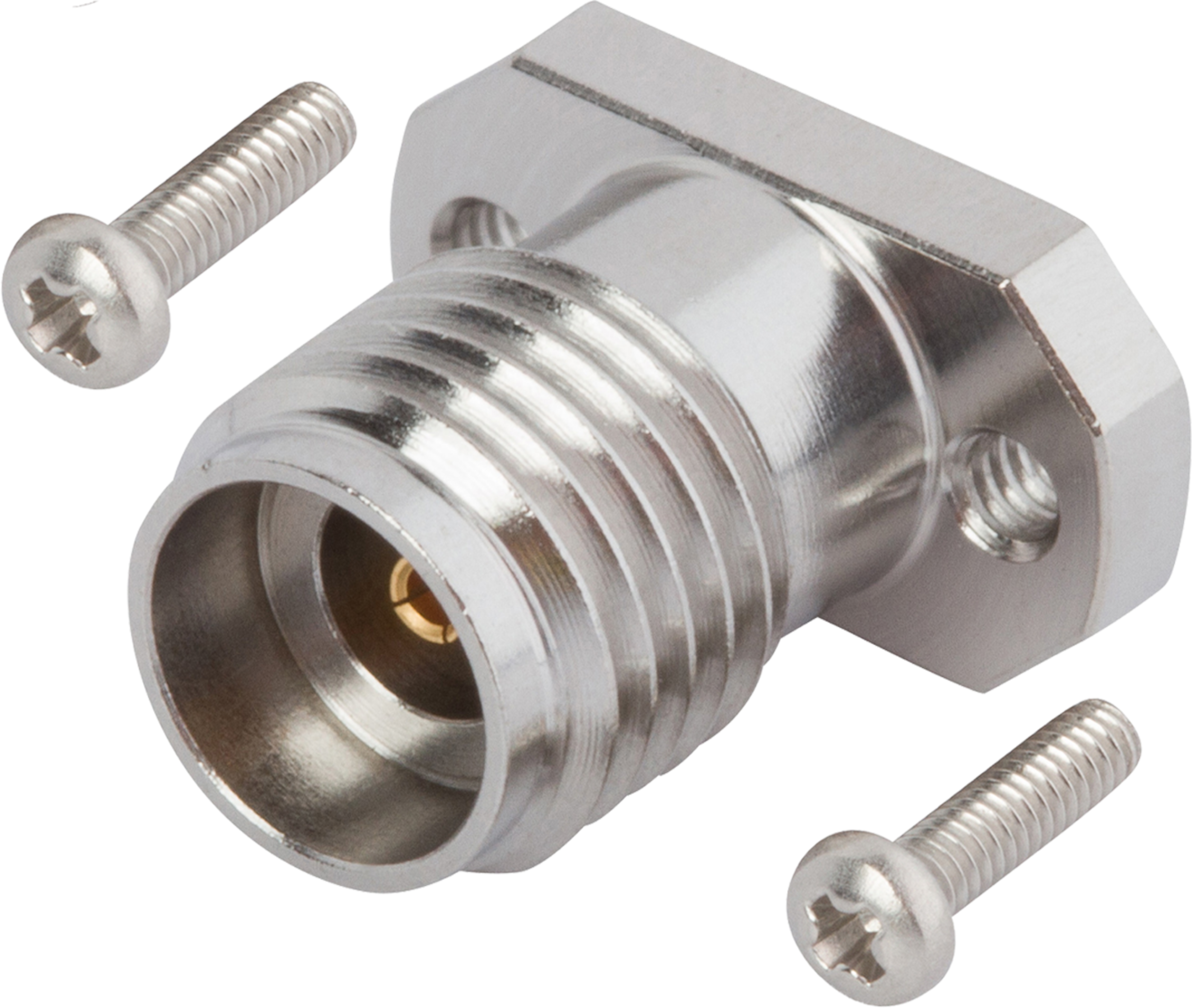

2.92mm Female Solderless PCB Compression Mount Connector, 2 Hole (CPW / Microstrip)
P/N: SF1521-60070

In stock at Qty Order
Digi-Key Electronics 1374
TTI Inc Global Headquarters 329
Interstate Connecting Components 225
Master Electronics 100
Onlinecomponents.com 100
Arrow Electronics Inc 97
Heilind Electronics 75
Newark 38
Mouser Electronics 33
Products specifications
Attribute name Attribute value
Family Solderless
Gender Jack (Female)
Orientation (Body) Straight
RF Series 2.92 mm
Coupling Threaded
Mounting Type PCB Vertical Launch
Termination Style Solder-free
Body Style 2 Hole
Number of Ports Single
Finish Passivated
Electrical
Frequency 40 GHz
Impedance 50 ohms
Shielding Effectiveness ≥ -100 dB
Dielectric withstanding Voltage 750 VRMS
Mechanical
Mating Torque 7 - 10 in - lbs
Mating Cycles 500
Intermateability SMA
Environmental
Temperature Rating -65°C to +165°C
Shock MIL-STD-202, Method 213, Condition I
Corrosion (salt spray) MIL-STD-202, Method 101, Condition B
Vibration MIL-STD-202, Method 204, Condition D
Thermal Shock MIL-STD-202, Method 107, Condition B
Barometric Pressure (Altitude) MIL-STD-202, Method 105, Condition C, 70k Ft.
Moisture Resistance MIL-STD-202, Method 106, Less Step 7B


EU RoHS Directive 2011/65/EU Yes, w/ Exemption 6C

These products comply with the substance restrictions of the Restriction on Hazardous Substances Directive 2011/65/EU (RoHS2). The RoHS2 Directive requires that certain electrical and electronic equipment products do not contain mercury, cadmium, hexavalent chromium, PBB, PBDE, lead, DEHP, BBP, DBP and DIBP above defined thresholds. Products indicated as compliant with exemption contain one or more of these substances above the prohibition thresholds, but are compliant by claiming one or more valid exemptions.

EU REACH Regulation (EC) No. 1907/2006 SVHC > Threshold

These products contain one or more EU REACH Substances of Very High Concern (SVHC) > 0.1% by weight (1000 ppm). Details related to the SVHC are displayed.

REACH SVHC: LEAD, CAS #: 7439-92-1, PPM: 4000

Use personal protective equipment as required. Do not eat, drink or smoke when using this product. Wash thoroughly after handling. Recycle if possible and dispose of the article by following all applicable governmental regulations relevant to your geographic location.

CE / UKCA Not Yet Reviewed

Please contact our compliance team for more information.

This information is provided based on reasonable inquiry of our suppliers and represents our current actual knowledge based on the information they provided.

Please contact [email protected] for any Compliance or Environmental related questions.

Last Update: 6/28/2023 1:25:02 AM

Spinning Wheel; Your Submission is Loading

Contact Us

How can we help?

*
*
*
*
*
*
*
*
Products specifications
Attribute name Attribute value
Family Solderless
Gender Jack (Female)
Orientation (Body) Straight
RF Series 2.92 mm
Coupling Threaded
Mounting Type PCB Vertical Launch
Termination Style Solder-free
Body Style 2 Hole
Number of Ports Single
Finish Passivated
Electrical
Frequency 40 GHz
Impedance 50 ohms
Shielding Effectiveness ≥ -100 dB
Dielectric withstanding Voltage 750 VRMS
Mechanical
Mating Torque 7 - 10 in - lbs
Mating Cycles 500
Intermateability SMA
Environmental
Temperature Rating -65°C to +165°C
Shock MIL-STD-202, Method 213, Condition I
Corrosion (salt spray) MIL-STD-202, Method 101, Condition B
Vibration MIL-STD-202, Method 204, Condition D
Thermal Shock MIL-STD-202, Method 107, Condition B
Barometric Pressure (Altitude) MIL-STD-202, Method 105, Condition C, 70k Ft.
Moisture Resistance MIL-STD-202, Method 106, Less Step 7B
Customers Also Viewed
Part #   SF1521-60061

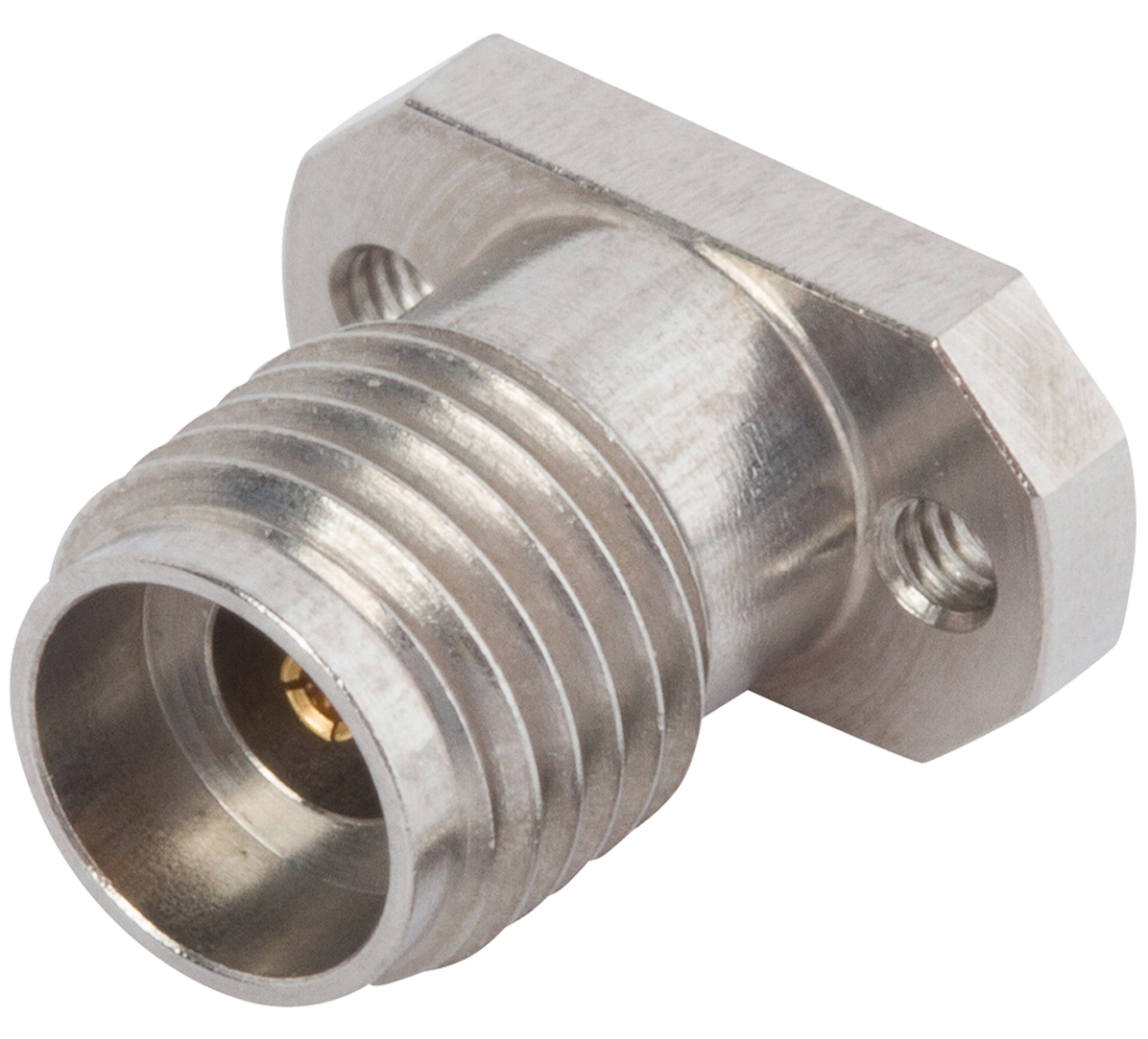

2.92mm Female Solderless PCB Compression Mount Connector, 2 Hole (Stripline)
