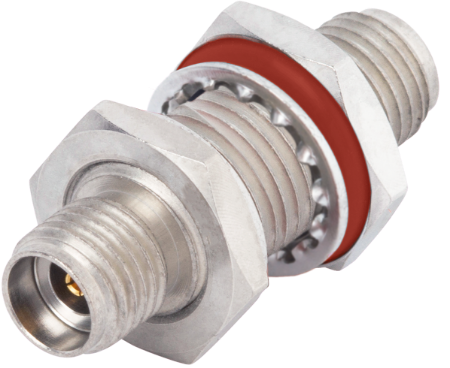

2.92 Female to SMA Female Bulkhead Hermetic Adapter
P/N: 1115-6141

In stock at Qty Order
Newark 25
Farnell 25
Digi-Key Electronics 23
Products specifications
Attribute name Attribute value
RF Series 2.92 mm
Orientation (Body) Straight
Gender Plug (Male)
Coupling Threaded
Finish Passivated
Gender 2 Plug (Male)
RF Series 2 SMA
Orientation 2 (Body) Straight
Body Style Jamnut/Bulkhead
Style Hermetic, Glass Seal
IP Rating IP 68
Mounting Type Panel
Electrical
Impedance 50 ohms
Frequency 40 GHz
Shielding Effectiveness ≥ -100 dB
Dielectric withstanding Voltage 750 VRMS
Mechanical
Mating Cycles 500
Mating Torque 7 - 10 in - lbs
Intermateability SMA
Environmental
Temperature Rating -65°C to +165°C
Corrosion (salt spray) MIL-STD-202, Method 101, Condition B
Vibration MIL-STD-202, Method 204, Condition D
Shock MIL-STD-202, Method 213, Condition I
Thermal Shock MIL-STD-202, Method 107, Condition B
Moisture Resistance MIL-STD-202, Method 106, Less Step 7B
Barometric Pressure (Altitude) MIL-STD-202, Method 105, Condition C, 70k Ft.


This information is provided based on reasonable inquiry of our suppliers and represents our current actual knowledge based on the information they provided.

Please contact [email protected] for any Compliance or Environmental related questions.

Last Update: 6/28/2023 1:32:11 AM

Spinning Wheel; Your Submission is Loading

Contact Us

How can we help?

*
*
*
*
*
*
*
*
Products specifications
Attribute name Attribute value
RF Series 2.92 mm
Orientation (Body) Straight
Gender Plug (Male)
Coupling Threaded
Finish Passivated
Gender 2 Plug (Male)
RF Series 2 SMA
Orientation 2 (Body) Straight
Body Style Jamnut/Bulkhead
Style Hermetic, Glass Seal
IP Rating IP 68
Mounting Type Panel
Electrical
Impedance 50 ohms
Frequency 40 GHz
Shielding Effectiveness ≥ -100 dB
Dielectric withstanding Voltage 750 VRMS
Mechanical
Mating Cycles 500
Mating Torque 7 - 10 in - lbs
Intermateability SMA
Environmental
Temperature Rating -65°C to +165°C
Corrosion (salt spray) MIL-STD-202, Method 101, Condition B
Vibration MIL-STD-202, Method 204, Condition D
Shock MIL-STD-202, Method 213, Condition I
Thermal Shock MIL-STD-202, Method 107, Condition B
Moisture Resistance MIL-STD-202, Method 106, Less Step 7B
Barometric Pressure (Altitude) MIL-STD-202, Method 105, Condition C, 70k Ft.
Customers Also Viewed
Part #   SF1115-6007

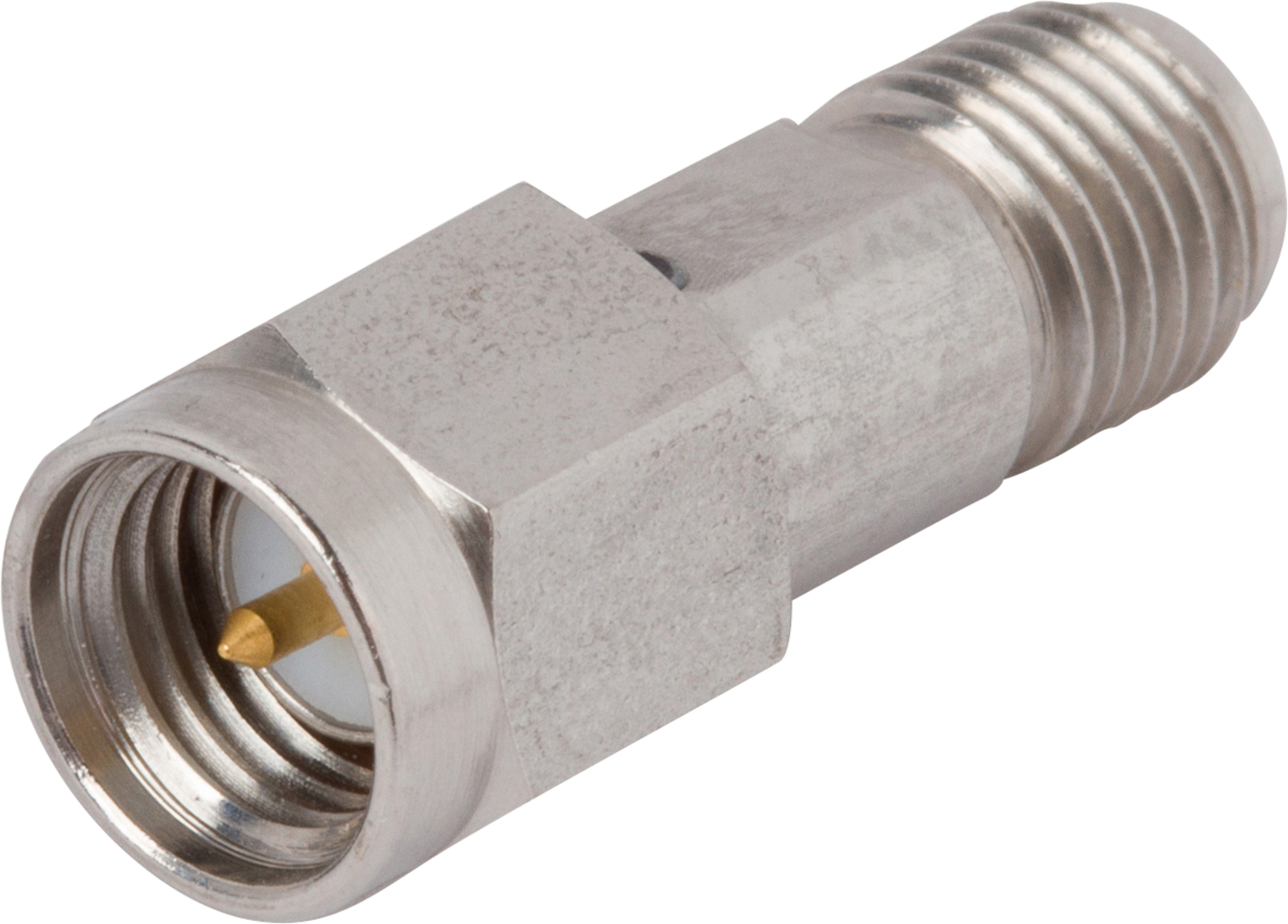

2.92mm Female to SMA Male Adapter

Available Inventory: 160
SF1115-6007
2.92mm Adapters SF1115-6007
Datasheet
Part #   SF1115-6009

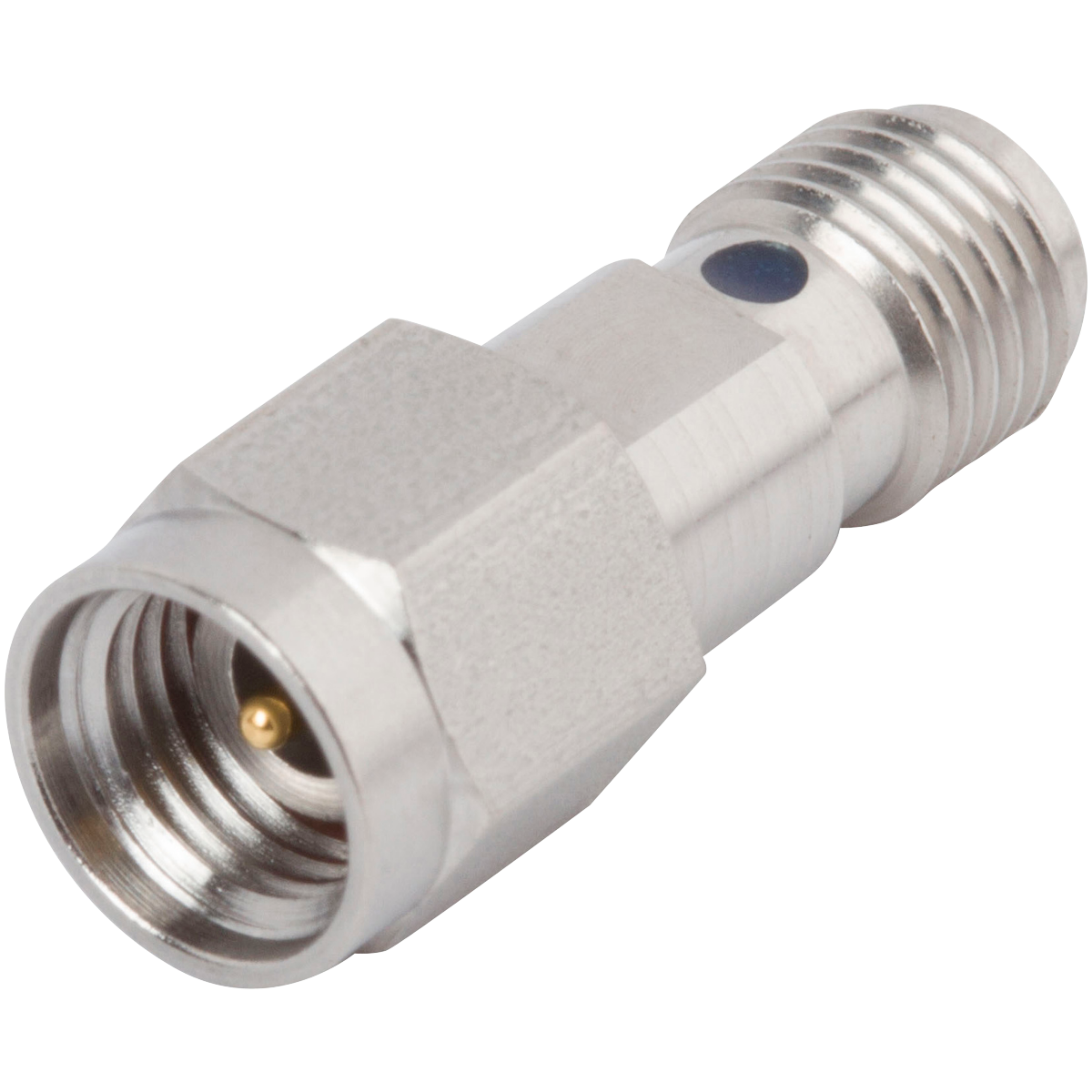

2.92mm Male to SMA Female Adapter

Available Inventory: 346
SF1115-6009
2.92mm Adapters SF1115-6009
Datasheet
Part #   SF1132-6026

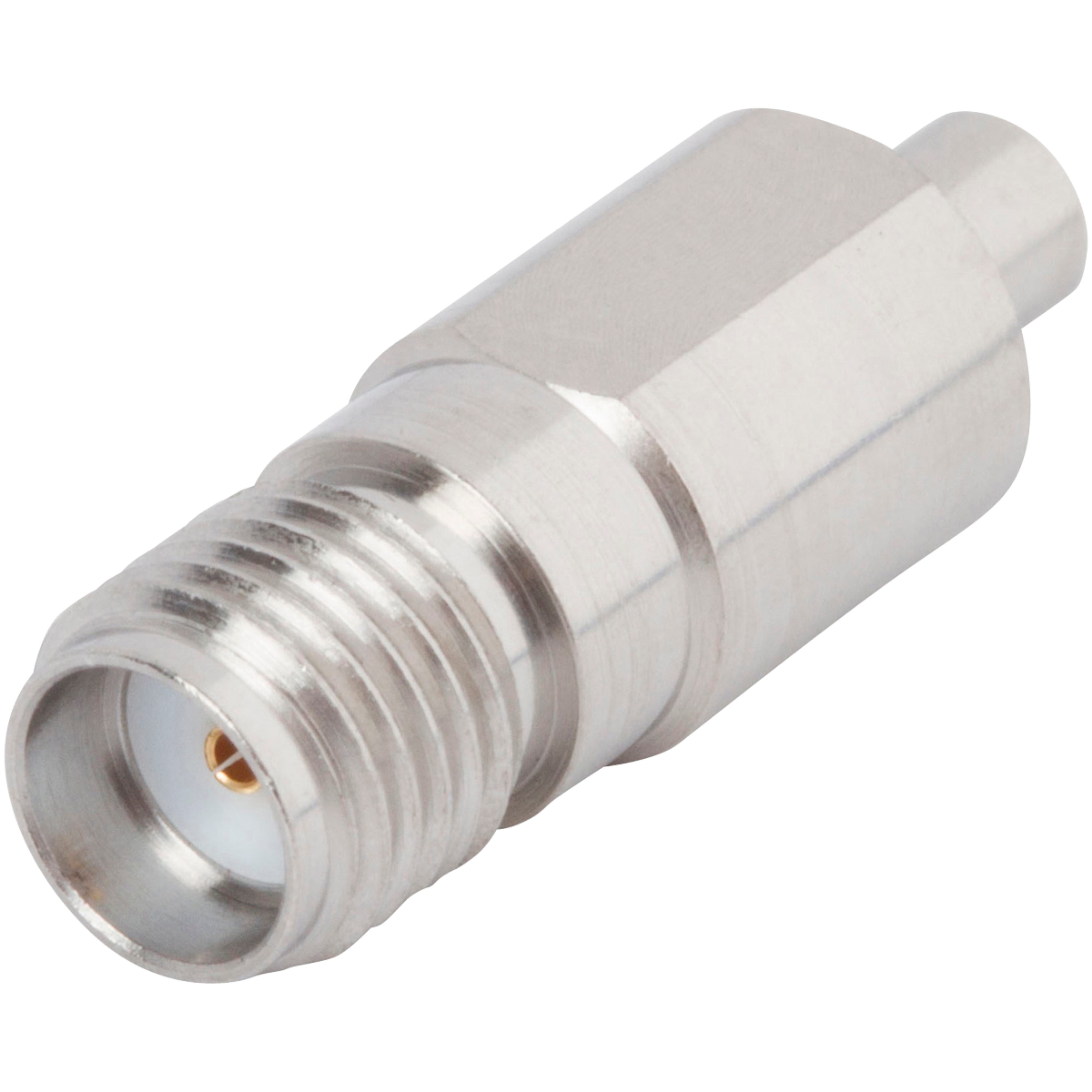

SMPM Male to SMA Female Adapter, SB
