SMPM Male to SMA Female Adapter, SB
P/N: SF1132-6026

In stock at Qty Order
Master Electronics 40
Onlinecomponents.com 40
Digi-Key Electronics 11
Mouser Electronics 10
Newark 7
Microwave Components LLC 6
Interstate Connecting Components 3
Heilind Electronics 1
Farnell 1
Products specifications
Attribute name Attribute value
RF Series SMPM
Gender Plug (Male)
Orientation (Body) Straight
Coupling Push-on
Detent Smooth Bore
Finish Passivated
RF Series 2 SMA
Gender 2 Jack (Female)
Orientation 2 (Body) Straight
Electrical
Frequency 18 GHz
Impedance 50 ohms
Shielding Effectiveness ≥ -80 dB DC - 3 GHz, ≥ -65 dB 3 - 26.5 GHz
Dielectric withstanding Voltage 325 VRMS
Mechanical
Mating Cycles - SB 500
Insertion Force - FD 4.5 lbs
Mating Cycles - FD 100
Insertion Force - SB 2.5 lbs
Withdrawal Force - SB 1.5 lbs
Withdrawal Force - FD 6.5 lbs
Axial Misalignment .010” Max
Radial Misalignment 3° Max
Environmental
Temperature Rating -65°C to +165°C
Shock MIL-STD-202, Method 213, Condition I
Vibration MIL-STD-202, Method 204, Condition D
Corrosion (salt spray) MIL-STD-202, Method 101, Condition B
Thermal Shock MIL-STD-202, Method 107, Condition B
Moisture Resistance MIL-STD-202, Method 106, Less Step 7B
Barometric Pressure (Altitude) MIL-STD-202, Method 105, Condition C, 70k Ft.


EU RoHS Directive 2011/65/EU Yes, w/ Exemption 6C

These products comply with the substance restrictions of the Restriction on Hazardous Substances Directive 2011/65/EU (RoHS2). The RoHS2 Directive requires that certain electrical and electronic equipment products do not contain mercury, cadmium, hexavalent chromium, PBB, PBDE, lead, DEHP, BBP, DBP and DIBP above defined thresholds. Products indicated as compliant with exemption contain one or more of these substances above the prohibition thresholds, but are compliant by claiming one or more valid exemptions.

EU REACH Regulation (EC) No. 1907/2006 SVHC > Threshold

These products contain one or more EU REACH Substances of Very High Concern (SVHC) > 0.1% by weight (1000 ppm). Details related to the SVHC are displayed.

REACH SVHC: LEAD, CAS #: 7439-92-1, PPM: 4000

Use personal protective equipment as required. Do not eat, drink or smoke when using this product. Wash thoroughly after handling. Recycle if possible and dispose of the article by following all applicable governmental regulations relevant to your geographic location.

This information is provided based on reasonable inquiry of our suppliers and represents our current actual knowledge based on the information they provided.

Please contact [email protected] for any Compliance or Environmental related questions.

Last Update: 6/28/2023 1:03:04 AM

Spinning Wheel; Your Submission is Loading

Contact Us

How can we help?

*
*
*
*
*
*
*
*
Products specifications
Attribute name Attribute value
RF Series SMPM
Gender Plug (Male)
Orientation (Body) Straight
Coupling Push-on
Detent Smooth Bore
Finish Passivated
RF Series 2 SMA
Gender 2 Jack (Female)
Orientation 2 (Body) Straight
Electrical
Frequency 18 GHz
Impedance 50 ohms
Shielding Effectiveness ≥ -80 dB DC - 3 GHz, ≥ -65 dB 3 - 26.5 GHz
Dielectric withstanding Voltage 325 VRMS
Mechanical
Mating Cycles - SB 500
Insertion Force - FD 4.5 lbs
Mating Cycles - FD 100
Insertion Force - SB 2.5 lbs
Withdrawal Force - SB 1.5 lbs
Withdrawal Force - FD 6.5 lbs
Axial Misalignment .010” Max
Radial Misalignment 3° Max
Environmental
Temperature Rating -65°C to +165°C
Shock MIL-STD-202, Method 213, Condition I
Vibration MIL-STD-202, Method 204, Condition D
Corrosion (salt spray) MIL-STD-202, Method 101, Condition B
Thermal Shock MIL-STD-202, Method 107, Condition B
Moisture Resistance MIL-STD-202, Method 106, Less Step 7B
Barometric Pressure (Altitude) MIL-STD-202, Method 105, Condition C, 70k Ft.
Customers Also Viewed
Part #   SF1115-6009

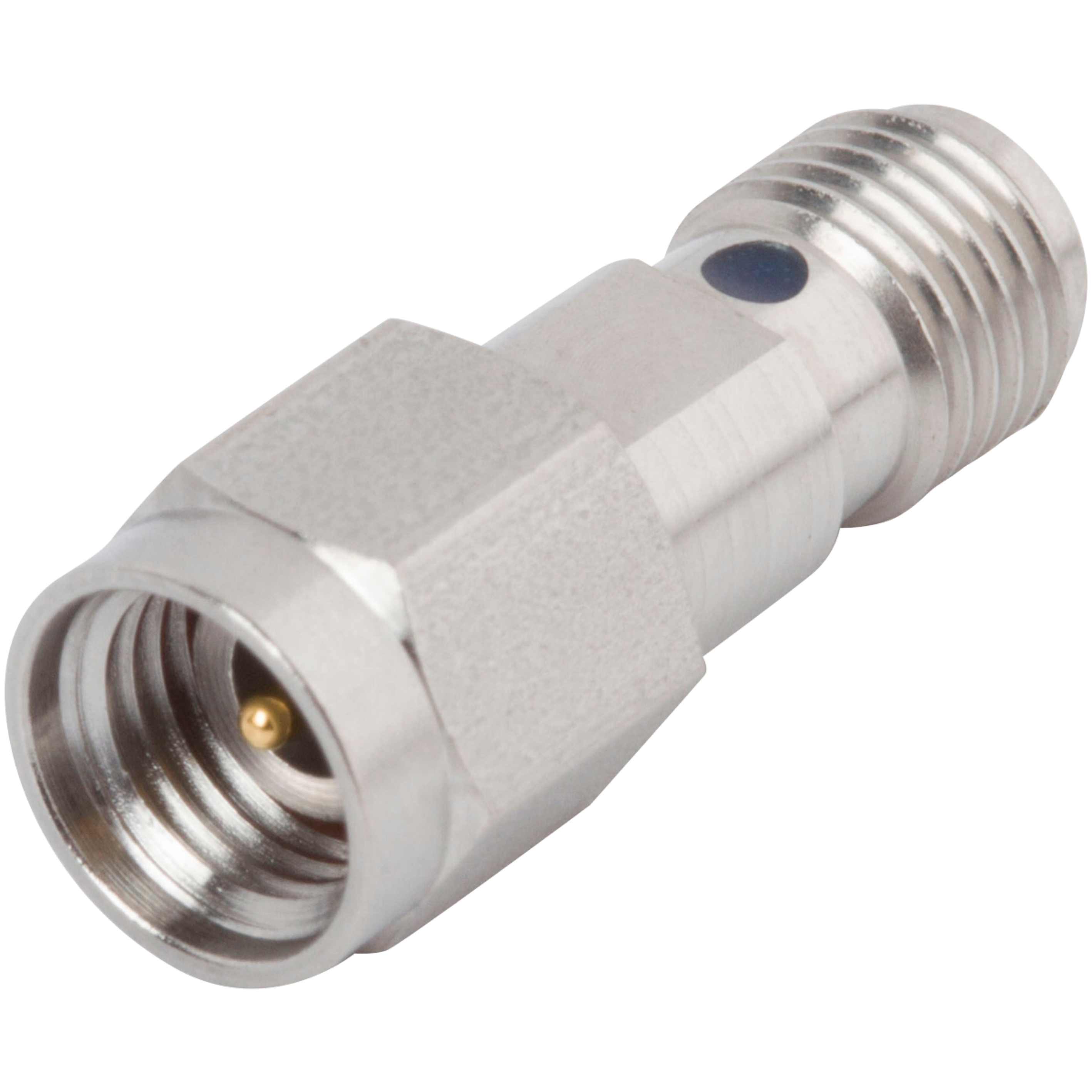

2.92mm Male to SMA Female Adapter

Available Inventory: 276
SF1115-6009
2.92mm Adapters SF1115-6009
Datasheet
Part #   SF1132-6027

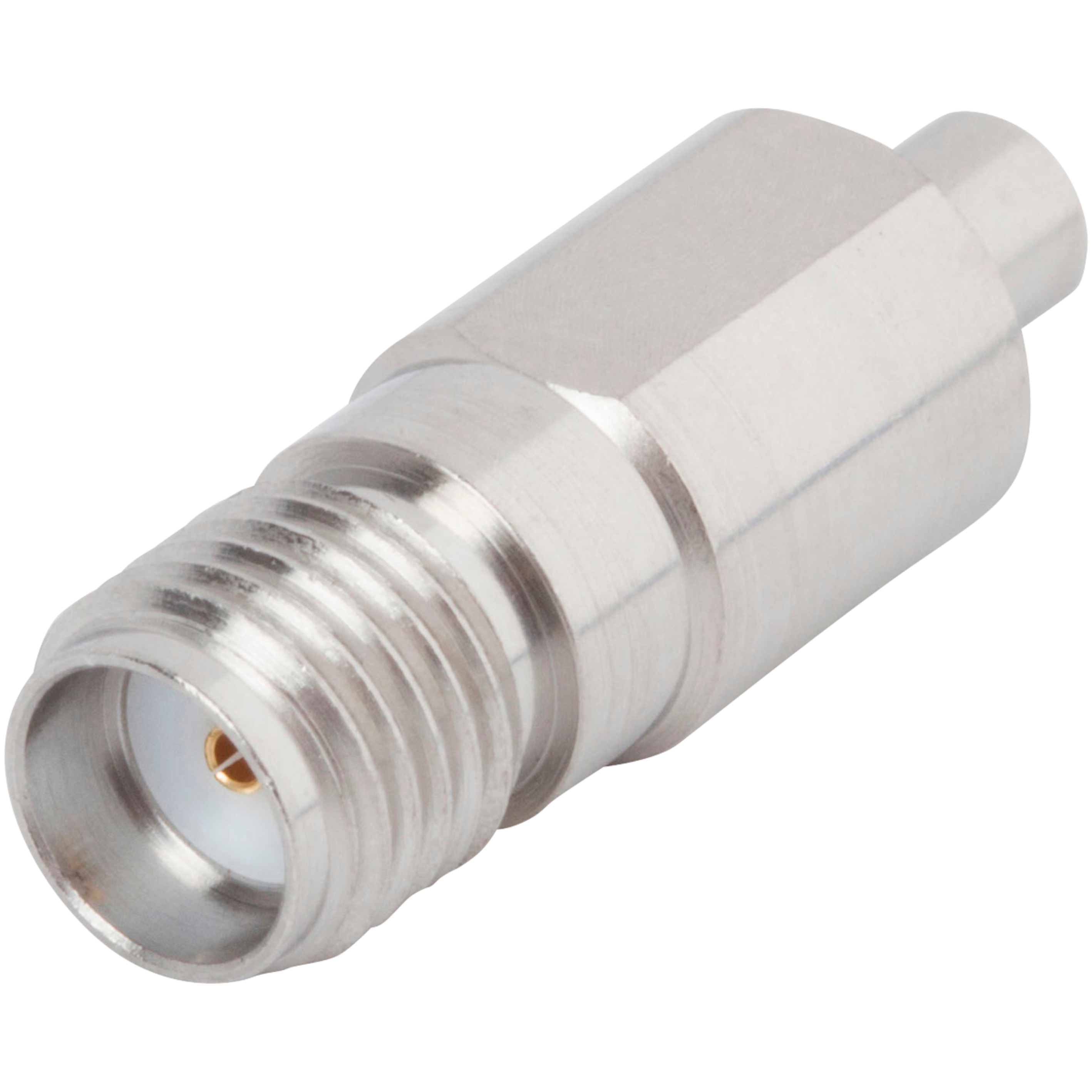

SMPM Male to SMA Female Adapter, FD

Available Inventory: 148
SF1132-6027
SMPM Adapters SF1132-6027
Datasheet
Part #   SF1157-6009

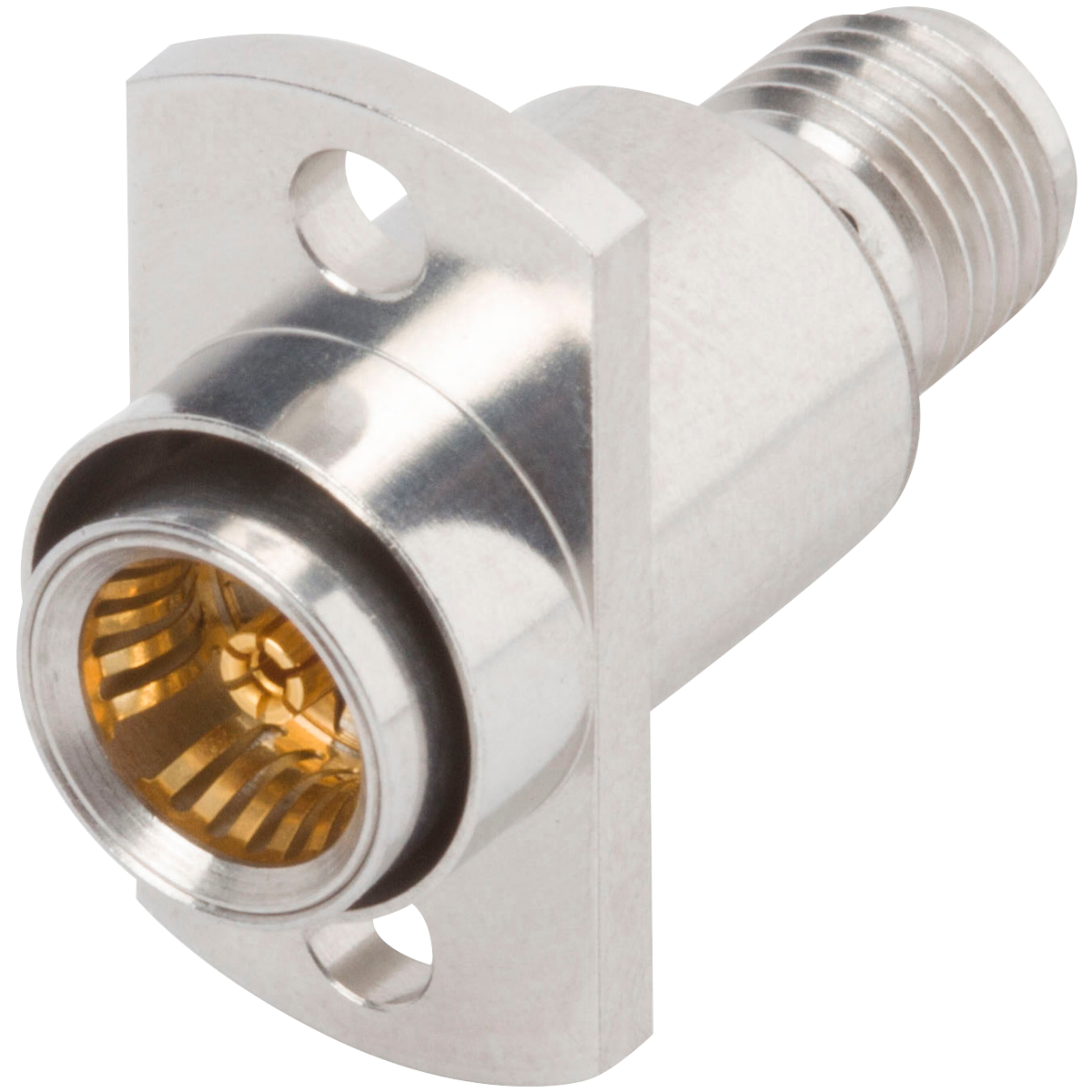

BMA Female to SMA Female Adapter, 2 Hole
