1.85mm Female to SMPS Male Adapter, FD
P/N: 1138-6050

There currently isn't any inventory available in distribution. Please contact us to obtain this product.
Products specifications
Attribute name Attribute value
RF Series 1.85 mm
Gender Jack (Female)
Orientation (Body) Straight
Coupling Threaded
Finish Passivated
RF Series 2 SMPS
Gender 2 Plug (Male)
Orientation 2 (Body) Straight
Detent Full Detent
Electrical
Frequency 65 GHz
Impedance 50 ohms
Shielding Effectiveness ≥ -90 dB
Dielectric withstanding Voltage 1000 VRMS
Mechanical
Mating Torque 7 - 10 in - lbs
Intermateability 2.4mm
Mating Cycles 500
Environmental
Temperature Rating -65°C to +165°C
Corrosion (salt spray) MIL-STD-202, Method 101, Condition B
Vibration MIL-STD-202, Method 204, Condition D
Moisture Resistance MIL-STD-202, Method 106, Less Step 7B
Shock MIL-STD-202, Method 213, Condition I
Thermal Shock MIL-STD-202, Method 107, Condition B
Barometric Pressure (Altitude) MIL-STD-202, Method 105, Condition C, 70k Ft.
Spinning Wheel; Your Submission is Loading

Contact Us

How can we help?

*
*
*
*
*
*
*
*
Products specifications
Attribute name Attribute value
RF Series 1.85 mm
Gender Jack (Female)
Orientation (Body) Straight
Coupling Threaded
Finish Passivated
RF Series 2 SMPS
Gender 2 Plug (Male)
Orientation 2 (Body) Straight
Detent Full Detent
Electrical
Frequency 65 GHz
Impedance 50 ohms
Shielding Effectiveness ≥ -90 dB
Dielectric withstanding Voltage 1000 VRMS
Mechanical
Mating Torque 7 - 10 in - lbs
Intermateability 2.4mm
Mating Cycles 500
Environmental
Temperature Rating -65°C to +165°C
Corrosion (salt spray) MIL-STD-202, Method 101, Condition B
Vibration MIL-STD-202, Method 204, Condition D
Moisture Resistance MIL-STD-202, Method 106, Less Step 7B
Shock MIL-STD-202, Method 213, Condition I
Thermal Shock MIL-STD-202, Method 107, Condition B
Barometric Pressure (Altitude) MIL-STD-202, Method 105, Condition C, 70k Ft.
Product tags
Customers Also Viewed
Part #   SF1080-6004

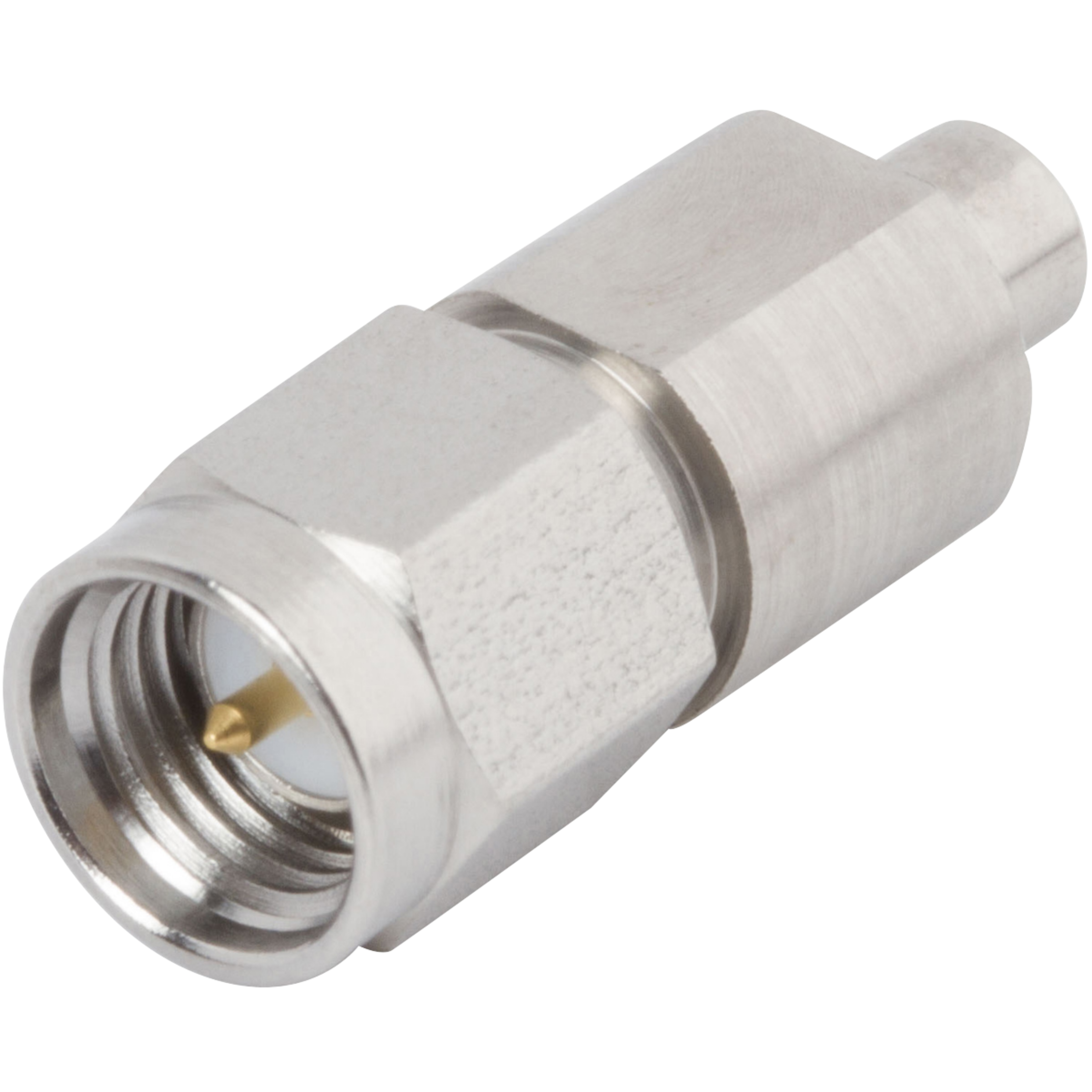

SMA Male to SMPM Male Adapter, SB

Available Inventory: 80
SF1080-6004
SMA Adapters SF1080-6004
Datasheet
Part #   SF1080-6005

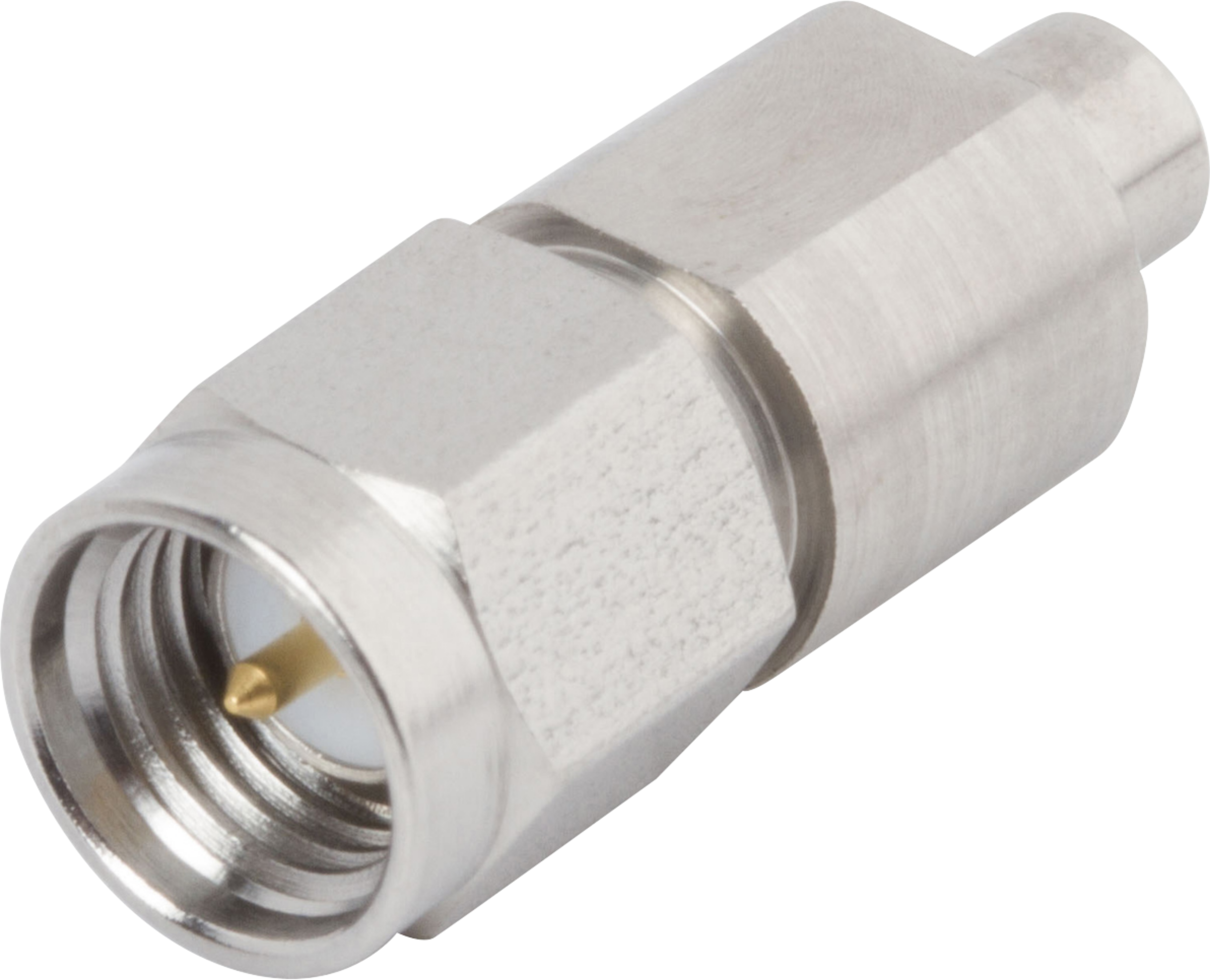

SMA Male to SMPM Male Adapter, FD

Available Inventory: 46
SF1080-6005
SMA Adapters SF1080-6005
Datasheet
Part #   SF1129-6154

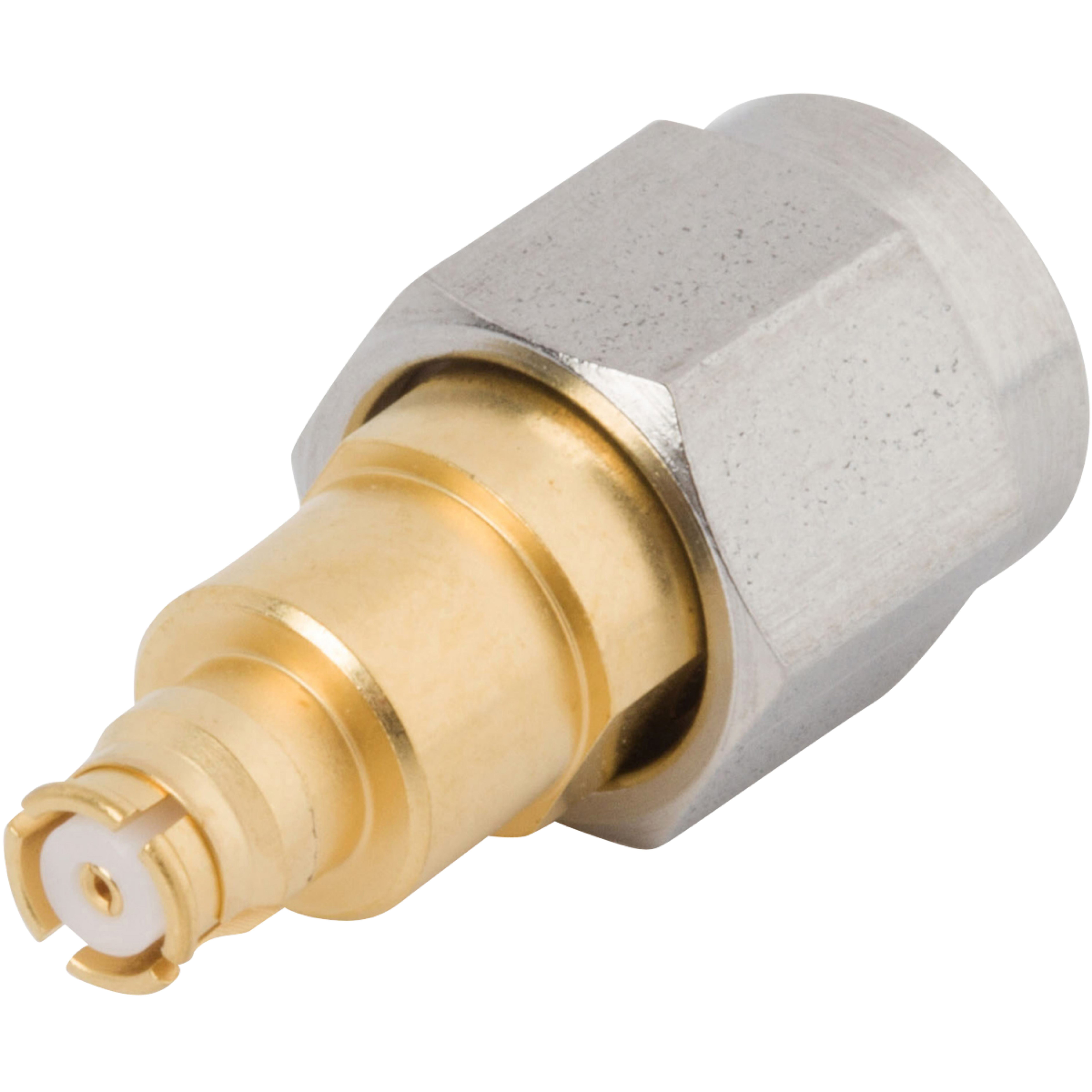

SMP Female to SMA Male Adapter
