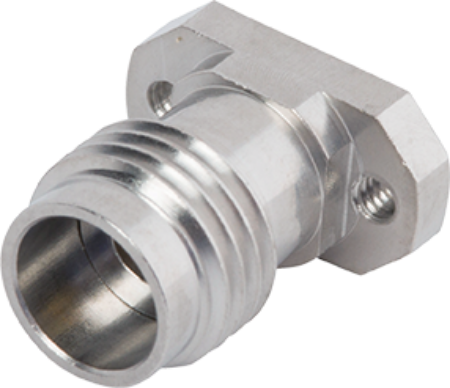

1.85mm Female Solderless LiteTouch PCB Connector, 2 Hole (Stripline)
P/N: SF3321-60033

In stock at Qty Order
Digi-Key Electronics 5
Mouser Electronics 125 On Order
Products specifications
Attribute name Attribute value
Family LiteTouch
RF Series 1.85 mm
Gender Jack (Female)
Orientation (Body) Straight
Coupling Threaded
Body Style 2 Hole
Mounting Type PCB Vertical Launch
Number of Ports Single
Termination Style Solder-free
Finish Passivated
Electrical
Frequency 65 GHz
Impedance 50 ohms
Shielding Effectiveness ≥ -100 dB
Dielectric withstanding Voltage 500 VRMS
Mechanical
Inter-mate ability 2.4mm
Mating Torque 5 - 7 in - lbs
Mating Cycles 500
Environmental
Corrosion (salt spray) MIL-STD-202, Method 101, Condition B
Thermal Shock MIL-STD-202, Method 107, Condition B
Vibration MIL-STD-202, Method 204, Condition D
Temperature Rating -65°C to +165°C
Barometric Pressure (Altitude) MIL-STD-202, Method 105, Condition C, 70k Ft.
Moisture Resistance MIL-STD-202, Method 106, Less Step 7B
Shock MIL-STD-202, Method 213, Condition I
