P/N: 5021-00027

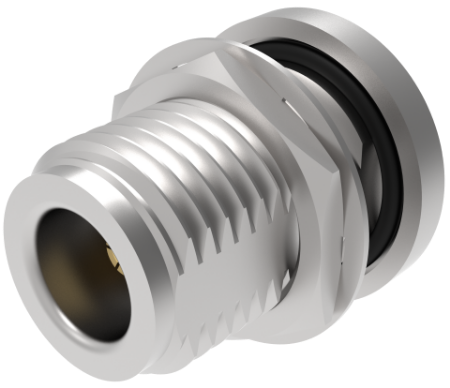

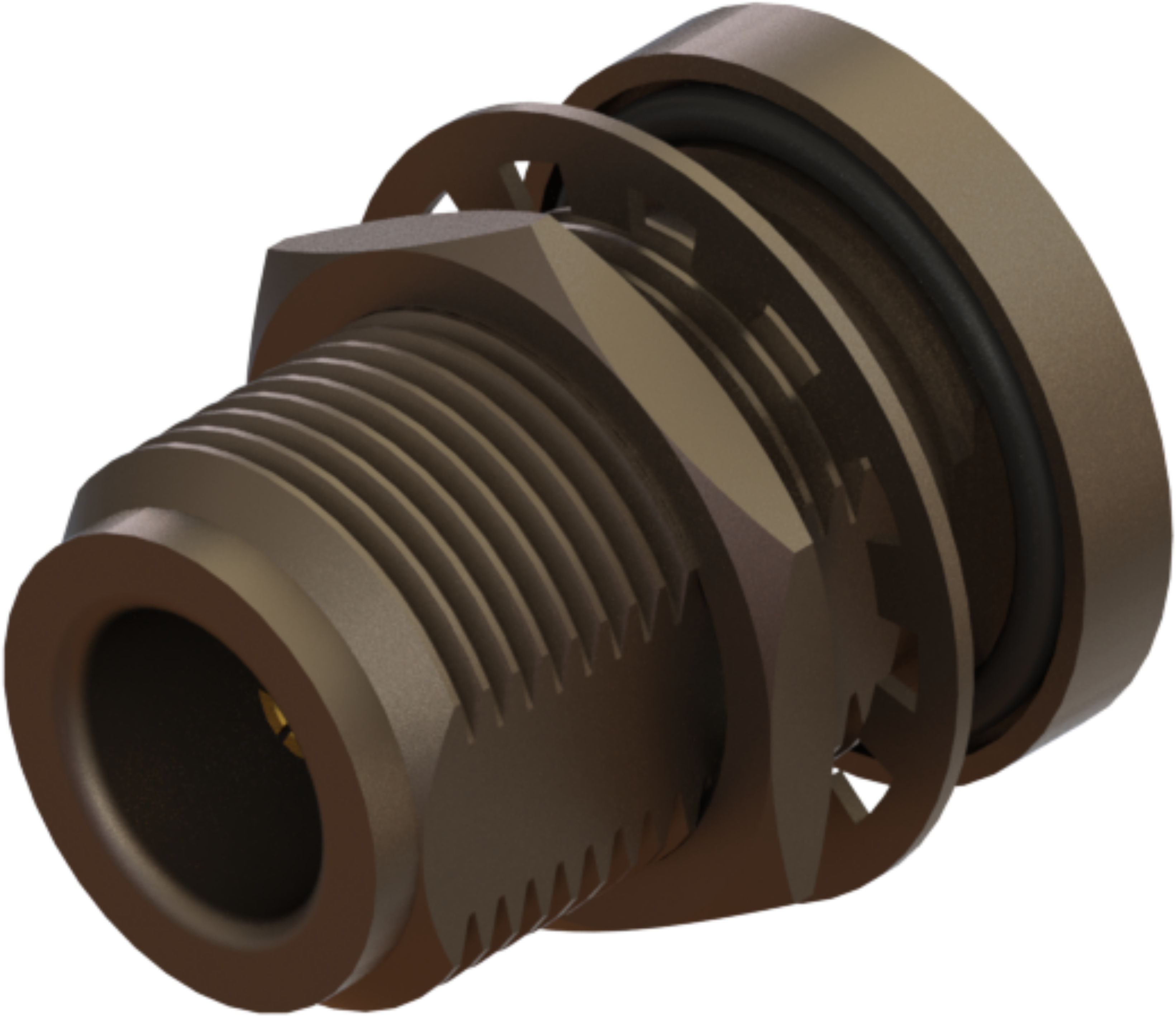

Type N Female Bulkhead Connector for .141 Cable

Not available for this part number. Please contact us.
Products specifications
Attribute name Attribute value
RF Series Type N
Gender Jack (Female)
Orientation (Body) Straight
Coupling Threaded
Body Style Jamnut/Bulkhead
Termination Style Solder
Mounting Type Panel
Number of Ports Single
Cable Type 0.140 Flexible Coax
Electrical
Impedance 50 ohms
Frequency 11 GHz
Shielding Effectiveness ≥ -90 dB
Dielectric withstanding Voltage 3000 VRMS
Mechanical
Mating Cycles 500
Mating Torque 12 - 15 in - lbs
Environmental
Temperature Rating -65°C to +165°C
Corrosion (salt spray) MIL-STD-202, Method 101, Condition B
Vibration MIL-STD-202, Method 204, Condition D
Thermal Shock MIL-STD-202, Method 107, Condition B
Moisture Resistance MIL-STD-202, Method 106, Less Step 7B
Shock MIL-STD-202, Method 213, Condition I
Barometric Pressure (Altitude) MIL-STD-202, Method 105, Condition C, 70k Ft.


This information is provided based on reasonable inquiry of our suppliers and represents our current actual knowledge based on the information they provided.

Please contact compliance@svmicro.com for any Compliance or Environmental related questions.

Contact Us

How can we help?

*
*
*
*
*
*
*
*
Products specifications
Attribute name Attribute value
RF Series Type N
Gender Jack (Female)
Orientation (Body) Straight
Coupling Threaded
Body Style Jamnut/Bulkhead
Termination Style Solder
Mounting Type Panel
Number of Ports Single
Cable Type 0.140 Flexible Coax
Electrical
Impedance 50 ohms
Frequency 11 GHz
Shielding Effectiveness ≥ -90 dB
Dielectric withstanding Voltage 3000 VRMS
Mechanical
Mating Cycles 500
Mating Torque 12 - 15 in - lbs
Environmental
Temperature Rating -65°C to +165°C
Corrosion (salt spray) MIL-STD-202, Method 101, Condition B
Vibration MIL-STD-202, Method 204, Condition D
Thermal Shock MIL-STD-202, Method 107, Condition B
Moisture Resistance MIL-STD-202, Method 106, Less Step 7B
Shock MIL-STD-202, Method 213, Condition I
Barometric Pressure (Altitude) MIL-STD-202, Method 105, Condition C, 70k Ft.
