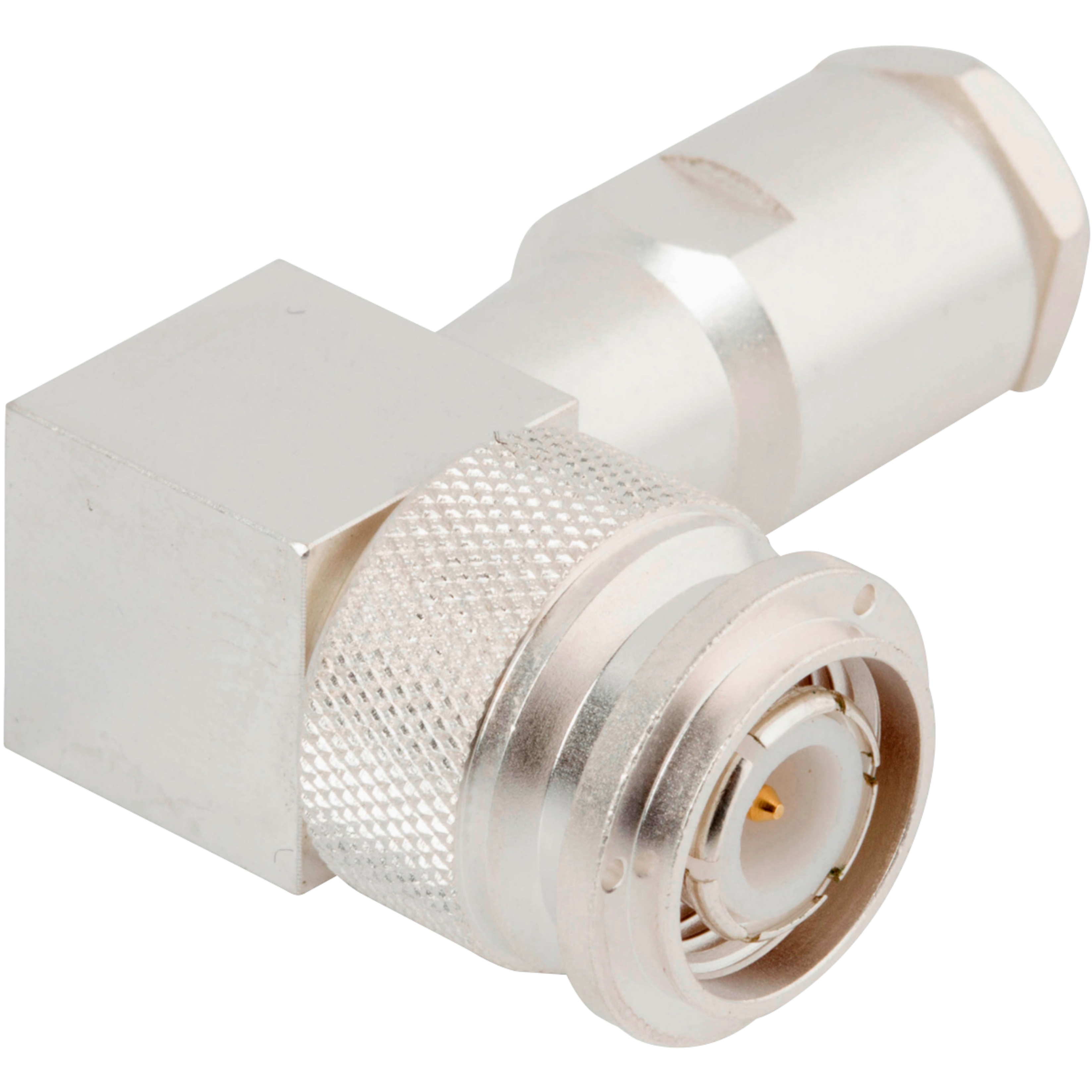

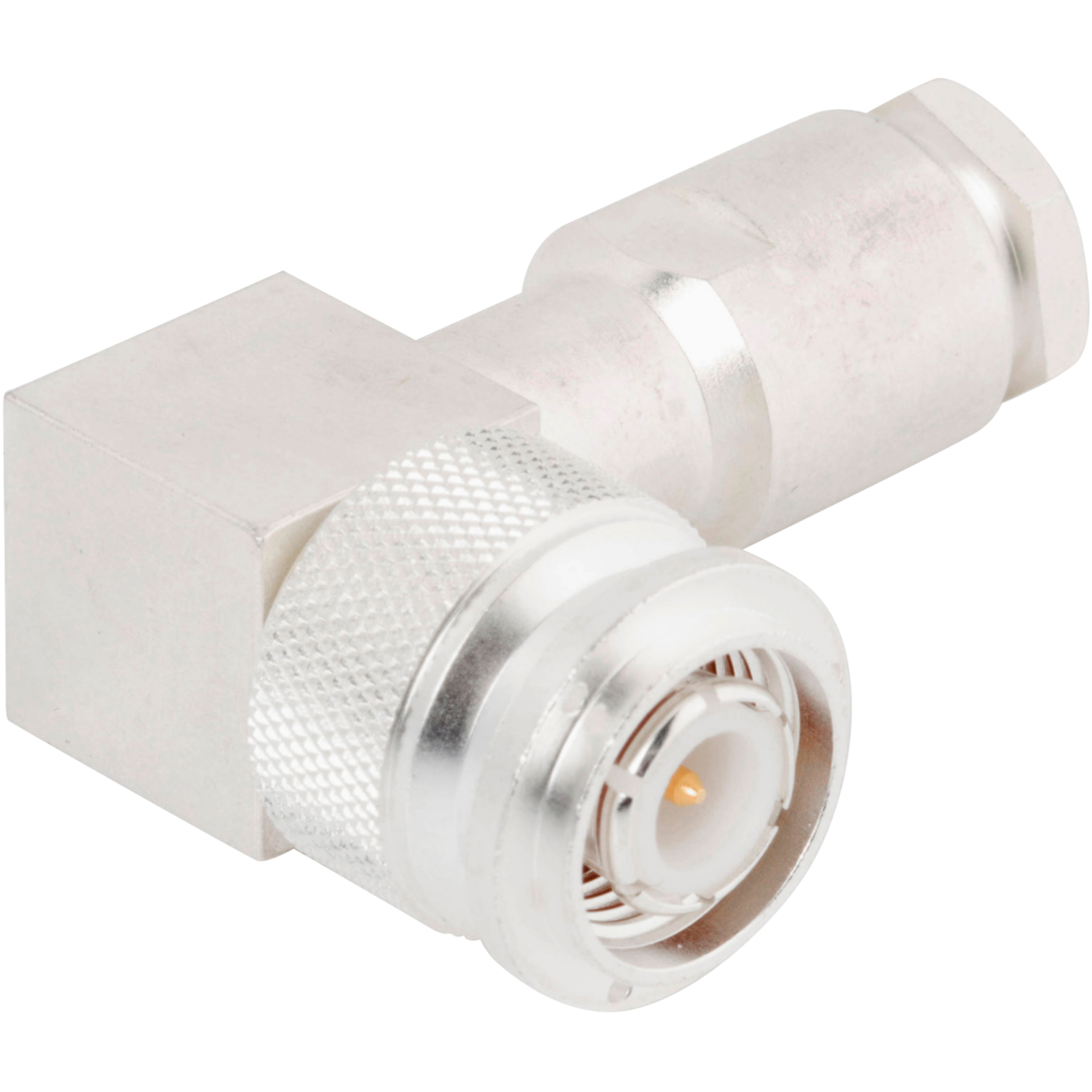

TNC Male Cable Connector, Lockwire Holes, R/A for RG-58 Cable
P/N: M39012/30B0015

Not available for this part number. Please contact us.
Products specifications
Attribute name Attribute value
Gender Plug (Male)
RF Series TNC
Coupling Threaded
Orientation (Body) Right Angle
Termination Style Solder
Number of Ports Single
Cable Type RG-58
MIL-SPEC M39012
Electrical
Frequency 11 GHz
Impedance 50 ohms
Shielding Effectiveness ≥ -90 dB
Dielectric withstanding Voltage 1500 VRMS
Mechanical
Mating Torque 12 - 15 in - lbs
Mating Cycles 500
Environmental
Vibration MIL-STD-202, Method 204, Condition D
Temperature Rating -65°C to +165°C
Corrosion (salt spray) MIL-STD-202, Method 101, Condition B
Shock MIL-STD-202, Method 213, Condition I
Thermal Shock MIL-STD-202, Method 107, Condition B
Moisture Resistance MIL-STD-202, Method 106, Less Step 7B
Barometric Pressure (Altitude) MIL-STD-202, Method 105, Condition C, 70k Ft.


This information is provided based on reasonable inquiry of our suppliers and represents our current actual knowledge based on the information they provided.

Please contact compliance@svmicro.com for any Compliance or Environmental related questions.

Last Update: 12/4/2022 1:06:00 AM

Contact Us

How can we help?

*
*
*
*
*
*
*
*
Products specifications
Attribute name Attribute value
Gender Plug (Male)
RF Series TNC
Coupling Threaded
Orientation (Body) Right Angle
Termination Style Solder
Number of Ports Single
Cable Type RG-58
MIL-SPEC M39012
Electrical
Frequency 11 GHz
Impedance 50 ohms
Shielding Effectiveness ≥ -90 dB
Dielectric withstanding Voltage 1500 VRMS
Mechanical
Mating Torque 12 - 15 in - lbs
Mating Cycles 500
Environmental
Vibration MIL-STD-202, Method 204, Condition D
Temperature Rating -65°C to +165°C
Corrosion (salt spray) MIL-STD-202, Method 101, Condition B
Shock MIL-STD-202, Method 213, Condition I
Thermal Shock MIL-STD-202, Method 107, Condition B
Moisture Resistance MIL-STD-202, Method 106, Less Step 7B
Barometric Pressure (Altitude) MIL-STD-202, Method 105, Condition C, 70k Ft.
