SMPS Socket D38999 Contact (Size 16) for .047 Cable
P/N: SF9911-60001

There currently isn't any inventory available in distribution. Please contact us to obtain this product.
3441
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options
Products specifications
Attribute name Attribute value
RF Series SMPS
Gender Socket
Mounting Type D38999 Series I, III and IV
Orientation (Body) Straight
Style Size 16
Finish Passivated
Coupling Push-on
Cable Type 0.047 Flexible Coax
Cable Builder Attributes
Mating Connector 1138-6013
Electrical
Frequency 65 GHz
Impedance 50 ohms
Shielding Effectiveness ≥ -80 dB DC - 3 GHz, ≥ -65 dB 3 - 26.5 GHz
Dielectric withstanding Voltage 250 VRMS
Mechanical
Mating Cycles - SB 500
Mating Cycles - FD 100
Insertion Force - FD 2.5 lbs
Insertion Force - SB 1.2 lbs
Withdrawal Force - SB 1.0 lbs
Withdrawal Force - FD 4.5 lbs
Axial Misalignment .010” Max
Radial Misalignment 3° Max
Environmental
Temperature Rating -65°C to +165°C
Corrosion (salt spray) MIL-STD-202, Method 101, Condition B
Vibration MIL-STD-202, Method 204, Condition D
Shock MIL-STD-202, Method 213, Condition I
Thermal Shock MIL-STD-202, Method 107, Condition B
Moisture Resistance MIL-STD-202, Method 106, Less Step 7B
Barometric Pressure (Altitude) MIL-STD-202, Method 105, Condition C, 70k Ft.


EU RoHS Directive 2011/65/EU Yes, w/ Exemption 6C

These products comply with the substance restrictions of the Restriction on Hazardous Substances Directive 2011/65/EU (RoHS2). The RoHS2 Directive requires that certain electrical and electronic equipment products do not contain mercury, cadmium, hexavalent chromium, PBB, PBDE, lead, DEHP, BBP, DBP and DIBP above defined thresholds. Products indicated as compliant with exemption contain one or more of these substances above the prohibition thresholds, but are compliant by claiming one or more valid exemptions.

EU REACH Regulation (EC) No. 1907/2006 SVHC > Threshold

These products contain one or more EU REACH Substances of Very High Concern (SVHC) > 0.1% by weight (1000 ppm). Details related to the SVHC are displayed.

REACH SVHC: LEAD, CAS #: 7439-92-1, PPM: 4000

Use personal protective equipment as required. Do not eat, drink or smoke when using this product. Wash thoroughly after handling. Recycle if possible and dispose of the article by following all applicable governmental regulations relevant to your geographic location.

This information is provided based on reasonable inquiry of our suppliers and represents our current actual knowledge based on the information they provided.

Please contact [email protected] for any Compliance or Environmental related questions.

Last Update: 6/28/2023 1:21:46 AM

Spinning Wheel; Your Submission is Loading

Contact Us

How can we help?

*
*
*
*
*
*
*
*
Products specifications
Attribute name Attribute value
RF Series SMPS
Gender Socket
Mounting Type D38999 Series I, III and IV
Orientation (Body) Straight
Style Size 16
Finish Passivated
Coupling Push-on
Cable Type 0.047 Flexible Coax
Cable Builder Attributes
Mating Connector 1138-6013
Electrical
Frequency 65 GHz
Impedance 50 ohms
Shielding Effectiveness ≥ -80 dB DC - 3 GHz, ≥ -65 dB 3 - 26.5 GHz
Dielectric withstanding Voltage 250 VRMS
Mechanical
Mating Cycles - SB 500
Mating Cycles - FD 100
Insertion Force - FD 2.5 lbs
Insertion Force - SB 1.2 lbs
Withdrawal Force - SB 1.0 lbs
Withdrawal Force - FD 4.5 lbs
Axial Misalignment .010” Max
Radial Misalignment 3° Max
Environmental
Temperature Rating -65°C to +165°C
Corrosion (salt spray) MIL-STD-202, Method 101, Condition B
Vibration MIL-STD-202, Method 204, Condition D
Shock MIL-STD-202, Method 213, Condition I
Thermal Shock MIL-STD-202, Method 107, Condition B
Moisture Resistance MIL-STD-202, Method 106, Less Step 7B
Barometric Pressure (Altitude) MIL-STD-202, Method 105, Condition C, 70k Ft.
Customers Also Viewed
Part #   9921-40001

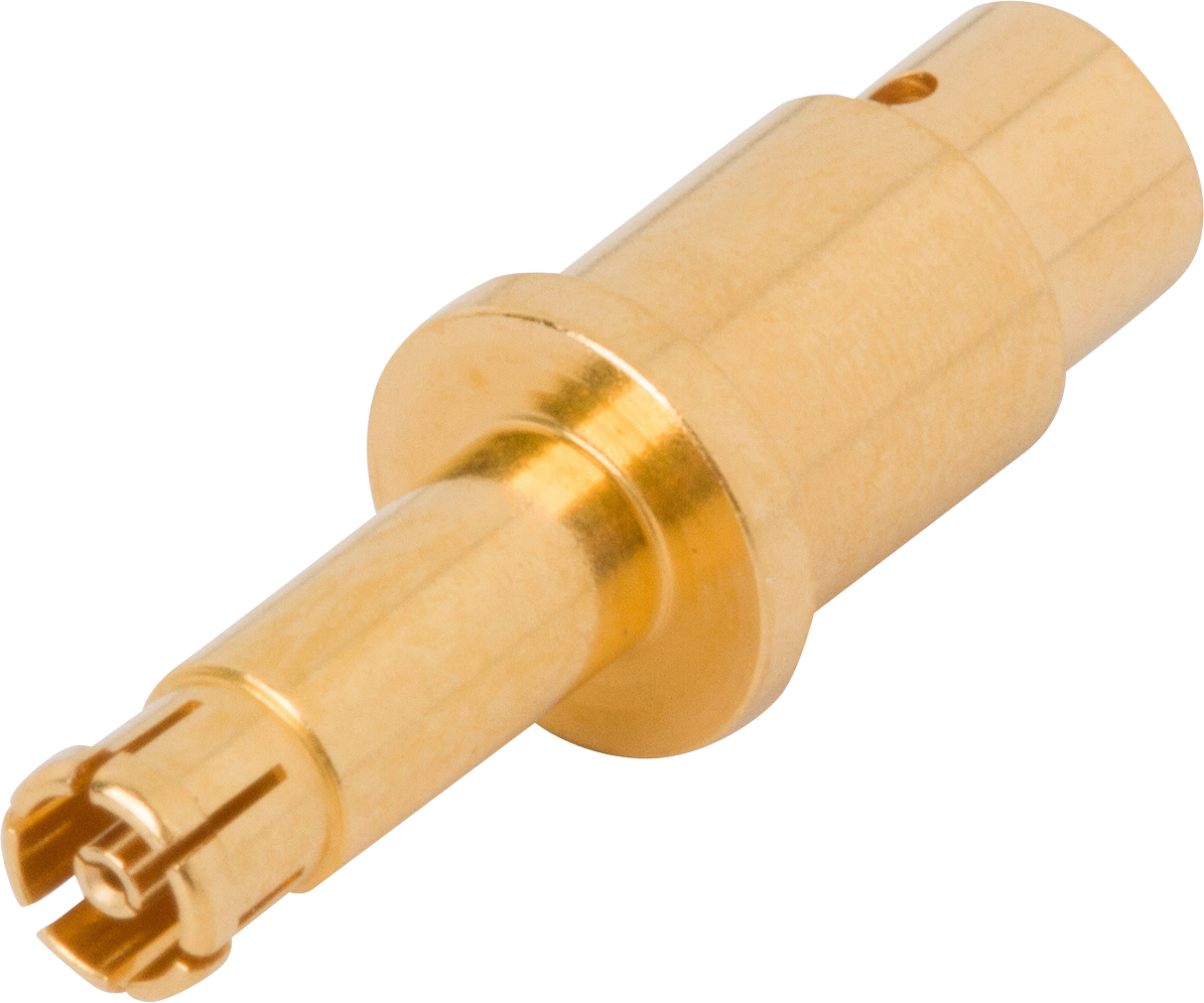

SMPS Pin D38999 Contact (Size 16) for .047 Cable

Available Inventory: 601
9921-40001
SMPS Connectors 9921-40001
Datasheet
Part #   SF3211-6004

SMPM Socket D38999 Contact (Size 12) for .085 Cable

Available Inventory: 791
SF3211-6004
SMPM Connectors SF3211-6004
Datasheet
Part #   SF9911-6000

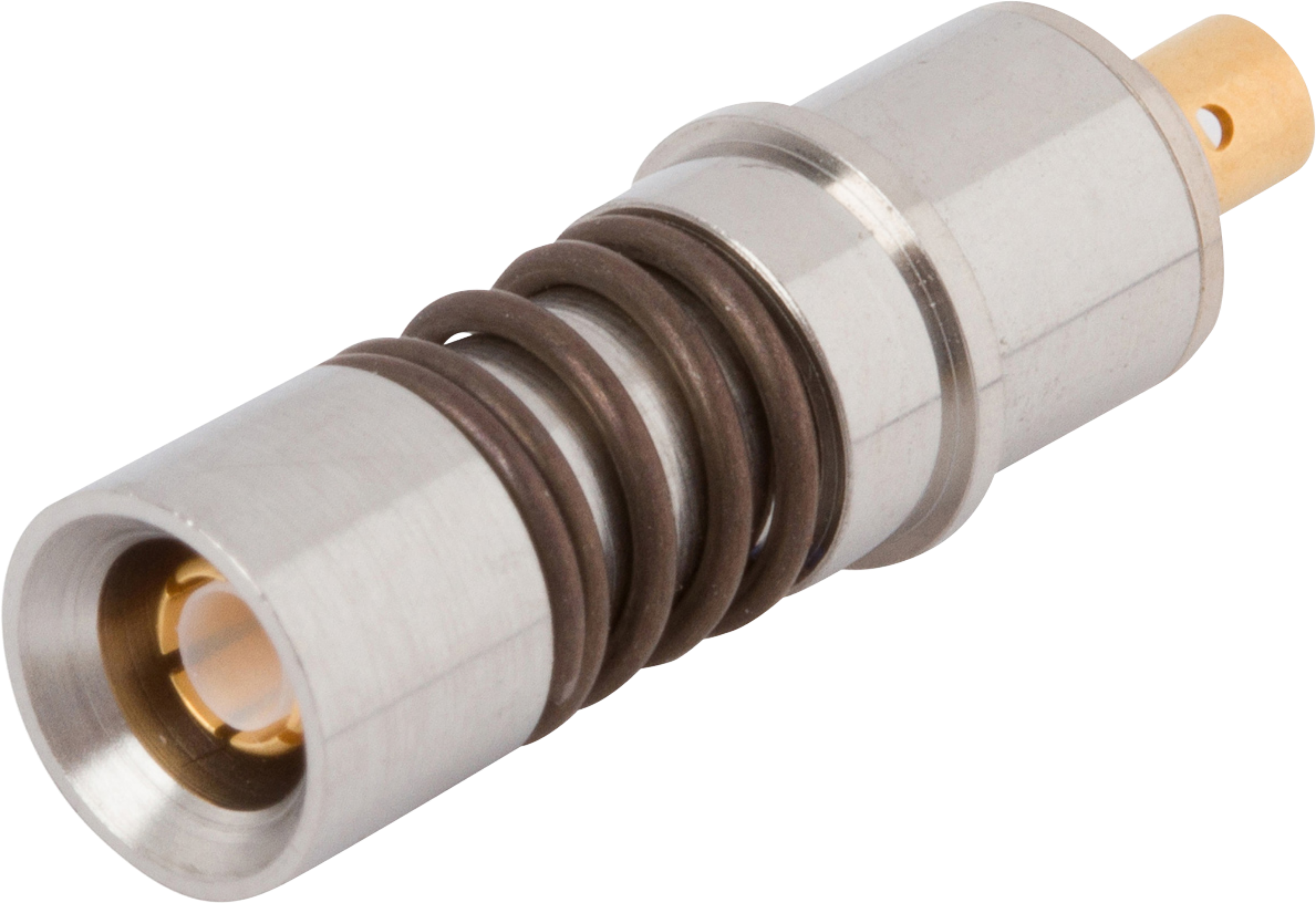

BMZ(S) Socket D38999 Contact (Size 8) for .085 Cable
