SMPS Male Short, FD
P/N: 8038-6006

Not available for this part number. Please contact us.
Products specifications
Attribute name Attribute value
RF Series SMPS
Gender Plug (Male)
Orientation (Body) Straight
Coupling Push-on
Number of Ports Single
Detent Full Detent
Electrical
Impedance 50 ohms
Frequency 65 GHz
Shielding Effectiveness ≥ -80 dB DC - 3 GHz, ≥ -65 dB 3 - 26.5 GHz
Dielectric withstanding Voltage 250 VRMS
Mechanical
Mating Cycles - SB 500
Mating Cycles - FD 100
Withdrawal Force - SB 1.0 lbs
Insertion Force - FD 2.5 lbs
Insertion Force - SB 1.2 lbs
Withdrawal Force - FD 4.5 lbs
Axial Misalignment .010” Max
Radial Misalignment 3° Max
Environmental
Temperature Rating -65°C to +165°C
Corrosion (salt spray) MIL-STD-202, Method 101, Condition B
Thermal Shock MIL-STD-202, Method 107, Condition B
Vibration MIL-STD-202, Method 204, Condition D
Shock MIL-STD-202, Method 213, Condition I
Moisture Resistance MIL-STD-202, Method 106, Less Step 7B
Barometric Pressure (Altitude) MIL-STD-202, Method 105, Condition C, 70k Ft.


This information is provided based on reasonable inquiry of our suppliers and represents our current actual knowledge based on the information they provided.

Please contact [email protected] for any Compliance or Environmental related questions.

Last Update: 2/5/2023 1:04:39 AM

Contact Us

How can we help?

*
*
*
*
*
*
*
*
Products specifications
Attribute name Attribute value
RF Series SMPS
Gender Plug (Male)
Orientation (Body) Straight
Coupling Push-on
Number of Ports Single
Detent Full Detent
Electrical
Impedance 50 ohms
Frequency 65 GHz
Shielding Effectiveness ≥ -80 dB DC - 3 GHz, ≥ -65 dB 3 - 26.5 GHz
Dielectric withstanding Voltage 250 VRMS
Mechanical
Mating Cycles - SB 500
Mating Cycles - FD 100
Withdrawal Force - SB 1.0 lbs
Insertion Force - FD 2.5 lbs
Insertion Force - SB 1.2 lbs
Withdrawal Force - FD 4.5 lbs
Axial Misalignment .010” Max
Radial Misalignment 3° Max
Environmental
Temperature Rating -65°C to +165°C
Corrosion (salt spray) MIL-STD-202, Method 101, Condition B
Thermal Shock MIL-STD-202, Method 107, Condition B
Vibration MIL-STD-202, Method 204, Condition D
Shock MIL-STD-202, Method 213, Condition I
Moisture Resistance MIL-STD-202, Method 106, Less Step 7B
Barometric Pressure (Altitude) MIL-STD-202, Method 105, Condition C, 70k Ft.
Customers Also Viewed
Part #   8012-4008

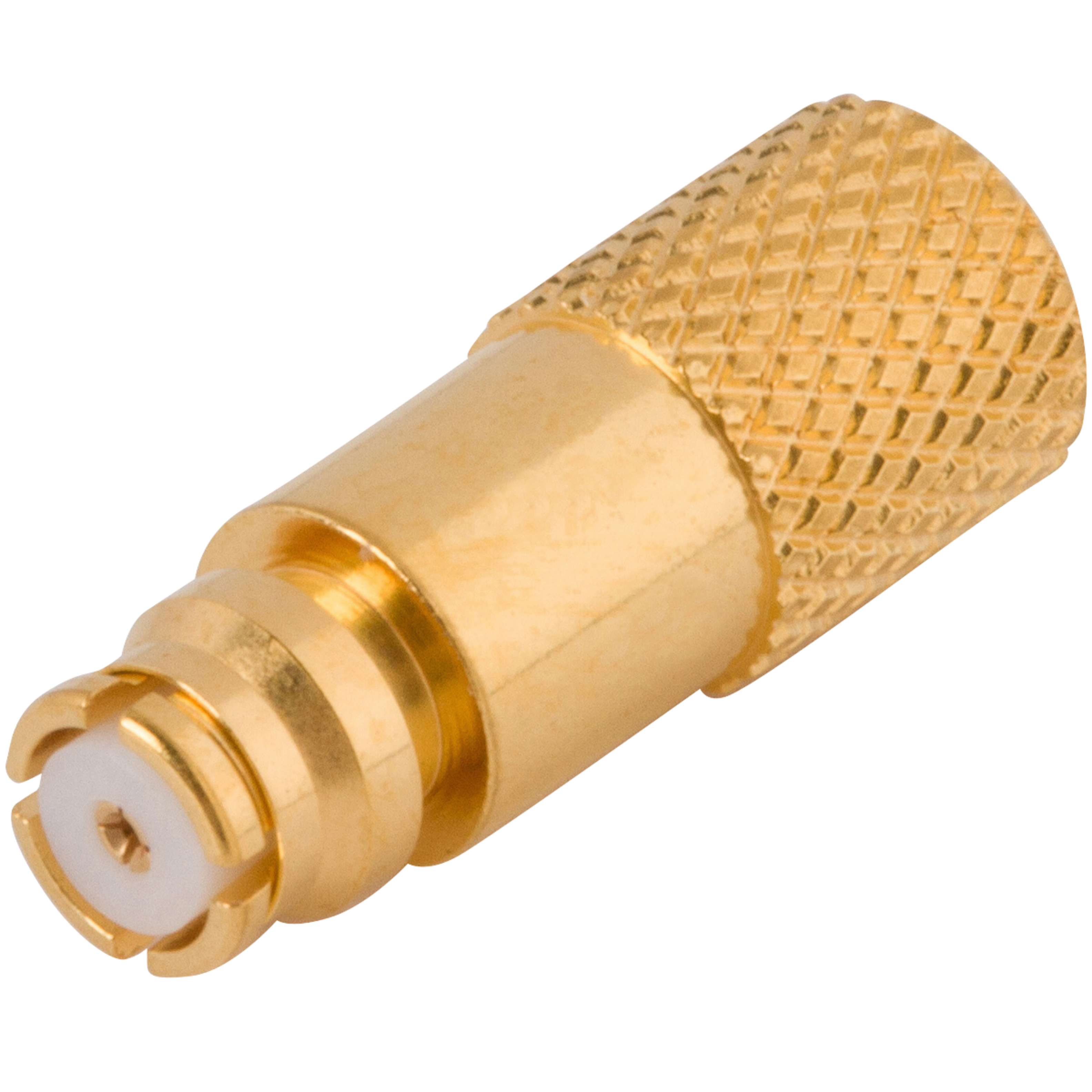

SMP Female Short

Available Inventory: 407
8012-4008
SMP Components 8012-4008
Datasheet
Part #   8032-4007

SMPM Female Short

Available Inventory: 250
8032-4007
SMPM Components 8032-4007
Datasheet
Part #   8038-6005

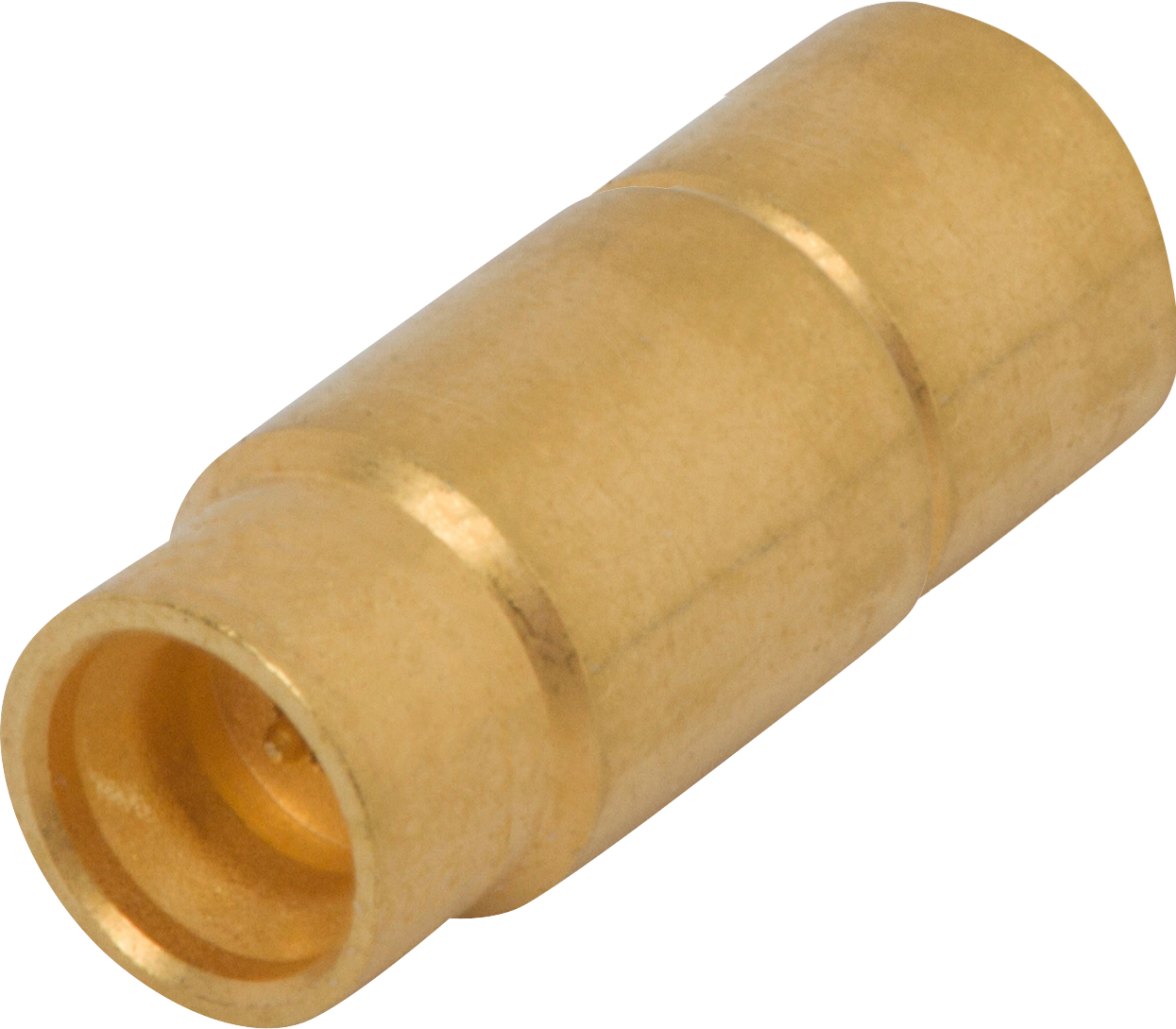

SMPS Male Short, SB
