SMPS Male PCB Surface Mount Connector, FD
P/N: 3811-40022

In stock at Qty Order
Digi-Key Electronics 1427
TTI Inc Global Headquarters 958
Master Electronics 227
Mouser Electronics 88
Arrow Electronics Inc 80
PEI-Genesis 10
Products specifications
Attribute name Attribute value
RF Series SMPS
Gender Plug (Male)
Orientation (Body) Straight
Coupling Push-on
Mounting Type PCB Vertical Launch
Detent Full Detent
Termination Style Solder
Number of Ports Single
Finish Gold
Electrical
Impedance 50 ohms
Frequency 65 GHz
Dielectric withstanding Voltage 250 VRMS
Shielding Effectiveness ≥ -80 dB DC - 3 GHz, ≥ -65 dB 3 - 26.5 GHz
Mechanical
Mating Cycles - FD 100
Mating Cycles - SB 500
Insertion Force - SB 1.2 lbs
Withdrawal Force - SB 1.0 lbs
Radial Misalignment 3° Max
Axial Misalignment .010” Max
Insertion Force - FD 2.5 lbs
Withdrawal Force - FD 4.5 lbs
Environmental
Temperature Rating -65°C to +165°C
Corrosion (salt spray) MIL-STD-202, Method 101, Condition B
Vibration MIL-STD-202, Method 204, Condition D
Shock MIL-STD-202, Method 213, Condition I
Thermal Shock MIL-STD-202, Method 107, Condition B
Barometric Pressure (Altitude) MIL-STD-202, Method 105, Condition C, 70k Ft.
Moisture Resistance MIL-STD-202, Method 106, Less Step 7B


EU RoHS Directive 2011/65/EU Yes, w/ Exemption 6C

These products comply with the substance restrictions of the Restriction on Hazardous Substances Directive 2011/65/EU (RoHS2). The RoHS2 Directive requires that certain electrical and electronic equipment products do not contain mercury, cadmium, hexavalent chromium, PBB, PBDE, lead, DEHP, BBP, DBP and DIBP above defined thresholds. Products indicated as compliant with exemption contain one or more of these substances above the prohibition thresholds, but are compliant by claiming one or more valid exemptions.

EU REACH Regulation (EC) No. 1907/2006 SVHC > Threshold

These products contain one or more EU REACH Substances of Very High Concern (SVHC) > 0.1% by weight (1000 ppm). Details related to the SVHC are displayed.

REACH SVHC: LEAD, CAS #: 7439-92-1, PPM: 4000

Use personal protective equipment as required. Do not eat, drink or smoke when using this product. Wash thoroughly after handling. Recycle if possible and dispose of the article by following all applicable governmental regulations relevant to your geographic location.

This information is provided based on reasonable inquiry of our suppliers and represents our current actual knowledge based on the information they provided.

Please contact compliance@svmicro.com for any Compliance or Environmental related questions.

Last Update: 12/1/2022 1:07:44 AM

Contact Us

How can we help?

*
*
*
*
*
*
*
*
Products specifications
Attribute name Attribute value
RF Series SMPS
Gender Plug (Male)
Orientation (Body) Straight
Coupling Push-on
Mounting Type PCB Vertical Launch
Detent Full Detent
Termination Style Solder
Number of Ports Single
Finish Gold
Electrical
Impedance 50 ohms
Frequency 65 GHz
Dielectric withstanding Voltage 250 VRMS
Shielding Effectiveness ≥ -80 dB DC - 3 GHz, ≥ -65 dB 3 - 26.5 GHz
Mechanical
Mating Cycles - FD 100
Mating Cycles - SB 500
Insertion Force - SB 1.2 lbs
Withdrawal Force - SB 1.0 lbs
Radial Misalignment 3° Max
Axial Misalignment .010” Max
Insertion Force - FD 2.5 lbs
Withdrawal Force - FD 4.5 lbs
Environmental
Temperature Rating -65°C to +165°C
Corrosion (salt spray) MIL-STD-202, Method 101, Condition B
Vibration MIL-STD-202, Method 204, Condition D
Shock MIL-STD-202, Method 213, Condition I
Thermal Shock MIL-STD-202, Method 107, Condition B
Barometric Pressure (Altitude) MIL-STD-202, Method 105, Condition C, 70k Ft.
Moisture Resistance MIL-STD-202, Method 106, Less Step 7B
Customers Also Viewed

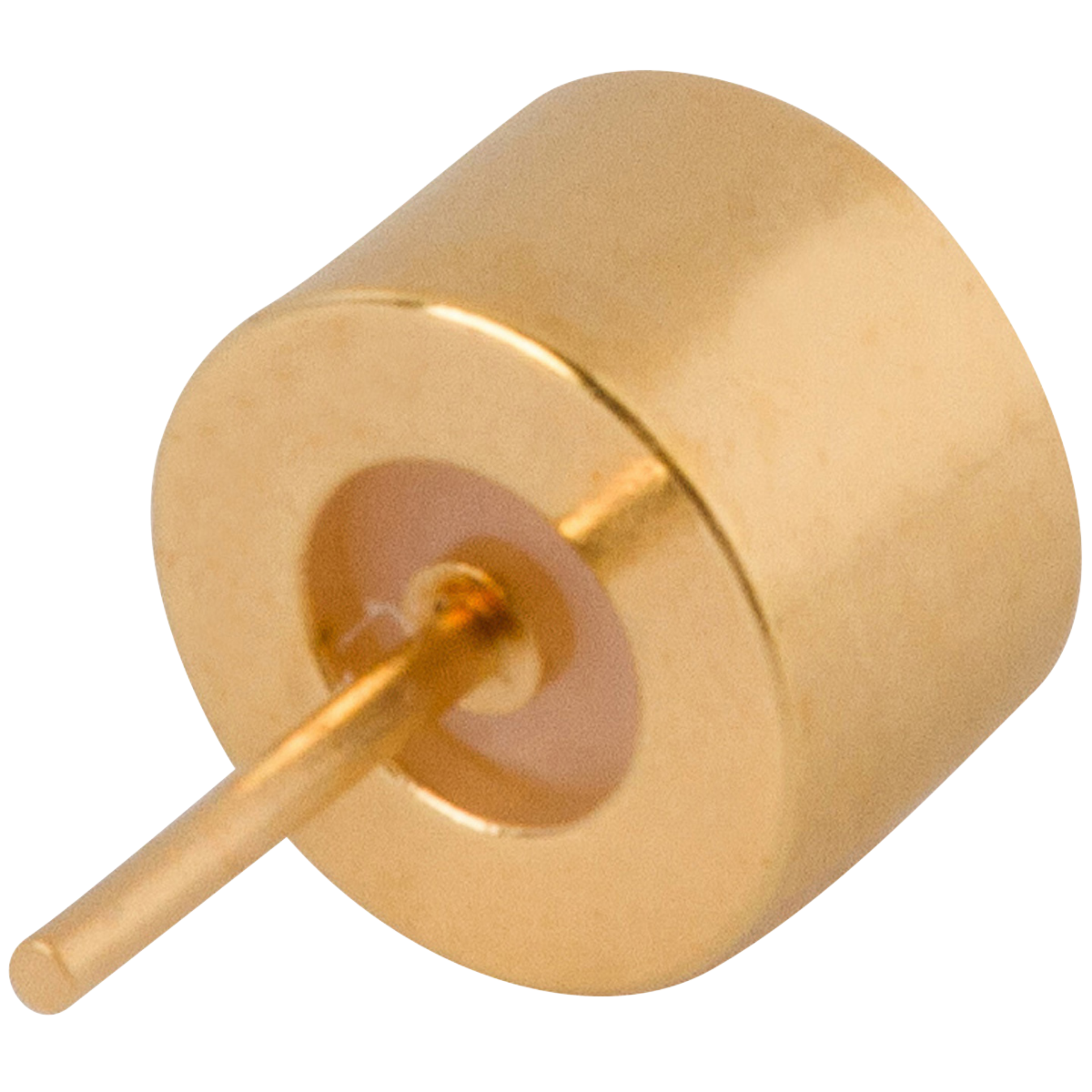

Part #   3811-40006

SMPS Male PCB Solder-In Connector (.009"), FD"

Available Inventory: 218
3811-40006
SMPS Connectors 3811-40006
Datasheet
Part #   3811-40023

SMPS Male PCB Surface Mount Connector, SB

Available Inventory: 1451
3811-40023
SMPS Connectors 3811-40023
Datasheet

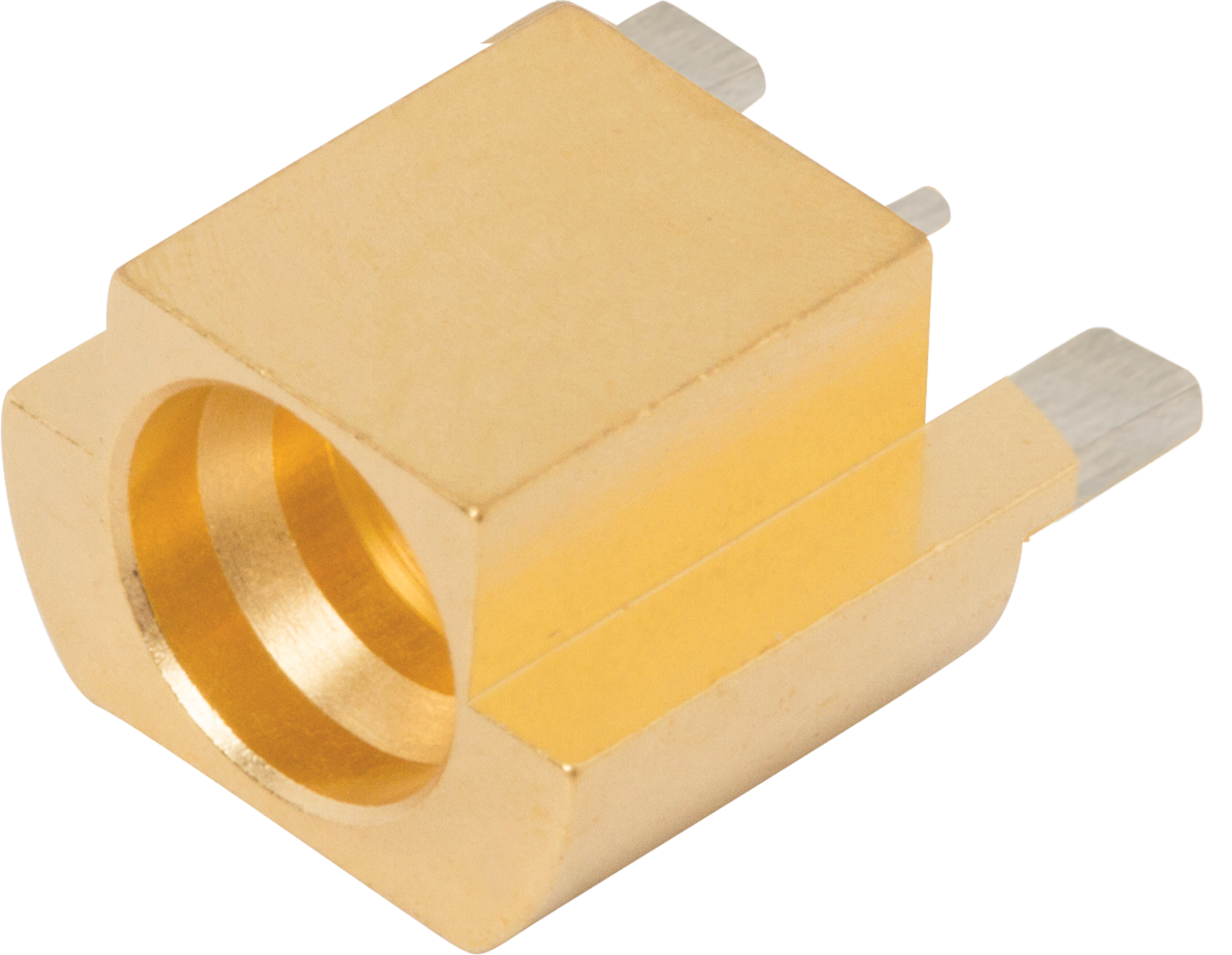

Part #   3811-40004-TD
