SMPM Mini-D RF Interconnects

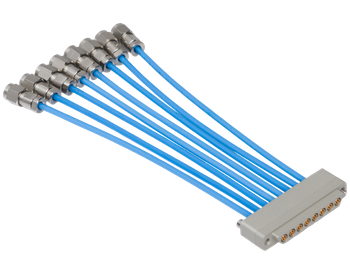

SV Microwave’s SMPM Mini-D RF Interconnects combine the proven Mini-D multiport form factor with a high-performance SMPM interface, delivering a high-density solution for RF applications up to 40 GHz. This product family includes an 8-port ganged RF cable assembly and two PCB connector mating halves, creating a complete interconnect system for PCB applications.

The PCB connector mating halves are available in both surface-mount and edge-launch configurations, providing flexibility for PCB design. Designed for consistent electrical performance and mechanical alignment, these solutions support reliable signal transmission across all channels in space-constrained environments.

Features / Benefits & Applications
Technical Specs

Features and Benefits

SMPM interface supporting DC to 40 GHz
Multiport configuration for high-density applications
PCB connectors available in surface-mount and edge-launch configurations
Mechanical alignment features for error-free mating

Applications

Test and Instrumentation
Bench-Top Testing
Automated Test Equipment (ATE)
Airborne RADAR
Mil-Aero

The specifications below are typical for the connector series, but may not apply to this particular part. Please see the datasheet for full specifications.

SMPM

Impedance (Ω)	50
Frequency GHz	65 GHz
Shielding Effectiveness	≥ -80 dB DC - 3 GHz ≥ -65 dB 3 - 26.5 GHz
Dielectric withstanding Voltage	325 VRMS
Mating Cycles - SB	500
Mating Cycles - FD	100
Insertion Force - SB	2.5 lbs
Insertion Force - FD	4.5 lbs
Withdrawal Force - SB	1.5 lbs
Withdrawal Force - FD	6.5 lbs
Axial Misalignment	.010” Max
Radial Misalignment	3° Max
Temperature Rating	-65°C to +165°C
Corrosion (salt spray)	MIL-STD-202, Method 101, Condition B
Vibration	MIL-STD-202, Method 204, Condition D
Shock	MIL-STD-202, Method 213, Condition I
Thermal Shock	MIL-STD-202, Method 107, Condition B
Moisture Resistance	MIL-STD-202, Method 106, Less Step 7B
Barometric Pressure (Altitude)	MIL-STD-202, Method 105, Condition C, 70k Ft.
