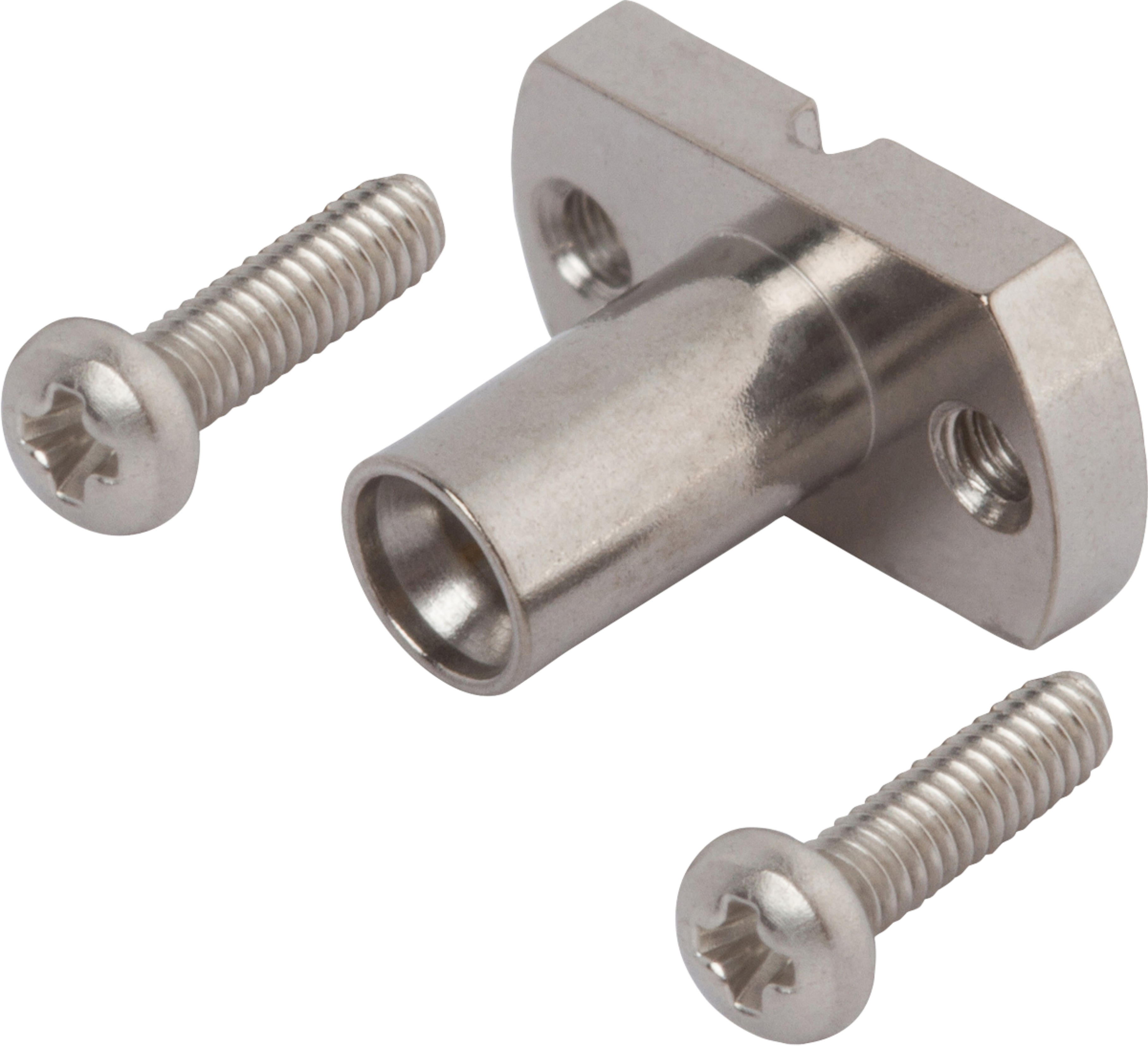

SMPM Male Solderless PCB Compression Mount Connector, 2 Hole (CPW / Microstrip)
P/N: SF3211-60218

In stock at Qty Order
Newark 100
Arrow Electronics Inc 100
Farnell 100
Digi-Key Electronics 67
Mouser Electronics 61
Products specifications
Attribute name Attribute value
RF Series SMPM
Gender Plug (Male)
Coupling Push-on
Orientation (Body) Straight
Mounting Type PCB Vertical Launch
Body Style 2 Hole
Termination Style Solder-free
Finish Passivated
Electrical
Frequency 65 GHz
Impedance 50 ohms
Shielding Effectiveness ≥ -80 dB DC - 3 GHz, ≥ -65 dB 3 - 26.5 GHz
Dielectric withstanding Voltage 325 VRMS
Mechanical
Mating Cycles - SB 500
Mating Cycles - FD 100
Insertion Force - SB 2.5 lbs
Withdrawal Force - SB 1.5 lbs
Axial Misalignment .010” Max
Insertion Force - FD 4.5 lbs
Withdrawal Force - FD 6.5 lbs
Radial Misalignment 3° Max
Environmental
Thermal Shock MIL-STD-202, Method 107, Condition B
Vibration MIL-STD-202, Method 204, Condition D
Corrosion (salt spray) MIL-STD-202, Method 101, Condition B
Temperature Rating -65°C to +165°C
Shock MIL-STD-202, Method 213, Condition I
Moisture Resistance MIL-STD-202, Method 106, Less Step 7B
Barometric Pressure (Altitude) MIL-STD-202, Method 105, Condition C, 70k Ft.


EU REACH Regulation (EC) No. 1907/2006 SVHC > Threshold

These products contain one or more EU REACH Substances of Very High Concern (SVHC) > 0.1% by weight (1000 ppm). Details related to the SVHC are displayed.

REACH SVHC: LEAD, CAS #: 7439-92-1, PPM: 4000

Use personal protective equipment as required. Do not eat, drink or smoke when using this product. Wash thoroughly after handling. Recycle if possible and dispose of the article by following all applicable governmental regulations relevant to your geographic location.

This information is provided based on reasonable inquiry of our suppliers and represents our current actual knowledge based on the information they provided.

Please contact compliance@svmicro.com for any Compliance or Environmental related questions.

Last Update: 12/4/2022 1:08:31 AM

Contact Us

How can we help?

*
*
*
*
*
*
*
*
Products specifications
Attribute name Attribute value
RF Series SMPM
Gender Plug (Male)
Coupling Push-on
Orientation (Body) Straight
Mounting Type PCB Vertical Launch
Body Style 2 Hole
Termination Style Solder-free
Finish Passivated
Electrical
Frequency 65 GHz
Impedance 50 ohms
Shielding Effectiveness ≥ -80 dB DC - 3 GHz, ≥ -65 dB 3 - 26.5 GHz
Dielectric withstanding Voltage 325 VRMS
Mechanical
Mating Cycles - SB 500
Mating Cycles - FD 100
Insertion Force - SB 2.5 lbs
Withdrawal Force - SB 1.5 lbs
Axial Misalignment .010” Max
Insertion Force - FD 4.5 lbs
Withdrawal Force - FD 6.5 lbs
Radial Misalignment 3° Max
Environmental
Thermal Shock MIL-STD-202, Method 107, Condition B
Vibration MIL-STD-202, Method 204, Condition D
Corrosion (salt spray) MIL-STD-202, Method 101, Condition B
Temperature Rating -65°C to +165°C
Shock MIL-STD-202, Method 213, Condition I
Moisture Resistance MIL-STD-202, Method 106, Less Step 7B
Barometric Pressure (Altitude) MIL-STD-202, Method 105, Condition C, 70k Ft.
Customers Also Viewed
SF3211-60218-1S
SMPM Connectors SF3211-60218-1S
Datasheet
SF3211-60218-2S
SMPM Connectors SF3211-60218-2S
Datasheet
Part #   SF3211-60193

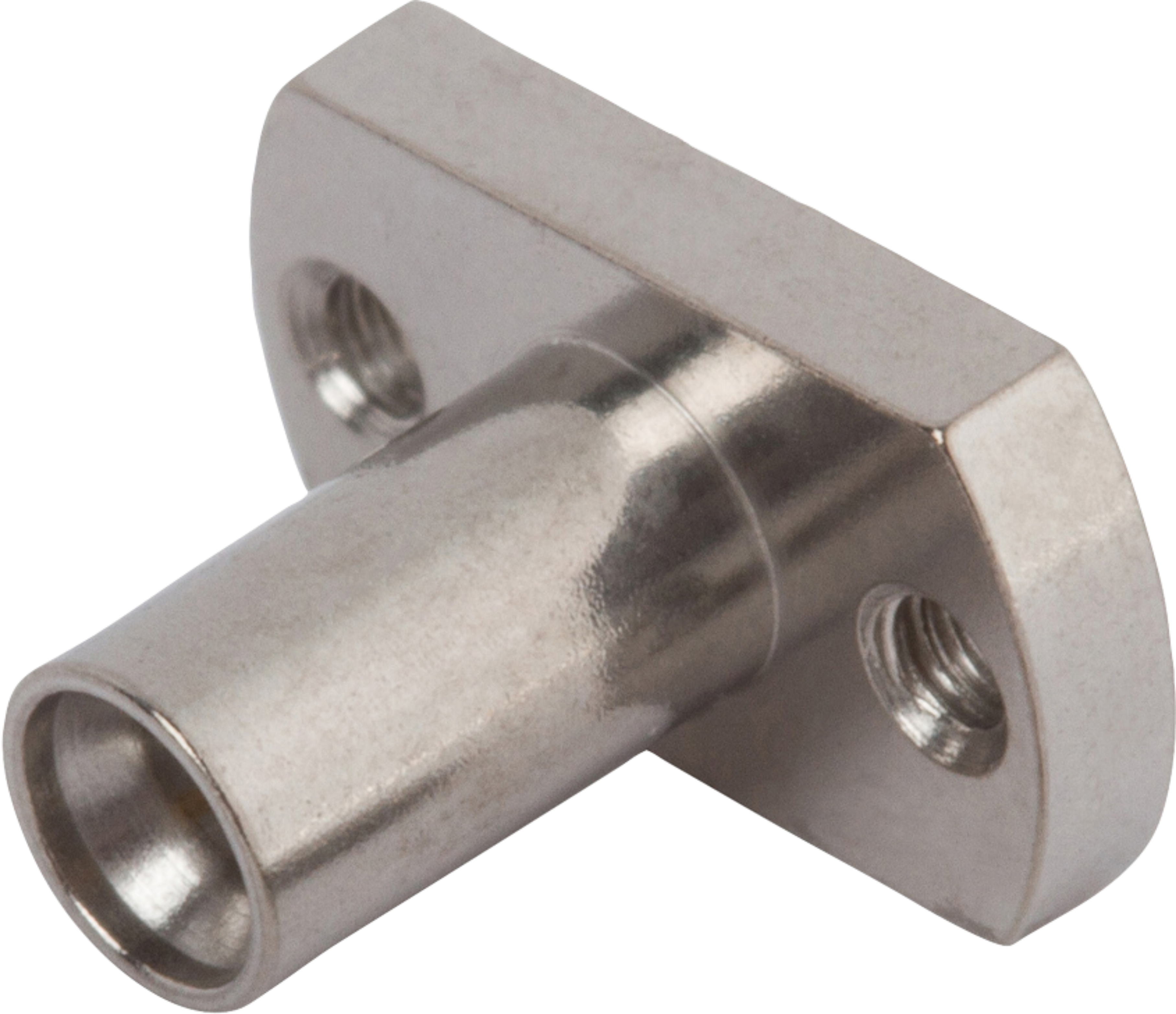

SMPM Male Solderless PCB Compression Mount Connector, 2 Hole (Stripline)
