SMPM Male PCB Thru-Hole Connector, SB
P/N: 3211-40140

There currently isn't any inventory available in distribution. Please contact us to obtain this product.
Products specifications
Attribute name Attribute value
RF Series SMPM
Orientation (Body) Straight
Gender Plug (Male)
Mounting Type PCB Vertical Launch
Coupling Push-on
Number of Ports Single
Detent Smooth Bore
Termination Style Solder
Finish Gold
Electrical
Impedance 50 ohms
Frequency 40 GHz
Dielectric withstanding Voltage 325 VRMS
Shielding Effectiveness ≥ -80 dB DC - 3 GHz, ≥ -65 dB 3 - 26.5 GHz
Mechanical
Mating Cycles - SB 500
Mating Cycles - FD 100
Insertion Force - FD 4.5 lbs
Insertion Force - SB 2.5 lbs
Withdrawal Force - SB 1.5 lbs
Withdrawal Force - FD 6.5 lbs
Axial Misalignment .010” Max
Radial Misalignment 3° Max
Environmental
Corrosion (salt spray) MIL-STD-202, Method 101, Condition B
Temperature Rating -65°C to +165°C
Vibration MIL-STD-202, Method 204, Condition D
Shock MIL-STD-202, Method 213, Condition I
Thermal Shock MIL-STD-202, Method 107, Condition B
Barometric Pressure (Altitude) MIL-STD-202, Method 105, Condition C, 70k Ft.
Moisture Resistance MIL-STD-202, Method 106, Less Step 7B


This information is provided based on reasonable inquiry of our suppliers and represents our current actual knowledge based on the information they provided.

Please contact [email protected] for any Compliance or Environmental related questions.

Last Update: 6/28/2023 1:31:19 AM

Spinning Wheel; Your Submission is Loading

Contact Us

How can we help?

*
*
*
*
*
*
*
*
Products specifications
Attribute name Attribute value
RF Series SMPM
Orientation (Body) Straight
Gender Plug (Male)
Mounting Type PCB Vertical Launch
Coupling Push-on
Number of Ports Single
Detent Smooth Bore
Termination Style Solder
Finish Gold
Electrical
Impedance 50 ohms
Frequency 40 GHz
Dielectric withstanding Voltage 325 VRMS
Shielding Effectiveness ≥ -80 dB DC - 3 GHz, ≥ -65 dB 3 - 26.5 GHz
Mechanical
Mating Cycles - SB 500
Mating Cycles - FD 100
Insertion Force - FD 4.5 lbs
Insertion Force - SB 2.5 lbs
Withdrawal Force - SB 1.5 lbs
Withdrawal Force - FD 6.5 lbs
Axial Misalignment .010” Max
Radial Misalignment 3° Max
Environmental
Corrosion (salt spray) MIL-STD-202, Method 101, Condition B
Temperature Rating -65°C to +165°C
Vibration MIL-STD-202, Method 204, Condition D
Shock MIL-STD-202, Method 213, Condition I
Thermal Shock MIL-STD-202, Method 107, Condition B
Barometric Pressure (Altitude) MIL-STD-202, Method 105, Condition C, 70k Ft.
Moisture Resistance MIL-STD-202, Method 106, Less Step 7B
Customers Also Viewed
Part #   3287-4100

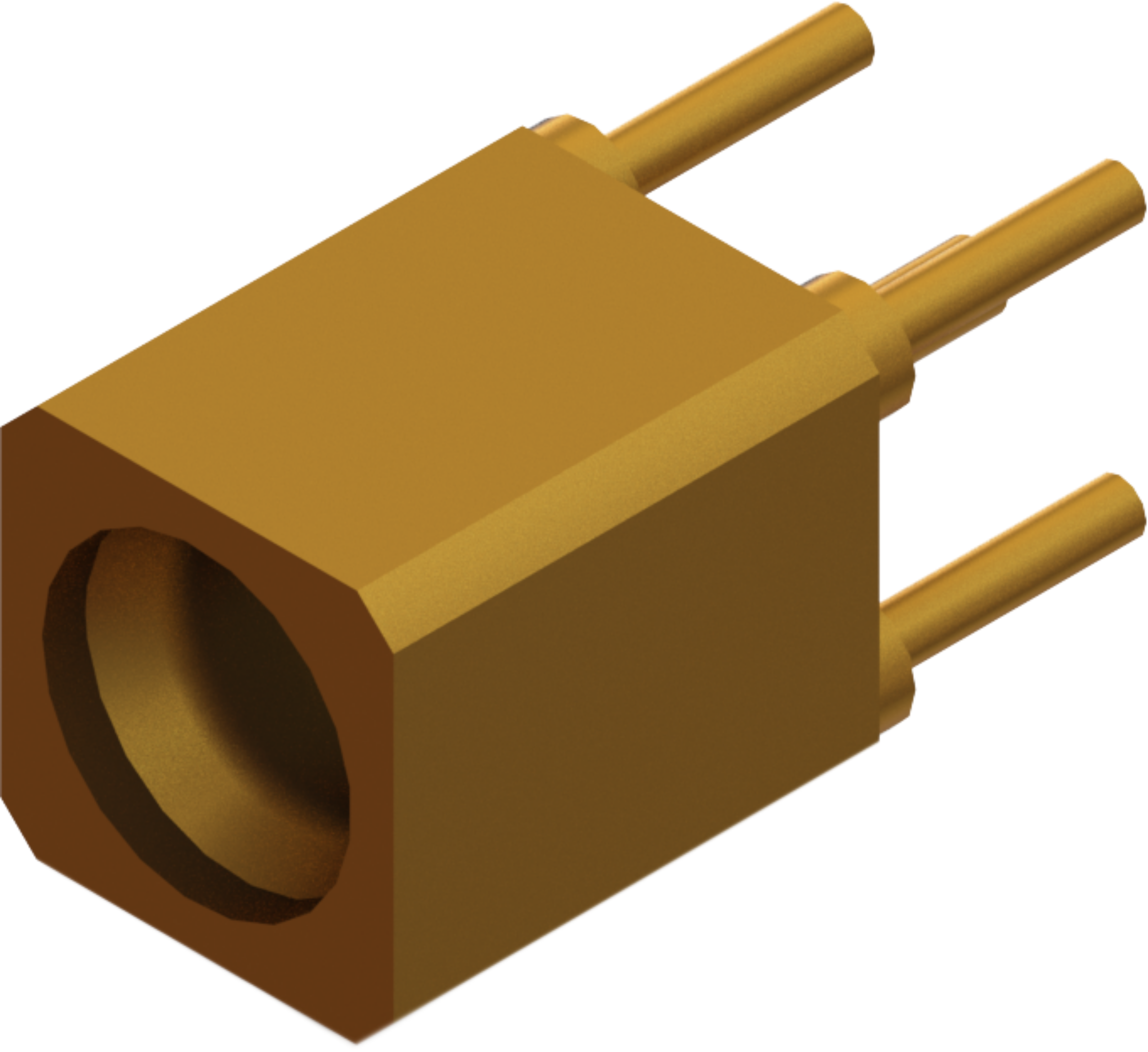

SMPM Male PCB Thru-Hole Connector, FD

Available Inventory: 1001
3287-4100
SMPM Connectors 3287-4100
Datasheet
Part #   3211-40141

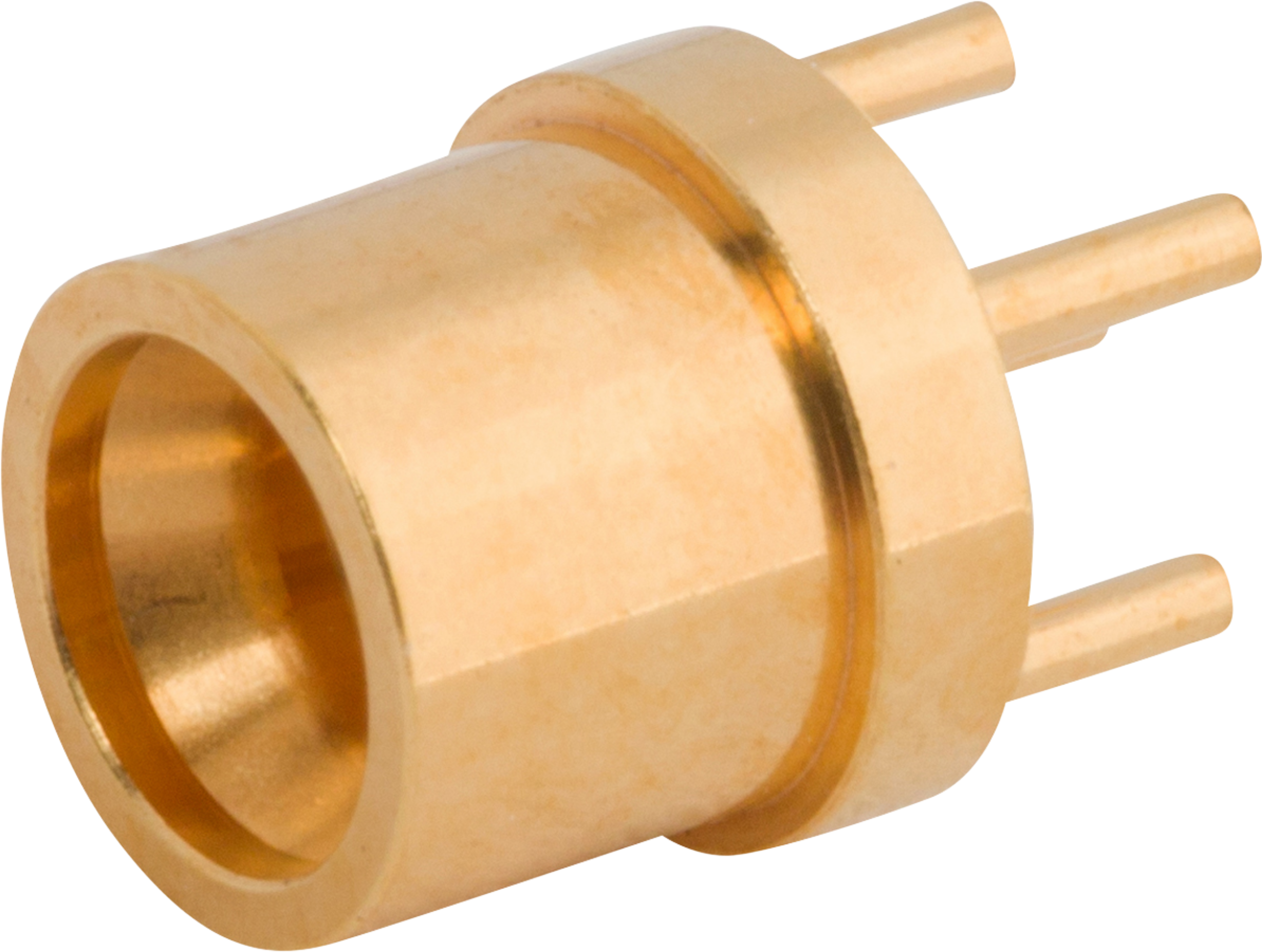

SMPM Male PCB Thru-Hole Connector, FD

Available Inventory: 336
3211-40141
SMPM Connectors 3211-40141
Datasheet
Part #   3212-40002

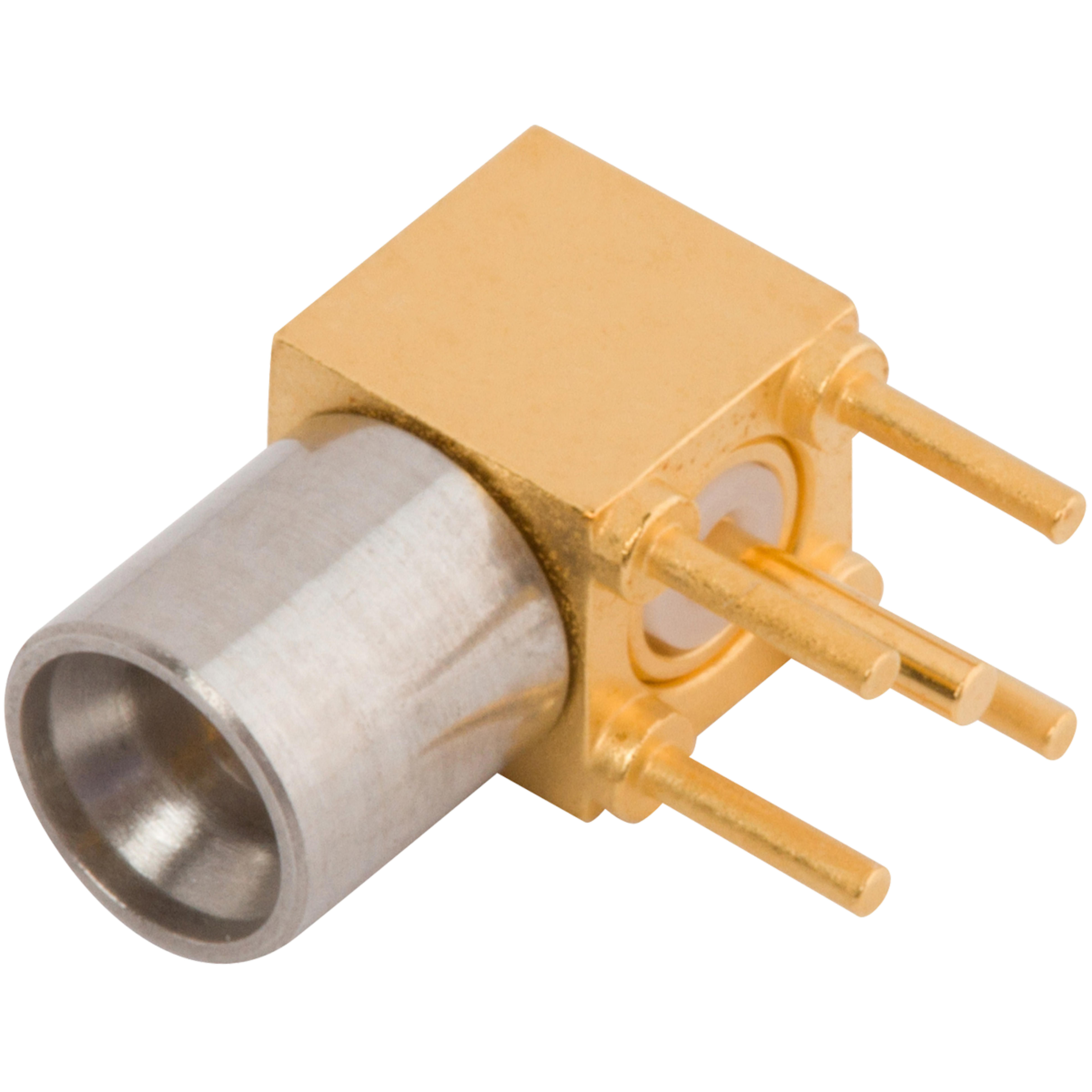

SMPM Male PCB Thru-Hole Connector, R/A, FD
