SMPM Male PCB Edge Launch Connector (Pre-Tinned), SB
P/N: 3211-60307

There currently isn't any inventory available in distribution. Please contact us to obtain this product.
Products specifications
Attribute name Attribute value
RF Series SMPM
Gender Plug (Male)
Orientation (Body) Straight
Mounting Type PCB Edge Launch
Coupling Push-on
Detent Smooth Bore
Termination Style Solder (Pre-Tinned)
Number of Ports Single
Family Pre-Tinned
Finish Gold
Electrical
Frequency 40 GHz
Impedance 50 ohms
Shielding Effectiveness ≥ -80 dB DC - 3 GHz, ≥ -65 dB 3 - 26.5 GHz
Dielectric withstanding Voltage 325 VRMS
Mechanical
Mating Cycles - FD 100
Mating Cycles - SB 500
Insertion Force - SB 2.5 lbs
Insertion Force - FD 4.5 lbs
Withdrawal Force - SB 1.5 lbs
Withdrawal Force - FD 6.5 lbs
Axial Misalignment .010” Max
Radial Misalignment 3° Max
Environmental
Temperature Rating -65°C to +165°C
Corrosion (salt spray) MIL-STD-202, Method 101, Condition B
Vibration MIL-STD-202, Method 204, Condition D
Shock MIL-STD-202, Method 213, Condition I
Thermal Shock MIL-STD-202, Method 107, Condition B
Moisture Resistance MIL-STD-202, Method 106, Less Step 7B
Barometric Pressure (Altitude) MIL-STD-202, Method 105, Condition C, 70k Ft.


EU RoHS Directive 2011/65/EU Not Compliant

These products DO NOT comply with the substance restrictions of the Restriction on Hazardous Substances Directive 2011/65/EU (RoHS2). Products indicated as ‘Not Compliant’ contain one or more restricted substances above the prohibition thresholds. Consequently, these products should NOT be used in any application requiring RoHS2 compliance.

EU REACH Regulation (EC) No. 1907/2006 SVHC > Threshold

These products contain one or more EU REACH Substances of Very High Concern (SVHC) > 0.1% by weight (1000 ppm). Details related to the SVHC are displayed.

REACH SVHC: LEAD, CAS #: 7439-92-1, PPM: 370000

Use personal protective equipment as required. Do not eat, drink or smoke when using this product. Wash thoroughly after handling. Recycle if possible and dispose of the article by following all applicable governmental regulations relevant to your geographic location.

This information is provided based on reasonable inquiry of our suppliers and represents our current actual knowledge based on the information they provided.

Please contact [email protected] for any Compliance or Environmental related questions.

Last Update: 6/28/2023 1:23:33 AM

Spinning Wheel; Your Submission is Loading

Contact Us

How can we help?

*
*
*
*
*
*
*
*
Products specifications
Attribute name Attribute value
RF Series SMPM
Gender Plug (Male)
Orientation (Body) Straight
Mounting Type PCB Edge Launch
Coupling Push-on
Detent Smooth Bore
Termination Style Solder (Pre-Tinned)
Number of Ports Single
Family Pre-Tinned
Finish Gold
Electrical
Frequency 40 GHz
Impedance 50 ohms
Shielding Effectiveness ≥ -80 dB DC - 3 GHz, ≥ -65 dB 3 - 26.5 GHz
Dielectric withstanding Voltage 325 VRMS
Mechanical
Mating Cycles - FD 100
Mating Cycles - SB 500
Insertion Force - SB 2.5 lbs
Insertion Force - FD 4.5 lbs
Withdrawal Force - SB 1.5 lbs
Withdrawal Force - FD 6.5 lbs
Axial Misalignment .010” Max
Radial Misalignment 3° Max
Environmental
Temperature Rating -65°C to +165°C
Corrosion (salt spray) MIL-STD-202, Method 101, Condition B
Vibration MIL-STD-202, Method 204, Condition D
Shock MIL-STD-202, Method 213, Condition I
Thermal Shock MIL-STD-202, Method 107, Condition B
Moisture Resistance MIL-STD-202, Method 106, Less Step 7B
Barometric Pressure (Altitude) MIL-STD-202, Method 105, Condition C, 70k Ft.
Product tags
Customers Also Viewed
Part #   3211-40093

SMPM Male PCB Thru-Hole Connector (Pre-Tinned), R/A, SB

Available Inventory: 369
3211-40093
SMPM Connectors 3211-40093
Datasheet
Part #   3211-40106

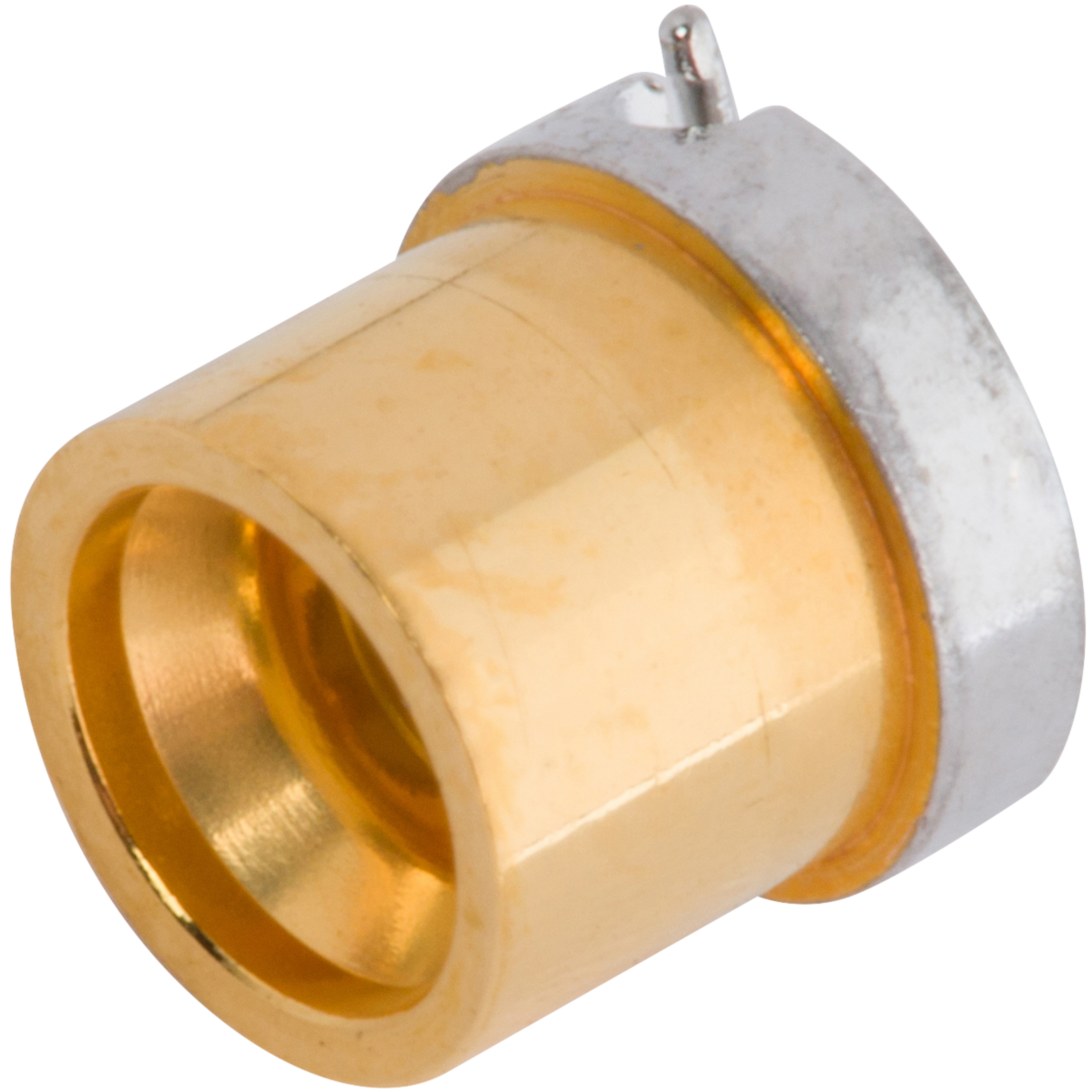

SMPM Male PCB Surface Mount Connector (Pre-Tinned), R/A, SB

Available Inventory: 634
3211-40106
SMPM Connectors 3211-40106
Datasheet
Part #   3211-60308

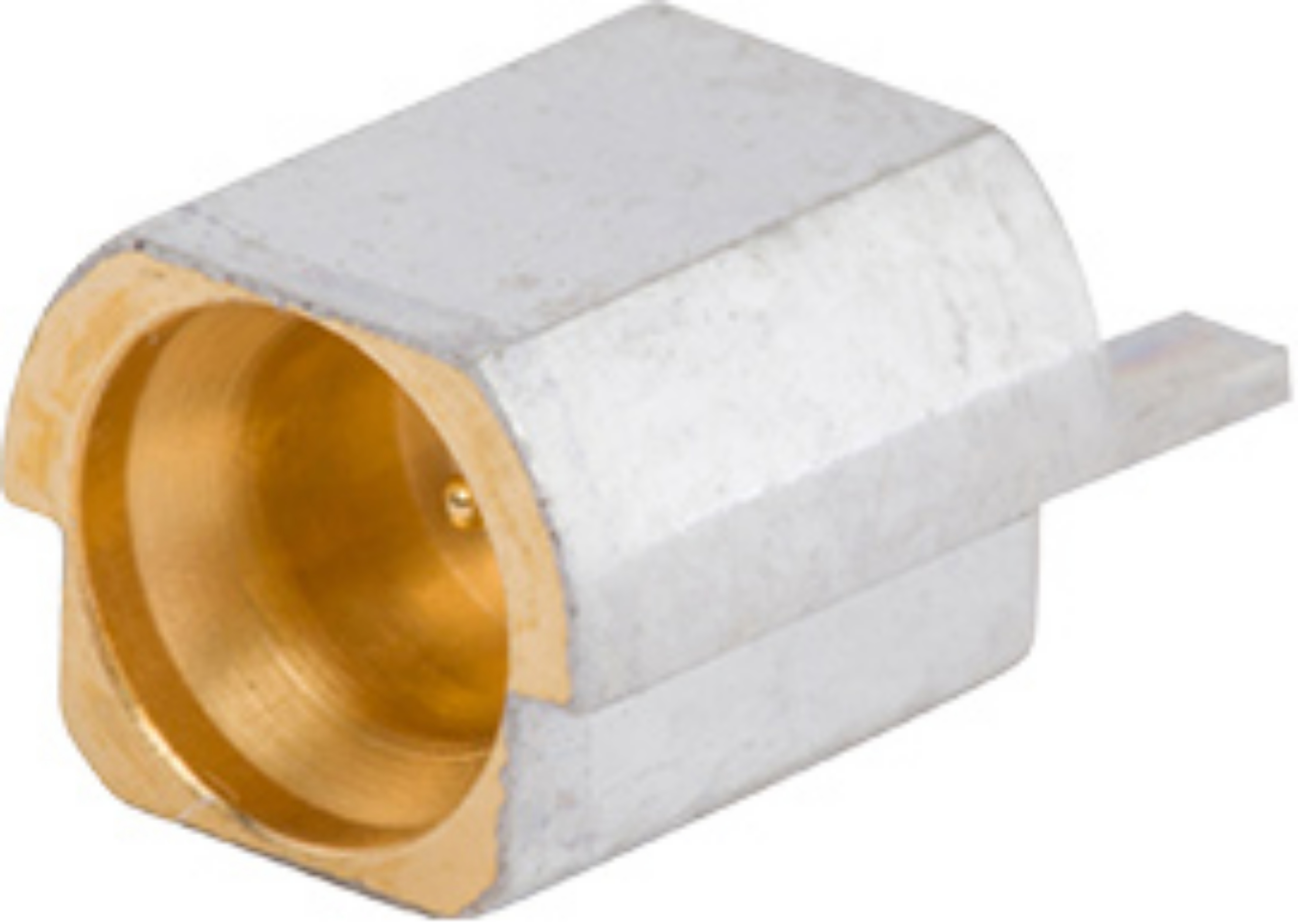

SMPM Male PCB Edge Launch Connector (Pre-Tinned), FD
