P/N: 3222-40002

SMPM Female Connector, R/A for .085 Cable

In stock at Qty Order
Mouser Electronics 337
Digi-Key Electronics 100
Products specifications
Attribute name Attribute value
RF Series SMPM
Gender Jack (Female)
Orientation (Body) Right Angle
Coupling Push-on
Termination Style Solder
Number of Ports Single
Finish Gold
Cable Type 0.085 Flexible Coax
Electrical
Impedance 50 ohms
Frequency 18 GHz
Shielding Effectiveness ≥ -80 dB DC - 3 GHz, ≥ -65 dB 3 - 26.5 GHz
Dielectric withstanding Voltage 325 VRMS
Mechanical
Mating Cycles - SB 500
Mating Cycles - FD 100
Insertion Force - SB 2.5 lbs
Insertion Force - FD 4.5 lbs
Withdrawal Force - SB 1.5 lbs
Withdrawal Force - FD 6.5 lbs
Axial Misalignment .010” Max
Radial Misalignment 3° Max
Environmental
Temperature Rating -65°C to +165°C
Corrosion (salt spray) MIL-STD-202, Method 101, Condition B
Vibration MIL-STD-202, Method 204, Condition D
Shock MIL-STD-202, Method 213, Condition I
Thermal Shock MIL-STD-202, Method 107, Condition B
Moisture Resistance MIL-STD-202, Method 106, Less Step 7B
Barometric Pressure (Altitude) MIL-STD-202, Method 105, Condition C, 70k Ft.


EU RoHS Directive 2011/65/EU Yes, w/ Exemption 6C

These products comply with the substance restrictions of the Restriction on Hazardous Substances Directive 2011/65/EU (RoHS2). The RoHS2 Directive requires that certain electrical and electronic equipment products do not contain mercury, cadmium, hexavalent chromium, PBB, PBDE, lead, DEHP, BBP, DBP and DIBP above defined thresholds. Products indicated as compliant with exemption contain one or more of these substances above the prohibition thresholds, but are compliant by claiming one or more valid exemptions.

This information is provided based on reasonable inquiry of our suppliers and represents our current actual knowledge based on the information they provided.

Please contact compliance@svmicro.com for any Compliance or Environmental related questions.

Contact Us

How can we help?

*
*
*
*
*
*
*
*
Products specifications
Attribute name Attribute value
RF Series SMPM
Gender Jack (Female)
Orientation (Body) Right Angle
Coupling Push-on
Termination Style Solder
Number of Ports Single
Finish Gold
Cable Type 0.085 Flexible Coax
Electrical
Impedance 50 ohms
Frequency 18 GHz
Shielding Effectiveness ≥ -80 dB DC - 3 GHz, ≥ -65 dB 3 - 26.5 GHz
Dielectric withstanding Voltage 325 VRMS
Mechanical
Mating Cycles - SB 500
Mating Cycles - FD 100
Insertion Force - SB 2.5 lbs
Insertion Force - FD 4.5 lbs
Withdrawal Force - SB 1.5 lbs
Withdrawal Force - FD 6.5 lbs
Axial Misalignment .010” Max
Radial Misalignment 3° Max
Environmental
Temperature Rating -65°C to +165°C
Corrosion (salt spray) MIL-STD-202, Method 101, Condition B
Vibration MIL-STD-202, Method 204, Condition D
Shock MIL-STD-202, Method 213, Condition I
Thermal Shock MIL-STD-202, Method 107, Condition B
Moisture Resistance MIL-STD-202, Method 106, Less Step 7B
Barometric Pressure (Altitude) MIL-STD-202, Method 105, Condition C, 70k Ft.
Customers Also Viewed
Part #   3222-40005

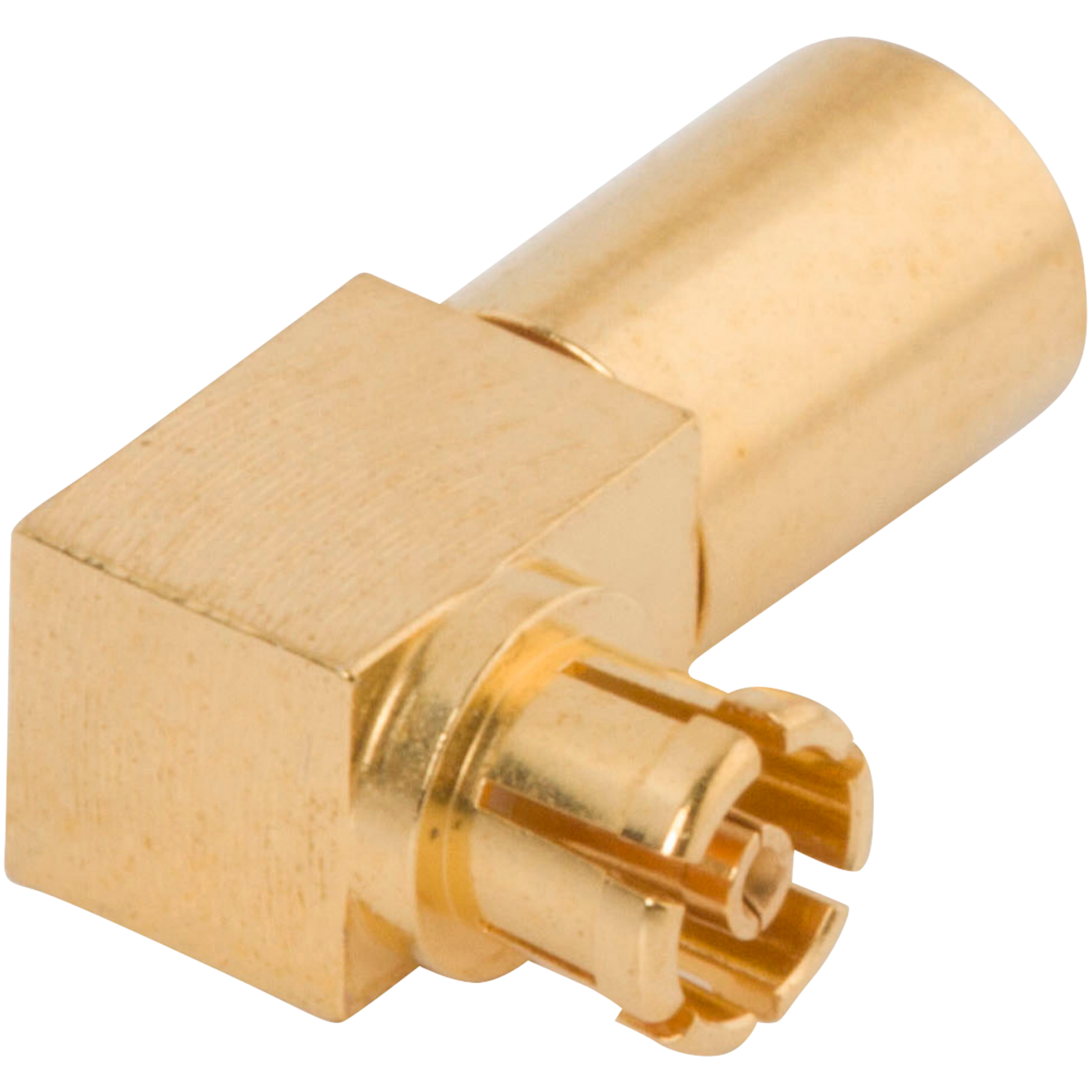

SMPM Female Connector, Swept R/A for .085 Cable

Available Inventory: 653
3222-40005
SMPM Connectors 3222-40005
Datasheet
Part #   3222-40006

SMPM Female Connector, Swept R/A for .047 Cable

Available Inventory: 220
3222-40006
SMPM Connectors 3222-40006
Datasheet
Part #   3269-4001

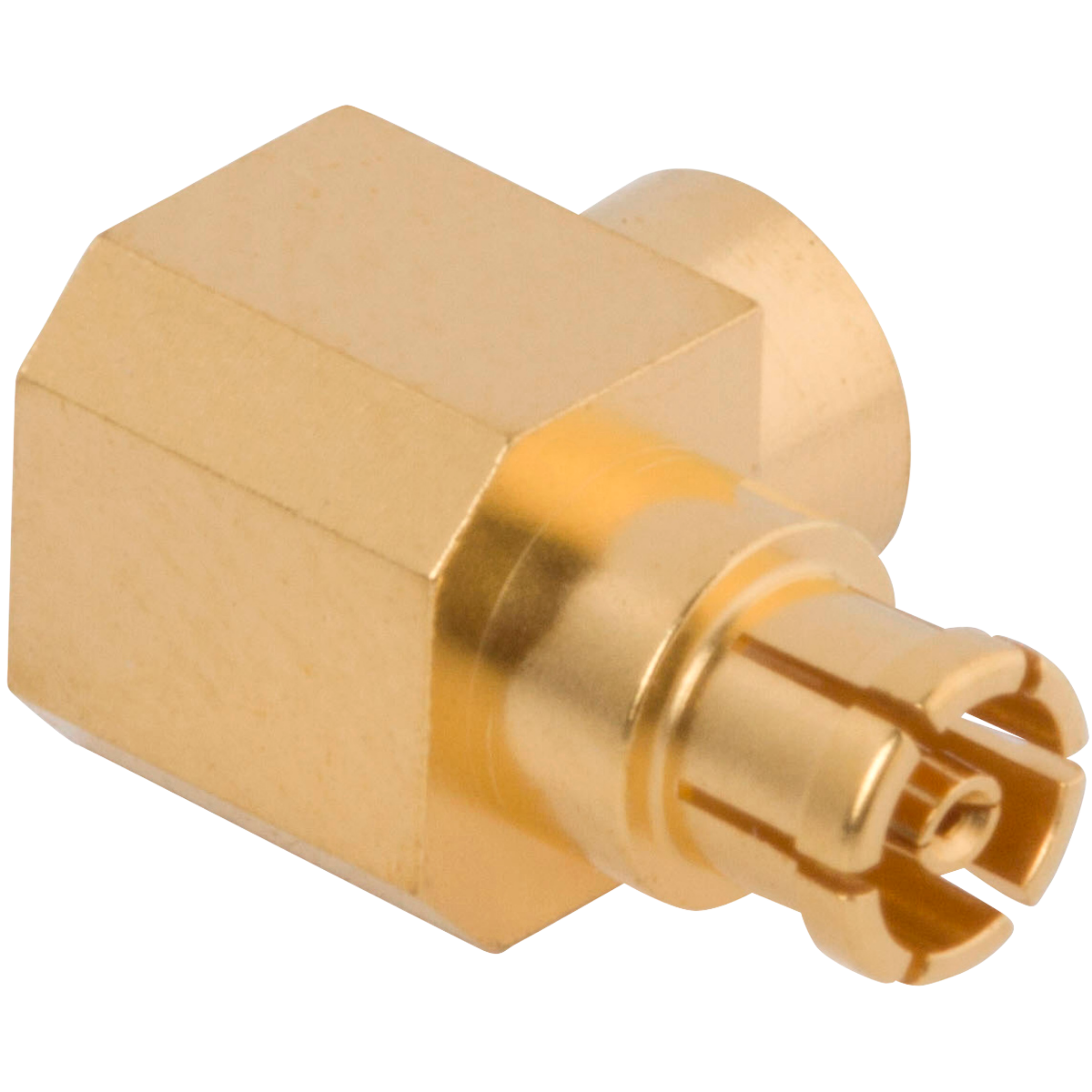

SMPM Female Connector, R/A for .047 Cable
