SMPM Female Connector, Extended Ferrule for .047 Cable
P/N: 3221-40147

In stock at Qty Order
Digi-Key Electronics 50
Newark 25
Farnell 25
Mouser Electronics 24
Products specifications
Attribute name Attribute value
RF Series SMPM
Gender Jack (Female)
Orientation (Body) Straight
Coupling Push-on
Termination Style Solder
Number of Ports Single
Cable Type 0.047 Flexible Coax
Finish Gold
Electrical
Frequency 40 GHz
Impedance 50 ohms
Dielectric withstanding Voltage 325 VRMS
Shielding Effectiveness ≥ -80 dB DC - 3 GHz, ≥ -65 dB 3 - 26.5 GHz
Mechanical
Mating Cycles - SB 500
Mating Cycles - FD 100
Insertion Force - SB 2.5 lbs
Insertion Force - FD 4.5 lbs
Withdrawal Force - SB 1.5 lbs
Withdrawal Force - FD 6.5 lbs
Axial Misalignment .010” Max
Radial Misalignment 3° Max
Environmental
Corrosion (salt spray) MIL-STD-202, Method 101, Condition B
Temperature Rating -65°C to +165°C
Vibration MIL-STD-202, Method 204, Condition D
Shock MIL-STD-202, Method 213, Condition I
Thermal Shock MIL-STD-202, Method 107, Condition B
Moisture Resistance MIL-STD-202, Method 106, Less Step 7B
Barometric Pressure (Altitude) MIL-STD-202, Method 105, Condition C, 70k Ft.


This information is provided based on reasonable inquiry of our suppliers and represents our current actual knowledge based on the information they provided.

Please contact [email protected] for any Compliance or Environmental related questions.

Last Update: 6/28/2023 1:32:13 AM

Spinning Wheel; Your Submission is Loading

Contact Us

How can we help?

*
*
*
*
*
*
*
*
Products specifications
Attribute name Attribute value
RF Series SMPM
Gender Jack (Female)
Orientation (Body) Straight
Coupling Push-on
Termination Style Solder
Number of Ports Single
Cable Type 0.047 Flexible Coax
Finish Gold
Electrical
Frequency 40 GHz
Impedance 50 ohms
Dielectric withstanding Voltage 325 VRMS
Shielding Effectiveness ≥ -80 dB DC - 3 GHz, ≥ -65 dB 3 - 26.5 GHz
Mechanical
Mating Cycles - SB 500
Mating Cycles - FD 100
Insertion Force - SB 2.5 lbs
Insertion Force - FD 4.5 lbs
Withdrawal Force - SB 1.5 lbs
Withdrawal Force - FD 6.5 lbs
Axial Misalignment .010” Max
Radial Misalignment 3° Max
Environmental
Corrosion (salt spray) MIL-STD-202, Method 101, Condition B
Temperature Rating -65°C to +165°C
Vibration MIL-STD-202, Method 204, Condition D
Shock MIL-STD-202, Method 213, Condition I
Thermal Shock MIL-STD-202, Method 107, Condition B
Moisture Resistance MIL-STD-202, Method 106, Less Step 7B
Barometric Pressure (Altitude) MIL-STD-202, Method 105, Condition C, 70k Ft.
Product tags
Customers Also Viewed
Part #   3221-40006

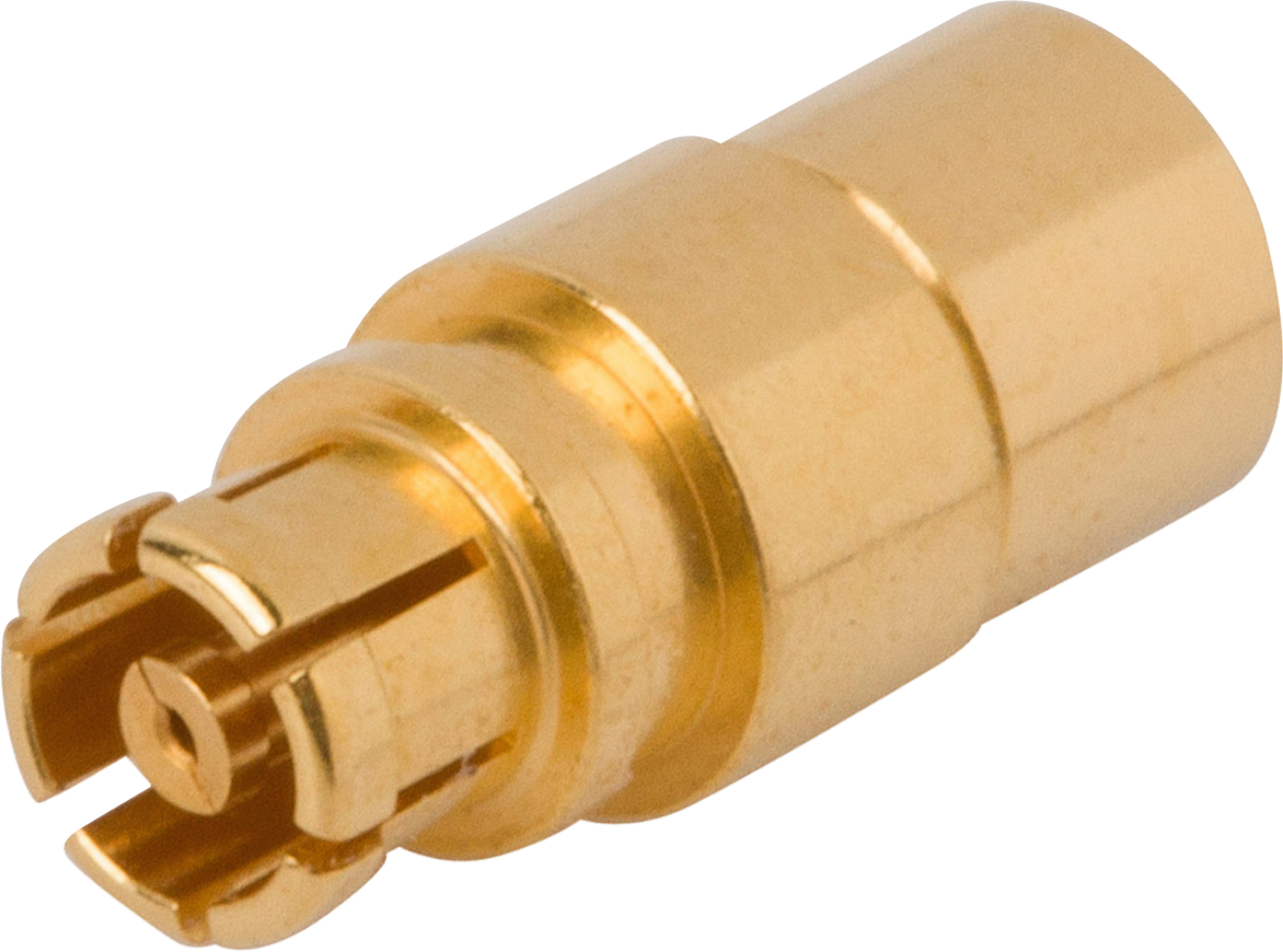

SMPM Female Connector for .085 Cable

Available Inventory: 2108
3221-40006
SMPM Connectors 3221-40006
Datasheet
Part #   3221-40011

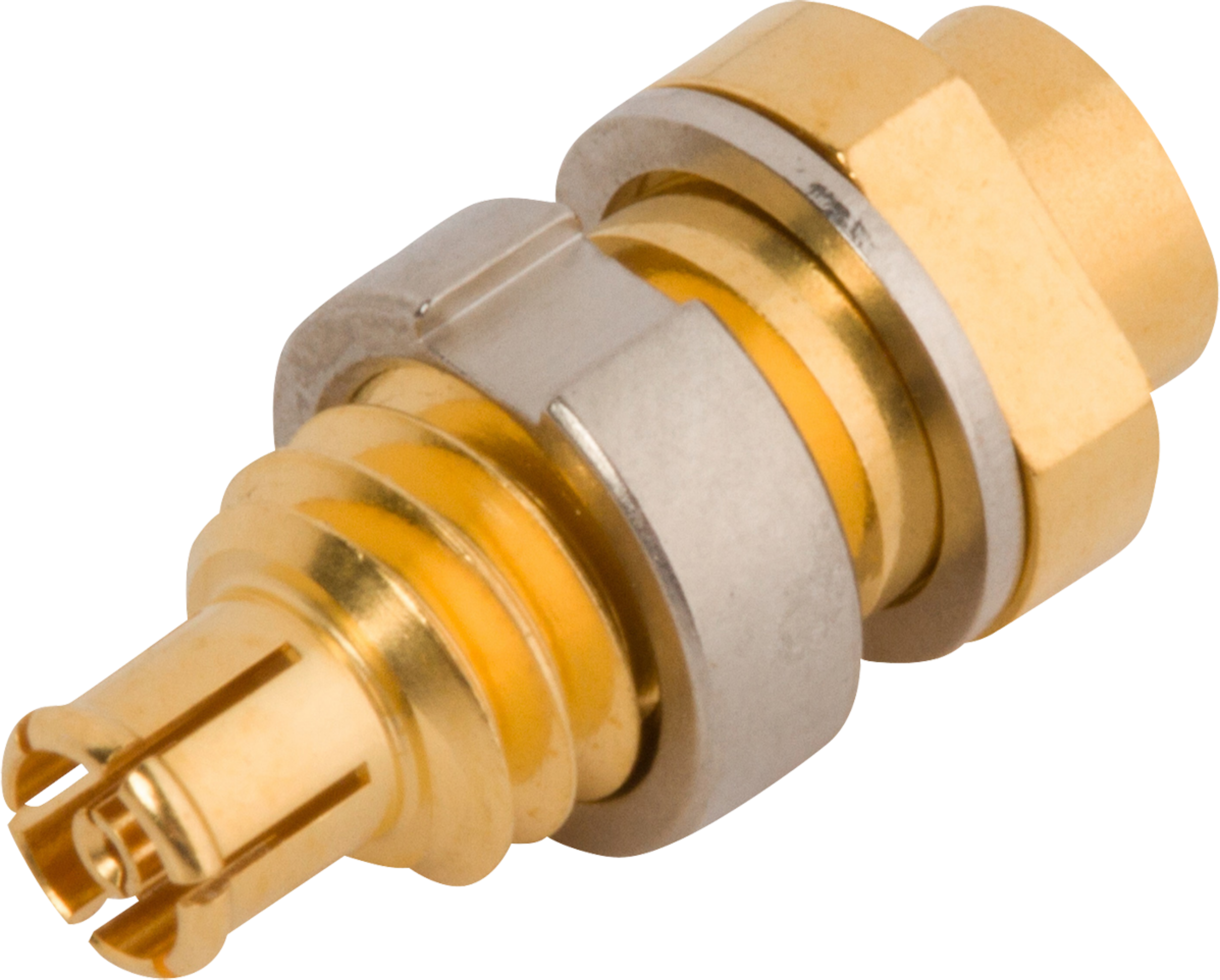

SMPM Female Bulkhead Connector for .047 Cable

Available Inventory: 0
3221-40011
SMPM Connectors 3221-40011
Datasheet
Part #   3221-40076

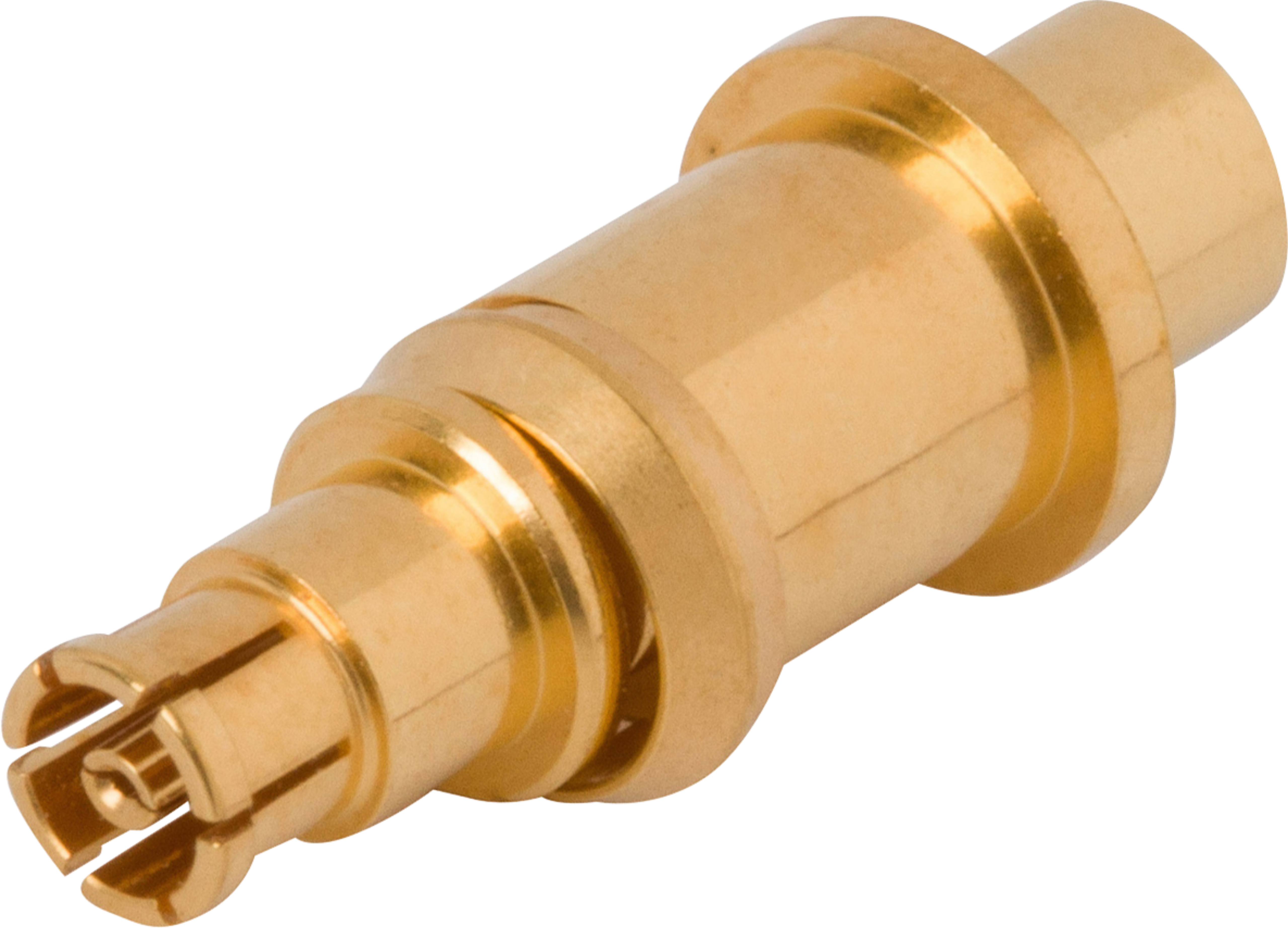

SMPM Female Snap-In Connector for .047 Cable
