SMP Male QB to SMA Male Adapter
P/N: 1112-6114

In stock at Qty Order
Digi-Key Electronics 17
Mouser Electronics 13
Products specifications
Attribute name Attribute value
Family QuarterBack
Gender Plug (Male)
RF Series SMP
Orientation (Body) Straight
Coupling Push-on
Keyed Subtype 180-180
Detent Smooth Bore
RF Series 2 SMA
Finish Passivated
Gender 2 Plug (Male)
Orientation 2 (Body) Straight
Electrical
Frequency 40 GHz
Impedance 50 ohms
Dielectric withstanding Voltage 500 VRMS
Shielding Effectiveness ≥ -80 dB DC - 3 GHz, ≥ -65 dB 3 - 26.5 GHz
Mechanical
Radial Misalignment 3° Max
Withdrawal Force - SB 0.5 lbs
Insertion Force - SB 3.0 lbs
Withdrawal Force - FD 9.0 lbs
Axial Misalignment .010” Max
Mating Cycles - LD 500
Withdrawal Force - LD 7.0 lbs
Mating Cycles - SB 1000
Mating Cycles - FD 100
Insertion Force - LD 5.0 lbs
Insertion Force - FD 7.0 lbs
Environmental
Temperature Rating -65°C to +165°C
Corrosion (salt spray) MIL-STD-202, Method 101, Condition B
Vibration MIL-STD-202, Method 204, Condition D
Shock MIL-STD-202, Method 213, Condition I
Thermal Shock MIL-STD-202, Method 107, Condition B
Moisture Resistance MIL-STD-202, Method 106, Less Step 7B
Barometric Pressure (Altitude) MIL-STD-202, Method 105, Condition C, 70k Ft.


EU RoHS Directive 2011/65/EU Yes, w/ Exemption 6C

These products comply with the substance restrictions of the Restriction on Hazardous Substances Directive 2011/65/EU (RoHS2). The RoHS2 Directive requires that certain electrical and electronic equipment products do not contain mercury, cadmium, hexavalent chromium, PBB, PBDE, lead, DEHP, BBP, DBP and DIBP above defined thresholds. Products indicated as compliant with exemption contain one or more of these substances above the prohibition thresholds, but are compliant by claiming one or more valid exemptions.

EU REACH Regulation (EC) No. 1907/2006 SVHC > Threshold

These products contain one or more EU REACH Substances of Very High Concern (SVHC) > 0.1% by weight (1000 ppm). Details related to the SVHC are displayed.

REACH SVHC: LEAD, CAS #: 7439-92-1, PPM: 4000

Use personal protective equipment as required. Do not eat, drink or smoke when using this product. Wash thoroughly after handling. Recycle if possible and dispose of the article by following all applicable governmental regulations relevant to your geographic location.

This information is provided based on reasonable inquiry of our suppliers and represents our current actual knowledge based on the information they provided.

Please contact [email protected] for any Compliance or Environmental related questions.

Last Update: 6/28/2023 1:00:34 AM

Spinning Wheel; Your Submission is Loading

Contact Us

How can we help?

*
*
*
*
*
*
*
*
Products specifications
Attribute name Attribute value
Family QuarterBack
Gender Plug (Male)
RF Series SMP
Orientation (Body) Straight
Coupling Push-on
Keyed Subtype 180-180
Detent Smooth Bore
RF Series 2 SMA
Finish Passivated
Gender 2 Plug (Male)
Orientation 2 (Body) Straight
Electrical
Frequency 40 GHz
Impedance 50 ohms
Dielectric withstanding Voltage 500 VRMS
Shielding Effectiveness ≥ -80 dB DC - 3 GHz, ≥ -65 dB 3 - 26.5 GHz
Mechanical
Radial Misalignment 3° Max
Withdrawal Force - SB 0.5 lbs
Insertion Force - SB 3.0 lbs
Withdrawal Force - FD 9.0 lbs
Axial Misalignment .010” Max
Mating Cycles - LD 500
Withdrawal Force - LD 7.0 lbs
Mating Cycles - SB 1000
Mating Cycles - FD 100
Insertion Force - LD 5.0 lbs
Insertion Force - FD 7.0 lbs
Environmental
Temperature Rating -65°C to +165°C
Corrosion (salt spray) MIL-STD-202, Method 101, Condition B
Vibration MIL-STD-202, Method 204, Condition D
Shock MIL-STD-202, Method 213, Condition I
Thermal Shock MIL-STD-202, Method 107, Condition B
Moisture Resistance MIL-STD-202, Method 106, Less Step 7B
Barometric Pressure (Altitude) MIL-STD-202, Method 105, Condition C, 70k Ft.
Product tags
Customers Also Viewed
7012-1087

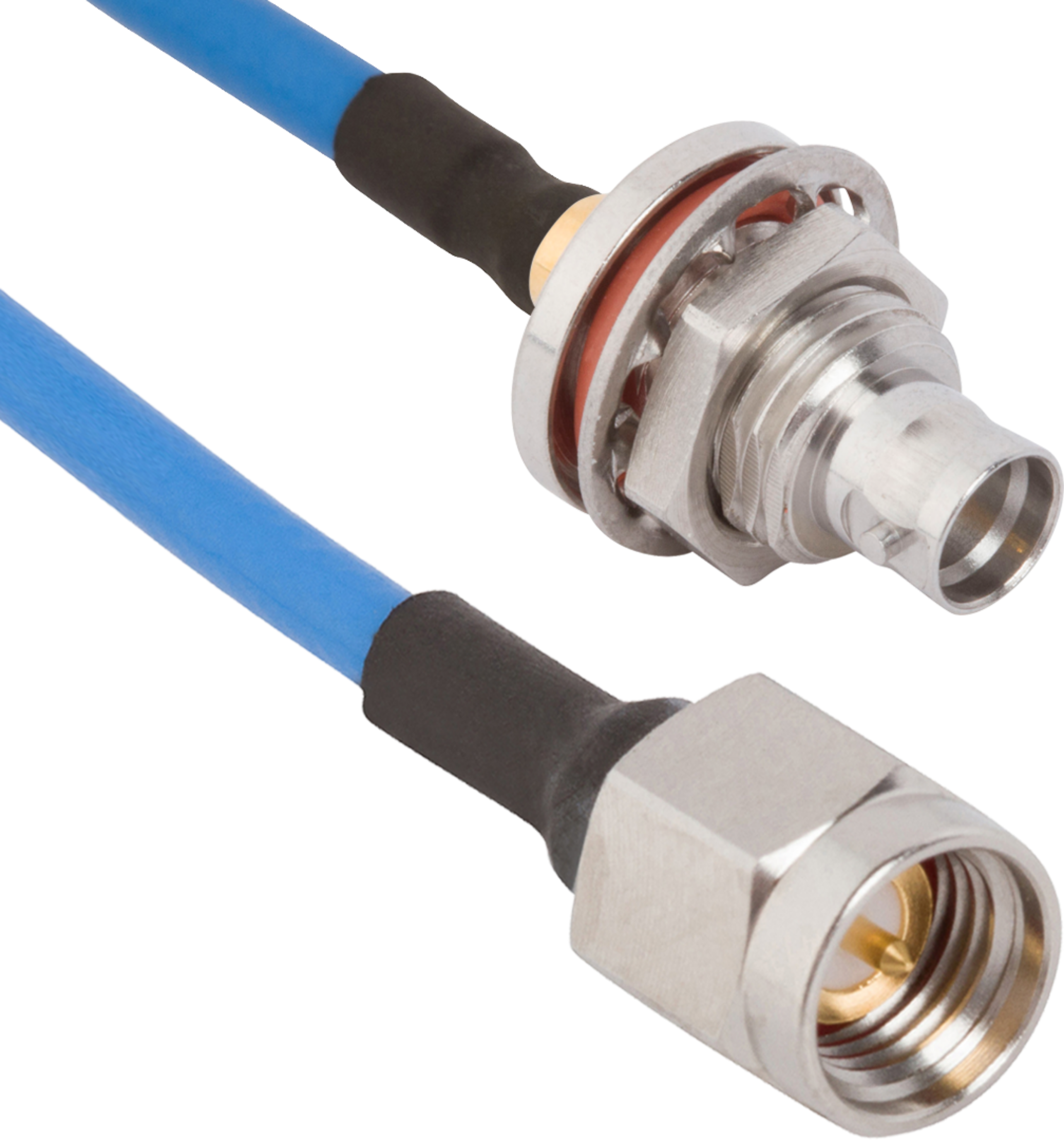

SMP Cable Assemblies 7012-1087
