P/N: 7012-0801

SMP Female R/A to SMP Female R/A 24" Cable Assembly for .085 Cable"

In stock at Qty Order
Mouser Electronics 28
Products specifications
Attribute name Attribute value
RF Series SMP
Gender Jack (Female)
Orientation (Body) Right Angle
Coupling Push-on
Gender 2 Jack (Female)
RF Series 2 SMP
Cable Type 0.085 Flexible Coax
Orientation 2 (Body) Right Angle
Cable Length 24"
Electrical
Frequency 26.5 GHz
Impedance 50 ohms
Shielding Effectiveness ≥ -80 dB DC - 3 GHz, ≥ -65 dB 3 - 26.5 GHz
Dielectric withstanding Voltage 500 VRMS
Mechanical
Mating Cycles - LD 500
Mating Cycles - FD 100
Withdrawal Force - SB 0.5 lbs
Insertion Force - LD 5.0 lbs
Insertion Force - SB 3.0 lbs
Insertion Force - FD 7.0 lbs
Withdrawal Force - FD 9.0 lbs
Axial Misalignment .010” Max
Radial Misalignment 3° Max
Mating Cycles - SB 1000
Withdrawal Force - LD 7.0 lbs
Environmental
Temperature Rating -65°C to +165°C
Corrosion (salt spray) MIL-STD-202, Method 101, Condition B
Shock MIL-STD-202, Method 213, Condition I
Thermal Shock MIL-STD-202, Method 107, Condition B
Vibration MIL-STD-202, Method 204, Condition D
Moisture Resistance MIL-STD-202, Method 106, Less Step 7B
Barometric Pressure (Altitude) MIL-STD-202, Method 105, Condition C, 70k Ft.

Contact Us

How can we help?

*
*
*
*
*
*
*
Products specifications
Attribute name Attribute value
RF Series SMP
Gender Jack (Female)
Orientation (Body) Right Angle
Coupling Push-on
Gender 2 Jack (Female)
RF Series 2 SMP
Cable Type 0.085 Flexible Coax
Orientation 2 (Body) Right Angle
Cable Length 24"
Electrical
Frequency 26.5 GHz
Impedance 50 ohms
Shielding Effectiveness ≥ -80 dB DC - 3 GHz, ≥ -65 dB 3 - 26.5 GHz
Dielectric withstanding Voltage 500 VRMS
Mechanical
Mating Cycles - LD 500
Mating Cycles - FD 100
Withdrawal Force - SB 0.5 lbs
Insertion Force - LD 5.0 lbs
Insertion Force - SB 3.0 lbs
Insertion Force - FD 7.0 lbs
Withdrawal Force - FD 9.0 lbs
Axial Misalignment .010” Max
Radial Misalignment 3° Max
Mating Cycles - SB 1000
Withdrawal Force - LD 7.0 lbs
Environmental
Temperature Rating -65°C to +165°C
Corrosion (salt spray) MIL-STD-202, Method 101, Condition B
Shock MIL-STD-202, Method 213, Condition I
Thermal Shock MIL-STD-202, Method 107, Condition B
Vibration MIL-STD-202, Method 204, Condition D
Moisture Resistance MIL-STD-202, Method 106, Less Step 7B
Barometric Pressure (Altitude) MIL-STD-202, Method 105, Condition C, 70k Ft.
Customers Also Viewed

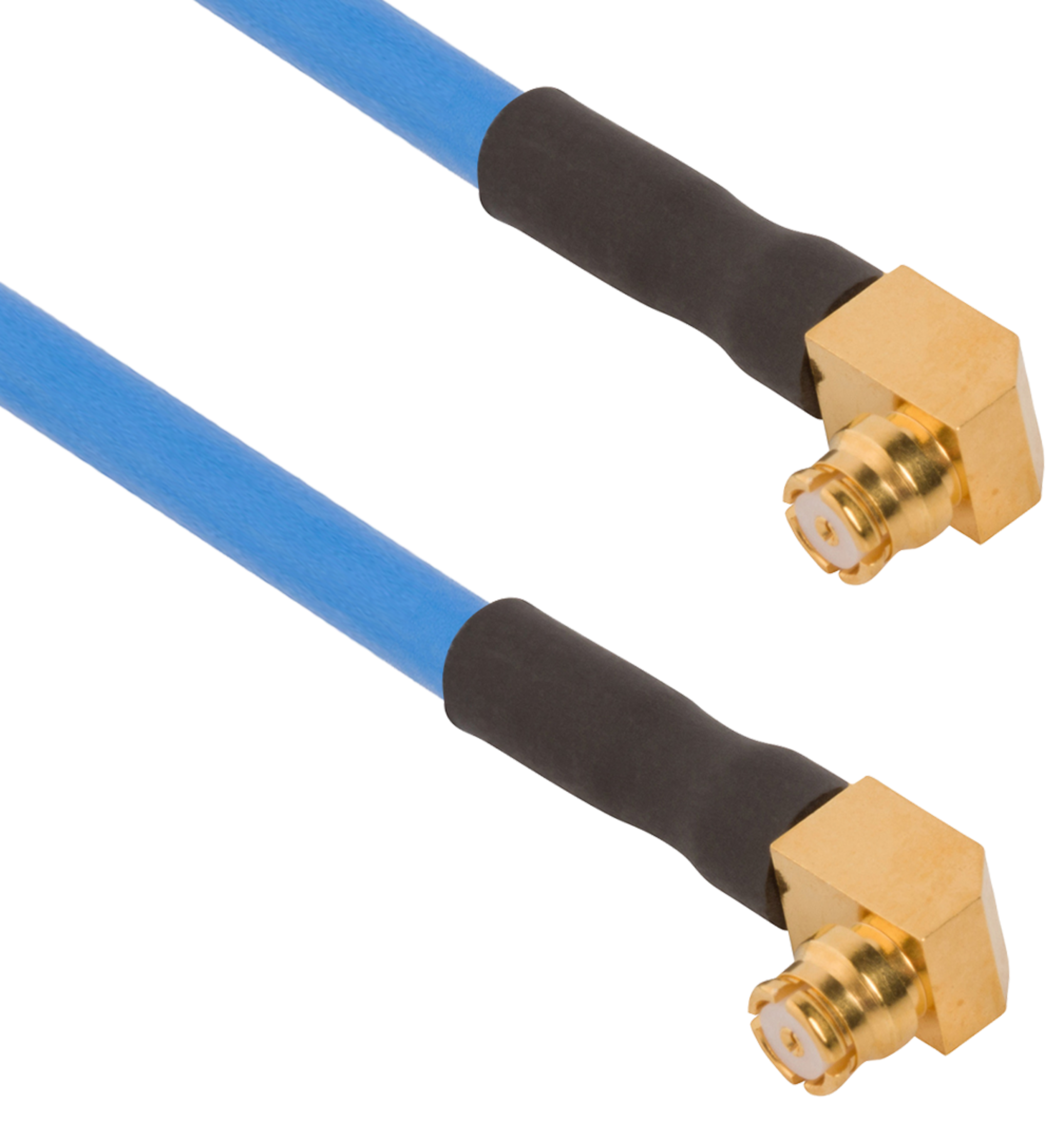

Part #   7012-0799

SMP Female R/A to SMP Female R/A 6" Cable Assembly for .085 Cable"

Available Inventory: 14
7012-0799
SMP Cable Assemblies 7012-0799
Datasheet
Part #   7012-0800

SMP Female R/A to SMP Female R/A 12" Cable Assembly for .085 Cable"

Available Inventory: 58
7012-0800
SMP Cable Assemblies 7012-0800
Datasheet

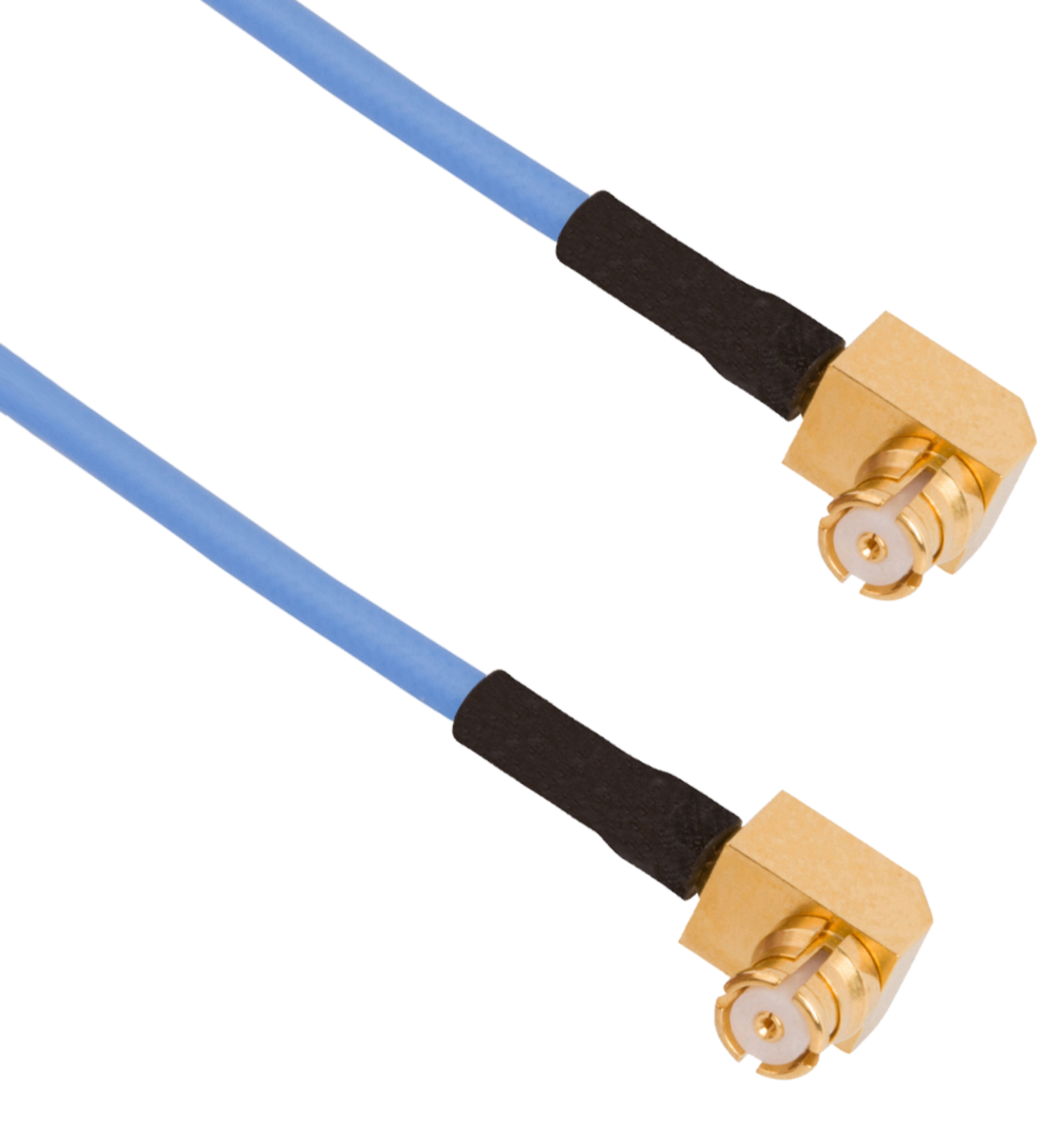

Part #   7012-0804
