P/N: 7012-1289

SMP Female R/A to 2.92mm Male 24" Cable Assembly for .085 Cable

Not available for this part number. Please contact us.
Products specifications
Attribute name Attribute value
RF Series SMP
Orientation (Body) Right Angle
Gender Jack (Female)
Coupling Push-on
RF Series 2 2.92 mm
Gender 2 Plug (Male)
Orientation 2 (Body) Straight
Cable Type 0.085 Flexible Coax
Cable Length 24"
Electrical
Frequency 26.5 GHz
Impedance 50 ohms
Shielding Effectiveness ≥ -80 dB DC - 3 GHz, ≥ -65 dB 3 - 26.5 GHz
Dielectric withstanding Voltage 500 VRMS
Mechanical
Mating Cycles - SB 1000
Mating Cycles - LD 500
Mating Cycles - FD 100
Insertion Force - SB 3.0 lbs
Insertion Force - LD 5.0 lbs
Insertion Force - FD 7.0 lbs
Withdrawal Force - SB 0.5 lbs
Withdrawal Force - LD 7.0 lbs
Withdrawal Force - FD 9.0 lbs
Axial Misalignment .010” Max
Radial Misalignment 3° Max
Environmental
Temperature Rating -65°C to +165°C
Corrosion (salt spray) MIL-STD-202, Method 101, Condition B
Shock MIL-STD-202, Method 213, Condition I
Vibration MIL-STD-202, Method 204, Condition D
Thermal Shock MIL-STD-202, Method 107, Condition B
Moisture Resistance MIL-STD-202, Method 106, Less Step 7B
Barometric Pressure (Altitude) MIL-STD-202, Method 105, Condition C, 70k Ft.

Contact Us

How can we help?

*
*
*
*
*
*
*
Products specifications
Attribute name Attribute value
RF Series SMP
Orientation (Body) Right Angle
Gender Jack (Female)
Coupling Push-on
RF Series 2 2.92 mm
Gender 2 Plug (Male)
Orientation 2 (Body) Straight
Cable Type 0.085 Flexible Coax
Cable Length 24"
Electrical
Frequency 26.5 GHz
Impedance 50 ohms
Shielding Effectiveness ≥ -80 dB DC - 3 GHz, ≥ -65 dB 3 - 26.5 GHz
Dielectric withstanding Voltage 500 VRMS
Mechanical
Mating Cycles - SB 1000
Mating Cycles - LD 500
Mating Cycles - FD 100
Insertion Force - SB 3.0 lbs
Insertion Force - LD 5.0 lbs
Insertion Force - FD 7.0 lbs
Withdrawal Force - SB 0.5 lbs
Withdrawal Force - LD 7.0 lbs
Withdrawal Force - FD 9.0 lbs
Axial Misalignment .010” Max
Radial Misalignment 3° Max
Environmental
Temperature Rating -65°C to +165°C
Corrosion (salt spray) MIL-STD-202, Method 101, Condition B
Shock MIL-STD-202, Method 213, Condition I
Vibration MIL-STD-202, Method 204, Condition D
Thermal Shock MIL-STD-202, Method 107, Condition B
Moisture Resistance MIL-STD-202, Method 106, Less Step 7B
Barometric Pressure (Altitude) MIL-STD-202, Method 105, Condition C, 70k Ft.
Customers Also Viewed
Part #   7012-1287

SMP Female R/A to 2.92mm Male 6" Cable Assembly for .085 Cable

Available Inventory: 9
7012-1287
SMP Cable Assemblies 7012-1287
Datasheet
Part #   7012-1288

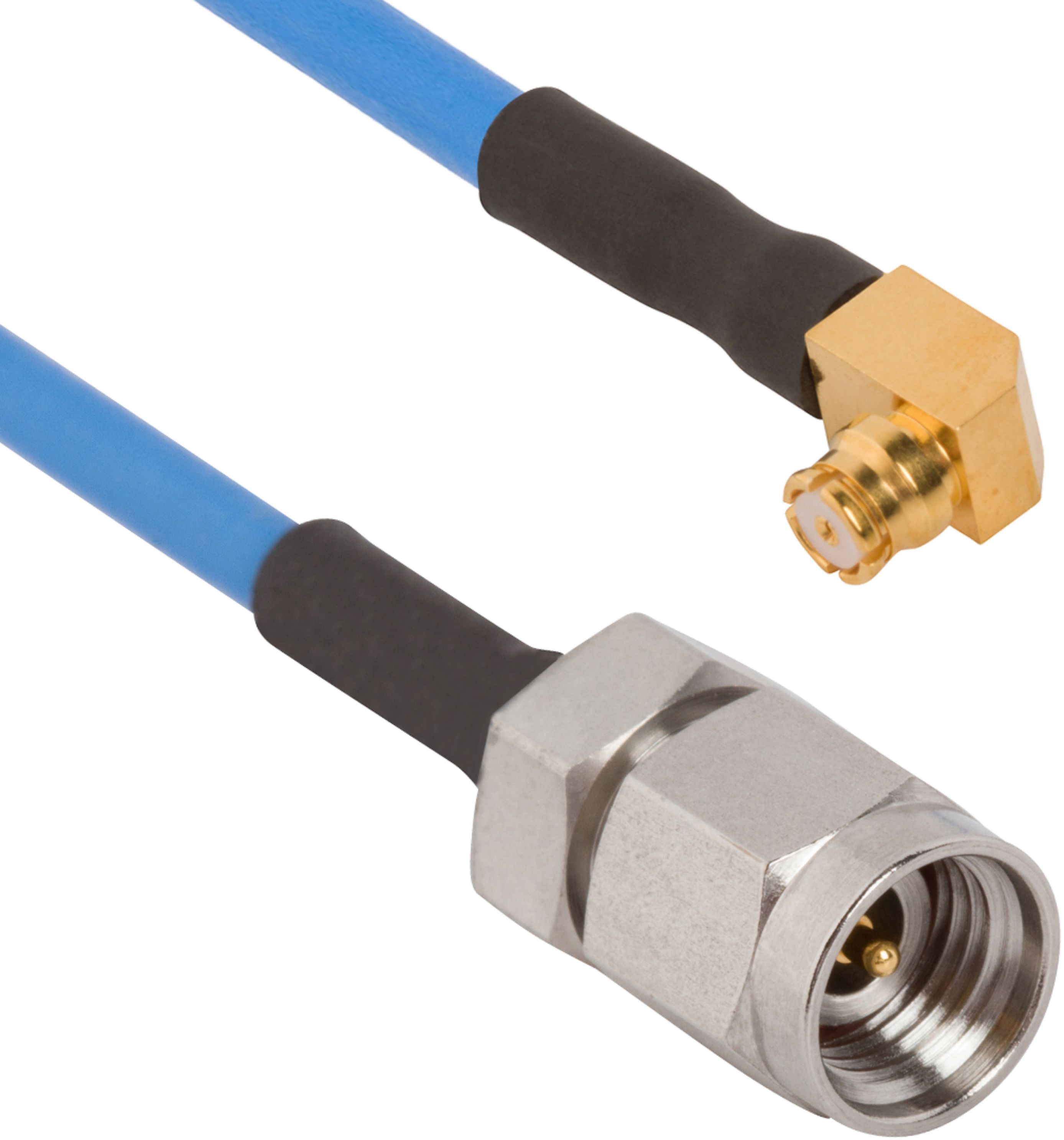

SMP Female R/A to 2.92mm Male 12" Cable Assembly for .085 Cable

Available Inventory: 10
7012-1288
SMP Cable Assemblies 7012-1288
Datasheet
Part #   7012-1290

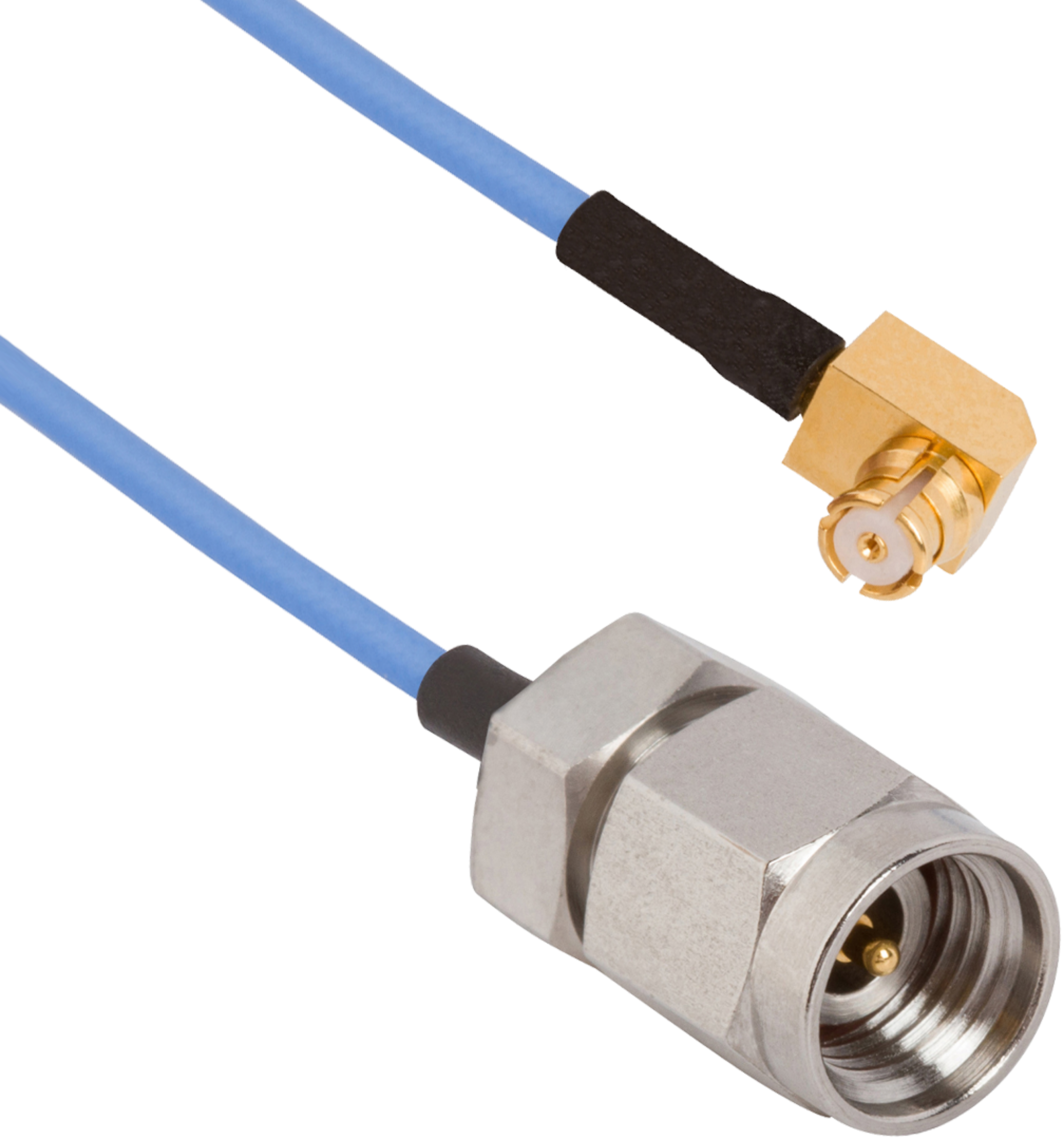

SMP Female R/A to 2.92mm Male 24" Cable Assembly for .047 Cable
