P/N: 7012-1300

SMP Female QB to SMA Male 24" Cable Assembly for .085 Cable

In stock at Qty Order
Digi-Key Electronics 50
Mouser Electronics 25
Products specifications
Attribute name Attribute value
Family QuarterBack
RF Series SMP
Gender Jack (Female)
Orientation (Body) Straight
Coupling Push-on
Gender 2 Plug (Male)
Cable Type 0.085 Flexible Coax
Orientation 2 (Body) Straight
RF Series 2 SMA
Cable Length 24"
Electrical
Frequency 18 GHz
Impedance 50 ohms
Dielectric withstanding Voltage 500 VRMS
Shielding Effectiveness ≥ -80 dB DC - 3 GHz, ≥ -65 dB 3 - 26.5 GHz
Mechanical
Mating Cycles - SB 1000
Mating Cycles - LD 500
Mating Cycles - FD 100
Insertion Force - SB 3.0 lbs
Insertion Force - LD 5.0 lbs
Insertion Force - FD 7.0 lbs
Withdrawal Force - SB 0.5 lbs
Withdrawal Force - LD 7.0 lbs
Withdrawal Force - FD 9.0 lbs
Radial Misalignment 3° Max
Axial Misalignment .010” Max
Environmental
Vibration MIL-STD-202, Method 204, Condition D
Corrosion (salt spray) MIL-STD-202, Method 101, Condition B
Thermal Shock MIL-STD-202, Method 107, Condition B
Shock MIL-STD-202, Method 213, Condition I
Temperature Rating -65°C to +165°C
Barometric Pressure (Altitude) MIL-STD-202, Method 105, Condition C, 70k Ft.
Moisture Resistance MIL-STD-202, Method 106, Less Step 7B


This information is provided based on reasonable inquiry of our suppliers and represents our current actual knowledge based on the information they provided.

Please contact compliance@svmicro.com for any Compliance or Environmental related questions.

Contact Us

How can we help?

*
*
*
*
*
*
*
*
Products specifications
Attribute name Attribute value
Family QuarterBack
RF Series SMP
Gender Jack (Female)
Orientation (Body) Straight
Coupling Push-on
Gender 2 Plug (Male)
Cable Type 0.085 Flexible Coax
Orientation 2 (Body) Straight
RF Series 2 SMA
Cable Length 24"
Electrical
Frequency 18 GHz
Impedance 50 ohms
Dielectric withstanding Voltage 500 VRMS
Shielding Effectiveness ≥ -80 dB DC - 3 GHz, ≥ -65 dB 3 - 26.5 GHz
Mechanical
Mating Cycles - SB 1000
Mating Cycles - LD 500
Mating Cycles - FD 100
Insertion Force - SB 3.0 lbs
Insertion Force - LD 5.0 lbs
Insertion Force - FD 7.0 lbs
Withdrawal Force - SB 0.5 lbs
Withdrawal Force - LD 7.0 lbs
Withdrawal Force - FD 9.0 lbs
Radial Misalignment 3° Max
Axial Misalignment .010” Max
Environmental
Vibration MIL-STD-202, Method 204, Condition D
Corrosion (salt spray) MIL-STD-202, Method 101, Condition B
Thermal Shock MIL-STD-202, Method 107, Condition B
Shock MIL-STD-202, Method 213, Condition I
Temperature Rating -65°C to +165°C
Barometric Pressure (Altitude) MIL-STD-202, Method 105, Condition C, 70k Ft.
Moisture Resistance MIL-STD-202, Method 106, Less Step 7B
Product tags
Customers Also Viewed
Part #   7012-1084

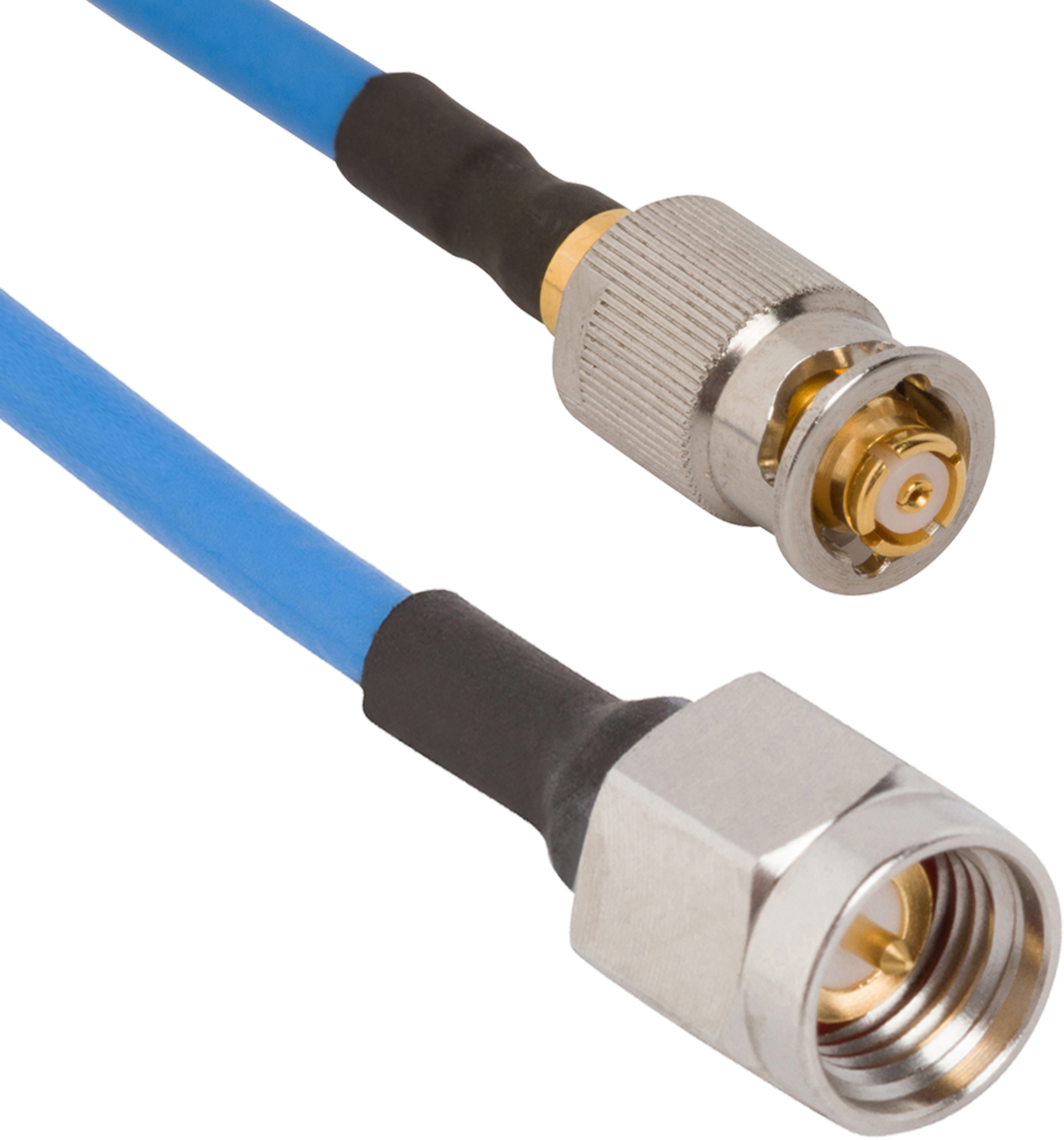

SMP Female QB to SMA Male 12" Cable Assembly for .085 Cable

Available Inventory: 36
7012-1084
SMP Cable Assemblies 7012-1084
Datasheet
Part #   7012-1085

SMP Female QB to SMA Male 6" Cable Assembly for .085 Cable

Available Inventory: 18
7012-1085
SMP Cable Assemblies 7012-1085
Datasheet
Part #   7012-1086

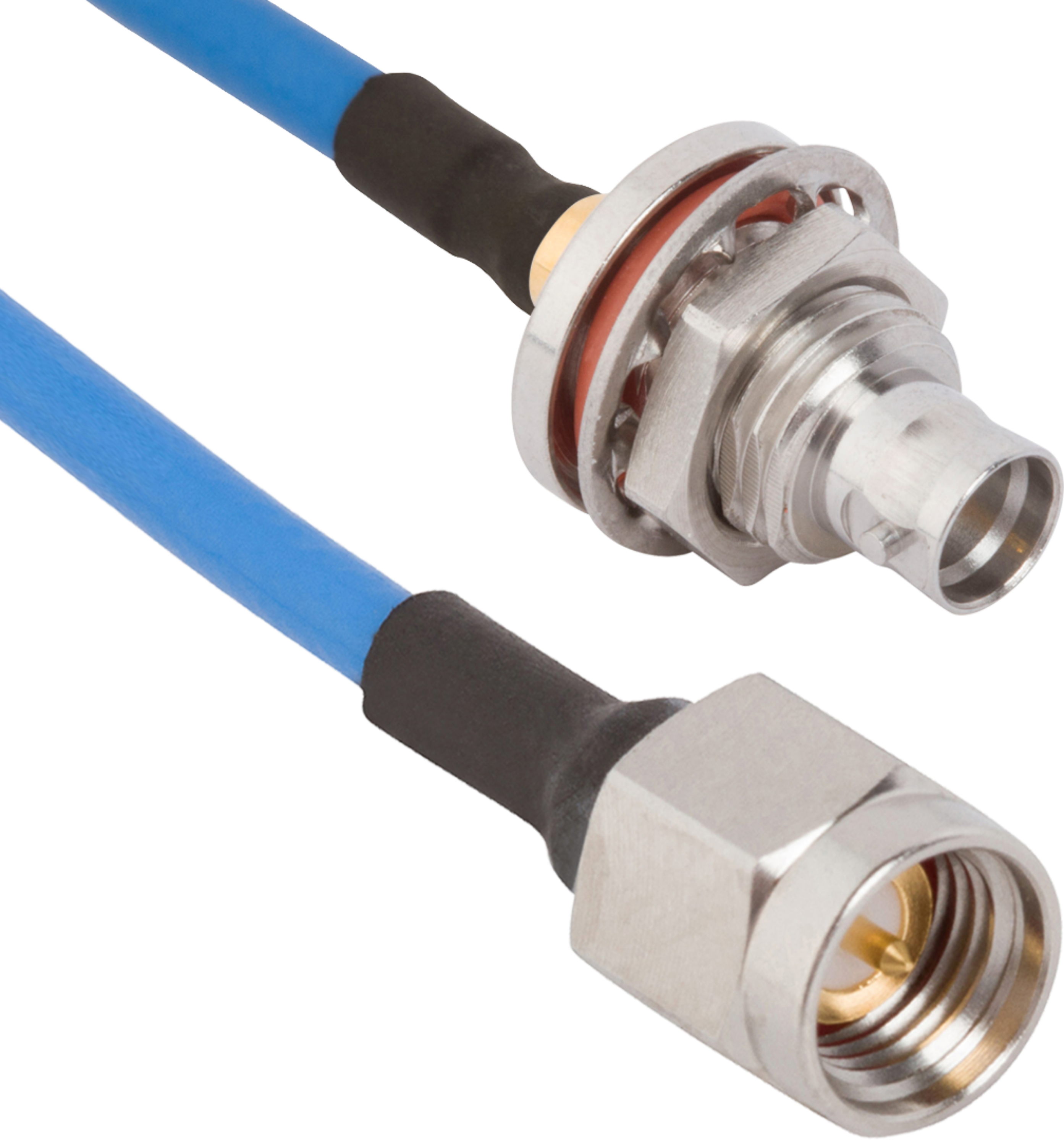

SMP Male QB Bulkhead to SMA Male 6" Cable Asssembly for .085 Cable"
