Products specifications
| Attribute name | Attribute value |
|---|---|

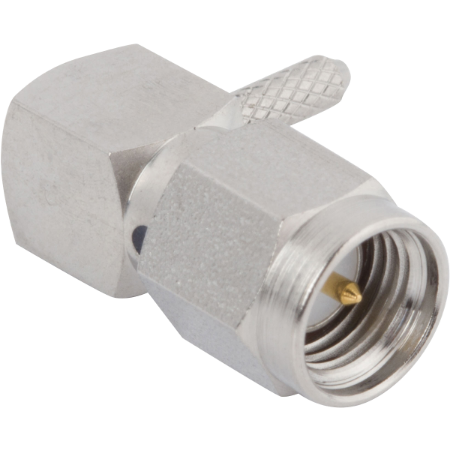

| RF Series | SMA |
| Orientation (Body) | Right Angle |
| Gender | Plug (Male) |
| Number of Ports | Single |
| Termination Style | Crimp |
| Coupling | Threaded |
| MIL-SPEC | M39012 |
| Cable Type | RG-58 |
| Finish | Passivated |
| Family | MIL-SPEC |
| Electrical | |
| Frequency | 12.4 GHz |
| Impedance | 50 ohms |
| Shielding Effectiveness | ≥ -90 dB |
| Dielectric withstanding Voltage | 1000 VRMS |
| Mechanical | |
| Mating Torque | 7 - 10 in - lbs |
| Mating Cycles | 500 |
| Intermateability | 2.92mm |
| Environmental | |
| Corrosion (salt spray) | MIL-STD-202, Method 101, Condition B |
| Temperature Rating | -65°C to +165°C |
| Vibration | MIL-STD-202, Method 204, Condition D |
| Thermal Shock | MIL-STD-202, Method 107, Condition B |
| Shock | MIL-STD-202, Method 213, Condition I |
| Barometric Pressure (Altitude) | MIL-STD-202, Method 105, Condition C, 70k Ft. |
| Moisture Resistance | MIL-STD-202, Method 106, Less Step 7B |
