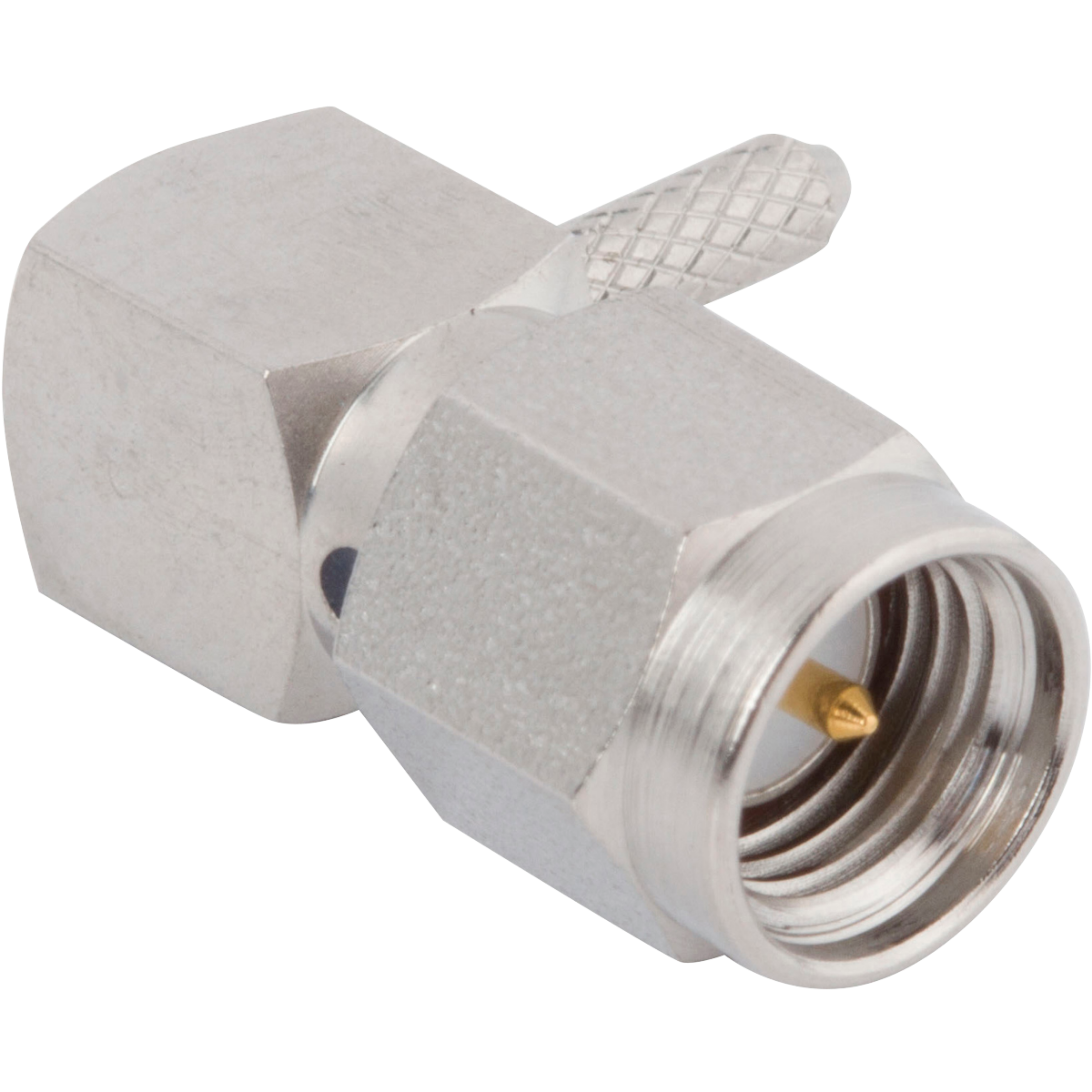

SMA Male Connector, R/A for RG-58 Cable
P/N: M39012/56B3114

There currently isn't any inventory available in distribution. Please contact us to obtain this product.
Products specifications
Attribute name Attribute value
RF Series SMA
Orientation (Body) Right Angle
Gender Plug (Male)
Coupling Threaded
Termination Style Crimp
Number of Ports Single
MIL-SPEC M39012
Cable Type RG-58
Finish Passivated
Electrical
Frequency 11 GHz
Impedance 50 ohms
Shielding Effectiveness ≥ -90 dB
Dielectric withstanding Voltage 1000 VRMS
Mechanical
Mating Cycles 500
Mating Torque 7 - 10 in - lbs
Intermateability 2.92mm
Environmental
Temperature Rating -65°C to +165°C
Corrosion (salt spray) MIL-STD-202, Method 101, Condition B
Vibration MIL-STD-202, Method 204, Condition D
Shock MIL-STD-202, Method 213, Condition I
Moisture Resistance MIL-STD-202, Method 106, Less Step 7B
Thermal Shock MIL-STD-202, Method 107, Condition B
Barometric Pressure (Altitude) MIL-STD-202, Method 105, Condition C, 70k Ft.
