P/N: M39012/56-3109

SMA Male Connector, R/A for RG-58 Cable

In stock at Qty Order
Mouser Electronics 100 On Order
Products specifications
Attribute name Attribute value
RF Series SMA
Gender Plug (Male)
Orientation (Body) Right Angle
Coupling Threaded
Termination Style Crimp
Number of Ports Single
MIL-SPEC M39012
Finish Passivated
Cable Type RG-58
Electrical
Frequency 11 GHz
Impedance 50 ohms
Shielding Effectiveness ≥ -90 dB
Dielectric withstanding Voltage 1000 VRMS
Mechanical
Mating Cycles 500
Mating Torque 7 - 10 in - lbs
Inter-mate ability 2.92mm
Environmental
Temperature Rating -65°C to +165°C
Corrosion (salt spray) MIL-STD-202, Method 101, Condition B
Vibration MIL-STD-202, Method 204, Condition D
Shock MIL-STD-202, Method 213, Condition I
Thermal Shock MIL-STD-202, Method 107, Condition B
Moisture Resistance MIL-STD-202, Method 106, Less Step 7B
Barometric Pressure (Altitude) MIL-STD-202, Method 105, Condition C, 70k Ft.


This information is provided based on reasonable inquiry of our suppliers and represents our current actual knowledge based on the information they provided.

Please contact compliance@svmicro.com for any Compliance or Environmental related questions.

Contact Us

How can we help?

*
*
*
*
*
*
*
*
Products specifications
Attribute name Attribute value
RF Series SMA
Gender Plug (Male)
Orientation (Body) Right Angle
Coupling Threaded
Termination Style Crimp
Number of Ports Single
MIL-SPEC M39012
Finish Passivated
Cable Type RG-58
Electrical
Frequency 11 GHz
Impedance 50 ohms
Shielding Effectiveness ≥ -90 dB
Dielectric withstanding Voltage 1000 VRMS
Mechanical
Mating Cycles 500
Mating Torque 7 - 10 in - lbs
Inter-mate ability 2.92mm
Environmental
Temperature Rating -65°C to +165°C
Corrosion (salt spray) MIL-STD-202, Method 101, Condition B
Vibration MIL-STD-202, Method 204, Condition D
Shock MIL-STD-202, Method 213, Condition I
Thermal Shock MIL-STD-202, Method 107, Condition B
Moisture Resistance MIL-STD-202, Method 106, Less Step 7B
Barometric Pressure (Altitude) MIL-STD-202, Method 105, Condition C, 70k Ft.
Customers Also Viewed
Part #   M39012/56-3030

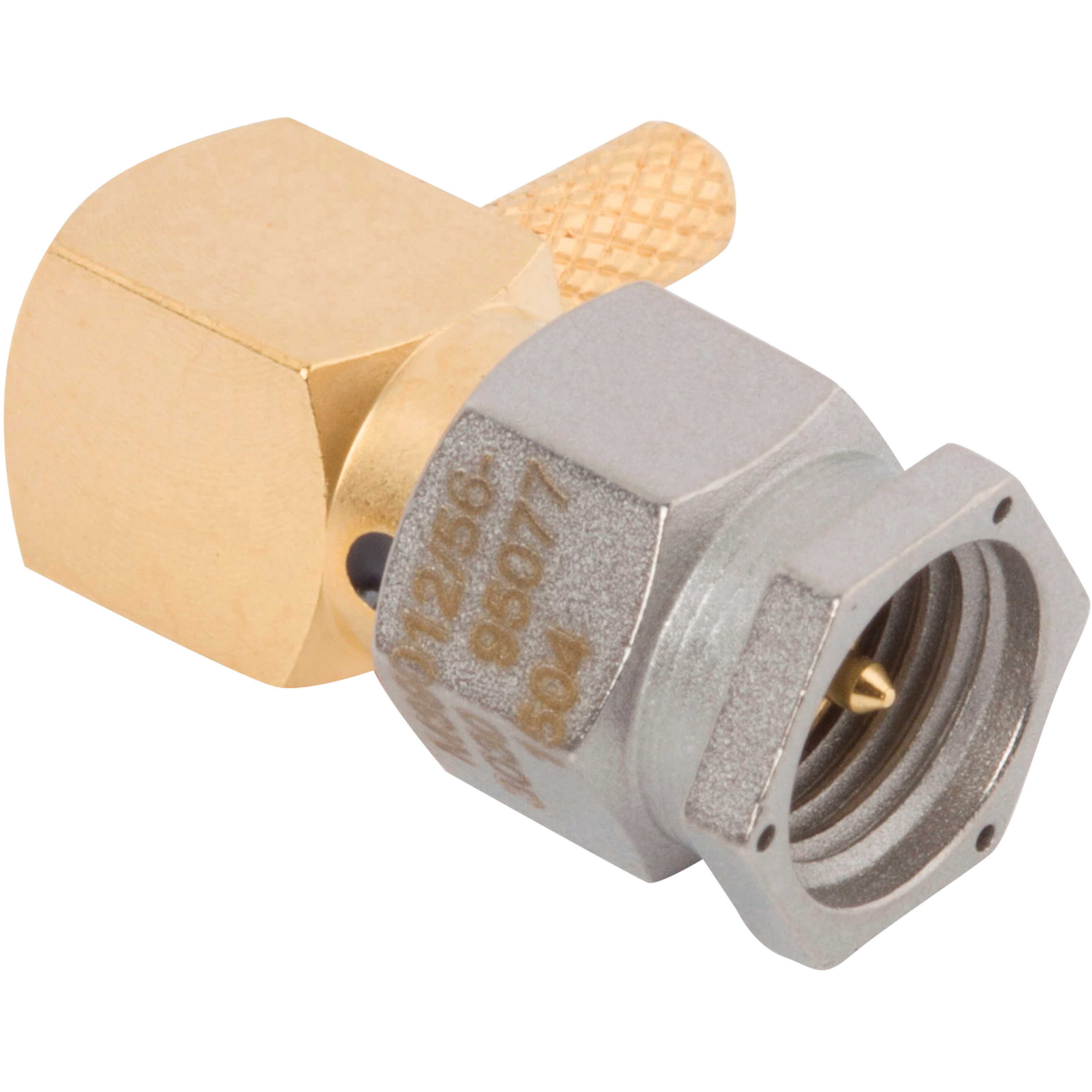

SMA Male Connector, Lockwire Holes, R/A for M17/152-00001 Cable

Available Inventory: 109
M39012/56-3030
SMA Connectors M39012/56-3030
Datasheet
Part #   M39012/56-3106

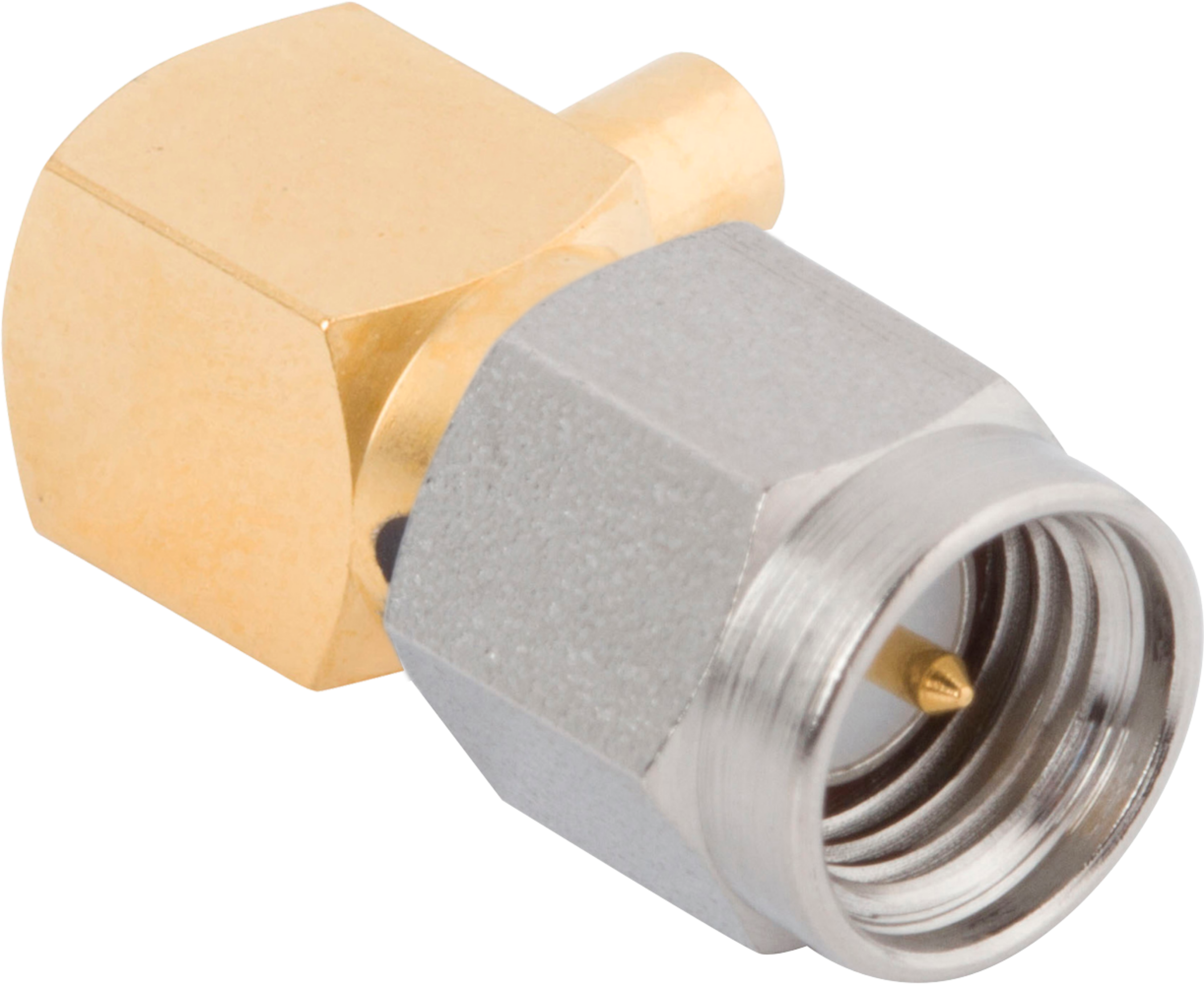

SMA Male Connector, R/A for RG-178 Cable
