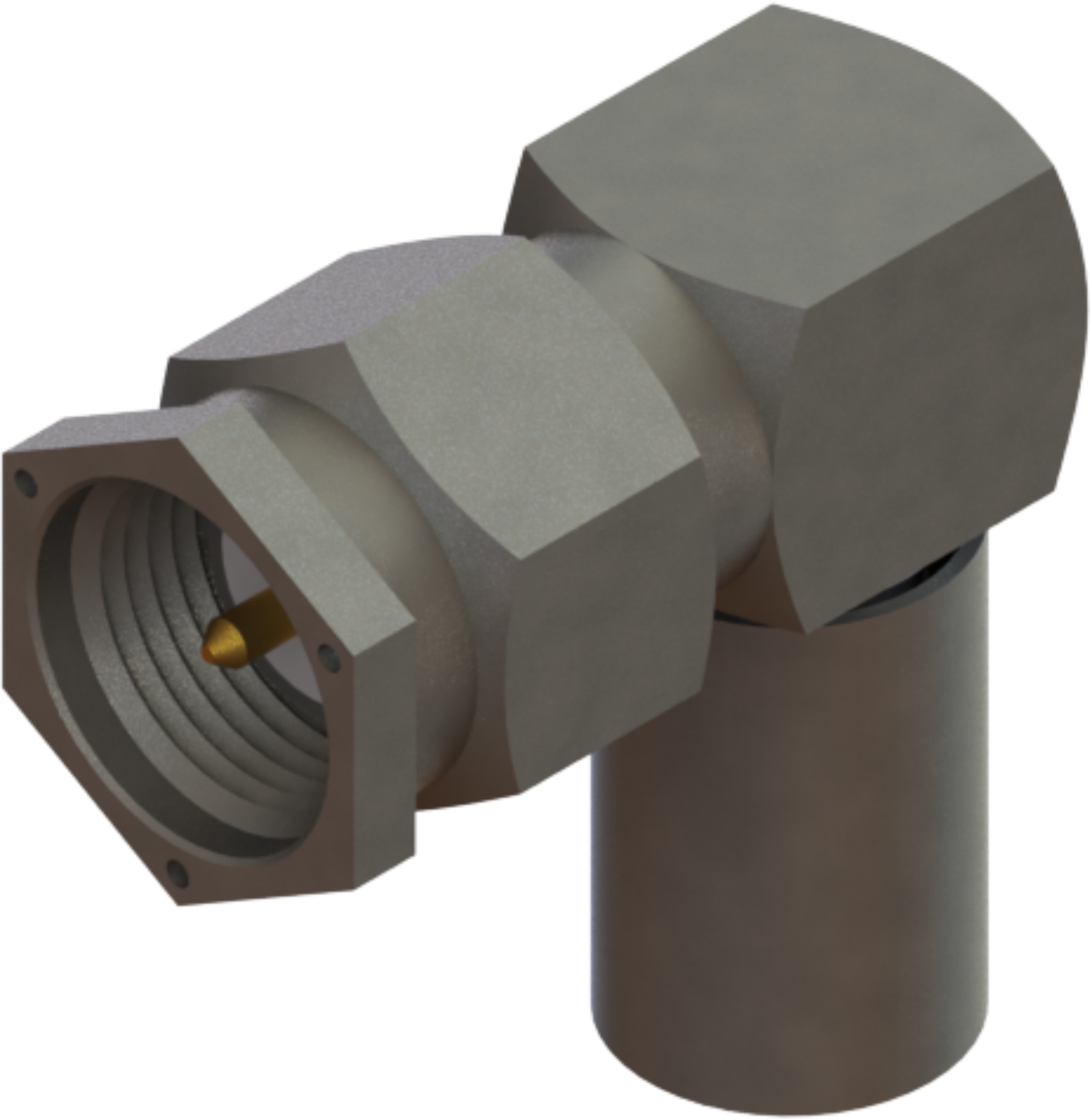

SMA Male Connector, Lockwire Holes, R/A for RG-58 Cable
P/N: M39012/56B3022

Not available for this part number. Please contact us.
Products specifications
Attribute name Attribute value
RF Series SMA
Coupling Threaded
Orientation (Body) Right Angle
Termination Style Crimp
Number of Ports Single
Gender Plug (Male)
MIL-SPEC M39012
Finish Passivated
Cable Type RG-58
Electrical
Frequency 11 GHz
Impedance 50 ohms
Shielding Effectiveness ≥ -90 dB
Dielectric withstanding Voltage 1000 VRMS
Mechanical
Mating Cycles 500
Mating Torque 7 - 10 in - lbs
Inter-mate ability 2.92mm
Environmental
Corrosion (salt spray) MIL-STD-202, Method 101, Condition B
Shock MIL-STD-202, Method 213, Condition I
Temperature Rating -65°C to +165°C
Vibration MIL-STD-202, Method 204, Condition D
Moisture Resistance MIL-STD-202, Method 106, Less Step 7B
Thermal Shock MIL-STD-202, Method 107, Condition B
Barometric Pressure (Altitude) MIL-STD-202, Method 105, Condition C, 70k Ft.


This information is provided based on reasonable inquiry of our suppliers and represents our current actual knowledge based on the information they provided.

Please contact compliance@svmicro.com for any Compliance or Environmental related questions.

Last Update: 12/4/2022 1:06:12 AM
