P/N: SF2911-60172

SMA Male Connector for .047 Cable

In stock at Qty Order
Digi-Key Electronics 608
TTI Inc Global Headquarters 563
Mouser Electronics 465
Electro Enterprises Inc 142
Master Electronics 91
Arrow Electronics Inc 33
Heilind Electronics 8
Products specifications
Attribute name Attribute value
RF Series SMA
Gender Plug (Male)
Orientation (Body) Straight
Coupling Threaded
Termination Style Solder
Number of Ports Single
Cable Type 0.047 Flexible Coax
Finish Passivated
Cable Builder Attributes
Cable Builder Left Image 25881
Cable Builder Right Image 25882
Mating Connector SF2921-61506, SF2921-61507
Electrical
Frequency 18 GHz
Impedance 50 ohms
Shielding Effectiveness ≥ -90 dB
Dielectric withstanding Voltage 1000 VRMS
Mechanical
Mating Torque 7 - 10 in - lbs
Mating Cycles 500
Inter-mate ability 2.92mm
Environmental
Corrosion (salt spray) MIL-STD-202, Method 101, Condition B
Temperature Rating -65°C to +165°C
Vibration MIL-STD-202, Method 204, Condition D
Shock MIL-STD-202, Method 213, Condition I
Thermal Shock MIL-STD-202, Method 107, Condition B
Moisture Resistance MIL-STD-202, Method 106, Less Step 7B
Barometric Pressure (Altitude) MIL-STD-202, Method 105, Condition C, 70k Ft.


EU RoHS Directive 2011/65/EU Yes, w/ Exemption 6C

These products comply with the substance restrictions of the Restriction on Hazardous Substances Directive 2011/65/EU (RoHS2). The RoHS2 Directive requires that certain electrical and electronic equipment products do not contain mercury, cadmium, hexavalent chromium, PBB, PBDE, lead, DEHP, BBP, DBP and DIBP above defined thresholds. Products indicated as compliant with exemption contain one or more of these substances above the prohibition thresholds, but are compliant by claiming one or more valid exemptions.

EU REACH Regulation (EC) No. 1907/2006 SVHC > Threshold

These products contain one or more EU REACH Substances of Very High Concern (SVHC) > 0.1% by weight (1000 ppm). Details related to the SVHC are displayed.

REACH SVHC: LEAD, CAS #: 7439-92-1, PPM: 4000

Use personal protective equipment as required. Do not eat, drink or smoke when using this product. Wash thoroughly after handling. Recycle if possible and dispose of the article by following all applicable governmental regulations relevant to your geographic location.

This information is provided based on reasonable inquiry of our suppliers and represents our current actual knowledge based on the information they provided.

Please contact compliance@svmicro.com for any Compliance or Environmental related questions.

Contact Us

How can we help?

*
*
*
*
*
*
*
*
Products specifications
Attribute name Attribute value
RF Series SMA
Gender Plug (Male)
Orientation (Body) Straight
Coupling Threaded
Termination Style Solder
Number of Ports Single
Cable Type 0.047 Flexible Coax
Finish Passivated
Cable Builder Attributes
Cable Builder Left Image 25881
Cable Builder Right Image 25882
Mating Connector SF2921-61506, SF2921-61507
Electrical
Frequency 18 GHz
Impedance 50 ohms
Shielding Effectiveness ≥ -90 dB
Dielectric withstanding Voltage 1000 VRMS
Mechanical
Mating Torque 7 - 10 in - lbs
Mating Cycles 500
Inter-mate ability 2.92mm
Environmental
Corrosion (salt spray) MIL-STD-202, Method 101, Condition B
Temperature Rating -65°C to +165°C
Vibration MIL-STD-202, Method 204, Condition D
Shock MIL-STD-202, Method 213, Condition I
Thermal Shock MIL-STD-202, Method 107, Condition B
Moisture Resistance MIL-STD-202, Method 106, Less Step 7B
Barometric Pressure (Altitude) MIL-STD-202, Method 105, Condition C, 70k Ft.
Customers Also Viewed

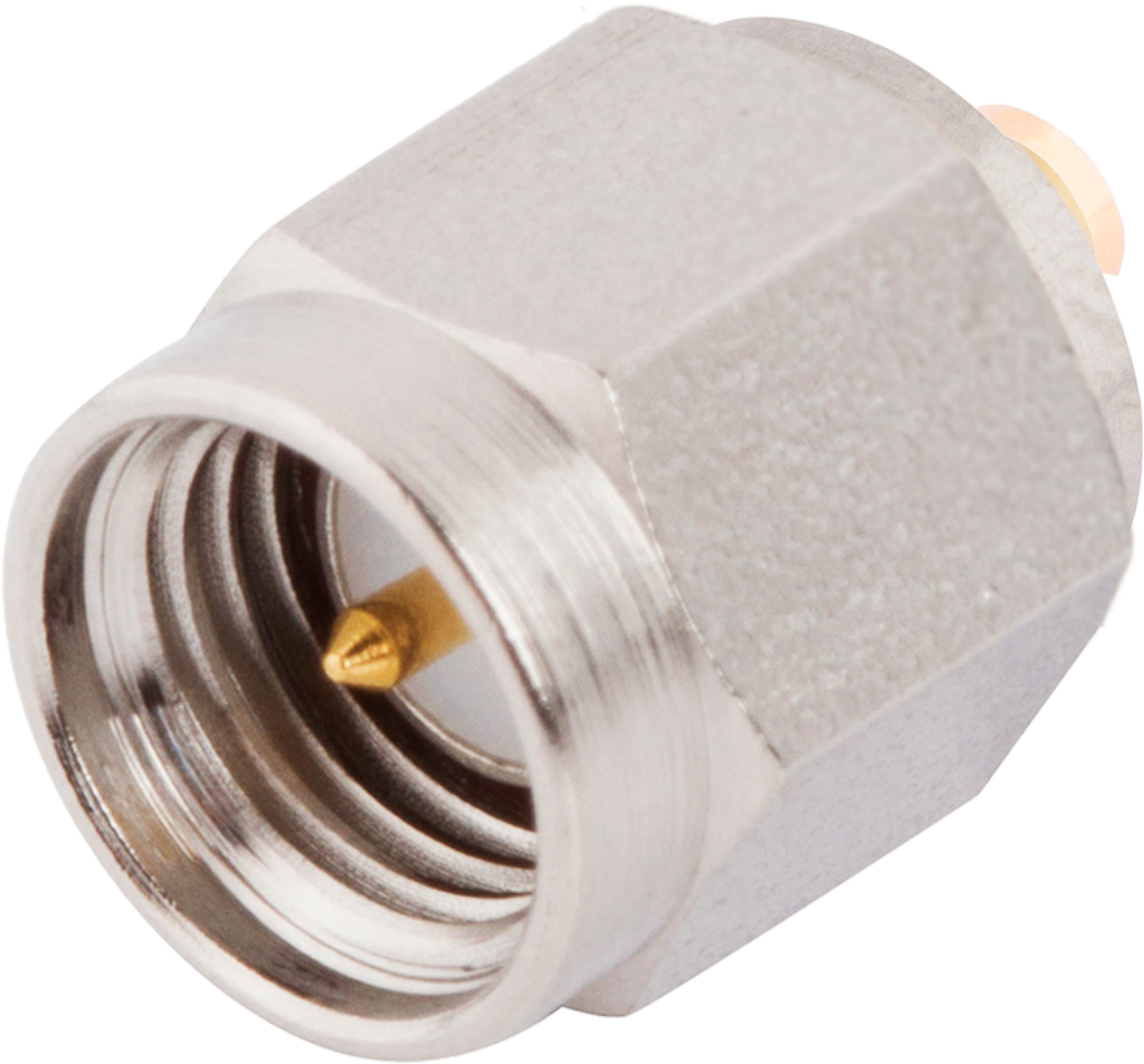

Part #   2906-6002

SMA Male Connector for .085 Cable

Available Inventory: 6408
2906-6002
SMA Connectors 2906-6002
Datasheet
Part #   SF2902-6005

SMA Male Connector for .141 Cable

Available Inventory: 3331
SF2902-6005
SMA Connectors SF2902-6005
Datasheet

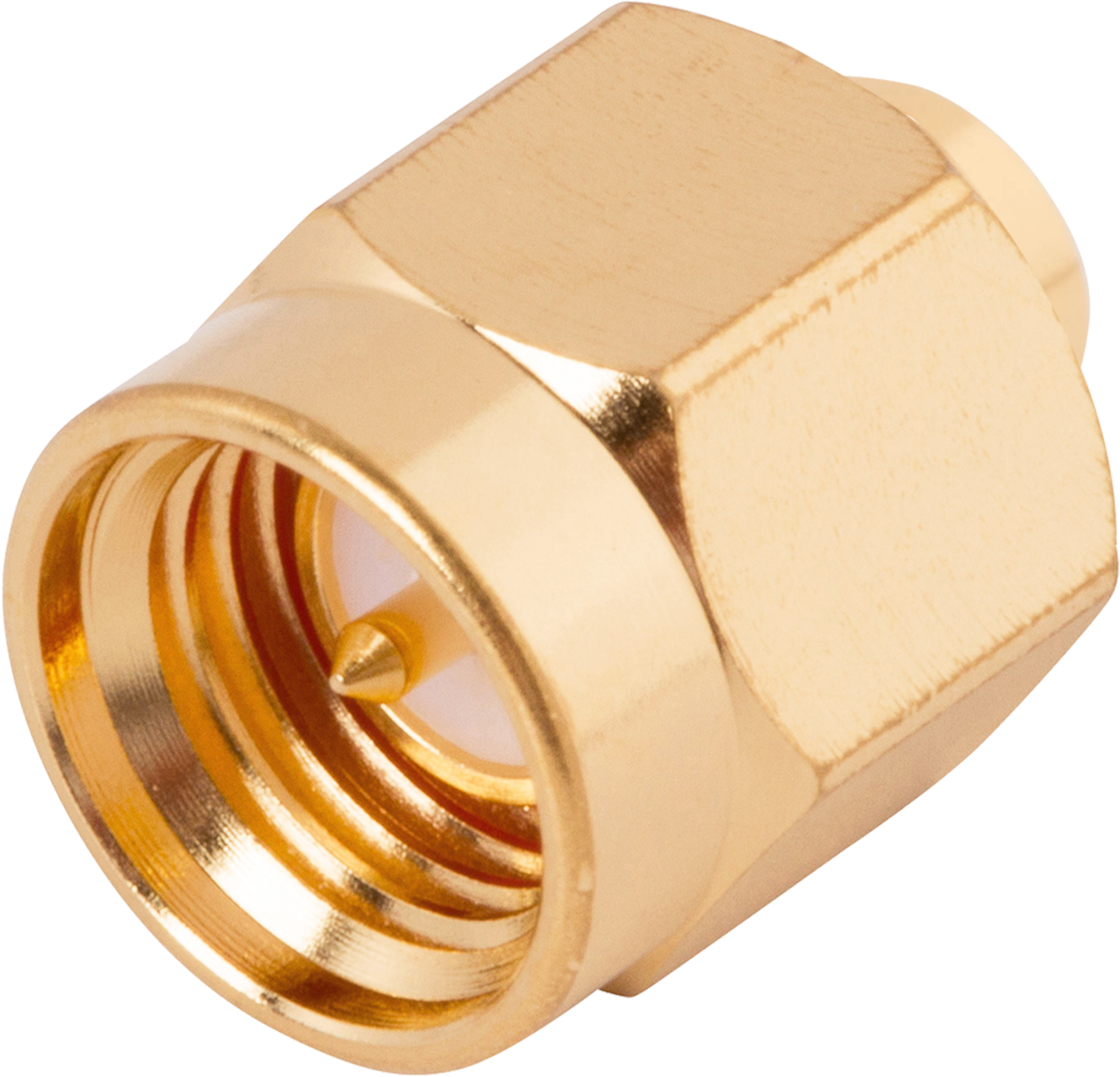

Part #   SF2906-6002
