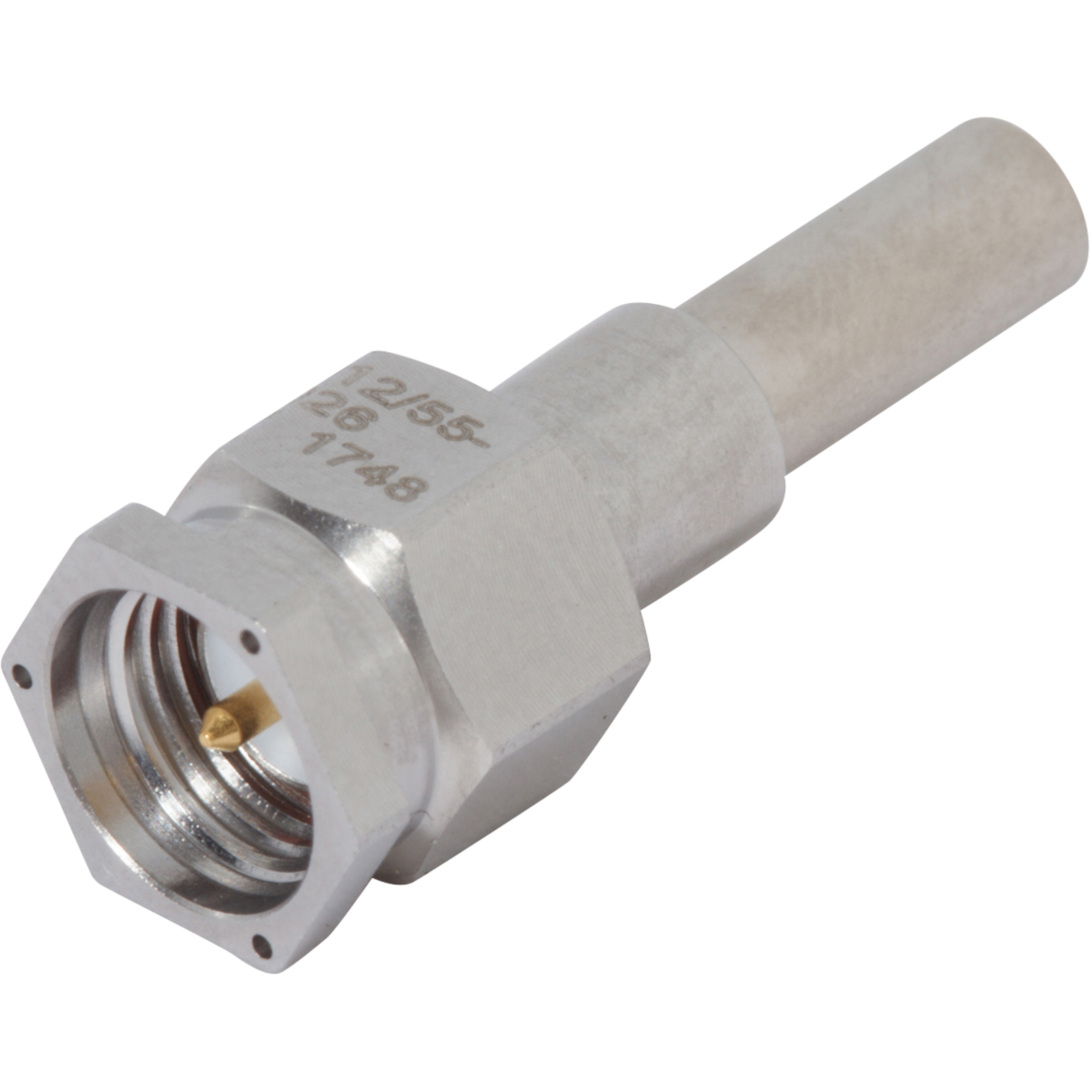

SMA Male Cable Connector, Lockwire Holes for RG-174 Cable
P/N: M39012/55B3012

In stock at Qty Order
Microwave Components LLC 533
Digi-Key Electronics 145
Mouser Electronics 77
Interstate Connecting Components 36
Heilind Electronics 12
Products specifications
Attribute name Attribute value
RF Series SMA
Gender Plug (Male)
Coupling Threaded
Orientation (Body) Straight
Termination Style Crimp
Number of Ports Single
Finish Passivated
Cable Type RG-174
MIL-SPEC M39012
Electrical
Impedance 50 ohms
Frequency 11 GHz
Shielding Effectiveness ≥ -90 dB
Dielectric withstanding Voltage 1000 VRMS
Mechanical
Mating Cycles 500
Mating Torque 7 - 10 in - lbs
Inter-mate ability 2.92mm
Environmental
Temperature Rating -65°C to +165°C
Vibration MIL-STD-202, Method 204, Condition D
Corrosion (salt spray) MIL-STD-202, Method 101, Condition B
Thermal Shock MIL-STD-202, Method 107, Condition B
Shock MIL-STD-202, Method 213, Condition I
Barometric Pressure (Altitude) MIL-STD-202, Method 105, Condition C, 70k Ft.
Moisture Resistance MIL-STD-202, Method 106, Less Step 7B


This information is provided based on reasonable inquiry of our suppliers and represents our current actual knowledge based on the information they provided.

Please contact compliance@svmicro.com for any Compliance or Environmental related questions.

Last Update: 12/4/2022 1:06:04 AM

Contact Us

How can we help?

*
*
*
*
*
*
*
*
Products specifications
Attribute name Attribute value
RF Series SMA
Gender Plug (Male)
Coupling Threaded
Orientation (Body) Straight
Termination Style Crimp
Number of Ports Single
Finish Passivated
Cable Type RG-174
MIL-SPEC M39012
Electrical
Impedance 50 ohms
Frequency 11 GHz
Shielding Effectiveness ≥ -90 dB
Dielectric withstanding Voltage 1000 VRMS
Mechanical
Mating Cycles 500
Mating Torque 7 - 10 in - lbs
Inter-mate ability 2.92mm
Environmental
Temperature Rating -65°C to +165°C
Vibration MIL-STD-202, Method 204, Condition D
Corrosion (salt spray) MIL-STD-202, Method 101, Condition B
Thermal Shock MIL-STD-202, Method 107, Condition B
Shock MIL-STD-202, Method 213, Condition I
Barometric Pressure (Altitude) MIL-STD-202, Method 105, Condition C, 70k Ft.
Moisture Resistance MIL-STD-202, Method 106, Less Step 7B
Customers Also Viewed
Part #   M39012/55-3030

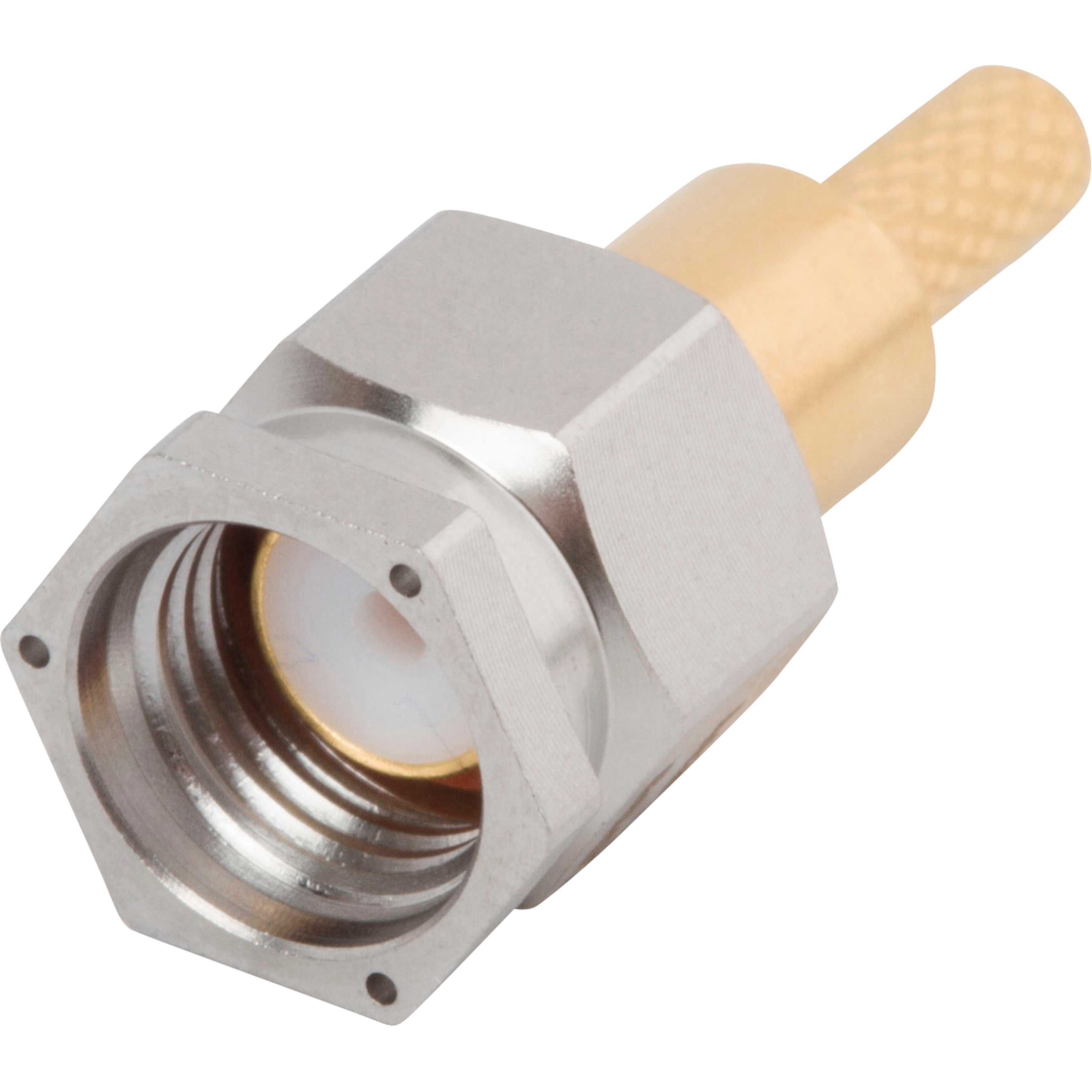

SMA Male Cable Connector, Lockwire Holes for M17/152-00001 Cable

Available Inventory: 498
M39012/55-3030
SMA Connectors M39012/55-3030
Datasheet
Part #   M39012/55B3015

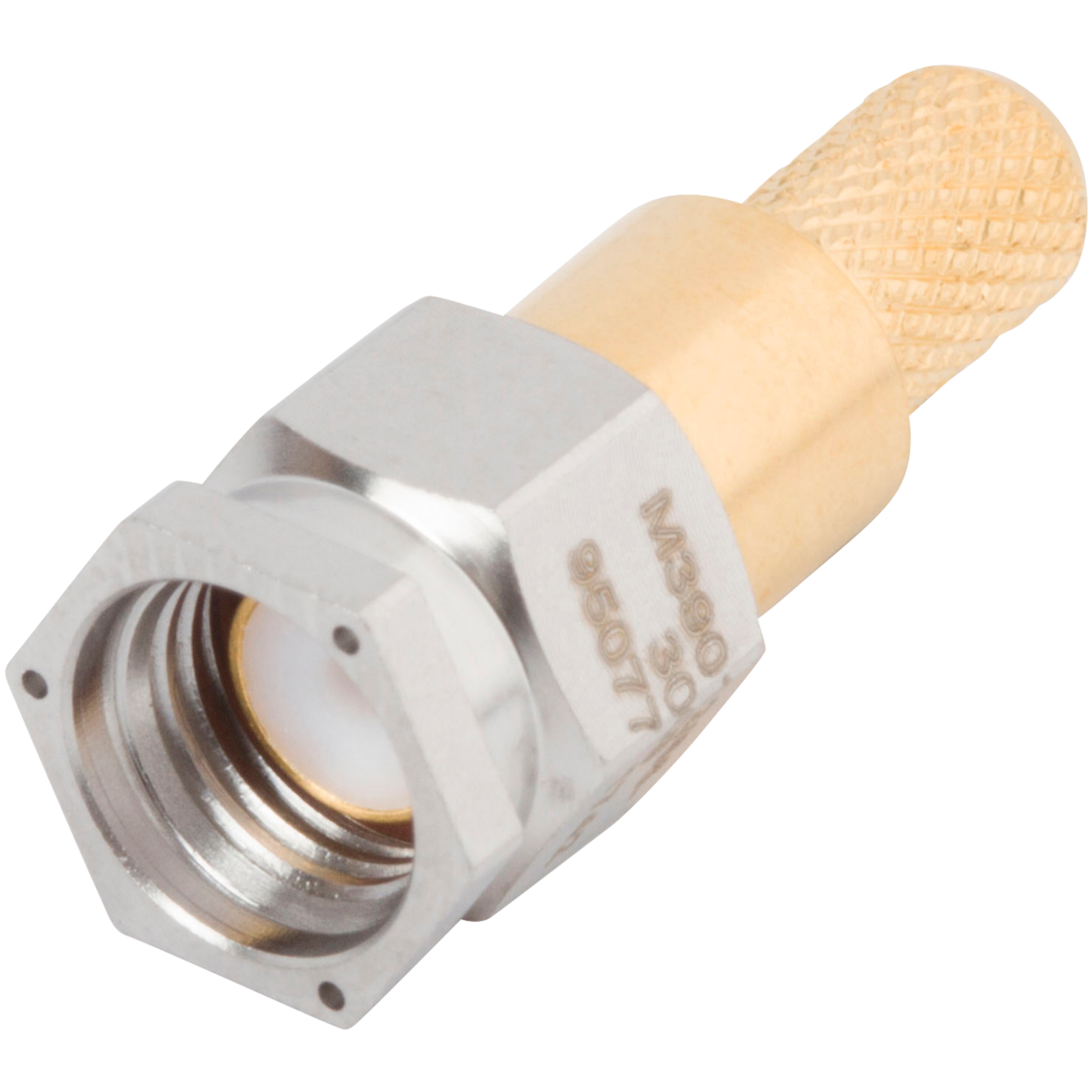

SMA Male Cable Connector, Lockwire Holes for RG-58 Cable
