SMA Female to SMPM Female 24" Cable Assembly for .085 Cable
P/N: 7029-2563

Not available for this part number. Please contact us.
Products specifications
Attribute name Attribute value
RF Series SMA
Gender Jack (Female)
Coupling Threaded
Orientation (Body) Straight
Termination Style Solder
RF Series 2 SMPM
Orientation 2 (Body) Straight
Cable Type 0.085 Flexible Coax
Gender 2 Jack (Female)
Cable Length 24"
Electrical
Frequency 18 GHz
Impedance 50 ohms
Shielding Effectiveness ≥ -90 dB
Dielectric withstanding Voltage 1000 VRMS
Mechanical
Mating Cycles 500
Mating Torque 7 - 10 in - lbs
Inter-mate ability 2.92mm
Environmental
Temperature Rating -65°C to +165°C
Corrosion (salt spray) MIL-STD-202, Method 101, Condition B
Shock MIL-STD-202, Method 213, Condition I
Vibration MIL-STD-202, Method 204, Condition D
Thermal Shock MIL-STD-202, Method 107, Condition B
Moisture Resistance MIL-STD-202, Method 106, Less Step 7B
Barometric Pressure (Altitude) MIL-STD-202, Method 105, Condition C, 70k Ft.


CE / UKCA Compliant

This products meets the requirements for CE and UKCA.

This information is provided based on reasonable inquiry of our suppliers and represents our current actual knowledge based on the information they provided.

Please contact [email protected] for any Compliance or Environmental related questions.

Last Update: 2/5/2023 1:03:49 AM

Contact Us

How can we help?

*
*
*
*
*
*
*
*
Products specifications
Attribute name Attribute value
RF Series SMA
Gender Jack (Female)
Coupling Threaded
Orientation (Body) Straight
Termination Style Solder
RF Series 2 SMPM
Orientation 2 (Body) Straight
Cable Type 0.085 Flexible Coax
Gender 2 Jack (Female)
Cable Length 24"
Electrical
Frequency 18 GHz
Impedance 50 ohms
Shielding Effectiveness ≥ -90 dB
Dielectric withstanding Voltage 1000 VRMS
Mechanical
Mating Cycles 500
Mating Torque 7 - 10 in - lbs
Inter-mate ability 2.92mm
Environmental
Temperature Rating -65°C to +165°C
Corrosion (salt spray) MIL-STD-202, Method 101, Condition B
Shock MIL-STD-202, Method 213, Condition I
Vibration MIL-STD-202, Method 204, Condition D
Thermal Shock MIL-STD-202, Method 107, Condition B
Moisture Resistance MIL-STD-202, Method 106, Less Step 7B
Barometric Pressure (Altitude) MIL-STD-202, Method 105, Condition C, 70k Ft.
Customers Also Viewed
Part #   7029-2560

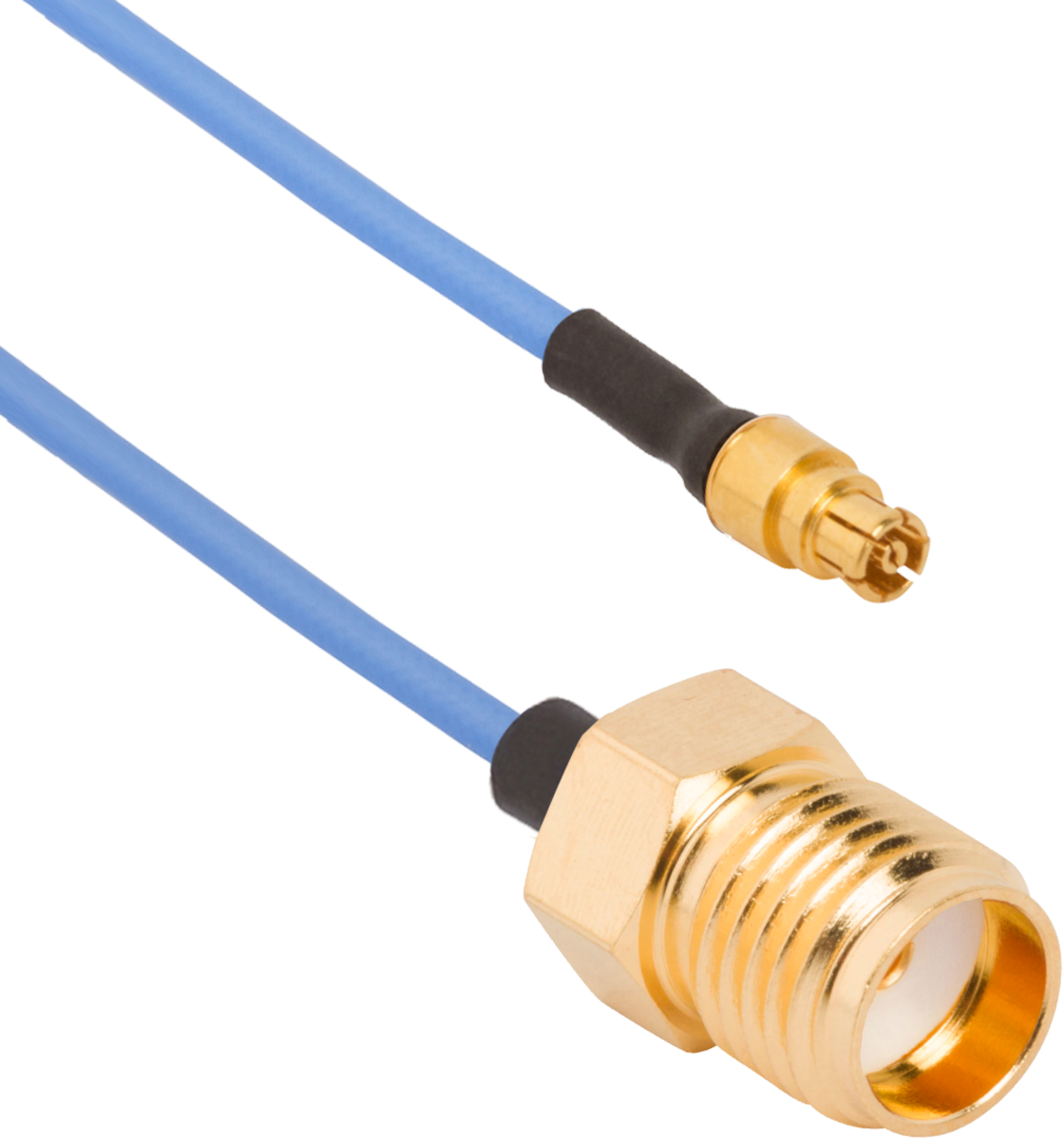

SMA Female to SMPM Female 24" Cable Assembly for .047 Cable

Available Inventory: 0
7029-2560
SMA Cable Assemblies 7029-2560
Datasheet
Part #   7029-2561

SMA Female to SMPM Female 6" Cable Assembly for .085 Cable

Available Inventory: 178
7029-2561
SMA Cable Assemblies 7029-2561
Datasheet
Part #   7029-2562

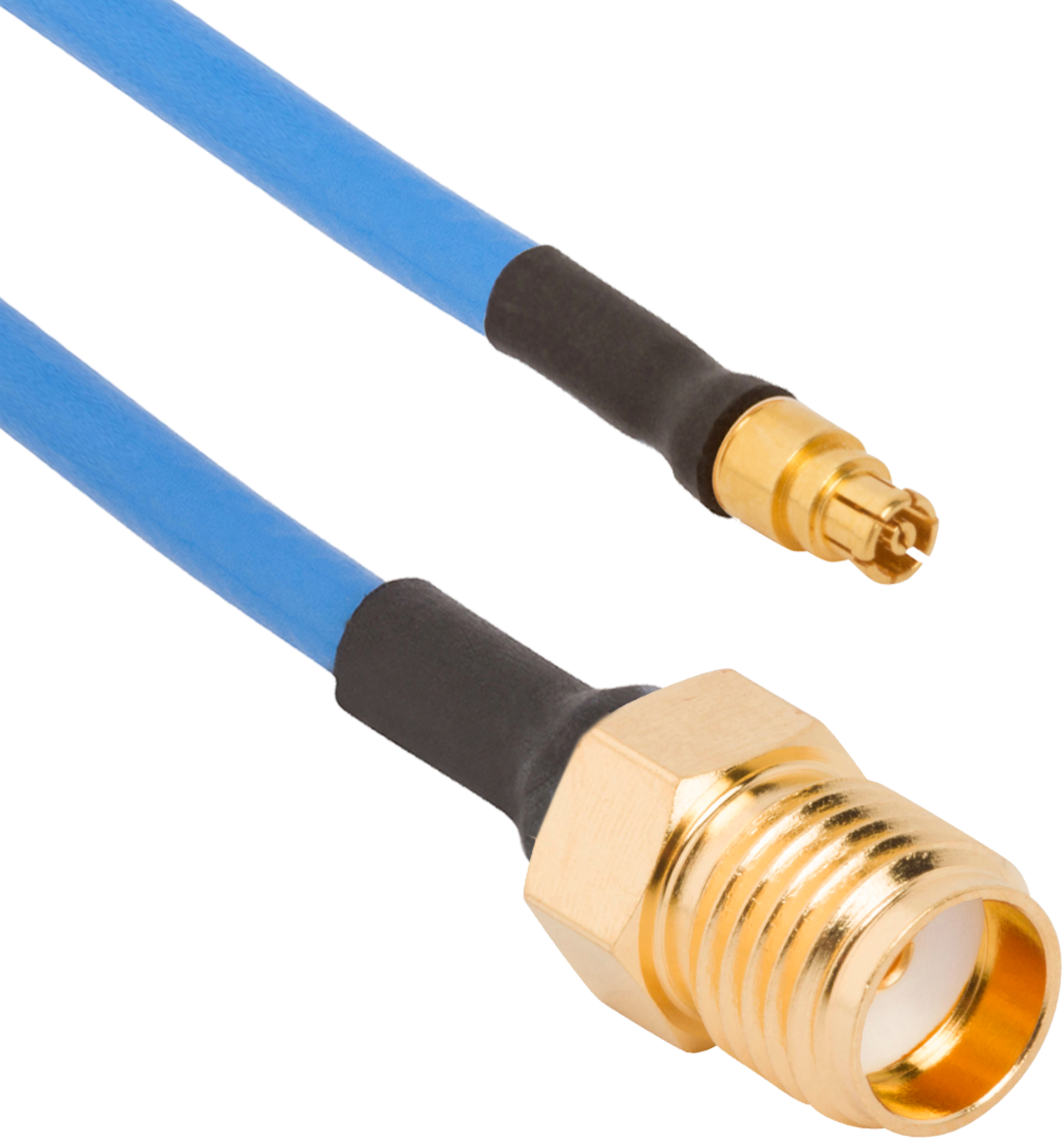

SMA Female to SMPM Female 12" Cable Assembly for .085 Cable
