SMA Female Bulkhead Connector for .085 Cable
P/N: 2946-6012

In stock at Qty Order
Digi-Key Electronics 380
Newark 28
Farnell 28
Mouser Electronics 2
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options
Products specifications
Attribute name Attribute value
RF Series SMA
Gender Jack (Female)
Orientation (Body) Straight
Coupling Threaded
Mounting Type Panel
Body Style Jamnut/Bulkhead
Number of Ports Single
Termination Style Solder
Cable Type 0.085 Flexible Coax, 0.087-LL Flexible Coax
Finish Passivated
Cable Builder Attributes
Cable Builder Left Image 25845
Cable Builder Right Image 25846
Mating Connector 2906-6002, 2911-40023
Electrical
Impedance 50 ohms
Frequency 18 GHz
Dielectric withstanding Voltage 1000 VRMS
Shielding Effectiveness ≥ -90 dB
Mechanical
Mating Torque 7 - 10 in - lbs
Intermateability 2.92mm
Mating Cycles 500
Environmental
Temperature Rating -65°C to +165°C
Corrosion (salt spray) MIL-STD-202, Method 101, Condition B
Vibration MIL-STD-202, Method 204, Condition D
Thermal Shock MIL-STD-202, Method 107, Condition B
Shock MIL-STD-202, Method 213, Condition I
Barometric Pressure (Altitude) MIL-STD-202, Method 105, Condition C, 70k Ft.
Moisture Resistance MIL-STD-202, Method 106, Less Step 7B


EU RoHS Directive 2011/65/EU Yes, w/ Exemption 6C

These products comply with the substance restrictions of the Restriction on Hazardous Substances Directive 2011/65/EU (RoHS2). The RoHS2 Directive requires that certain electrical and electronic equipment products do not contain mercury, cadmium, hexavalent chromium, PBB, PBDE, lead, DEHP, BBP, DBP and DIBP above defined thresholds. Products indicated as compliant with exemption contain one or more of these substances above the prohibition thresholds, but are compliant by claiming one or more valid exemptions.

EU REACH Regulation (EC) No. 1907/2006 SVHC > Threshold

These products contain one or more EU REACH Substances of Very High Concern (SVHC) > 0.1% by weight (1000 ppm). Details related to the SVHC are displayed.

REACH SVHC: LEAD, CAS #: 7439-92-1, PPM: 4000

Use personal protective equipment as required. Do not eat, drink or smoke when using this product. Wash thoroughly after handling. Recycle if possible and dispose of the article by following all applicable governmental regulations relevant to your geographic location.

This information is provided based on reasonable inquiry of our suppliers and represents our current actual knowledge based on the information they provided.

Please contact [email protected] for any Compliance or Environmental related questions.

Last Update: 6/28/2023 1:16:35 AM

Contact Us

How can we help?

*
*
*
*
*
*
*
*
Products specifications
Attribute name Attribute value
RF Series SMA
Gender Jack (Female)
Orientation (Body) Straight
Coupling Threaded
Mounting Type Panel
Body Style Jamnut/Bulkhead
Number of Ports Single
Termination Style Solder
Cable Type 0.085 Flexible Coax, 0.087-LL Flexible Coax
Finish Passivated
Cable Builder Attributes
Cable Builder Left Image 25845
Cable Builder Right Image 25846
Mating Connector 2906-6002, 2911-40023
Electrical
Impedance 50 ohms
Frequency 18 GHz
Dielectric withstanding Voltage 1000 VRMS
Shielding Effectiveness ≥ -90 dB
Mechanical
Mating Torque 7 - 10 in - lbs
Intermateability 2.92mm
Mating Cycles 500
Environmental
Temperature Rating -65°C to +165°C
Corrosion (salt spray) MIL-STD-202, Method 101, Condition B
Vibration MIL-STD-202, Method 204, Condition D
Thermal Shock MIL-STD-202, Method 107, Condition B
Shock MIL-STD-202, Method 213, Condition I
Barometric Pressure (Altitude) MIL-STD-202, Method 105, Condition C, 70k Ft.
Moisture Resistance MIL-STD-202, Method 106, Less Step 7B
Customers Also Viewed
Part #   2942-6045

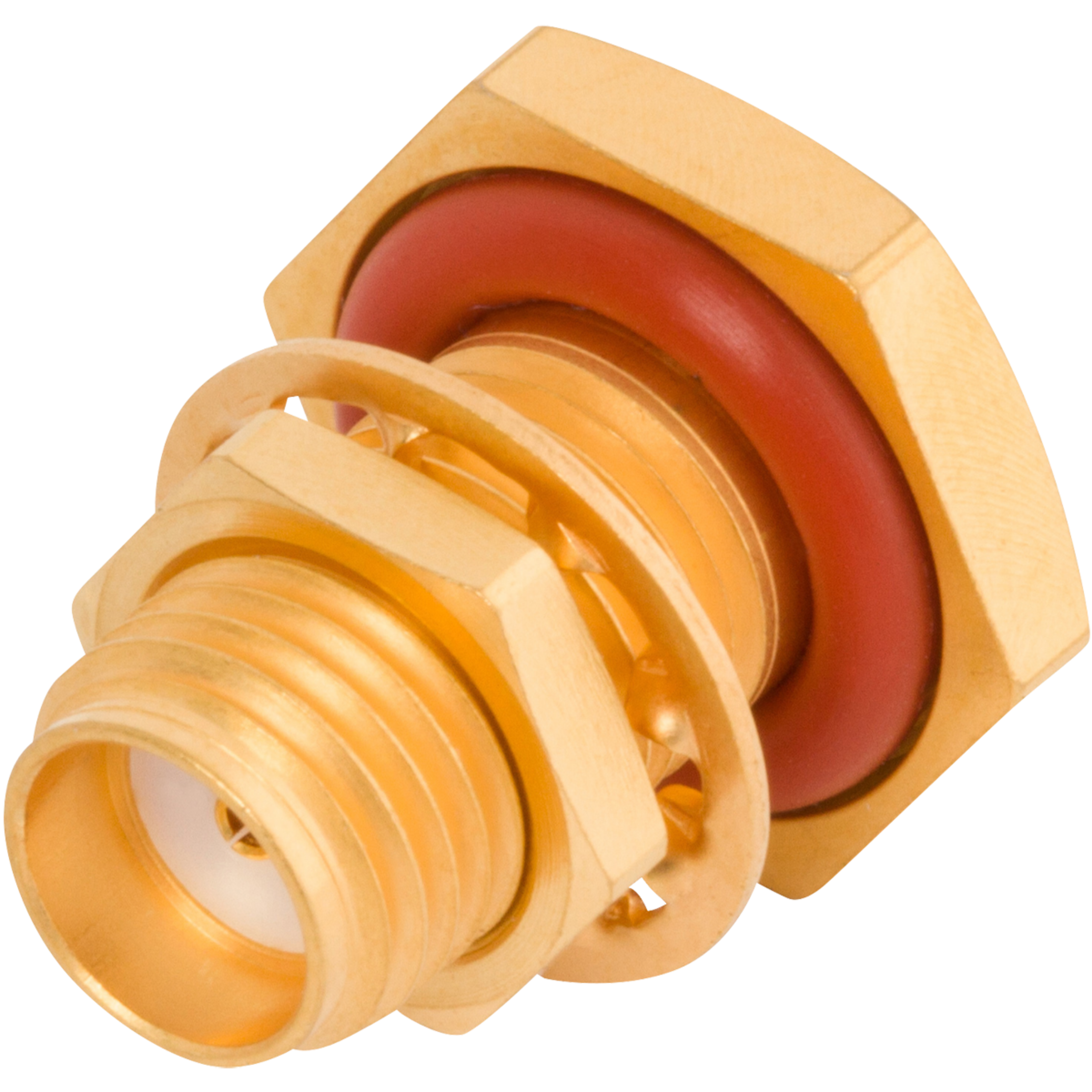

SMA Female Bulkhead Connector for .141 Cable

Available Inventory: 350
2942-6045
SMA Connectors 2942-6045
Datasheet
Part #   2944-6001

SMA Female Bulkhead Connector for .047 Cable

Available Inventory: 407
2944-6001
SMA Connectors 2944-6001
Datasheet
Part #   2990-6002

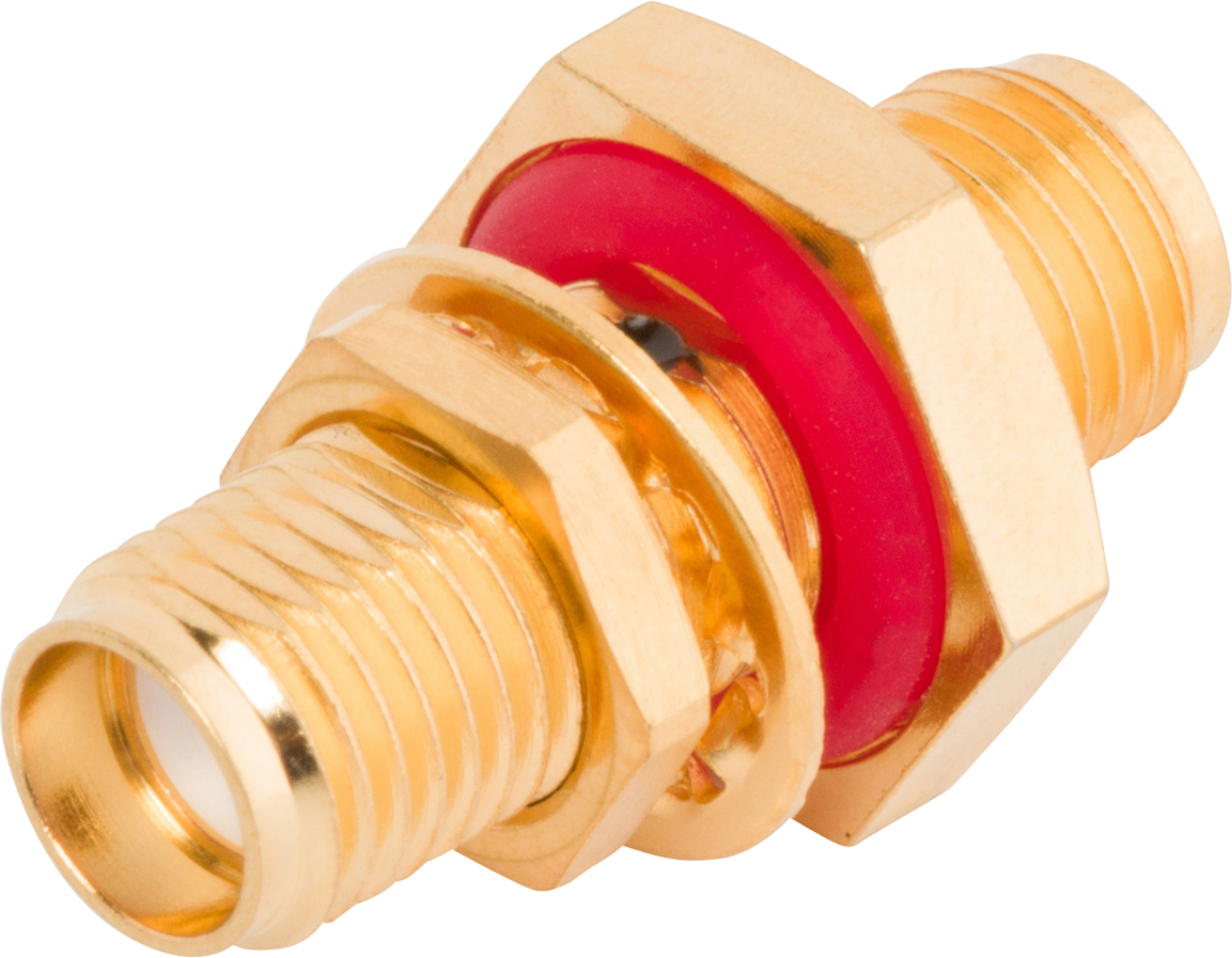

SMA Female to Female Bulkhead Adapter
