Panel-Mounted Cable Assemblies

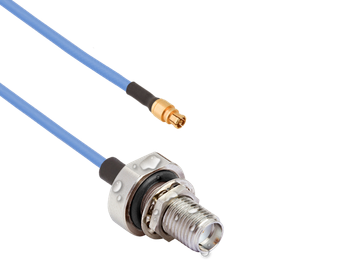

SV Microwave's new IP68-rated panel-mounted cable assemblies provide a rugged, high-performance solution for routing RF signals from an external, sealed interface to a high-density internal connection. Designed with an IP68-rated SMA female bulkhead on one end, these assemblies provide an environmental seal against dust and water ingress at the panel.

The other end is terminated to a high-frequency SMPM push-on connector, available in both straight and right-angle configurations, allowing for dense packaging and flexible routing inside-the-box. Offered in multiple lengths on either flexible .047” or low-loss .085” cable, these assemblies are engineered for reliability in the most demanding environments.

Features / Benefits & Applications
Technical Specs
Additional Resources

Features & Benefits

IP68-rated seal at the bulkhead
Terminated with high-density, push-on SMPM connectors
Right-angle orientation inside-the-box allows for tight routing without kinking the cable
6” and 12” standard lengths on .047” and .085” cable types
DC to 18.0 GHz

Applications

Mil-Aero
Radio Transceivers and Base Stations
Unmanned Aerial Vehicles (UAVs)
Drones
Military & Aerospace Embedded Systems
Any application requiring a rugged, sealed I/O connection

The specifications below are typical for the connector series, but may not apply to this particular part. Please see the datasheet for full specifications.

SMA

Impedance (Ω)	50
Frequency GHz	18 GHz (select models to 26.5 GHz)
Shielding Effectiveness	≥ -90 dB
Dielectric withstanding Voltage	1000 VRMS
Mating Cycles	500
Mating Torque	7 - 10 in - lbs
Inter-mate ability	2.92mm
Temperature Rating	-65°C to +165°C
Corrosion (salt spray)	MIL-STD-202, Method 101, Condition B
Vibration	MIL-STD-202, Method 204, Condition D
Shock	MIL-STD-202, Method 213, Condition I
Thermal Shock	MIL-STD-202, Method 107, Condition B
Moisture Resistance	MIL-STD-202, Method 106, Less Step 7B
Barometric Pressure (Altitude)	MIL-STD-202, Method 105, Condition C, 70k Ft.

SMPM

Impedance (Ω)	50
Frequency GHz	65 GHz
Shielding Effectiveness	≥ -80 dB DC - 3 GHz ≥ -65 dB 3 - 26.5 GHz
Dielectric withstanding Voltage	325 VRMS
Mating Cycles - SB	500
Mating Cycles - FD	100
Insertion Force - SB	2.5 lbs
Insertion Force - FD	4.5 lbs
Withdrawal Force - SB	1.5 lbs
Withdrawal Force - FD	6.5 lbs
Axial Misalignment	.010” Max
Radial Misalignment	3° Max
Temperature Rating	-65°C to +165°C
Corrosion (salt spray)	MIL-STD-202, Method 101, Condition B
Vibration	MIL-STD-202, Method 204, Condition D
Shock	MIL-STD-202, Method 213, Condition I
Thermal Shock	MIL-STD-202, Method 107, Condition B
Moisture Resistance	MIL-STD-202, Method 106, Less Step 7B
Barometric Pressure (Altitude)	MIL-STD-202, Method 105, Condition C, 70k Ft.
